Page 449 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual AV-52
TELEPHONE
Revision: June 20062007 Versa
Wiring Diagram — H/PHON —EKS00I9G
WKWA4987E

Page 450 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual TELEPHONE
AV-53
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: June 20062007 Versa
WKWA4988E

Page 451 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual AV-54
TELEPHONE
Revision: June 20062007 Versa
Bluetooth Control Unit Harness Connector Terminal LayoutEKS00I9H
Terminals and Reference Value for Bluetooth Control UnitEKS00I9I
LKIA0753E
Te r m i n a l

Page 452 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual TELEPHONE
AV-55
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: June 20062007 Versa
15 (G) GroundBluetooth
ON indica-
tor LEDOutput –Bluetooth control
unit initialized
and paired with
phoneBattery voltageBl

Page 453 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual AV-56
TELEPHONE
Revision: June 20062007 Versa
Bluetooth Control Unit Self-Diagnosis FunctionEKS00I9J
The Bluetooth control unit has two diagnostic checks. The first diagnostic check is performed autom

AV-56
TELEPHONE
Revision: June 20062007 Versa
Bluetooth Control Unit Self-Diagnosis FunctionEKS00I9J
The Bluetooth control unit has two diagnostic checks. The first diagnostic check is performed automatically
every ignition cycle during control unit initialization. The second diagnostic check is performed by the techni-
cian using the steering wheel audio control switches prior to trouble diagnosis.
BLUETOOTH CONTROL UNIT INITIALIZATION CHECKS
Internal control unit failure
Bluetooth antenna connection open or shorted
Steering wheel audio control switches (SEND/END) stuck closed
Vehicle speed pulse count
Bluetooth Microphone connection test (with playback to operator)
Bluetooth inquiry check
SELF-DIAGNOSIS MODE
1. Turn ignition switch to ACC or ON.
2. Wait for the Bluetooth system to complete initialization and the Bluetooth ON indicator to stop flashing.
This may take up to 10 seconds.
3. Press and hold the steering wheel audio control switch SEND
button for at least 5 seconds. The Bluetooth system will begin to
play a verbal prompt.
4. While the prompt is playing, momentarily press both the steering
wheel audio control switches SEND and END buttons simulta-
neously. The Bluetooth system will sound a 5 second beep.
5. While the beep is sounding, momentarily press both the steering
wheel audio control switches SEND and END buttons simulta-
neously again.
6. The Bluetooth system has now entered into the diagnostic
mode. Results of the diagnostic checks will be verbalized to the
technician and the Bluetooth ON indicator will flash. Refer to AV-
57, "Workflow" .
7. If there are no failure records to report, the speed pulse count
will be reported next.
8. After the speed pulse count is reported, an interactive Bluetooth microphone test will be performed. Fol-
low the voice prompt. If the Bluetooth microphone test fails refer to AV- 5 7 , "
Workflow" .
9. Self-diagnosis mode is complete when the voice prompt says "All diagnostic functions completed". A short
beep is heard.
WKIA5431E
WKIA5432E

Page 454 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual TELEPHONE
AV-57
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: June 20062007 Versa

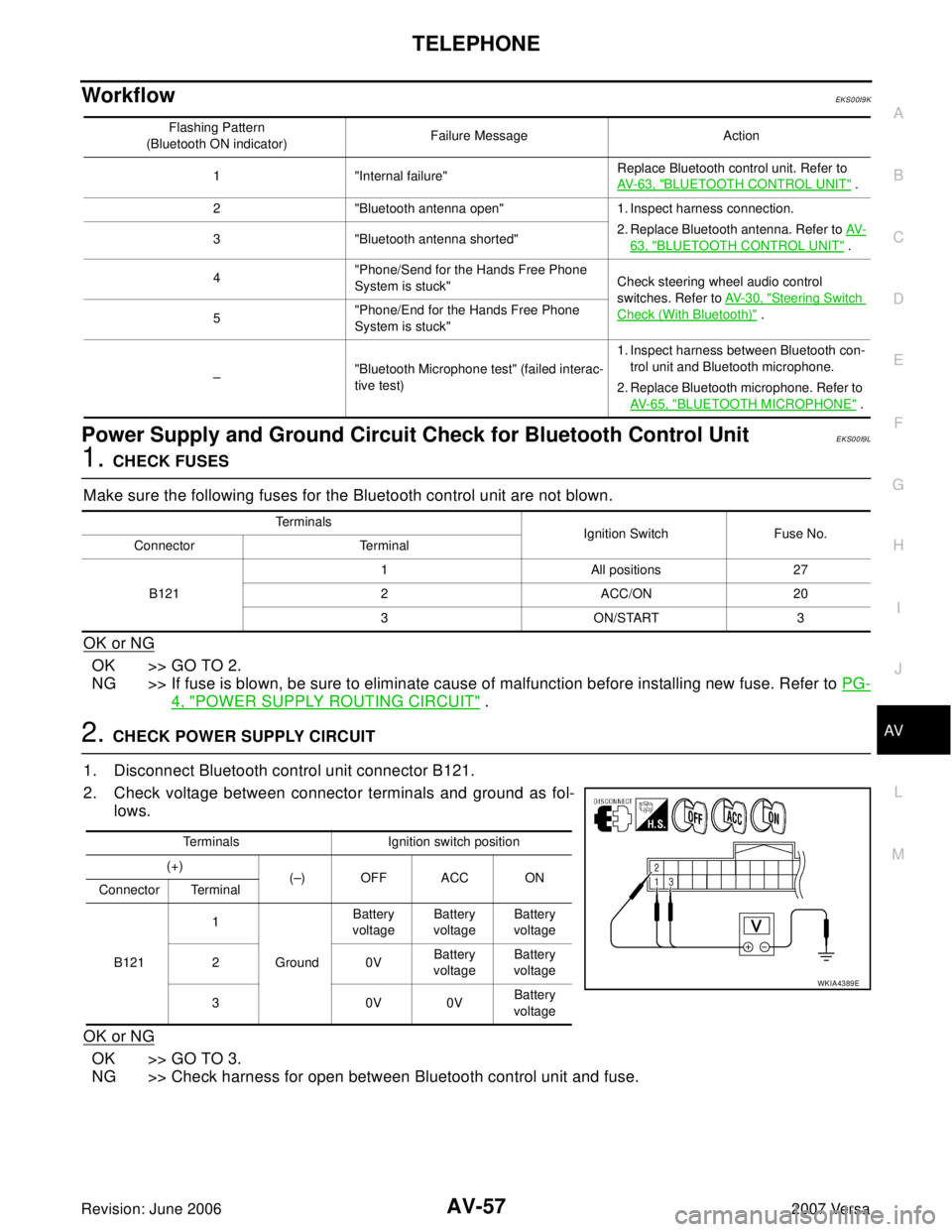

WorkflowEKS00I9K
Power Supply and Ground Circuit Check for Bluetooth Control UnitEKS00I9L
1. CHECK FUSES
Make sure the following

Page 455 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual AV-58
TELEPHONE
Revision: June 20062007 Versa
3. CHECK GROUND CIRCUITS
1. Turn ignition switch OFF.
2. Check continuity between the following Bluetooth control unit
terminals and ground.
OK or NG
OK >

Page 456 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual TELEPHONE
AV-59
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: June 20062007 Versa

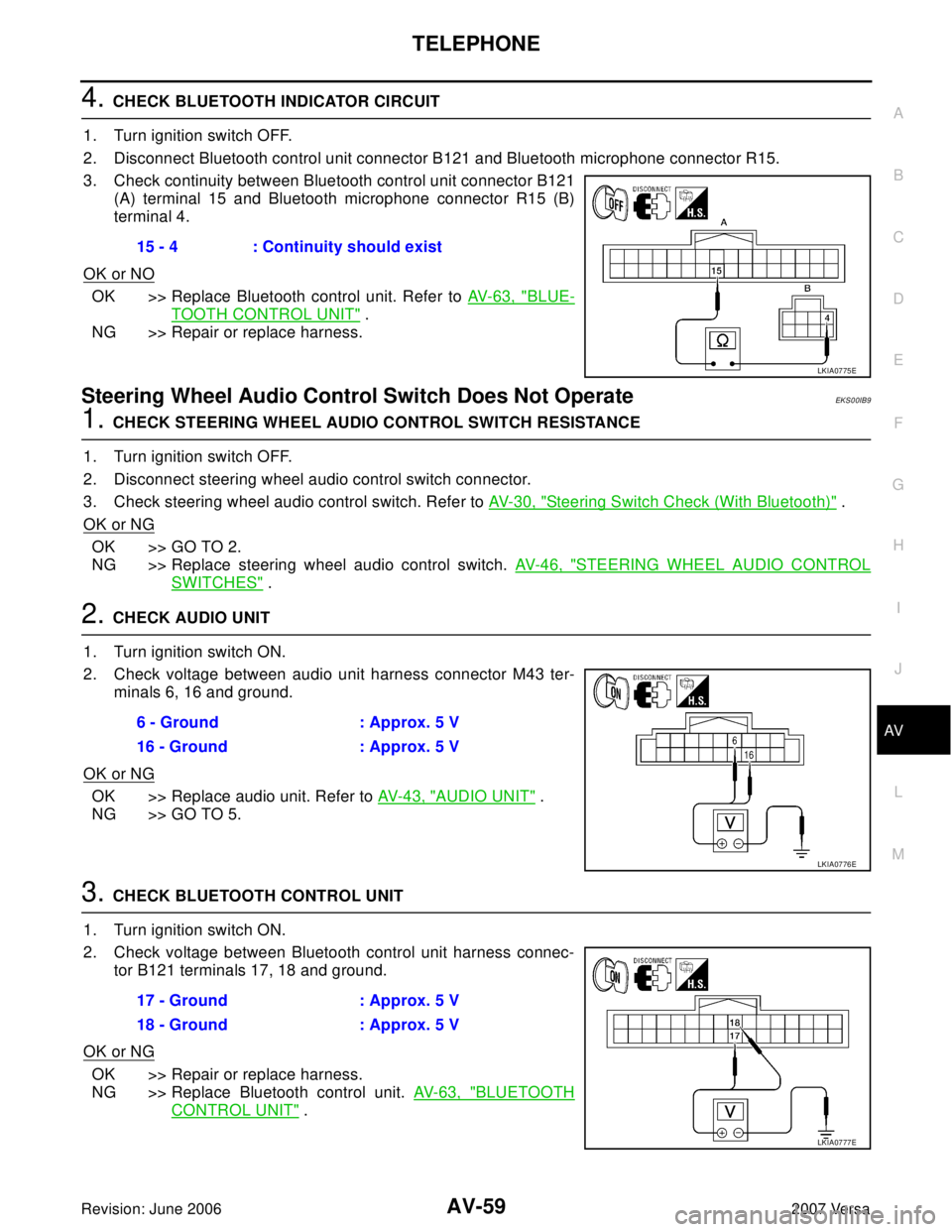

4. CHECK BLUETOOTH INDICATOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect Bluetooth control unit connector B121 and Blueto
