Page 2305 of 2896

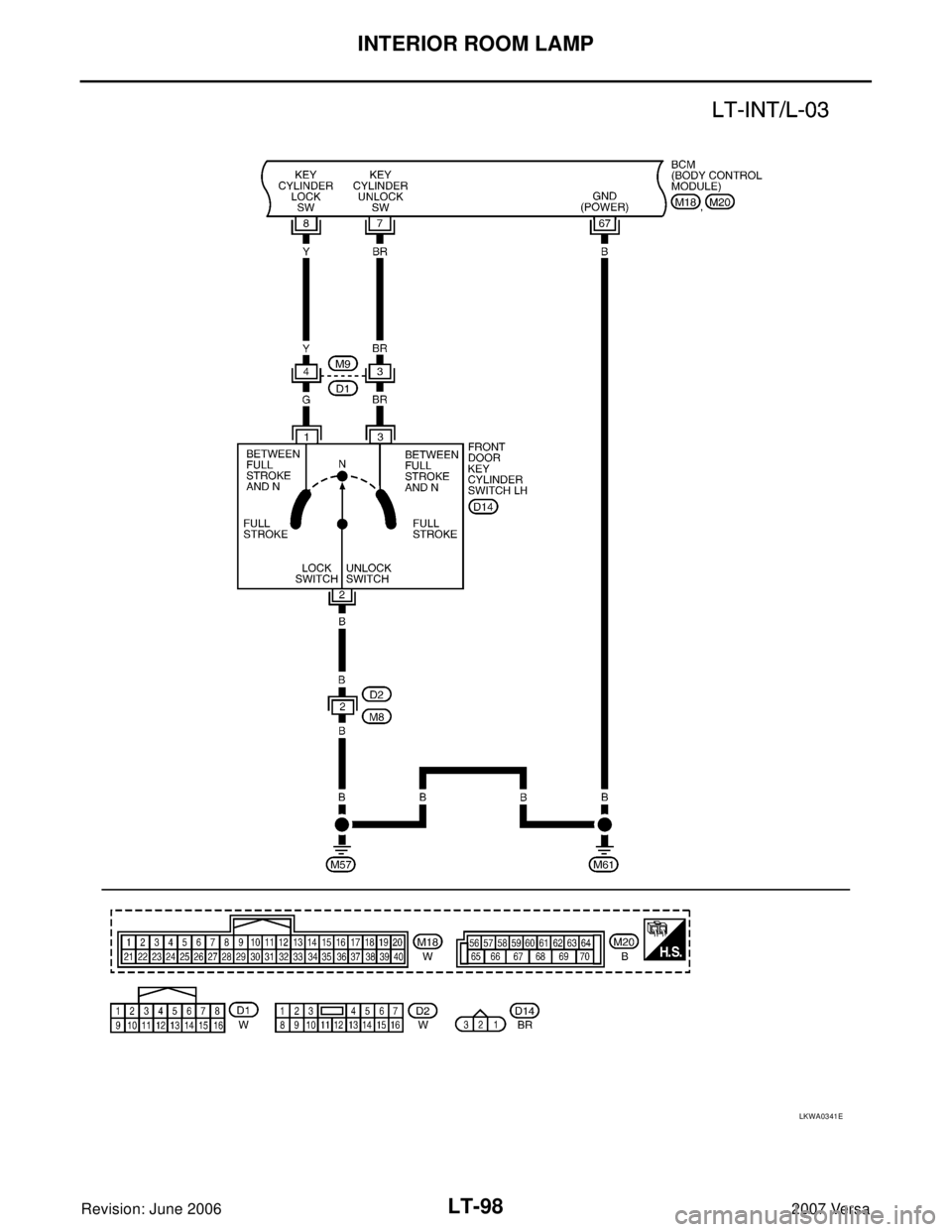

NISSAN VERSA 2006 Workshop Service Repair Manual INTERIOR ROOM LAMP
LT-97
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
LKWA0340E

Page 2306 of 2896

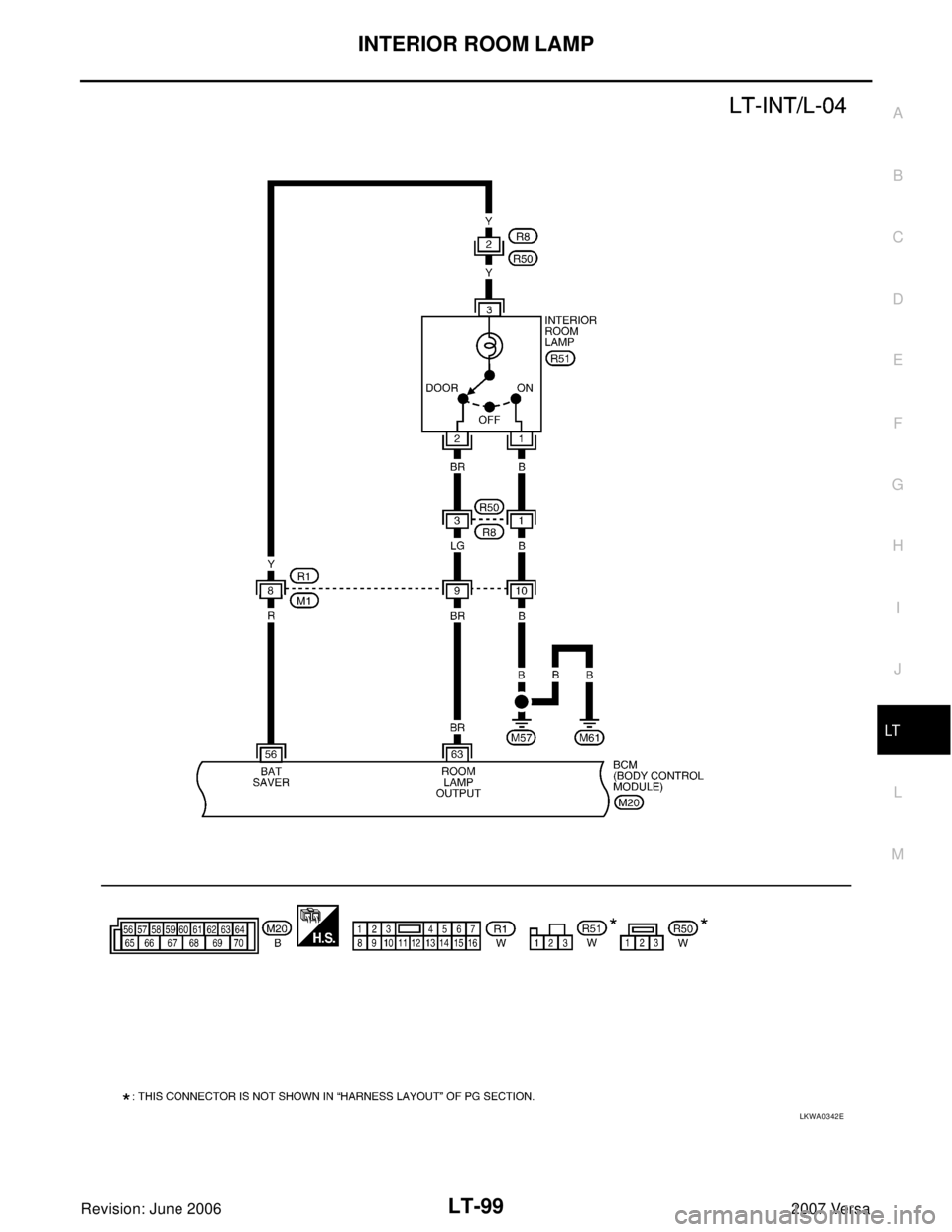

NISSAN VERSA 2006 Workshop Service Repair Manual LT-98
INTERIOR ROOM LAMP
Revision: June 20062007 Versa
LKWA0341E

Page 2307 of 2896

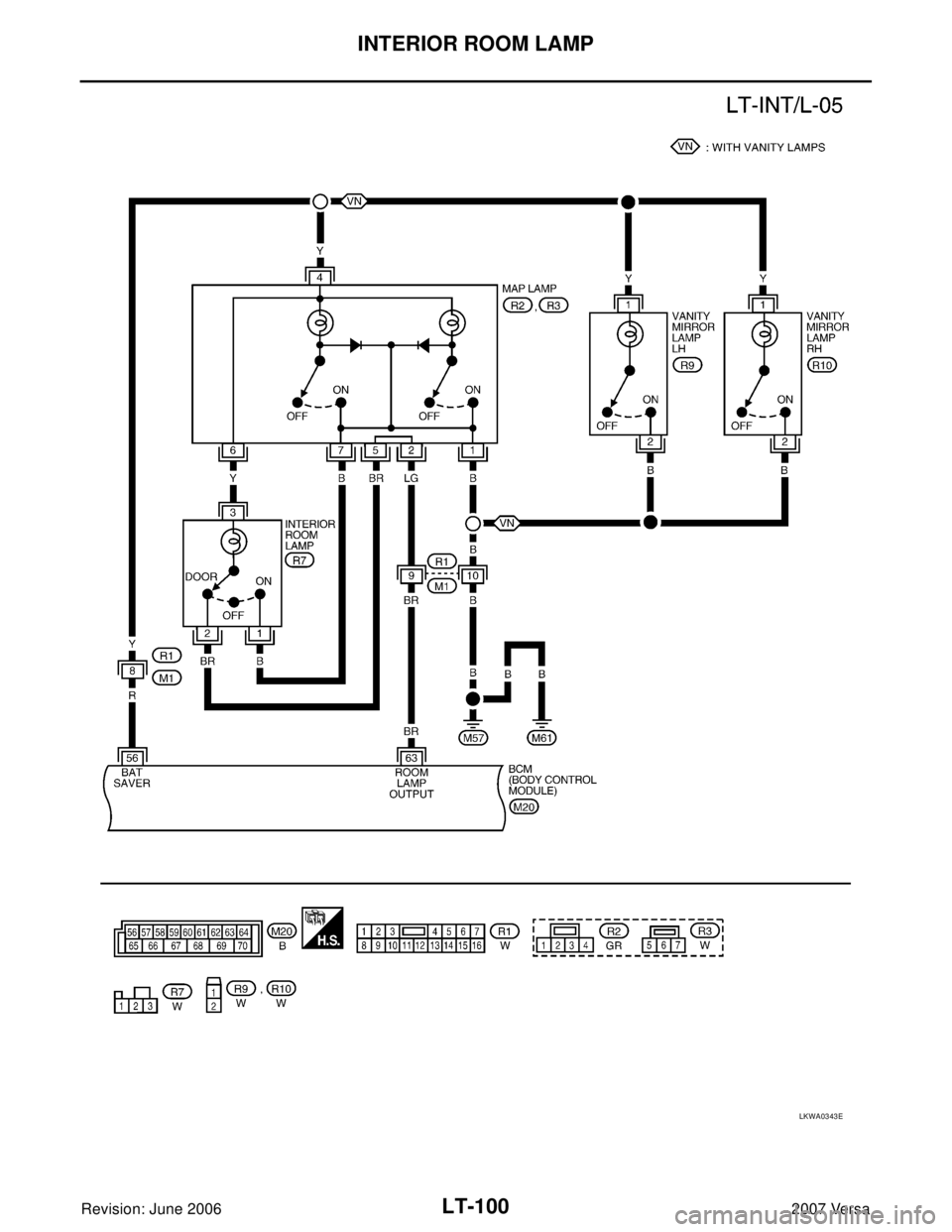

NISSAN VERSA 2006 Workshop Service Repair Manual INTERIOR ROOM LAMP
LT-99
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
LKWA0342E

Page 2308 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual LT-100
INTERIOR ROOM LAMP
Revision: June 20062007 Versa
LKWA0343E

Page 2309 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual INTERIOR ROOM LAMP
LT-101
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
Terminals and Reference Values for BCMEKS00HZN
Refer to BCS-12, "Terminals and Reference Values for BCM" .
How to Pr

INTERIOR ROOM LAMP
LT-101
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
Terminals and Reference Values for BCMEKS00HZN
Refer to BCS-12, "Terminals and Reference Values for BCM" .
How to Proceed With Trouble DiagnosisEKS00HZO
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT- 9 1 , "
System Description" .
3. Perform the preliminary check. Refer to LT-101, "
Preliminary Check" .
4. Check symptom and repair or replace the component.
5. Does the interior room lamp operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. Inspection End
Preliminary CheckEKS00HZP
CHECK POWER SUPPLY AND GROUND CIRCUIT FOR BCM
Refer to BCS-16, "BCM Power Supply and Ground Circuit Check" .
CONSULT-II Function (BCM)EKS00HZQ
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II START PROCEDURE
Refer to BCS-17, "CONSULT-II START PROCEDURE" .
WORK SUPPORT
Display Item List
Reference between “MODE” and “TIME” for “TURN ON/OFF”
DATA MONITOR
Display Item List
BCM diagnostic
test itemDiagnostic mode Description
Inspection by partWORK SUPPORTSupports inspections and adjustments. Commands are transmitted to the BCM
for setting the status suitable for required operation, input/output signals are
received from the BCM and received data is displayed.
DATA MONITOR Displays BCM input/output data in real time.
ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read.
ECU PART NUMBER BCM part number can be read.
CONFIGURATION Performs BCM configuration read/write functions.
Item Description CONSULT-II
SET I/L D−UNLCK INTCONThe 30 second operating function of the interior room lamps can be selected
when the front door LH is released (unlocked). ON/OFF
ROOM LAMP ON TIME SETThe time in order to escalate illumination can be adjusted when interior room
lamps are turned on.MODE 1 – 7
ROOM LAMP OFF TIME SETThe time in order to diminish illumination can be adjusted when interior room
lamps are turned off.MODE 1 – 7
MODE12345 6 7
Time (sec.) 0.5 1 2 3 4 5 0
Monitor item Contents
IGN ON SW “ON/OFF”Displays “IGN position (ON)/OFF, ACC position (OFF)” judged from ignition switch sig-
nal.
KEY ON SW “ON/OFF” Displays “Key inserted (ON)/key removed (OFF)” status judged from key switch signal.

Page 2310 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual LT-102
INTERIOR ROOM LAMP
Revision: June 20062007 Versa
NOTE:
Vehicles without intelligent key system display this item, but cannot be monitored.
ACTIVE TEST
Display Item List
WORK SUPPORT
Display Ite

LT-102
INTERIOR ROOM LAMP
Revision: June 20062007 Versa
NOTE:
Vehicles without intelligent key system display this item, but cannot be monitored.
ACTIVE TEST
Display Item List
WORK SUPPORT
Display Item List
DATA MONITOR
Display Item List
DOOR SW - DR “ON/OFF”Displays status of front door LH as judged from front door switch LH signal. (Door is
open: ON/Door is closed: OFF)
DOOR SW - AS “ON/OFF”Displays “Door open (ON)/Door closed (OFF)” status, determined from front door switch
RH signal.
DOOR SW - RR “ON/OFF”Displays “Door open (ON)/Door closed (OFF)” status, determined from rear door switch
RH signal.
DOOR SW - RL “ON/OFF”Displays “Door open (ON)/Door closed (OFF) ” status, determined from rear door switch
LH signal.
LOCK STATUS “ON/OFF”Display status (door is locked: ON/door is unlocked: OFF) of front door lock actuator LH
(unlock sensor) judged from the front door lock actuator LH (unlock sensor) signal.
CDL LOCK SW “ON/OFF”Displays “Door locked (ON)/Door unlocked (OFF) status, determined from locking
detection switch in the front door LH.
CDL UNLOCK SW “ON/OFF”Displays “Door unlocked (OFF)” status, determined from locking detection switch in
front door RH.
I− KEY LOCK
NOTE“ON/OFF” Displays “Locked (ON)/Other (OFF)” status, determined from lock signal.
I− KEY UNLOCK
NOTE“ON/OFF” Displays “Unlocked (ON)/Other (OFF)” status, determined from unlock signal. Monitor item Contents
Test item Description
INT LAMP Interior room lamp can be operated by any ON-OFF operations.
Item Description CONSULT-II
ROOM LAMP TIMER SET Interior room lamp battery saver timer setting can be changed.MODE 1: 30 min.
MODE 2: 60 min.
ROOM LAMP BAT SAV SETInterior room lamp battery saver control mode can be changed in this mode.
Select interior room lamp battery saver control mode between ON and OFF.ON/OFF
Monitor item Contents
IGN ON SW “ON/OFF”Displays “IGN position (ON)/OFF, ACC position (OFF)” judged from ignition switch sig-
nal.
KEY ON SW “ON/OFF” Displays “Key inserted (ON)/key removed (OFF)” status judged from key switch signal.
DOOR SW - DR “ON/OFF”Displays status of front door LH as judged from front door switch LH signal. (Door is
open: ON/Door is closed: OFF)
DOOR SW - AS “ON/OFF”Displays “Door open (ON)/Door closed (OFF)” status, determined from front door switch
RH signal.
DOOR SW - RR “ON/OFF”Displays “Door open (ON)/Door closed (OFF)” status, determined from rear door switch
RH signal.
DOOR SW - RL “ON/OFF”Displays “Door open (ON)/Door closed (OFF) ” status, determined from rear door switch
LH signal.
LOCK STATUS “ON/OFF”Display status (door is locked: ON/door is unlocked: OFF) of front door lock actuator LH
(unlock sensor) judged from the front door lock actuator LH (unlock sensor) signal.
CDL LOCK SW “ON/OFF”Displays “Door locked (ON)/Door unlocked (OFF) status, determined from locking
detection switch in front door LH.
CDL UNLOCK SW “ON/OFF”Displays “Door unlocked (OFF)” status, determined from locking detection switch in pas-
senger’s door.

Page 2311 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual INTERIOR ROOM LAMP
LT-103
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
NOTE:
Vehicles without Intelligent Key system display this item, but cannot be monitored.
Interior Room Lamp Control D

Page 2312 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual LT-104
INTERIOR ROOM LAMP
Revision: June 20062007 Versa
4. CHECK MAP LAMP INPUT CIRCUIT
1. Map lamp switch is in OFF position.
2. Check voltage between map lamp harness connector R2 termi-
nal 4 and g
