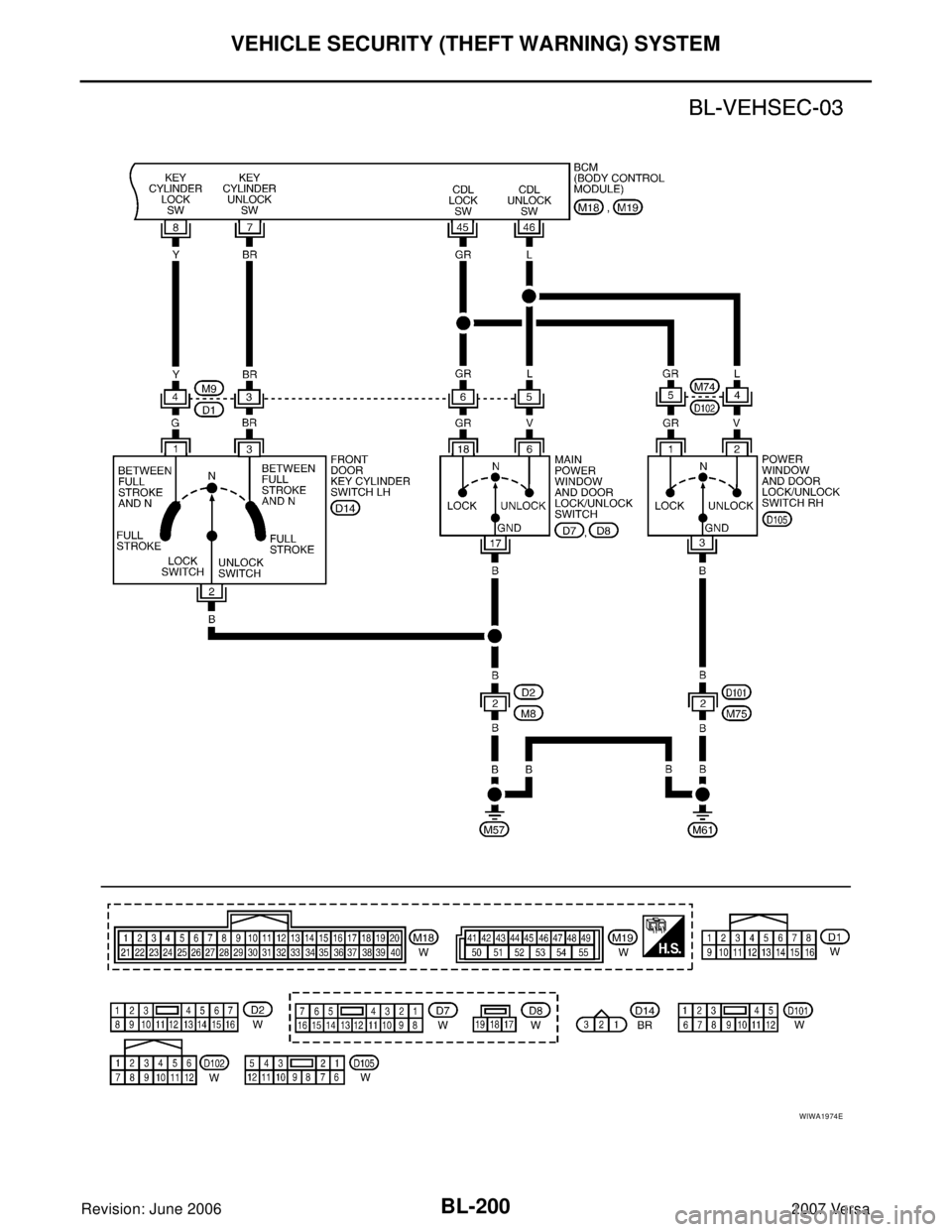

Page 689 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual BL-200
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: June 20062007 Versa
WIWA1974E

Page 690 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-201
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
LIWA0555E

Page 691 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual BL-202
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: June 20062007 Versa
Terminals and Reference Values for BCMEIS00A3H
Refer to BCS-12, "Terminals and Reference Values for BCM" .
Terminals and Re

BL-202
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: June 20062007 Versa
Terminals and Reference Values for BCMEIS00A3H
Refer to BCS-12, "Terminals and Reference Values for BCM" .
Terminals and Reference Values for Intelligent Key UnitEIS009E2
Refer to BL-106, "Terminals and Reference Values for Intelligent Key Unit" .
CONSULT-II Function (BCM)EIS009B2
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II START PROCEDURE
Refer to GI-38, "CONSULT-II Start Procedure" .
CONSULT-II APPLICATION ITEM
Work Support
Data Monitor
BCM
diagnostic test itemDiagnostic mode Description
Inspection by partWORK SUPPORTSupports inspections and adjustments. Commands are transmitted to the
BCM for setting the status suitable for required operation, input/output sig-
nals are received from the BCM and received date is displayed.
DATA MONITOR Displays BCM input/output data in real time.
ACTIVE TESTOperation of electrical loads can be checked by sending drive signal to
them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTRThe result of transmit/receive diagnosis of CAN communication can be
read.
ECU PART NUMBER BCM part number can be read.
CONFIGURATION Performs BCM configuration read/write functions.
Test Item Description
SECURITY ALARM SET This mode can confirm and change security alarm ON-OFF setting.
THEFT ALM TRGThe switch which triggered vehicle security alarm is recorded. This mode is able to confirm and
erase the record of vehicle security alarm. The trigger data can be erased by touching “CLEAR”
on CONSULT-II screen.
Monitored Item Description
IGN ON SW Indicates [ON/OFF] condition of ignition switch.
ACC ON SW Indicates [ON/OFF] condition of ignition switch in ACC position.
I-KEY LOCK Indicates [ON/OFF] condition of lock signal from keyfob.
I-KEY UNLOCK Indicates [ON/OFF] condition of unlock signal from keyfob.
I-KEY TRUNK Indicates [ON/OFF] condition of trunk open signal from keyfob.
TRNK OPNR SW Indicates [ON/OFF] condition of trunk opener switch.
TRUNK CYL SW Indicates [ON/OFF] condition of trunk key cylinder switch.
TRNK OPN MNTR Indicates [ON/OFF] condition of trunk lid status.
DOOR SW-DR Indicates [ON/OFF] condition of front door switch LH.
DOOR SW-AS Indicates [ON/OFF] condition of front door switch RH.
DOOR SW-RR Indicates [ON/OFF] condition of rear door switch RH.
DOOR SW-RL Indicates [ON/OFF] condition of rear door switch LH.
BACK DOOR SW Indicates [ON/OFF] condition of back door switch.
KEY CYL LK SW Indicates [ON/OFF] condition of lock signal from key cylinder switch.
KEY CYL UN SW Indicates [ON/OFF] condition of unlock signal from key cylinder switch.

Page 692 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-203
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
Active Test
CDL LOCK SW Indicates [ON/OFF] condition of lock signal from door lock/unlock switch

Page 693 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual BL-204
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: June 20062007 Versa
Trouble DiagnosisEIS009B3
WORK FLOW
For “POWER DOOR LOCK SYSTEM” diagnosis, refer to BL-23, "POWER DOOR LOCK SYSTEM" .

Page 694 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-205
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa

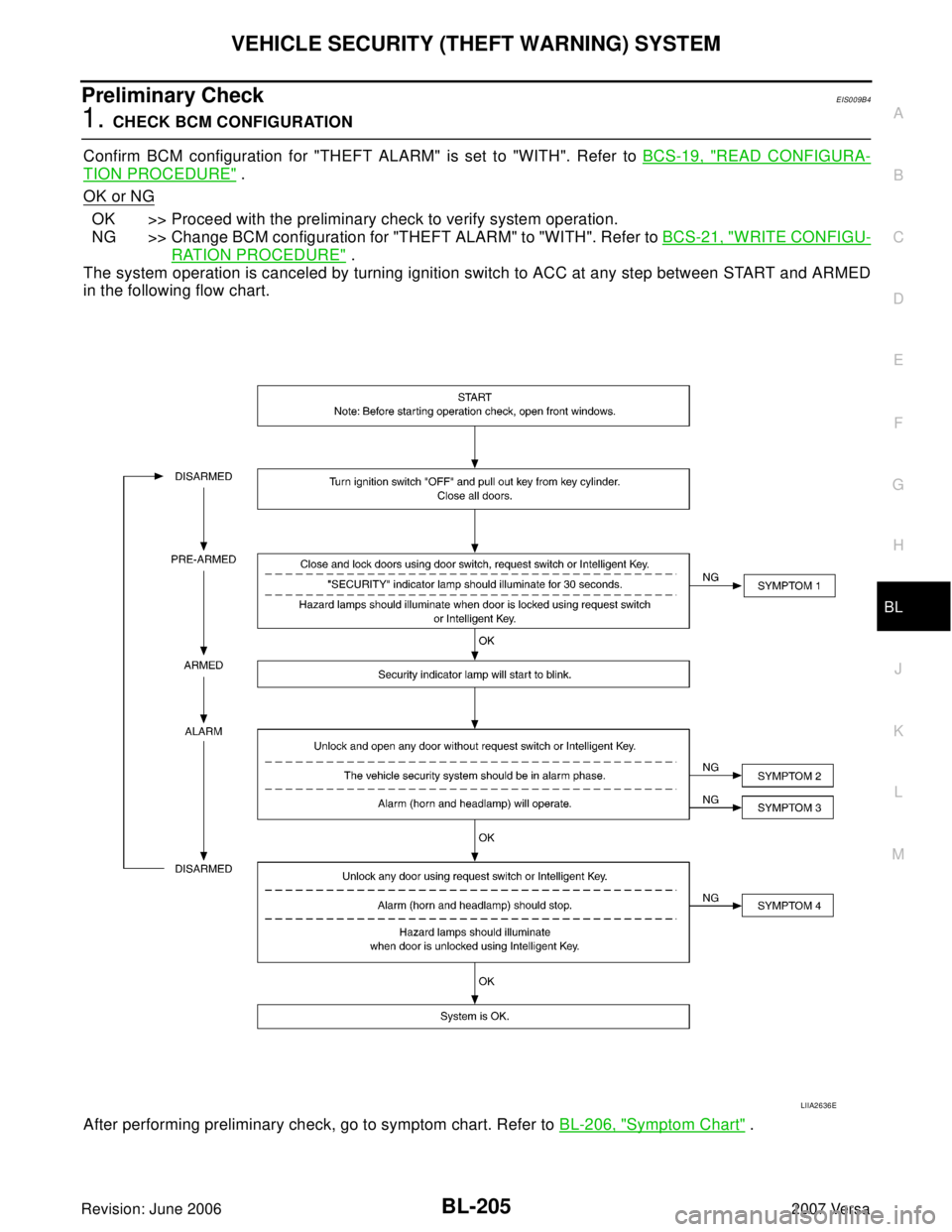

Preliminary CheckEIS009B4
1. CHECK BCM CONFIGURATION
Confirm BCM configuration for "THEFT ALARM"

Page 695 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual BL-206
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: June 20062007 Versa
Symptom ChartEIS009B5
*1 : Make sure the system is in the armed phase.SYMPTOM PROCEDURE Diagnostic procedure
1Vehicle secur

BL-206
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: June 20062007 Versa
Symptom ChartEIS009B5
*1 : Make sure the system is in the armed phase.SYMPTOM PROCEDURE Diagnostic procedure
1Vehicle security
system cannot be
set by ····AII itemsDiagnostic Procedure 1 (Door switch check)
Refer to BL-207, "
Diagnostic Procedure 1" .
If the above systems are “OK”, replace BCM. Refer to BCS-25, "
Removal
and Installation of BCM" .
Lock/unlock switchDiagnostic Procedure 6 (Door lock/unlock switch check)
Refer to BL-211, "
Diagnostic Procedure 6" .
If the above systems are “OK”, check main power window and door lock/
unlock switch. Refer to GW-17, "
POWER WINDOW SYSTEM" .
Door outside key (driver)Diagnostic Procedure 3 (Door key cylinder switch check)
Refer to BL-211, "
Diagnostic Procedure 3" .
If the above systems are “OK”, check main power window and door lock/
unlock switch. Refer to GW-17, "
POWER WINDOW SYSTEM" .
Intelligent keyCheck Intelligent Key entry function. Refer to BL-82, "
System Description"
If the above systems are “OK”, replace BCM. Refer to BCS-25, "Removal
and Installation of BCM" .
Keyfob (without Intelligent Key)Check remote keyless entry function. Refer to BL-61, "
Preliminary Check"
.
If the above systems are “OK”, replace BCM. Refer to BCS-25, "
Removal
and Installation of BCM" .
2Security indicator
does not turn
“ON”.Security indicator lampDiagnostic Procedure 2 (Security indicator lamp check)
Refer to BL-210, "
Diagnostic Procedure 2" .
If the above systems are “OK”, replace BCM. Refer to BCS-25, "
Removal
and Installation of BCM" .
3*1 Vehicle secu-
rity system does
not alarm when
····Any door is opened.Diagnostic Procedure 1 (Door switch check)
Refer to BL-207, "
Diagnostic Procedure 1" .
If the above systems are “OK”, replace BCM. Refer to BCS-25, "
Removal
and Installation of BCM" .
4Vehicle security
alarm does not
activate.Horn alarmDiagnostic Procedure 4 (Vehicle security horn alarm check).
Refer to BL-211, "
Diagnostic Procedure 4" .
If the above systems are “OK”, check horn system.
Refer to WW-46, "
HORN" .
Head lamp alarmDiagnostic Procedure 5 (Head lamp alarm check).
Refer to BL-211, "
Diagnostic Procedure 5" .
If the above systems are “OK”, replace BCM. Refer to BCS-25, "
Removal
and Installation of BCM" .
5Vehicle security
system cannot be
canceled by ····Door outside key (driver)Diagnostic Procedure 3 (Door key cylinder switch check).
Refer to BL-211, "
Diagnostic Procedure 3" .
If the above systems are “OK”, check main power window and door lock/
unlock switch. Refer to GW-17, "
POWER WINDOW SYSTEM" .
Intelligent keyCheck Intelligent Key entry function. Refer to BL-82, "
System Description"
If the above systems are “OK”, replace BCM. Refer to BCS-25, "Removal
and Installation of BCM" .
Keyfob (without Intelligent Key)Check remote keyless entry function. Refer to BL-61, "
Preliminary Check"
.
If the above systems are “OK”, replace BCM. Refer to BCS-25, "
Removal
and Installation of BCM" .

Page 696 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-207
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
Diagnostic Procedure 1EIS009B6
1-1 DOOR SWITCH CHECK
1. CHECK DOOR SWITCHES INPUT SIGNAL
With CO
