NISSAN VERSA 2006 Workshop Service Repair Manual EC-280Revision: June 2006
DTC P0171 FUEL INJECTION SYSTEM FUNCTION
2007 Versa
Diagnostic ProcedureUBS00QG8
1. CHECK EXHAUST GAS LEAK
1. Start engine and run it at idle.
2. Listen for an exhaust gas le

Page 1450 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual DTC P0171 FUEL INJECTION SYSTEM FUNCTION
EC-281
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
4. CHECK FUEL PRESSURE
1. Release fuel pressure to zero. Refer to EC-81, "
FUEL PRESSURE RELEASE

Page 1451 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual EC-282Revision: June 2006
DTC P0171 FUEL INJECTION SYSTEM FUNCTION
2007 Versa
7. CHECK FUNCTION OF FUEL INJECTORS
With CONSULT-II
1. Let engine idle.
2. Perform “POWER BALANCE” in “ACTIVE TEST�

Page 1452 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual DTC P0171 FUEL INJECTION SYSTEM FUNCTION
EC-283
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
9. CHECK INTERMITTENT INCIDENT
Refer to EC-143, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .

Page 1453 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual EC-284Revision: June 2006
DTC P0172 FUEL INJECTION SYSTEM FUNCTION
2007 Versa
DTC P0172 FUEL INJECTION SYSTEM FUNCTIONPFP:16600
On Board Diagnosis LogicUBS00QG9
With the Air/Fuel Mixture Ratio Self-Le

EC-284Revision: June 2006
DTC P0172 FUEL INJECTION SYSTEM FUNCTION
2007 Versa
DTC P0172 FUEL INJECTION SYSTEM FUNCTIONPFP:16600
On Board Diagnosis LogicUBS00QG9
With the Air/Fuel Mixture Ratio Self-Learning Control, the actual mixture ratio can be brought closely to the
theoretical mixture ratio based on the mixture ratio feedback signal from the air fuel ratio (A/F) sensor 1. The
ECM calculates the necessary compensation to correct the offset between the actual and the theoretical
ratios. In case the amount of the compensation value is extremely large (The actual mixture ratio is too rich.),
the ECM judges the condition as the fuel injection system malfunction and lights up the MIL (2 trip detection
logic).
DTC Confirmation ProcedureUBS00QGA
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON and select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CON-
SULT-II.
4. Clear the self-learning control coefficient by touching “CLEAR”.
5. Select “DATA MONITOR” mode with CONSULT-II.
6. Start engine again and let it idle for at least 10 minutes.
The 1st trip DTC P0172 should be detected at this stage, if a
malfunction exists. If so, go to EC-288, "
Diagnostic Procedure" .
NOTE:
If 1st trip DTC is not detected during above procedure, perform-
ing the following procedure is advised.
a. Turn ignition switch OFF and wait at least 10 seconds.
b. Start engine and drive the vehicle under the similar conditions to
(1st trip) Freeze Frame Data for 10 minutes. Refer to the table
below.
Hold the accelerator pedal as steady as possible.
The similar conditions to (1st trip) Freeze Frame Data means the vehicle operation that the following con-
ditions should be satisfied at the same time.
7. If it is difficult to start engine at step 6, the fuel injection system has a malfunction, too.
Sensor Input Signal to ECM ECM function Actuator
Air fuel ratio (A/F) sensor 1Density of oxygen in exhaust gas
(Mixture ratio feedback signal)Fuel injection control Fuel injector
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
P0172
0172Fuel injection system
too rich
Fuel injection system does not operate properly.
The amount of mixture ratio compensation is too
large. (The mixture ratio is too rich.)
Air fuel ratio (A/F) sensor 1
Fuel injector
Exhaust gas leaks
Incorrect fuel pressure
Mass air flow sensor
SEF 2 15 Z
Engine speed Engine speed in the freeze frame data ± 400 rpm
Vehicle speed Vehicle speed in the freeze frame data ± 10 km/h (6 MPH)
Engine coolant temperature
(T) conditionWhen the freeze frame data shows lower than 70 °C (158 °F),
T should be lower than 70 °C (158 °F).
When the freeze frame data shows higher than or equal to 70 °C (158 °F),
T should be higher than or equal to 70 °C (158 °F).

Page 1454 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual DTC P0172 FUEL INJECTION SYSTEM FUNCTION
EC-285
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
8. Crank engine while depressing accelerator pedal.
If engine starts, go to EC-288, "
Diagnostic

DTC P0172 FUEL INJECTION SYSTEM FUNCTION
EC-285
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
8. Crank engine while depressing accelerator pedal.
If engine starts, go to EC-288, "
Diagnostic Procedure" . If engine does not start, remove ignition plugs and
check for fouling, etc.
WITH GST
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Disconnect mass air flow sensor (1) harness connector.
4. Restart engine and let idle for at least 5 seconds.
5. Stop engine and reconnect mass air flow sensor harness con-
nector.
6. Select Service $03 with GST. Make sure DTC P0102 is
detected.
7. Select Service $04 with GST and erase the DTC P0102.
8. Start engine again and let it idle for at least 10 minutes.
9. Select Service $07 with GST. The 1st trip DTC P0172 should be
detected at this stage, if a malfunction exists. If so, go to EC-
288, "Diagnostic Procedure" .
NOTE:
If 1st trip DTC is not detected during above procedure, performing the following procedure is advised.
a. Turn ignition switch OFF and wait at least 10 seconds.
b. Start engine and drive the vehicle under the similar conditions to (1st trip) Freeze Frame Data for 10 min-
utes. Refer to the table below.
Hold the accelerator pedal as steady as possible.
The similar conditions to (1st trip) Freeze Frame Data means the vehicle operation that the following con-
ditions should be satisfied at the same time.
10. If it is difficult to start engine at step 8, the fuel injection system has a malfunction.
11. Crank engine while depressing accelerator pedal.
If engine starts, go to EC-288, "
Diagnostic Procedure" . If engine does not start, remove ignition plugs and
check for fouling, etc.
BBIA0701E
Engine speed Engine speed in the freeze frame data ± 400 rpm
Vehicle speed Vehicle speed in the freeze frame data ± 10 km/h (6 MPH)
Engine coolant temperature
(T) conditionWhen the freeze frame data shows lower than 70 °C (158 °F),
T should be lower than 70 °C (158 °F).
When the freeze frame data shows higher than or equal to 70 °C (158 °F),
T should be higher than or equal to 70 °C (158 °F).

Page 1455 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual EC-286Revision: June 2006
DTC P0172 FUEL INJECTION SYSTEM FUNCTION
2007 Versa

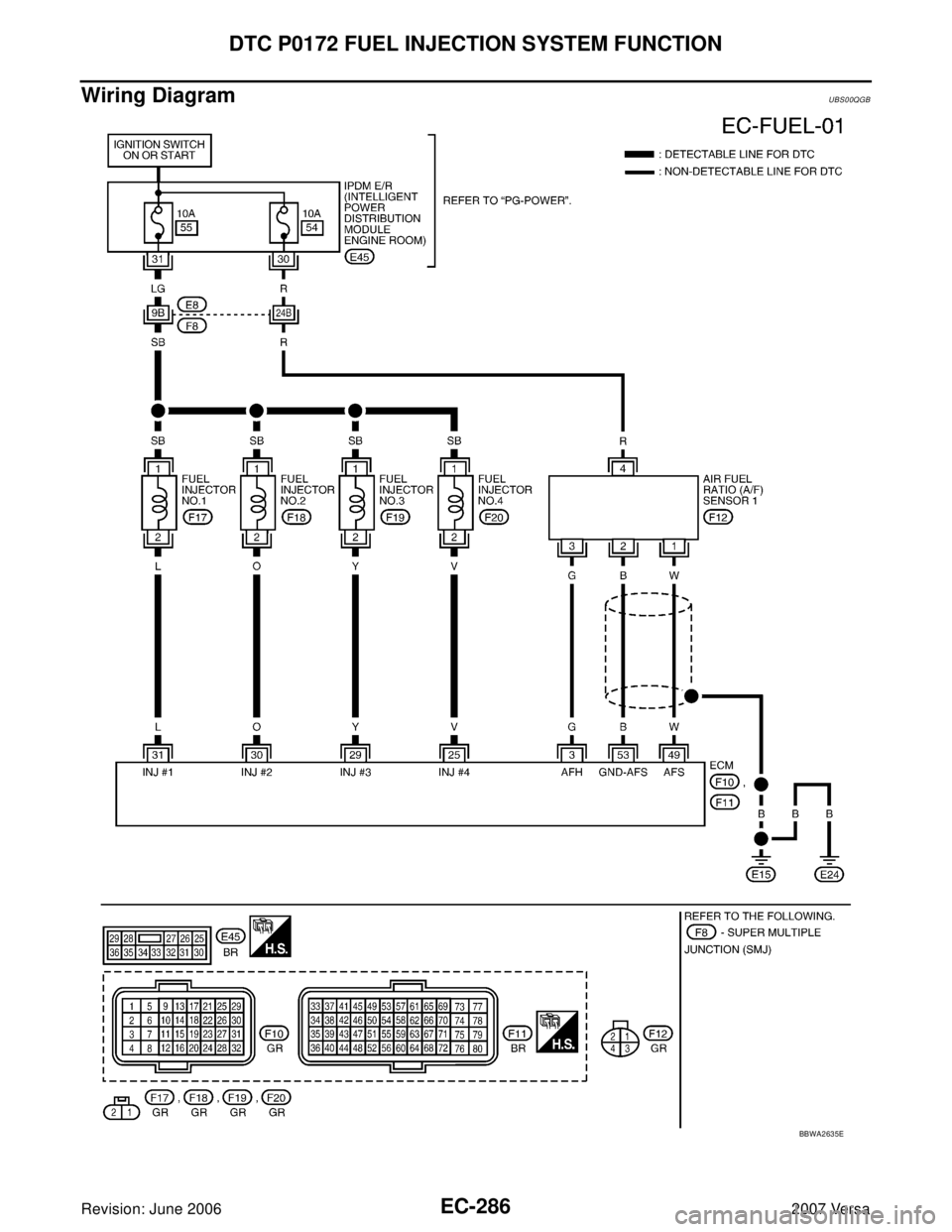

Wiring DiagramUBS00QGB
BBWA2635E

Page 1456 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual DTC P0172 FUEL INJECTION SYSTEM FUNCTION
EC-287
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
Specification data are reference values and are measured between each terminal and ground.
Pulse
