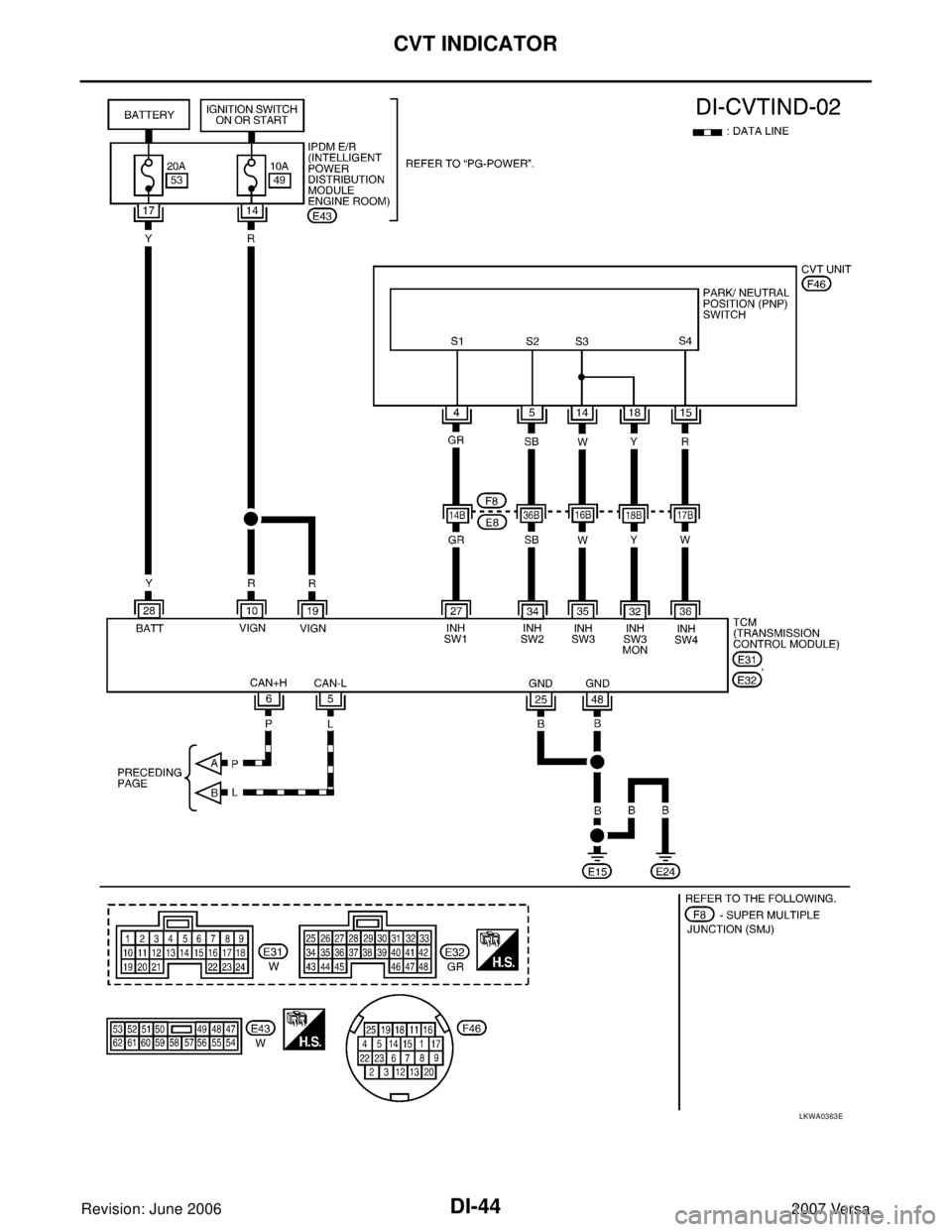

CVT Indicator Does Not IlluminateEKS00I8E

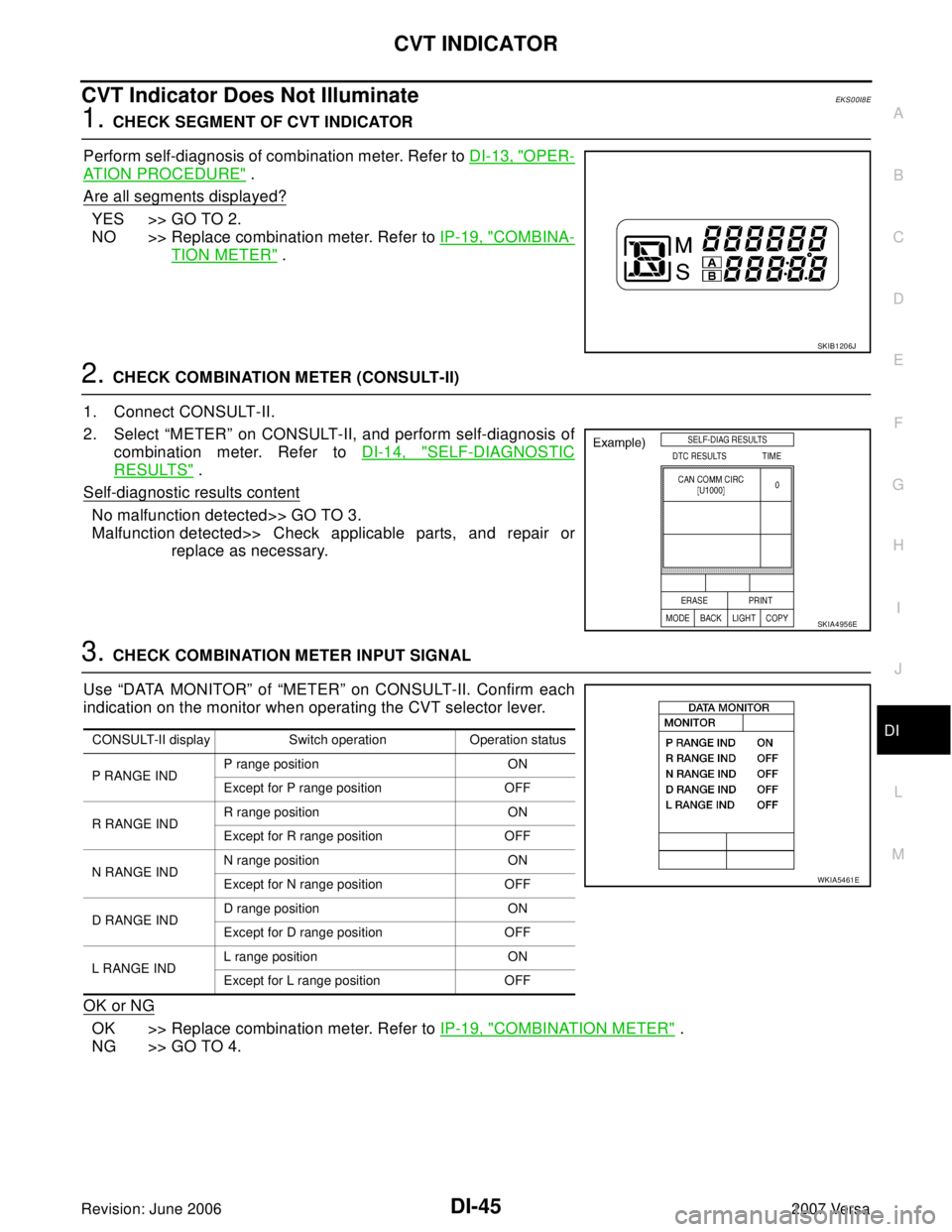

1. CHECK SEGMENT OF CVT INDICATOR
Perform self-diagnosis of combination meter. Refer to DI-13, "
OPER-
ATION PROCEDURE" .
Are all segments displayed?
YES >> GO TO 2.
NO >> Replace combination meter. Refer to IP-19, "
COMBINA-
TION METER" .
2. CHECK COMBINATION METER (CONSULT-II)
1. Connect CONSULT-II.
2. Select “METER” on CONSULT-II, and perform self-diagnosis of
combination meter. Refer to DI-14, "
SELF-DIAGNOSTIC
RESULTS" .
Self
-diagnostic results content
No malfunction detected>> GO TO 3.
Malfunction detected>> Check applicable parts, and repair or
replace as necessary.
3. CHECK COMBINATION METER INPUT SIGNAL
Use “DATA MONITOR” of “METER” on CONSULT-II. Confirm each
indication on the monitor when operating the CVT selector lever.
OK or NG
OK >> Replace combination meter. Refer to IP-19, "COMBINATION METER" .
NG >> GO TO 4.
SKIB1206J
SKIA4956E
CONSULT-II display Switch operation Operation status
P RANGE INDP range position ON
Except for P range position OFF
R RANGE INDR range position ON
Except for R range position OFF
N RANGE INDN range position ON
Except for N range position OFF
D RANGE INDD range position ON
Except for D range position OFF
L RANGE INDL range position ON
Except for L range position OFF
WKIA5461E
Page 1155 of 2896
DI-46
CVT INDICATOR
Revision: June 20062007 Versa
4. CHECK SELF-DIAGNOSIS RESULTS OF TCM
Perform self-diagnosis of TCM. Refer to CVT-60, "
SELF-DIAGNOSTIC RESULT MODE" .
OK or NG
OK >> Check TCM input/output signal. Repair or replace malfunctioning part, if necessary. Refer to CVT-
25, "Input/Output Signal of TCM" .
NG >> Check applicable part, and repair or replace as necessary.
Page 1156 of 2896

WARNING CHIME
DI-47
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: June 20062007 Versa
WARNING CHIMEPFP:24814
Component Parts and Harness Connector LocationEKS00IB7
System DescriptionEKS00I0Z
Buzzer for warning chime system is installed in the combination meter.
The buzzer sounds when combination meter receives buzzer output signal with CAN communication line.
POWER SUPPLY AND GROUND CIRCUIT
Power is supplied at all times
through 40A fusible link (letter g , located in the fuse and fusible link box)
to BCM terminal 70,
through 10A fuse [No. 8, located in the fuse block (J/B)]
to BCM terminal 57,
through 10A fuse [No. 13, located in the fuse block (J/B)]
to combination meter terminal 27.
With ignition switch in the ON or START position, power is supplied
through 10A fuse [No. 6, located in the fuse block (J/B)]
to BCM terminal 38,
through 10A fuse [No. 3, located in the fuse block (J/B)]
to combination meter terminal 28.
Ground is supplied
1. Combination meter M24 2. BCM M18, M19, M20 (view with
glove box removed)3. Intelligent Key unit M52 (with Intelli-
gent Key)
4. Key switch and key lock solenoid
M27 (without Intelligent Key)5. Key switch and ignition knob switch
M73 (with Intelligent Key)6. Combination switch (lighting switch)
M28
7. Front door switch LH B8
WKIA5462E
Page 1157 of 2896

DI-48
WARNING CHIME
Revision: June 20062007 Versa
to BCM terminal 67 and
to combination meter terminals 21, 22 and 23
through grounds M57 and M61.
IGNITION KEY WARNING CHIME (WITHOUT INTELLIGENT KEY)
With the key inserted into the key switch, and the ignition switch in the OFF or ACC position, when driver's
door is opened, the warning chime will sound.
BCM detects key inserted into the ignition switch, and sends key warning signal to combination meter with
CAN communication line.
When combination meter receives key warning signal, it sounds warning chime.
IGNITION KEY WARNING CHIME (WITH INTELLIGENT KEY)
When Mechanical Key Is Used
With the key inserted into the key switch, and the ignition switch in the LOCK or ACC position, when driver's
door is opened, the warning chime will sound.
BCM detects key inserted into the ignition switch, and sends key warning signal to combination meter with
CAN communication line.
When combination meter receives key warning signal, it sounds warning chime.
When Intelligent Key Is Carried With The Driver
Refer to BL-90, "WARNING CHIME/BUZZER/LAMPS FUNCTION" .
LIGHT WARNING CHIME
The warning chime sounds, when driver's door is opened (door switch ON) with lighting switch ON and the
ignition switch is in any position other than ON or START.
NOTE:
BCM detected lighting switch in the 1st or 2nd position, refer to LT-68, "
Combination Switch Reading Function"
.
BCM detects headlamps are illuminated, and sends light warning signal to combination meter with CAN
communication lines.

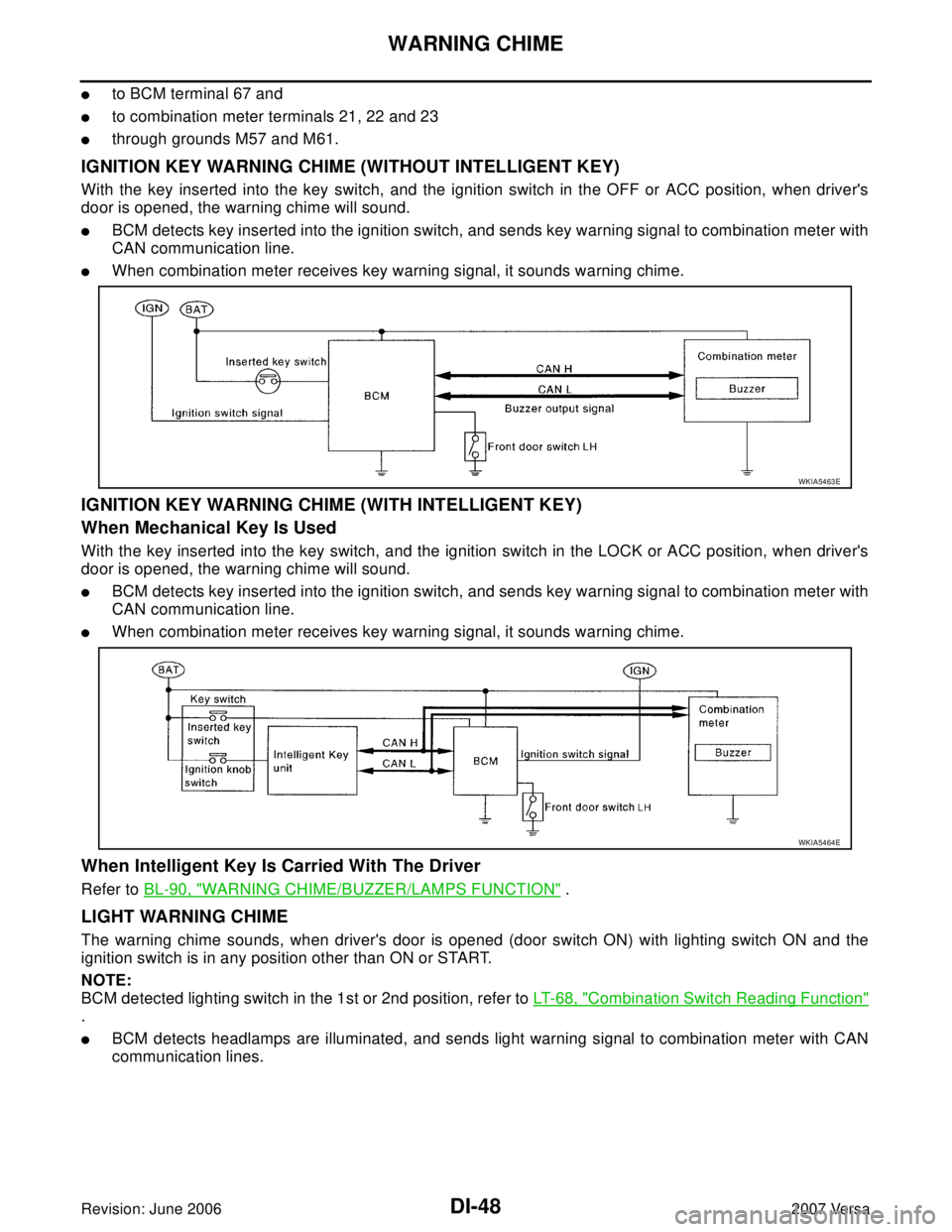

WKIA5463E
WKIA5464E
Page 1158 of 2896
WARNING CHIME
DI-49
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: June 20062007 Versa
When the combination meter receives light warning signal, it sounds warning chime.

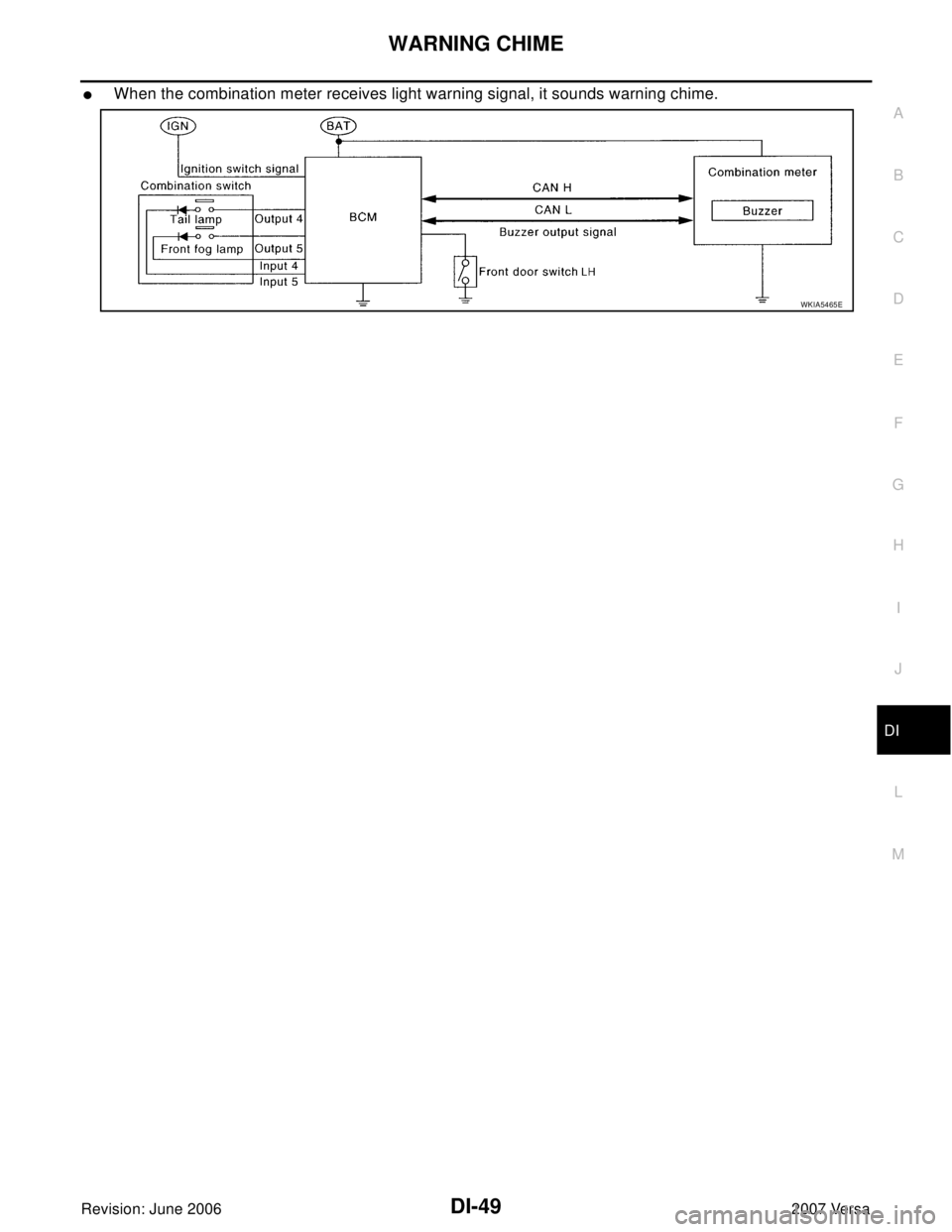

WKIA5465E
Page 1159 of 2896
DI-50
WARNING CHIME
Revision: June 20062007 Versa
Wiring Diagram — CHIME —EKS00I11

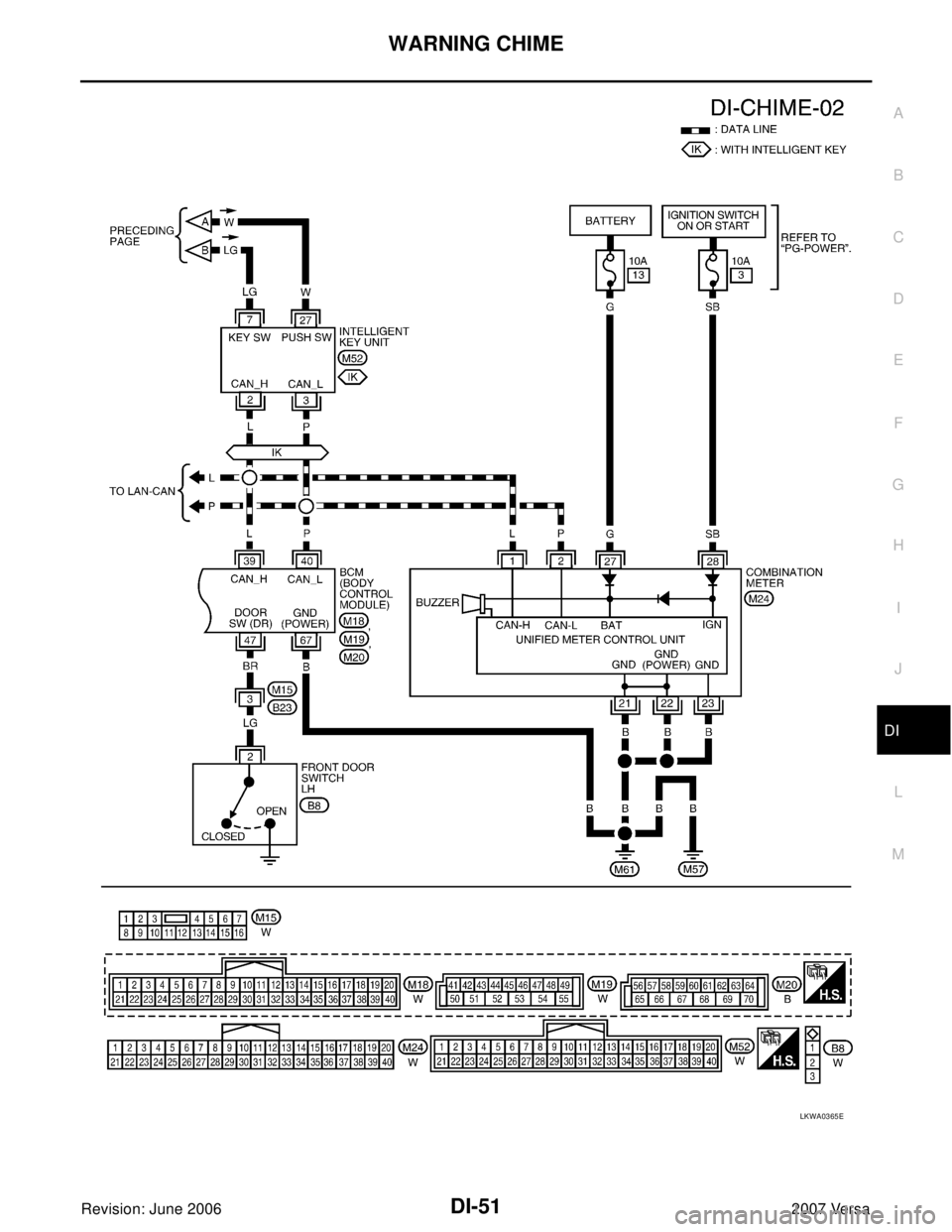

LKWA0364E
Page 1160 of 2896
WARNING CHIME
DI-51
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: June 20062007 Versa

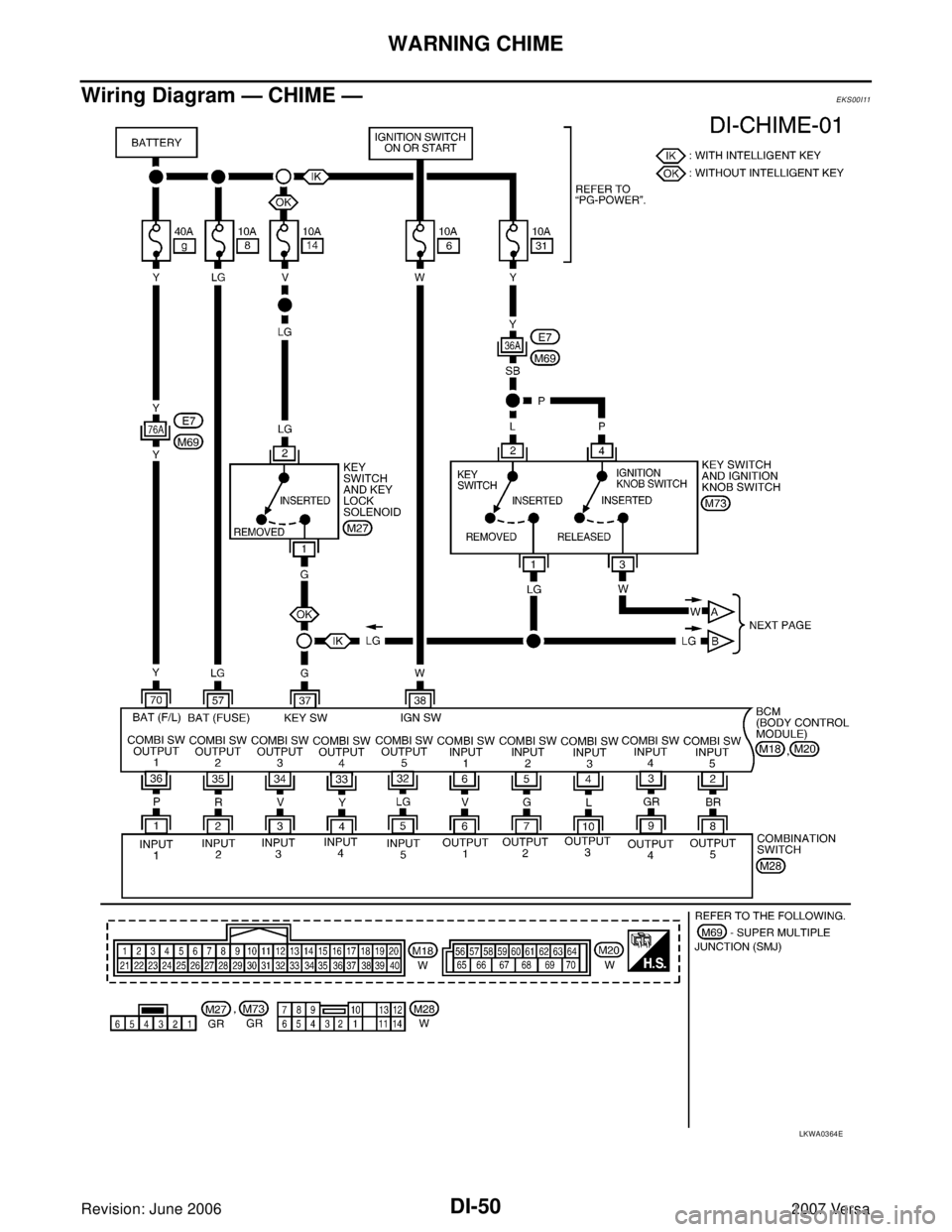

LKWA0365E
