Page 1041 of 2896
CVT-144
DTC P0868 SECONDARY PRESSURE DOWN
Revision: June 20062007 Versa
6. CHECK DTC
Perform CVT-142, "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> Replace the transaxle assembly. Refer to CVT-207, "
Removal and Installation" .
Page 1042 of 2896

DTC P1701 TRANSMISSION CONTROL MODULE (POWER SUPPLY)
CVT-145
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
DTC P1701 TRANSMISSION CONTROL MODULE (POWER SUPPLY)PFP:31036
DescriptionUCS0062D
When the power supply to the TCM is cut OFF, for example because the battery is removed, and the self-diag-
nosis memory function stops, malfunction is detected.
NOTE:
Since “P1701 TCM-POWER SUPPLY” will be indicated when replacing TCM, perform diagnosis after
erasing “SELF-DIAG RESULTS”
On Board Diagnosis LogicUCS0062E
This is not an OBD-II self-diagnostic item.
Diagnostic trouble code “P1701 TCM-POWER SUPPLY” with CONSULT-II is detected when TCM does
not receive the voltage signal from the battery power supply.
This is not a malfunction message. (Whenever shutting OFF a power supply to the TCM, this message
appears on the screen.)
Possible CauseUCS0062F
Harness or connectors
(Battery or ignition switch and TCM circuit is open or shorted.)
DTC Confirmation ProcedureUCS0062G
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch OFF and
wait at least 10 seconds before conducting the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “TRANSMISSION” with
CONSULT-II.
3. Wait for at least 2 consecutive seconds.
4. If DTC is detected, go to CVT-147, "
Diagnostic Procedure" .
BCIA0031E
Page 1043 of 2896
CVT-146
DTC P1701 TRANSMISSION CONTROL MODULE (POWER SUPPLY)
Revision: June 20062007 Versa

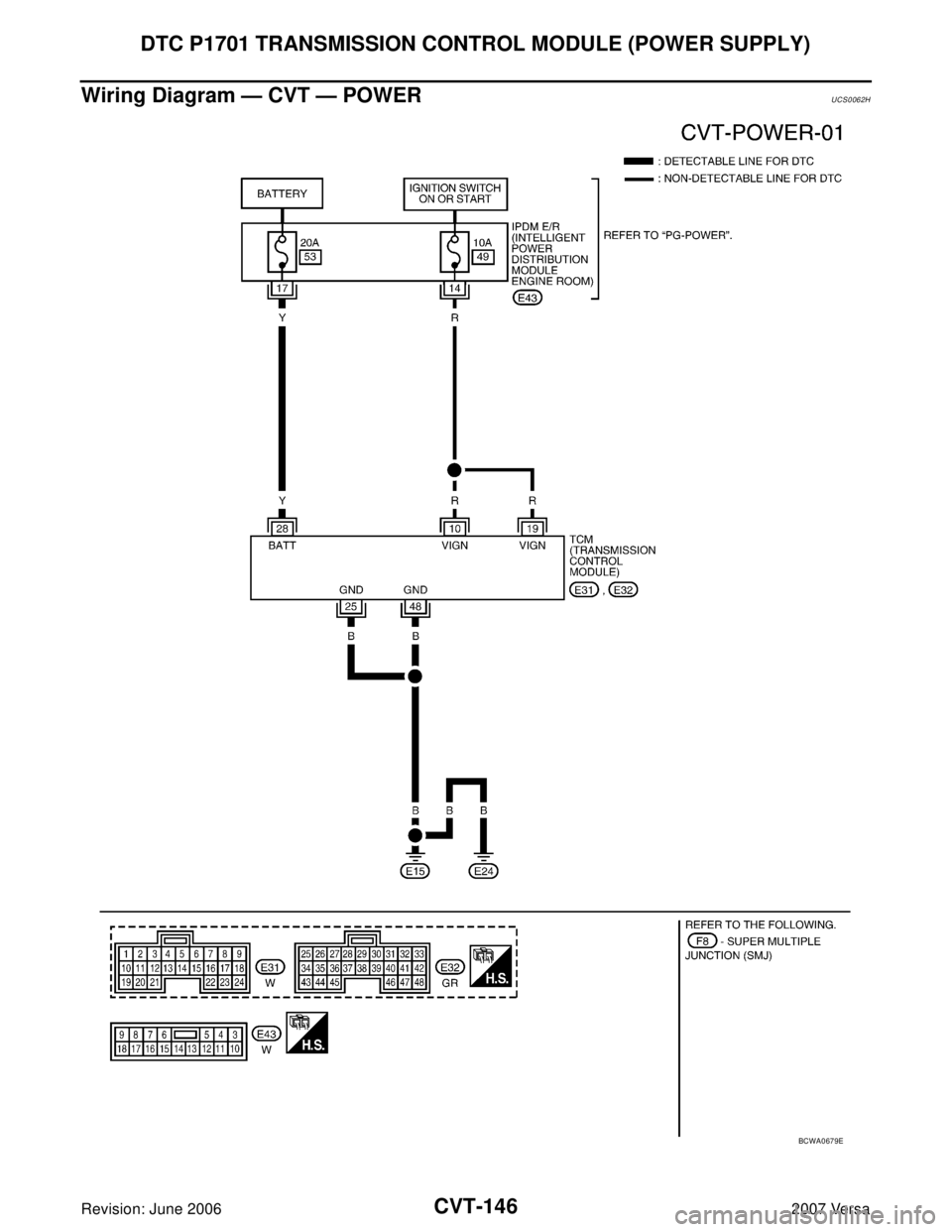

Wiring Diagram — CVT — POWERUCS0062H
BCWA0679E
Page 1044 of 2896

DTC P1701 TRANSMISSION CONTROL MODULE (POWER SUPPLY)
CVT-147
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
TCM terminals data are reference values, measured between each terminal and ground.
Diagnostic ProcedureUCS0062I
1. CHECK DTC
1. Turn ignition switch ON. (Do not start engine.)
2. Select “SELF-DIAG RESULTS” mode for “TRANSMISSION”
with CONSULT-II.
3. Erase self-diagnostic results. Refer to CVT-32, "
HOW TO
ERASE DTC (WITH CONSULT-II)" .
4. Turn ignition switch OFF, and wait for 5 seconds or more.
5. Start engine.
6. Confirm self-diagnostic results again. Refer to CVT-60, "
SELF-
DIAGNOSTIC RESULT MODE" .
Is the
“P1701 TCM-POWER SUPPLY” displayed?
YES >> GO TO 2.
NO >>INSPECTION END
2. CHECK TCM POWER SOURCE, STEP 1
1. Turn ignition switch OFF.
2. Check voltage between TCM connector terminal and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 4.
Terminal Wire color Item Condition Data (Approx.)
10 R Power supply— Battery voltage
—0 V
19 R Power supply— Battery voltage
—0 V
25 B Ground Always 0 V
28 YPower supply
(memory back-up)Always Battery voltage
48 B Ground Always 0 V
BCIA0031E
Name Connector Terminal ConditionVoltage
(Approx.)
Power supply
(memory back-
up)E32 28 - Ground AlwaysBattery
voltage
SCIA4783E
Page 1045 of 2896

CVT-148
DTC P1701 TRANSMISSION CONTROL MODULE (POWER SUPPLY)
Revision: June 20062007 Versa
3. CHECK TCM POWER SOURCE, STEP 2
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between TCM connector terminals and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING ITEM
Check the following.
Harness for short or open between battery and TCM connector terminal 28
Harness for short or open between ignition switch and TCM connector terminal 10, 19
10 A fuse (No.49, located in the IPDM E/R)
20 A fuse (No.53, located in the IPDM E/R)
Ignition switch. Refer to PG-4, "POWER SUPPLY ROUTING CIRCUIT" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK TCM GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect TCM connector.
3. Check continuity between TCM connector terminals and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
Name Connector Terminal ConditionVoltage
(Approx.)
Power supply
E3110 - GroundBattery
voltage
0 V
Power supply 19 - GroundBattery
voltage
0 V
Power supply
(memory
back-up)E32 28 - Ground AlwaysBattery
voltage
SCIA4784E
Name Connector Terminal Continuity
Ground E3225
Ye s
48
SCIA2671E
Page 1046 of 2896
DTC P1701 TRANSMISSION CONTROL MODULE (POWER SUPPLY)
CVT-149
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
6. CHECK DTC
Perform CVT-145, "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 7.
7. CHECK TCM
1. Check TCM input/output signals. Refer to CVT-54, "
TCM Input/Output Signal Reference Values" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Page 1047 of 2896

CVT-150
DTC P1705 THROTTLE POSITION SENSOR
Revision: June 20062007 Versa
DTC P1705 THROTTLE POSITION SENSORPFP:22620
DescriptionUCS0062J
Electric throttle control actuator consists of throttle control motor, accelerator pedal position sensor, throttle
position sensor etc. The actuator sends a signal to the ECM, and ECM sends the signal to TCM with CAN
communication.
CONSULT-II Reference ValueUCS0062K
Remarks: Specification data are reference values.
On Board Diagnosis LogicUCS0062L
This is not an OBD-II self-diagnostic item.
Diagnostic trouble code “P1705 TP SEN/CIRC A/T” with CONSULT-II is detected when TCM does not
receive the proper accelerator pedal position signals (input by CAN communication) from ECM.
Possible CauseUCS0062M
ECM
Harness or connectors
(CAN communication line is open or shorted.)
DTC Confirmation ProcedureUCS0062N
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “TRANSMISSION” with
CONSULT-II.
3. Depress accelerator pedal fully and release it, then wait for 5
seconds.
4. If DTC is detected, go to CVT-151, "
Diagnostic Procedure" .
Item name Condition Display value (Approx.)
ACC PEDAL OPEN Released accelerator pedal - Fully depressed accelerator pedal 0.0/8 - 8.0/8
BCIA0031E
Page 1048 of 2896

DTC P1705 THROTTLE POSITION SENSOR
CVT-151
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
Diagnostic ProcedureUCS0062O
1. CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis check. Refer to CVT-60, "
SELF-DIAGNOSTIC RESULT MODE" .
Is any malfunction of the
“U1000 CAN COMM CIRCUIT” indicated?
YES >> Check the CAN communication line. Refer to CVT-68, "DTC U1000 CAN COMMUNICATION
LINE" .
NO >> GO TO 2.
2. CHECK INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
3. Read out the value of “ACC PEDAL OPEN”.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. CHECK DTC WITH ECM
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “SELF-DIAG RESULTS” mode for “ENGINE” with CON-
SULT-II. Refer to EC-116, "
SELF-DIAG RESULTS MODE" .
OK or NG
OK >> GO TO 4.
NG >> Check the DTC Detected Item. Go to EC-116, "
SELF-
DIAG RESULTS MODE" .
4. CHECK DTC
Perform CVT-150, "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Item name Condition Display value (Approx.)
ACC PEDAL OPEN Release accelerator
pedal.
↓
Fully depressed acceler-
ator pedal0.0/8
↓
8.0/8
SCIA2277E
BCIA0030E
