Page 2569 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual HARNESS PG-53 C D E F G H I J L MA B PG Revision: June 20062007 Versa ROOM LAMP HARNESS LKIA0820E

Page 2570 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual PG-54 HARNESS Revision: June 20062007 Versa D5 R1 W/16 : To M1 F2 R2 GR/6 : Map lamp F2 R3 W/3 : Map lamp F2 R4 GR/10 : Sunroof motor assembly F2 R6 W/3 : Sunroof switch D1 R7 W/3 : Interior room lam

Page 2571 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual HARNESS PG-55 C D E F G H I J L MA B PG Revision: June 20062007 Versa FRONT DOOR LH HARNESS D1 W/16 : To M9 D8 W/3: Main power window and door lock/ unlock switch D2 W/16 : To M8 D9 B/6 : Front powe

Page 2572 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual PG-56 HARNESS Revision: June 20062007 Versa FRONT DOOR RH HARNESS LKIA0822E D101 W/12 : To M75 D106 GR/2 : Front outside antenna RH D102 W/12 : To M74 D107 BR/8 : Door mirror RH D103 GR/2 : Front door

Page 2573 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual HARNESS PG-57 C D E F G H I J L MA B PG Revision: June 20062007 Versa REAR DOOR LH HARNESS LKIA0824E D201 W/8 : To B4 D205 B/6 : Rear door lock actuator LH D203 W/8 : Rear power window switch LH D207

Page 2574 of 2896

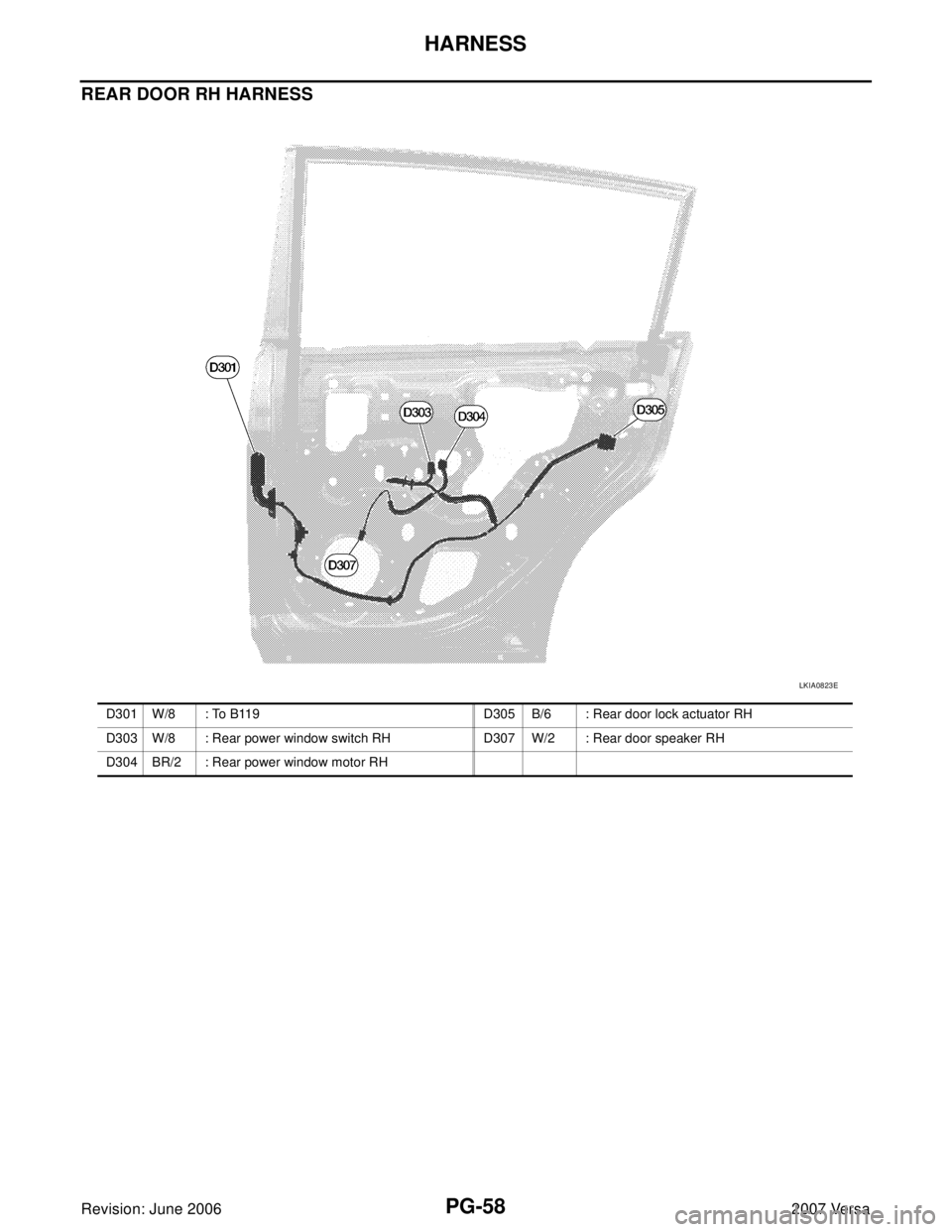

NISSAN VERSA 2006 Workshop Service Repair Manual PG-58 HARNESS Revision: June 20062007 Versa REAR DOOR RH HARNESS LKIA0823E D301 W/8 : To B119 D305 B/6 : Rear door lock actuator RH D303 W/8 : Rear power window switch RH D307 W/2 : Rear door speaker

Page 2575 of 2896

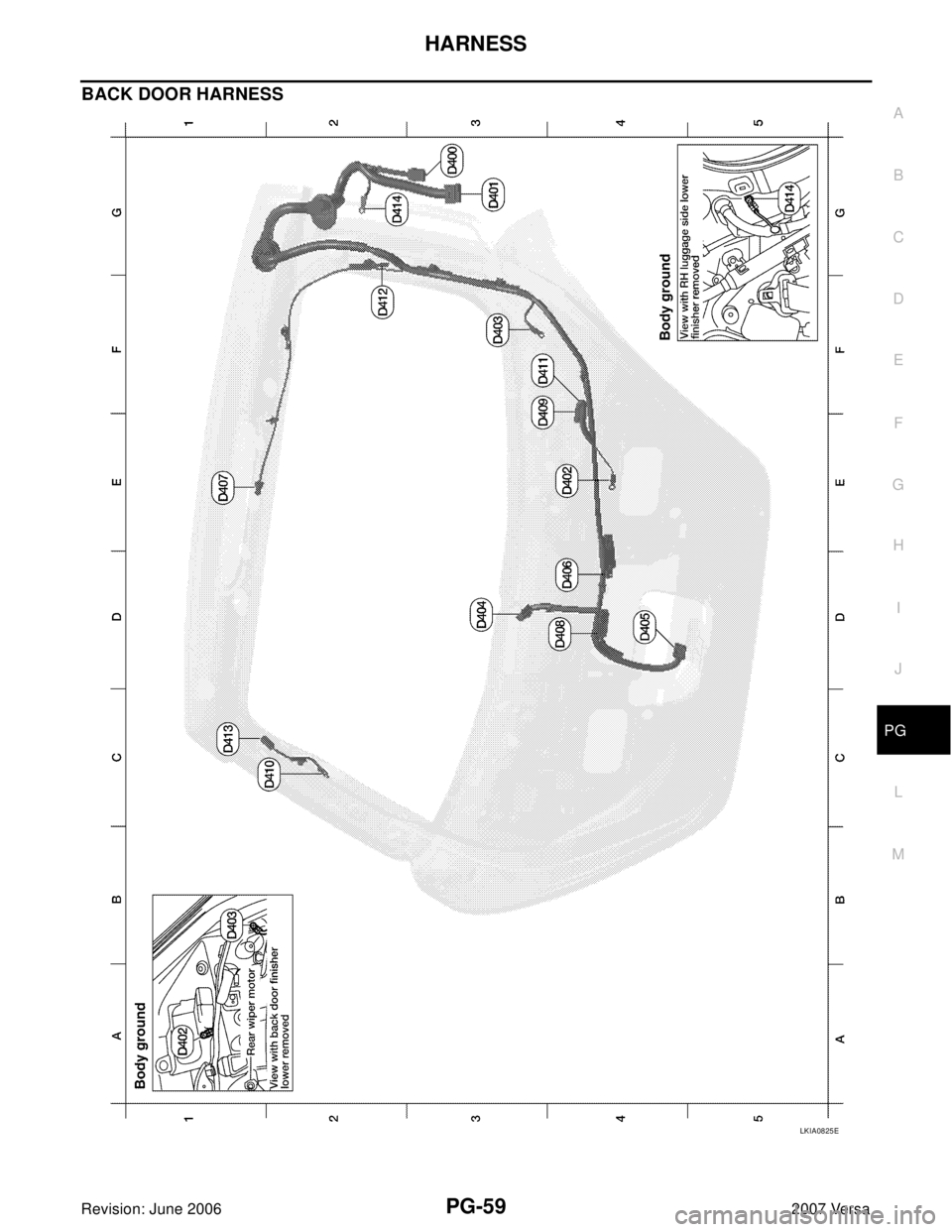

NISSAN VERSA 2006 Workshop Service Repair Manual HARNESS PG-59 C D E F G H I J L MA B PG Revision: June 20062007 Versa BACK DOOR HARNESS LKIA0825E

Page 2576 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual PG-60 HARNESS Revision: June 20062007 Versa G3 D400 W/12 : To B133 G3 D401 W/12 : To B134 G3 D401 W/24 : To B48 (without power back door) E4 D402 — : Body ground F3 D403 — : Body ground D3 D404 W
