Wiring Diagram Codes (Cell Codes)EKS00IW9
Use the chart below to find out what each wiring diagram code stands for.
Refer to the w

Page 2578 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual PG-62
HARNESS
Revision: June 20062007 Versa
IGNSYS EC Ignition System
I/KEY BL Intelligent Key System
ILL LT Illumination
INJECT EC Injector
INT/L LT Room/Map, Vanity and Luggage Lamps
IV

PG-62
HARNESS
Revision: June 20062007 Versa
IGNSYS EC Ignition System
I/KEY BL Intelligent Key System
ILL LT Illumination
INJECT EC Injector
INT/L LT Room/Map, Vanity and Luggage Lamps
IVC EC Intake Valve Timing Control Solenoid Valve
KEYLES BL Remote Keyless Entry System
KS EC Knock Sensor
LPSV AT Line Pressure Solenoid Valve
LPSV CVT Line Pressure Solenoid Valve
L/USSV CVT Lock-up Select Solenoid Valve
MAFS EC Mass Air Flow Sensor
MAIN AT Main Power Supply and Ground Circuit
MAIN EC Main Power Supply and Ground Circuit
METER DI Speedometer, Tachometer, Temp. and Fuel Gauges
MIL/DL EC Malfunction Indicator Lamp
MIRROR GW Door Mirror
NATS BL Nissan Anti-Theft System
NONDTC AT Non-detectable Item
NONDTC CVT Non-detectable Item
ODSW CVT Overdrive Control Switch
OVRCSV AT Over Run Clutch Solenoid Valve
P/SCKT WW Power Socket
PGC/V EC EVAP Canister Purge Volume Control Solenoid Valve
PHASE EC Camshaft Position Sensor (PHASE)
PNP/SW AT Park/Neutral Position Switch
PNP/SW CVT Park/Neutral Position Switch
PNP/SW EC Park/Neutral Position Switch
POS EC Crankshaft Position Sensor (POS)
POWER CVT Transmission Control Module (Power Supply)
PRE/SE EC EVAP Control System Pressure Sensor
PRIPS CVT Primary Pressure Sensor
PRSCVT CVT Primary Speed Sensor CVT (Revolution Sensor)
PT/SEN AT Powertrain Revolution Sensor
RP/SEN EC Refrigerant Pressure Sensor
SECPS CVT Secondary Pressure Sensor
SECPSV CVT Secondary Speed Sensor CVT (Revolution Sensor)
SEN/PW EC Sensor Power Supply
SESCVT CVT Secondary Pressure Sensor Solenoid Valve
SHIFT AT A/T Shift Lock System
SHIFT CVT CVT Shift Lock System
SROOF RF Sunroof
SRS SRS Supplemental Restraint System
SSV/A AT Shift Solenoid Valve A
SSV/B AT Shift Solenoid Valve B
START SC Starting System
STM CVT Step Motor
STSIG CVT Start Signal Circuit
STOP/L LT Stop Lamp
TCV AT Torque Converter Clutch Solenoid Valve
TCV CVT Torque Converter Clutch Solenoid Valve
T/LID BL Trunk Lid Opener

Page 2579 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual HARNESS
PG-63
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: June 20062007 Versa
T/WARN WT Low Tire Pressure Warning System
TAIL/L LT Parking, License and Tail Lamps
TPS1 EC Throttle Position Sensor
TPS2

Page 2580 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual PG-64
ELECTRICAL UNITS LOCATION
Revision: June 20062007 Versa
ELECTRICAL UNITS LOCATIONPFP:25230
Electrical Units Location EKS00I5Z
ENGINE COMPARTMENT

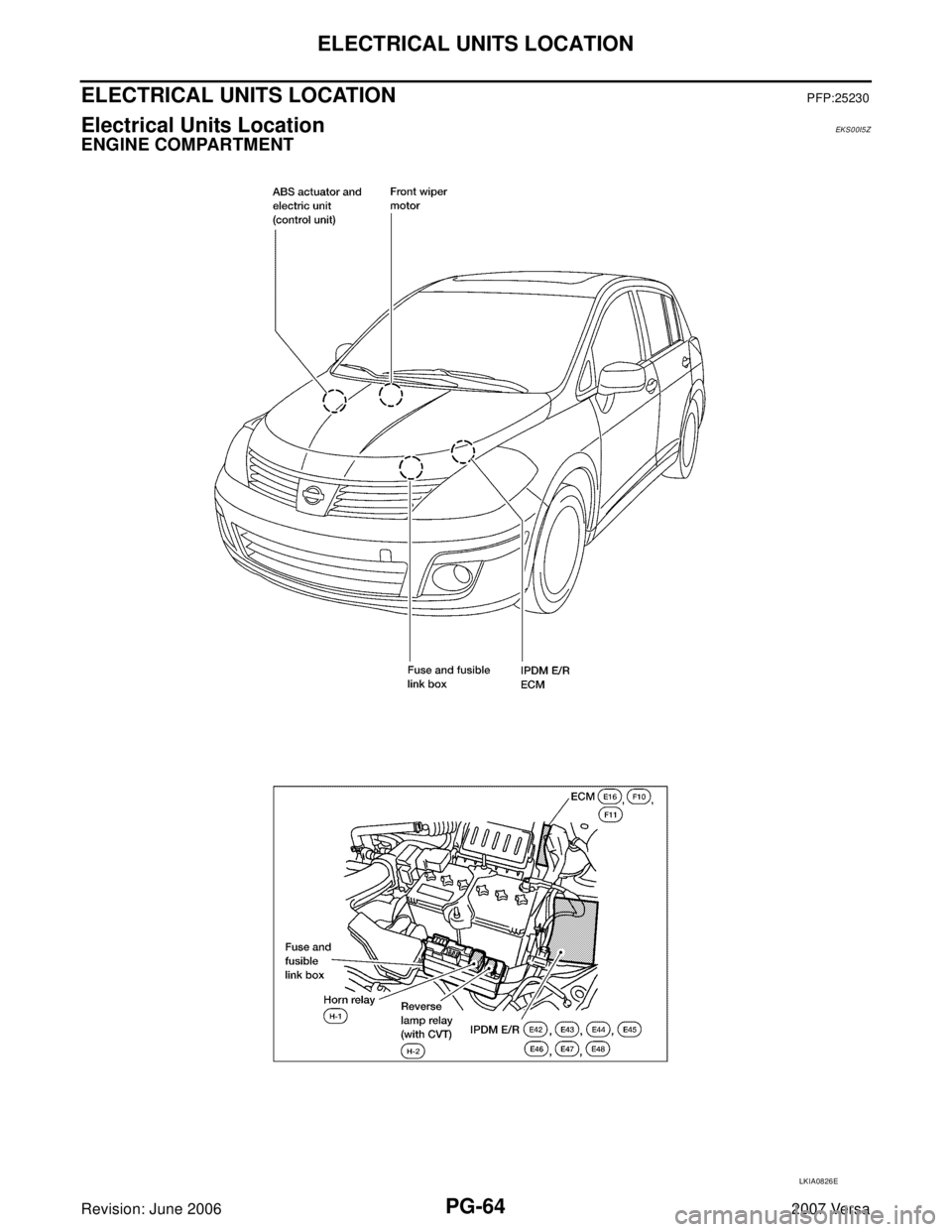

LKIA0826E

Page 2581 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual ELECTRICAL UNITS LOCATION
PG-65
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: June 20062007 Versa
PASSENGER COMPARTMENT

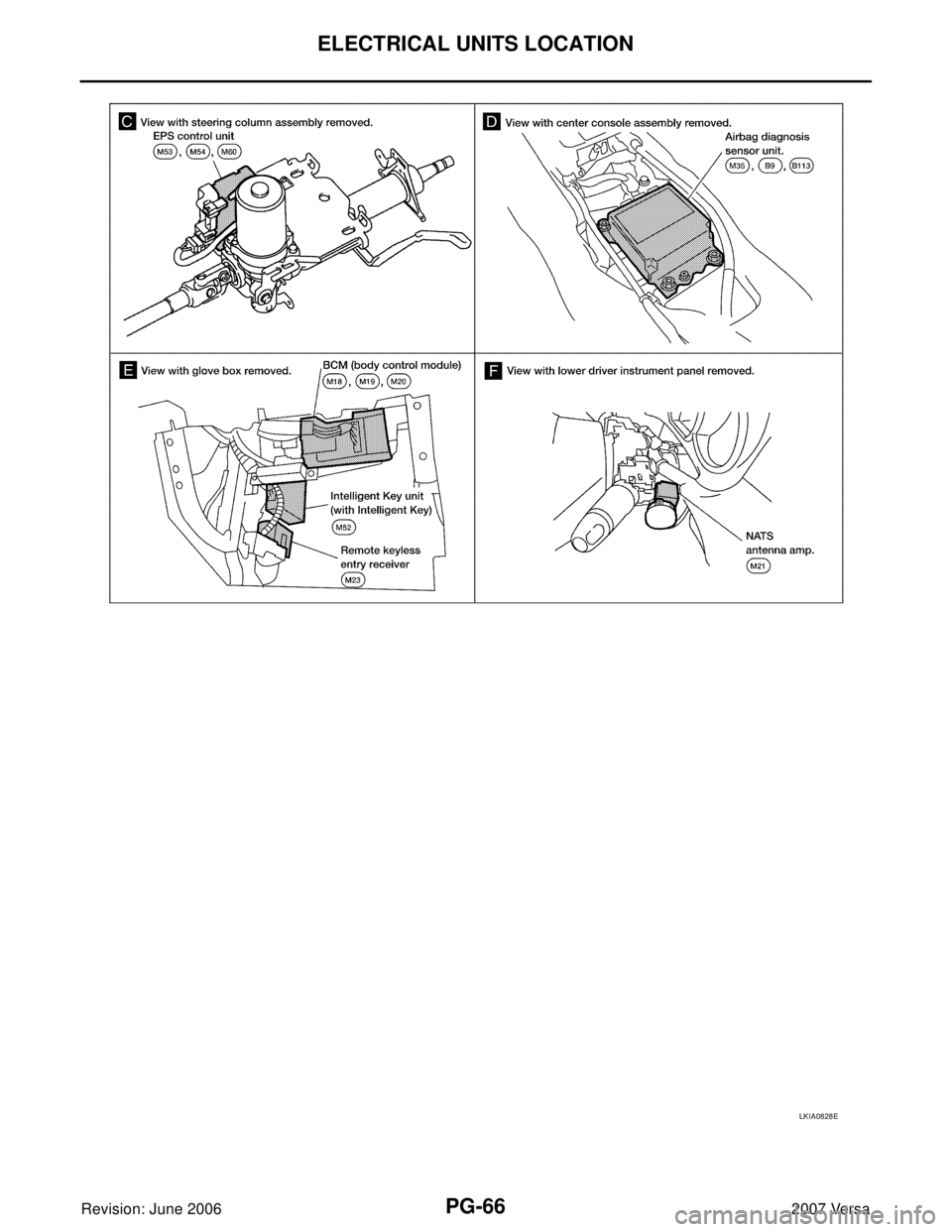

LKIA0827E

Page 2582 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual PG-66
ELECTRICAL UNITS LOCATION
Revision: June 20062007 Versa

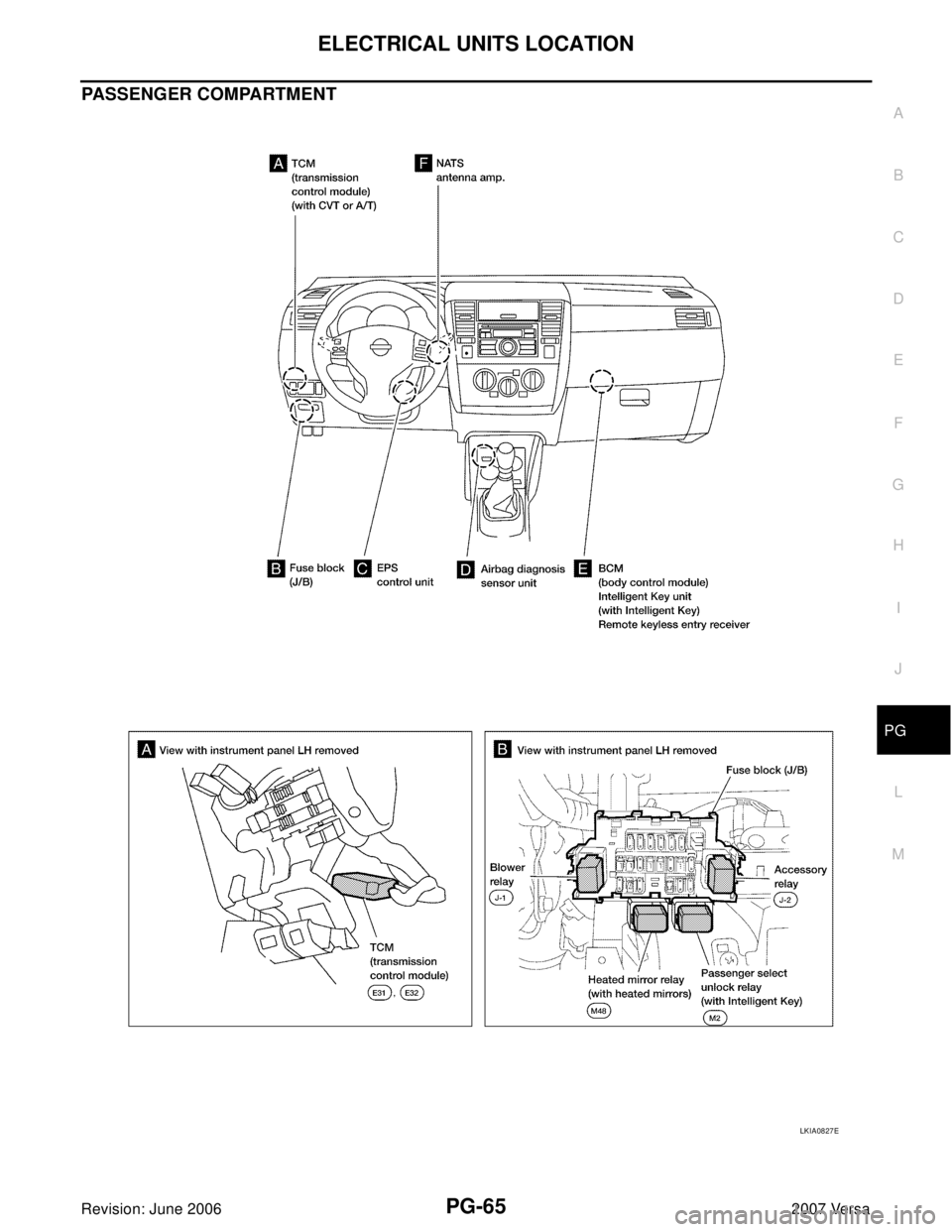

LKIA0828E

Page 2583 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual ELECTRICAL UNITS LOCATION
PG-67
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: June 20062007 Versa
LUGGAGE COMPARTMENT

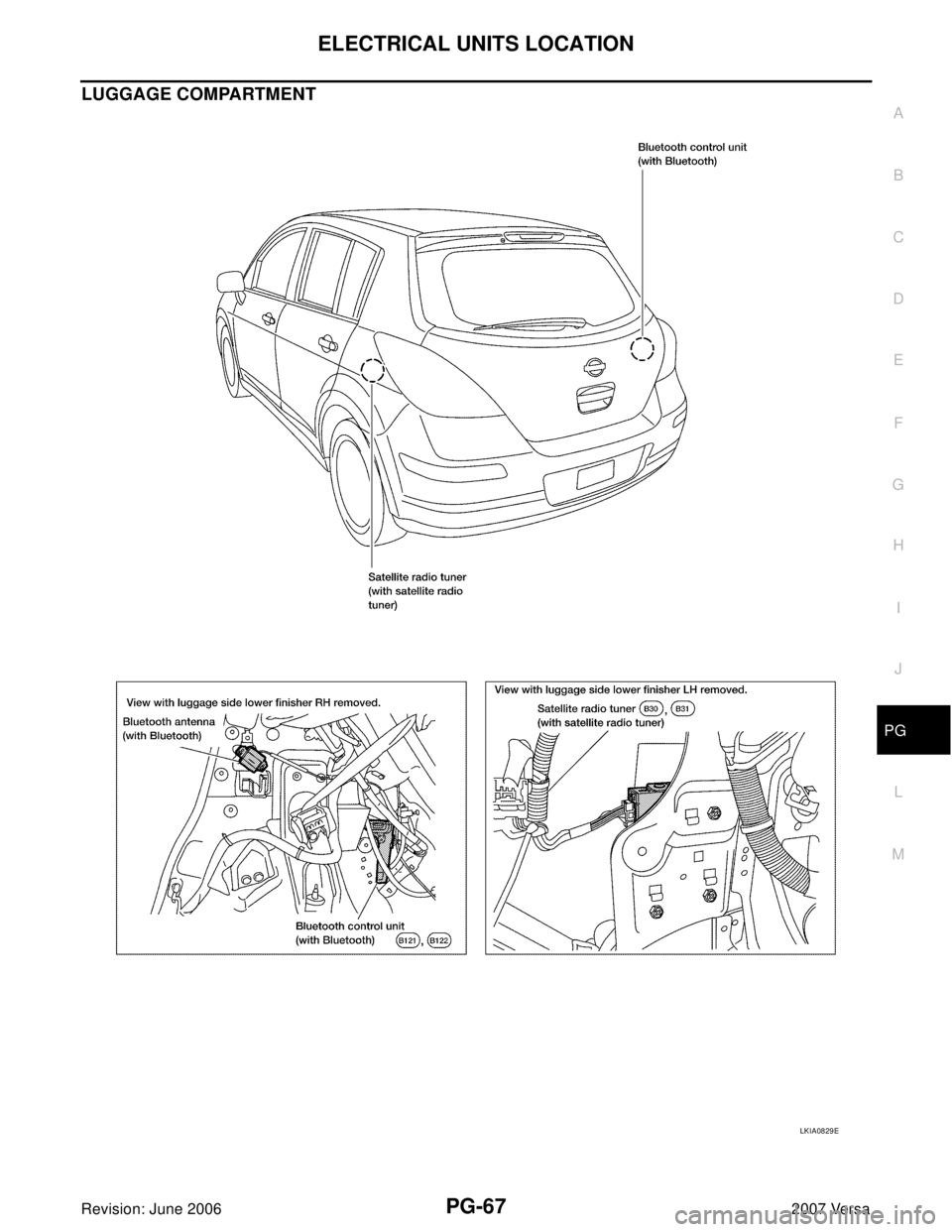

LKIA0829E

Page 2584 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual PG-68
HARNESS CONNECTOR
Revision: June 20062007 Versa
HARNESS CONNECTOR PFP:00011
Description EKS00I60
HARNESS CONNECTOR (TAB-LOCKING TYPE)
The tab-locking type connectors help prevent accidental loo

Load next 8 pages
