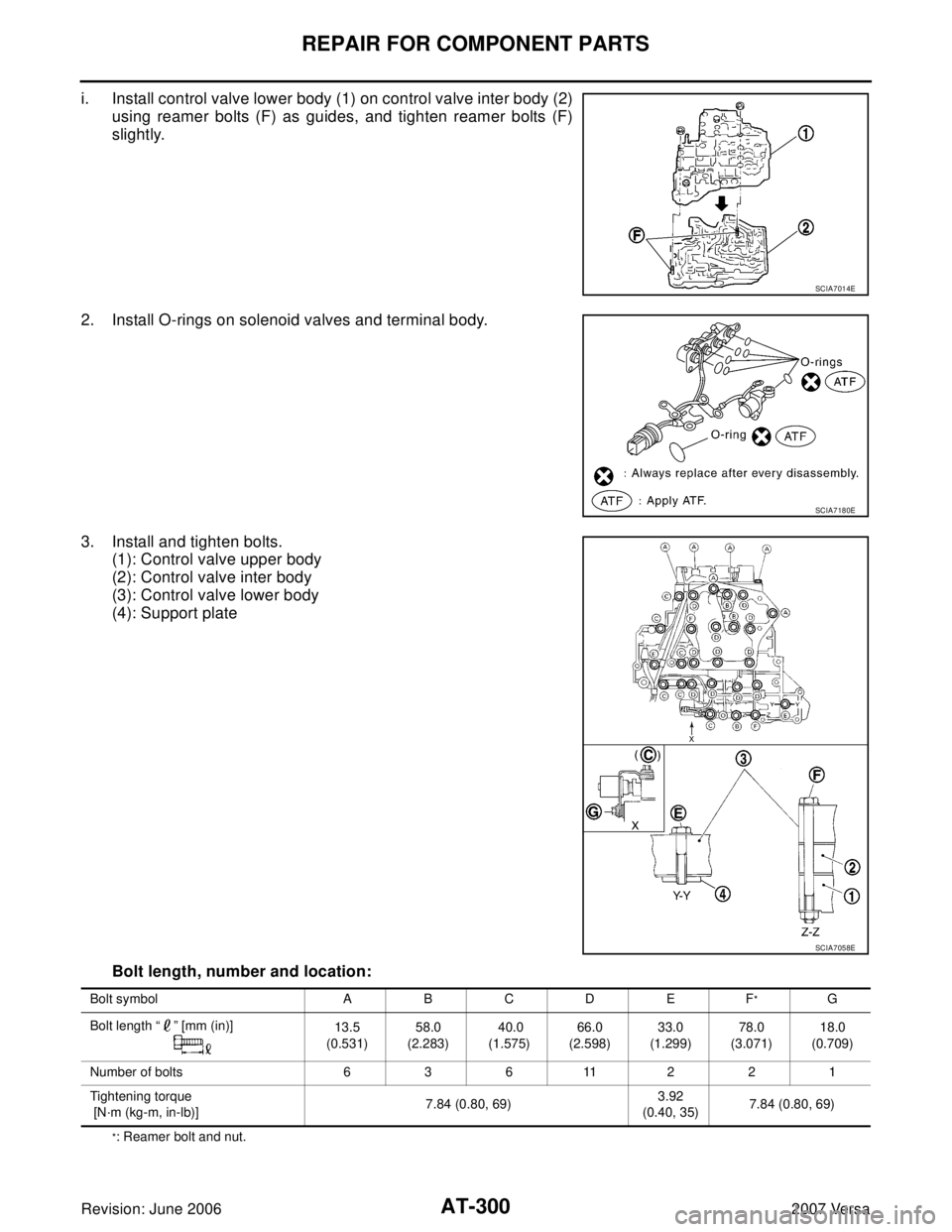

NISSAN VERSA 2006 Workshop Service Repair Manual AT-300 REPAIR FOR COMPONENT PARTS Revision: June 20062007 Versa i. Install control valve lower body (1) on control valve inter body (2) using reamer bolts (F) as guides, and tighten reamer bolts (F) s

Page 314 of 2896

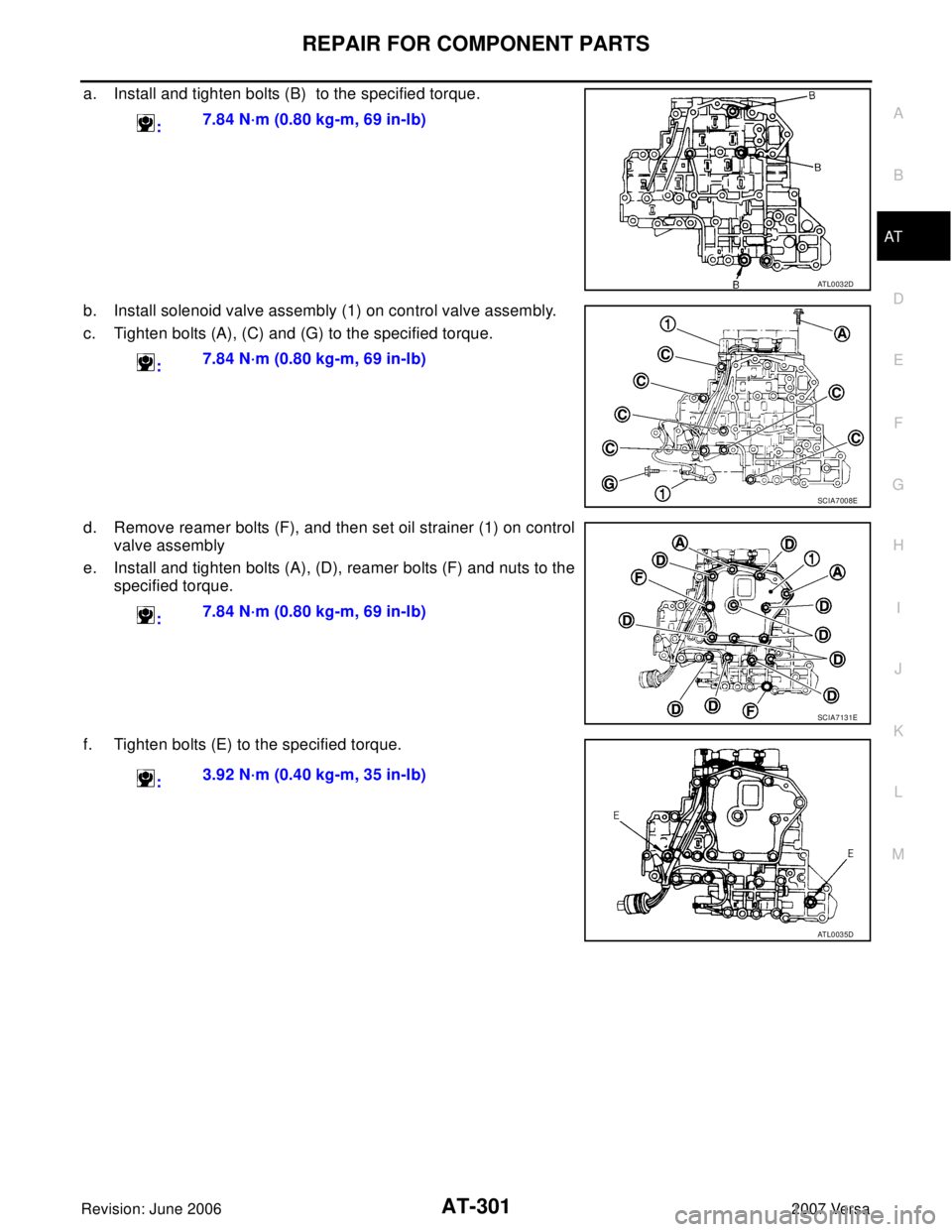

NISSAN VERSA 2006 Workshop Service Repair Manual REPAIR FOR COMPONENT PARTS AT-301 D E F G H I J K L MA B AT Revision: June 20062007 Versa a. Install and tighten bolts (B) to the specified torque. b. Install solenoid valve assembly (1) on control v

Page 315 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual AT-302 REPAIR FOR COMPONENT PARTS Revision: June 20062007 Versa Control Valve Upper BodyUCS005W6 COMPONENTS SCIA2960J

Page 316 of 2896

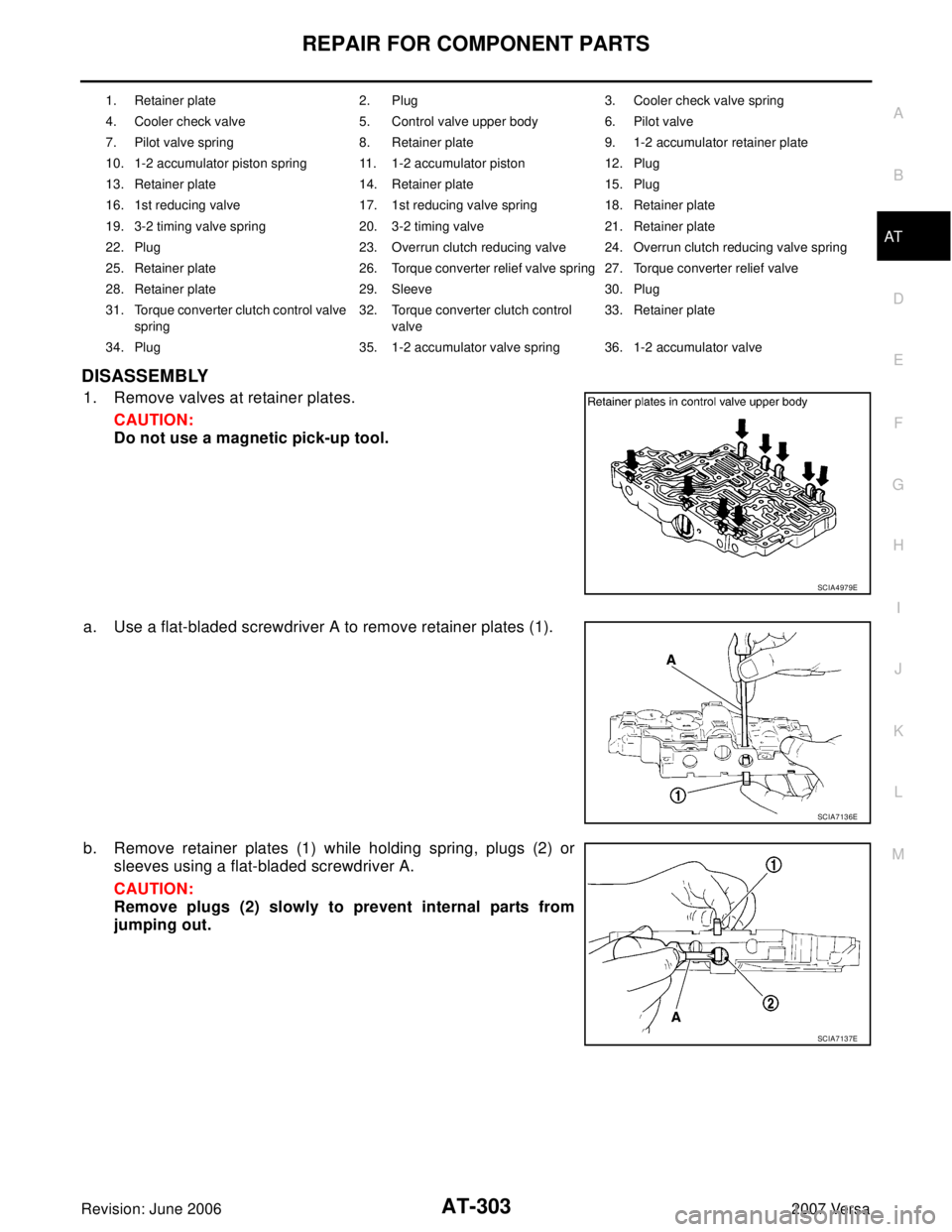

NISSAN VERSA 2006 Workshop Service Repair Manual REPAIR FOR COMPONENT PARTS AT-303 D E F G H I J K L MA B AT Revision: June 20062007 Versa DISASSEMBLY 1. Remove valves at retainer plates. CAUTION: Do not use a magnetic pick-up tool. a. Use a flat-bl

Page 317 of 2896

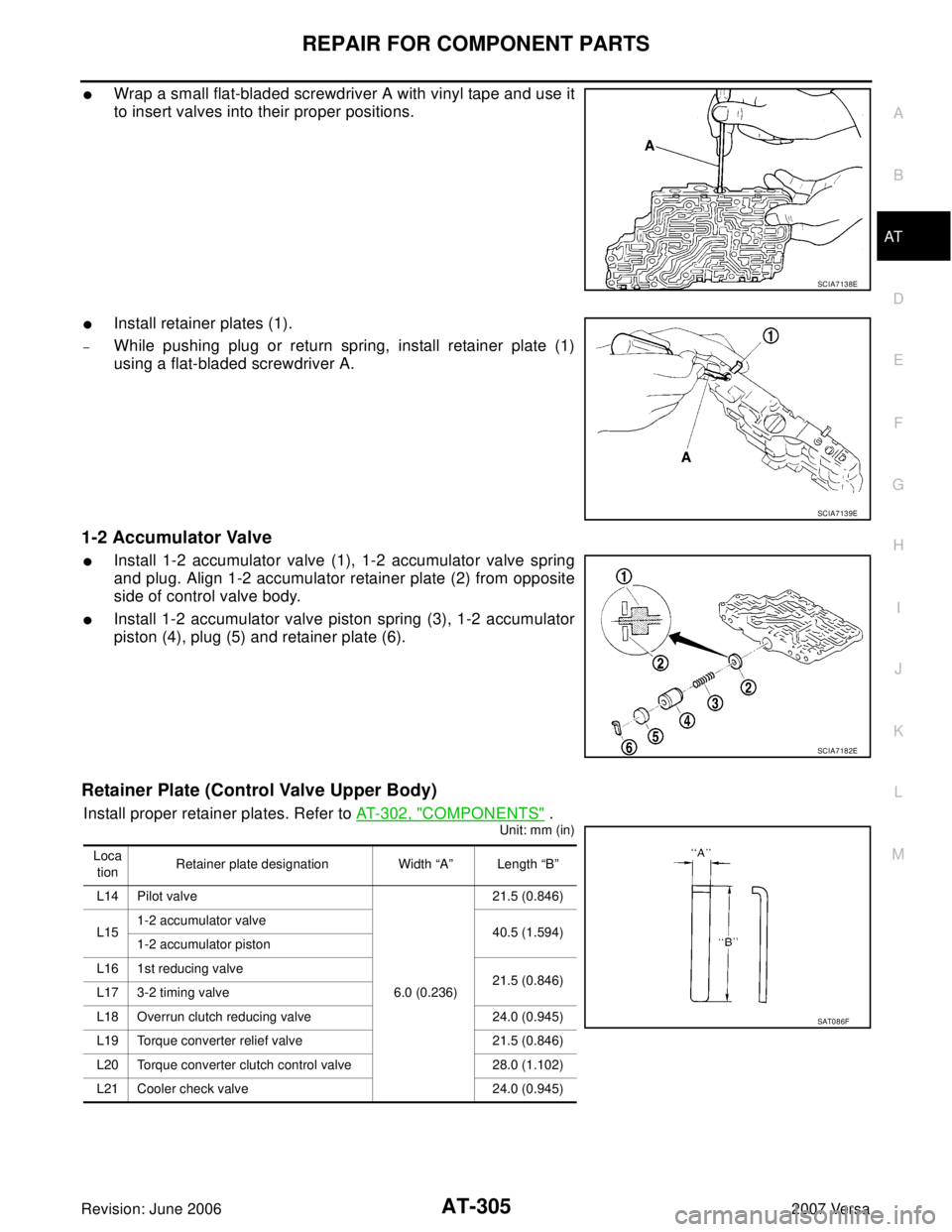

NISSAN VERSA 2006 Workshop Service Repair Manual AT-304 REPAIR FOR COMPONENT PARTS Revision: June 20062007 Versa c. Place mating surface of valve body face down, and remove internal parts. CAUTION: If a valve is hard to remove, place valve body fac

Page 318 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual REPAIR FOR COMPONENT PARTS AT-305 D E F G H I J K L MA B AT Revision: June 20062007 Versa Wrap a small flat-bladed screwdriver A with vinyl tape and use it to insert valves into their proper position

Page 319 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual AT-306 REPAIR FOR COMPONENT PARTS Revision: June 20062007 Versa Control Valve Lower BodyUCS005W7 COMPONENTS SCIA2959J

Page 320 of 2896

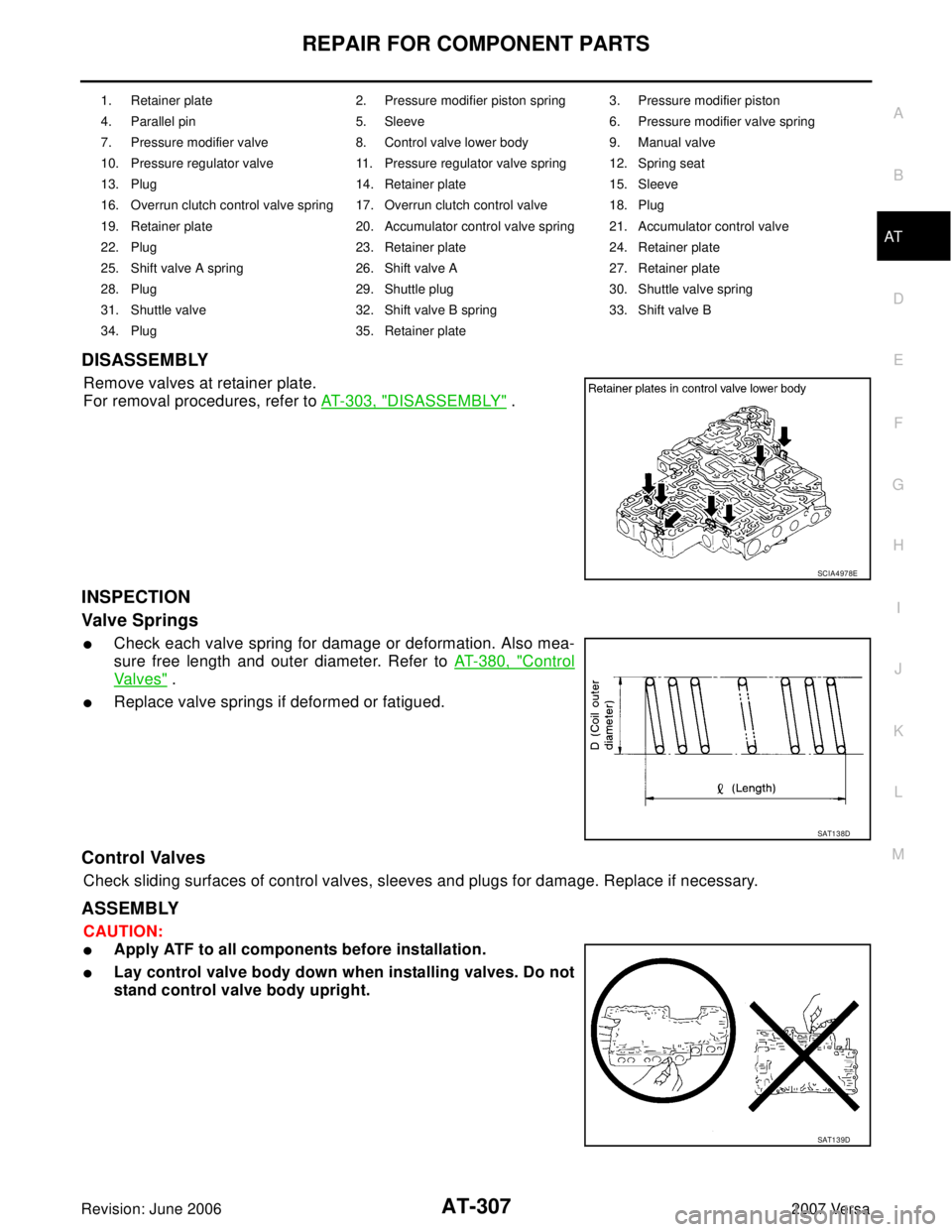

NISSAN VERSA 2006 Workshop Service Repair Manual REPAIR FOR COMPONENT PARTS AT-307 D E F G H I J K L MA B AT Revision: June 20062007 Versa DISASSEMBLY Remove valves at retainer plate. For removal procedures, refer to AT-303, " DISASSEMBLY" . INSPECT
