EC-120Revision: June 2006
TROUBLE DIAGNOSIS
2007 Versa
*: Models with A/C.VHCL SPEED SE
[km/h] or [MPH]
The vehicle speed computed from the vehicle
speed signal sent from TCM is displayed.
SET VHCL SPD
[km/h] or [MPH]
The preset vehicle speed is displayed.
MAIN SW
[ON/OFF]
Indicates [ON/OFF] condition from MAIN
switch signal.
CANCEL SW
[ON/OFF]
Indicates [ON/OFF] condition from CANCEL
switch signal.
RESUME/ACC SW
[ON/OFF]
Indicates [ON/OFF] condition from RESUME/
ACCELERATE switch signal.
SET SW
[ON/OFF]
Indicates [ON/OFF] condition from
SET/COAST switch signal.
BRAKE SW1
[ON/OFF]
Indicates [ON/OFF] condition from ASCD
brake switch signal.
BRAKE SW2
[ON/OFF]
Indicates [ON/OFF] condition of stop lamp
switch signal.
VHCL SPD CUT
[NON/CUT]
Indicates the vehicle cruise condition.
NON: Vehicle speed is maintained at the
ASCD set speed.
CUT: Vehicle speed increased to excessively
high compared with the ASCD set speed, and
ASCD operation is cut off.
LO SPEED CUT
[NON/CUT]
Indicates the vehicle cruise condition.
NON: Vehicle speed is maintained at the
ASCD set speed.
CUT: Vehicle speed decreased to excessively
low compared with the ASCD set speed, and
ASCD operation is cut off.
AT O D M O N IT O R
[ON/OFF]
Indicates [ON/OFF] condition of A/T O/D or
CVT O/D according to the input signal from the
TCM.For M/T models always “OFF” is
displayed
AT OD CANCEL
[ON/OFF]
Indicates [ON/OFF] condition of A/T O/D or
CVT O/D cancel signal sent from the TCM.For M/T models always “OFF” is
displayed
CRUISE LAMP
[ON/OFF]
Indicates [ON/OFF] condition of CRUISE lamp
determined by the ECM according to the input
signals.
SET LAMP
[ON/OFF]
Indicates [ON/OFF] condition of SET lamp
determined by the ECM according to the input
signals.
A/F ADJ-B1
Indicates the correction factor stored in ECM.
The factor is calculated from the difference
between the target air/fuel ratio stored in ECM
and the air/fuel ratio calculated from air fuel
ratio (A/F) sensor 1 signal. A/F ADJ-B2
Voltage [V]
Voltage, frequency, duty cycle or pulse width
measured by the probe.
Only “#” is displayed if item is
unable to be measured.
Figures with “#”s are temporary
ones. They are the same figures
as an actual piece of data which
was just previously measured. Frequency
[msec], [Hz] or [%]
DUTY-HI
DUTY-LOW
PLS WIDTH-HI
PLS WIDTH-LOWMonitored item [Unit]ECM
INPUT
SIG-
NALSMAIN
SIG-
NALSDescription Remarks
Page 1290 of 2896

TROUBLE DIAGNOSIS
EC-121
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
DATA MONITOR (SPEC) MODE
Monitored Item
NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
ACTIVE TEST MODE
Test Item
Monitored item [Unit]ECM
input
signalsMain
signalsDescription Remarks
ENG SPEED [rpm]××
Indicates the engine speed computed
from the signal of the crankshaft position
sensor (POS) and camshaft position
sensor (PHASE).
MAS A/F SE-B1 [V]××
The signal voltage of the mass air flow
sensor specification is displayed.When engine is running specification
range is indicated.
B/FUEL SCHDL
[msec]×
“Base fuel schedule” indicates the fuel
injection pulse width programmed into
ECM, prior to any learned on board cor-
rection.
When engine is running specification
range is indicated.
A/F ALPHA-B1 [%]×
The mean value of the air-fuel ratio feed-
back correction factor per cycle is indi-
cated.When engine is running specification
range is indicated.
This data also includes the data for the
air-fuel ratio learning control.
TEST ITEM CONDITION JUDGEMENT CHECK ITEM (REMEDY)
FUEL INJEC-
TION
Engine: Return to the original
trouble condition
Change the amount of fuel injec-
tion using CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.
Harness and connectors
Fuel injector
Air fuel ratio (A/F) sensor 1
IGNITION TIM-
ING
Engine: Return to the original
trouble condition
Timing light: Set
Retard the ignition timing using
CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.
Perform Idle Air Volume Learning.
POWER BAL-
ANCE
Engine: After warming up, idle
the engine.
A/C switch OFF
Shift lever: P or N (A/T, CVT),
Neutral (M/T)
Cut off each fuel injector signal
one at a time using CONSULT-II.Engine runs rough or dies.
Harness and connectors
Compression
Fuel injector
Power transistor
Spark plug
Ignition coil
COOLING FAN*
Ignition switch: ON
Turn the cooling fan “LOW”, “HI”
and “OFF” with CONSULT-II.Cooling fan moves and stops.
Harness and connectors
Cooling fan relay
Cooling fan motor
ENG COOLANT
TEMP
Engine: Return to the original
trouble condition
Change the engine coolant tem-
perature using CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.
Harness and connectors
Engine coolant temperature sen-
sor
Fuel injector
FUEL PUMP
RELAY
Ignition switch: ON
(Engine stopped)
Turn the fuel pump relay ON and
OFF using CONSULT-II and lis-
ten to operating sound.Fuel pump relay makes the operat-
ing sound.Harness and connectors
Fuel pump relay
Page 1291 of 2896

EC-122Revision: June 2006
TROUBLE DIAGNOSIS
2007 Versa
*: Leaving cooling fan OFF with CONSULT-II while engine is running may cause the engine to overheat.
DTC & SRT CONFIRMATION MODE
SRT STATUS Mode
For details, refer to EC-52, "SYSTEM READINESS TEST (SRT) CODE" .
SRT WORK SUPPORT Mode
This mode enables a technician to drive a vehicle to set the SRT while monitoring the SRT status.
PURG VOL
CONT/V
Engine: After warming up, run
engine at 1,500 rpm.
Change the EVAP canister purge
volume control solenoid valve
opening percent using CON-
SULT-II.Engine speed changes according to
the opening percent.Harness and connectors
EVAP canister purge volume con-
trol solenoid valve
FUEL/T TEMP
SEN
Change the fuel tank temperature using CONSULT-II.
VENT CON-
TROL/V
Ignition switch: ON
(Engine stopped)
Turn solenoid valve “ON” and
“OFF” with the CONSULT-II and
listen to operating sound.Solenoid valve makes an operating
sound.Harness and connectors
EVAP canister vent control valve
V/T ASSIGN
ANGLE
Engine: Return to the original
trouble condition
Change intake valve timing using
CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.
Harness and connectors
Intake valve timing control sole-
noid valve TEST ITEM CONDITION JUDGEMENT CHECK ITEM (REMEDY)
Page 1292 of 2896
TROUBLE DIAGNOSIS
EC-123
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
DTC WORK SUPPORT Mode
*: DTC P1442 and P1456 does not apply to C11 models but appears in DTC Work Support Mode screens.Test mode Test item Corresponding DTC No. Reference page
EVAPORATIVE SYS-
TEMPURG FLOW P0441 P0441EC-340
EVP SML LEAK P0442/P1442*P0442EC-346P0455EC-398
EVP V/S LEAK P0456/P1456* P0456EC-406
PURG VOL CN/V P1444 P0443EC-354
A/F SEN1A/F SEN1 (B1) P1276 P0130EC-220A/F SEN1 (B1) P1278/P1279 P0133EC-239
HO2S2HO2S2 (B1) P0139 P0139EC-267HO2S2 (B1) P1146 P0138EC-257
HO2S2 (B1) P1147 P0137EC-248
Page 1293 of 2896

EC-124Revision: June 2006
TROUBLE DIAGNOSIS
2007 Versa
REAL TIME DIAGNOSIS IN DATA MONITOR MODE (RECORDING VEHICLE DATA)
Description
CONSULT-II has two kinds of triggers and they can be selected by touching “SETTING” in “DATA MONITOR”
mode.
1. “AUTO TRIG” (Automatic trigger):
The malfunction will be identified on the CONSULT-II screen
in real time.
In other words, DTC/1st trip DTC and malfunction item will be
displayed if the malfunction is detected by ECM.

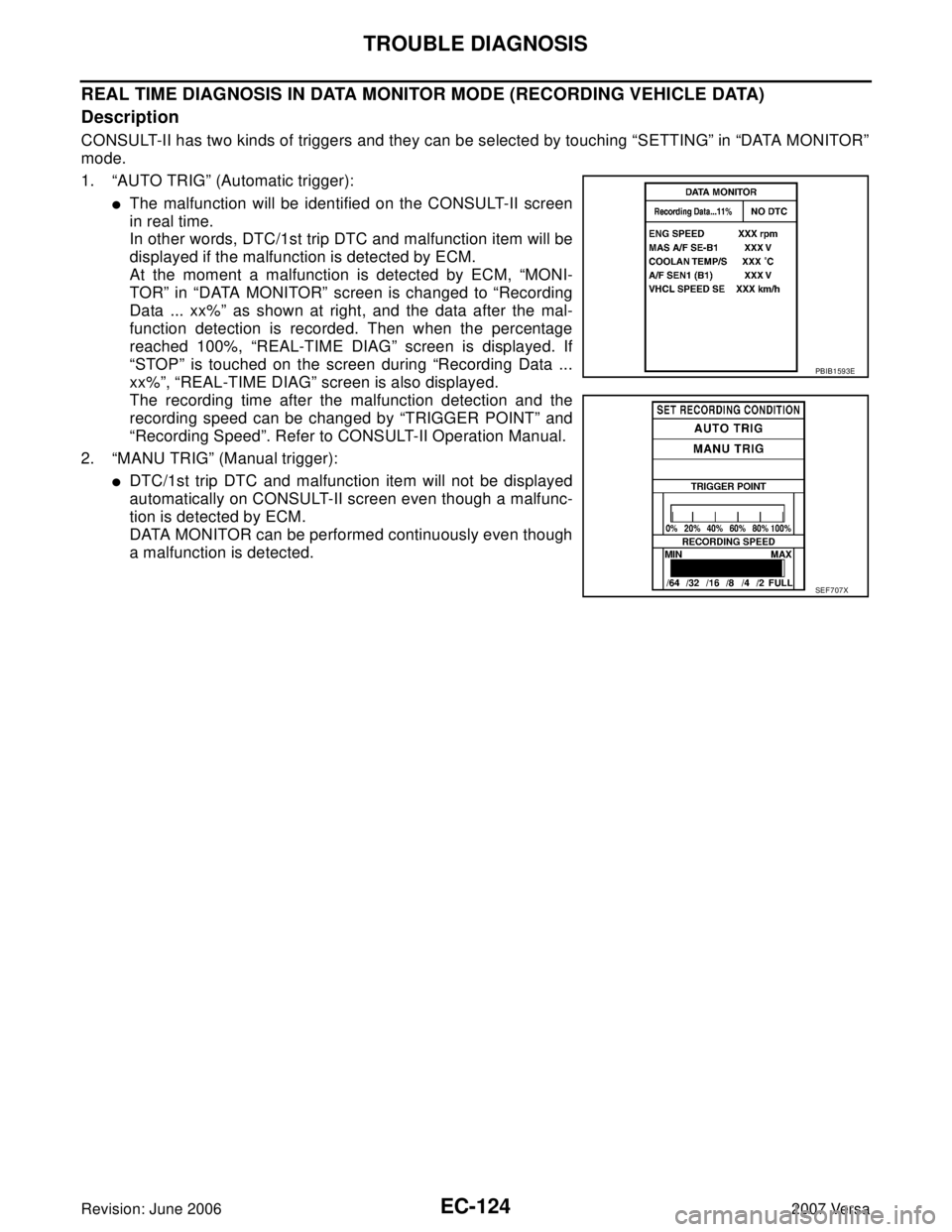

At the moment a malfunction is detected by ECM, “MONI-
TOR” in “DATA MONITOR” screen is changed to “Recording
Data ... xx%” as shown at right, and the data after the mal-
function detection is recorded. Then when the percentage
reached 100%, “REAL-TIME DIAG” screen is displayed. If
“STOP” is touched on the screen during “Recording Data ...
xx%”, “REAL-TIME DIAG” screen is also displayed.
The recording time after the malfunction detection and the
recording speed can be changed by “TRIGGER POINT” and
“Recording Speed”. Refer to CONSULT-II Operation Manual.
2. “MANU TRIG” (Manual trigger):
DTC/1st trip DTC and malfunction item will not be displayed
automatically on CONSULT-II screen even though a malfunc-
tion is detected by ECM.
DATA MONITOR can be performed continuously even though
a malfunction is detected.
PBIB1593E
SEF 7 07 X
Page 1294 of 2896

TROUBLE DIAGNOSIS
EC-125
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
Operation
1. “AUTO TRIG”
While trying to detect the DTC/1st trip DTC by performing the DTC Confirmation Procedure, be sure to
select to “DATA MONITOR (AUTO TRIG)” mode. You can confirm the malfunction at the moment it is
detected.
While narrowing down the possible causes, CONSULT-II should be set in “DATA MONITOR (AUTO
TRIG)” mode, especially in case the incident is intermittent.
When you are inspecting the circuit by gently shaking (or twisting) the suspicious connectors, compo-
nents and harness in the DTC Confirmation Procedure, the moment a malfunction is found the DTC/1st
trip DTC will be displayed. (Refer to “INCIDENT SIMULATION TESTS” in GI-27, "
How to Perform Effi-
cient Diagnosis for an Electrical Incident" .)
2. “MANU TRIG”
If the malfunction is displayed as soon as “DATA MONITOR” is selected, reset CONSULT-II to “MANU
TRIG”. By selecting “MANU TRIG” you can monitor and store the data. The data can be utilized for fur-
ther diagnosis, such as a comparison with the value for the normal operating condition.
PBIB0197E
Page 1295 of 2896

EC-126Revision: June 2006
TROUBLE DIAGNOSIS
2007 Versa
Generic Scan Tool (GST) FunctionUBS00PKO
DESCRIPTION
Generic Scan Tool (OBDII scan tool) complying with SAE J1978 has
8 different functions explained below.
ISO9141 is used as the protocol.
The name GST or Generic Scan Tool is used in this service manual.
FUNCTION
SEF 1 39 P
Diagnostic test mode Function
Service $01 READINESS TESTSThis diagnostic service gains access to current emission-related data values, including
analog inputs and outputs, digital inputs and outputs, and system status information.
Service $02 (FREEZE DATA)This diagnostic service gains access to emission-related data value which were stored by
ECM during the freeze frame. For details, refer to EC-116, "
Freeze Frame Data and 1st
Trip Freeze Frame Data" .
Service $03 DTCsThis diagnostic service gains access to emission-related power train trouble codes which
were stored by ECM.
Service $04 CLEAR DIAG INFO This diagnostic service can clear all emission-related diagnostic information. This
includes:
Clear number of diagnostic trouble codes (Service $01)
Clear diagnostic trouble codes (Service $03)
Clear trouble code for freeze frame data (Service $01)
Clear freeze frame data (Service $02)
Reset status of system monitoring test (Service $01)
Clear on board monitoring test results (Service $06 and $07)
Service $06 (ON BOARD TESTS)This diagnostic service accesses the results of on board diagnostic monitoring tests of
specific components/systems that are not continuously monitored.
Service $07 (ON BOARD TESTS)This diagnostic service enables the off board test drive to obtain test results for emission-
related powertrain components/systems that are continuously monitored during normal
driving conditions.
Service $08 —This diagnostic service can close EVAP system in ignition switch ON position (Engine
stopped). When this diagnostic service is performed, EVAP canister vent control valve
can be closed. In the following conditions, this diagnostic service cannot function.
Low ambient temperature
Low battery voltage
Engine running
Ignition switch OFF
Low fuel temperature
Too much pressure is applied to EVAP system
Service $09 (CALIBRATION ID)This diagnostic service enables the off-board test device to request specific vehicle infor-
mation such as Vehicle Identification Number (VIN) and Calibration IDs.
Page 1296 of 2896
TROUBLE DIAGNOSIS
EC-127
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
INSPECTION PROCEDURE
1. Turn ignition switch OFF.
2. Connect GST to data link connector (1), which is located under
LH dash panel.
3. Turn ignition switch ON.

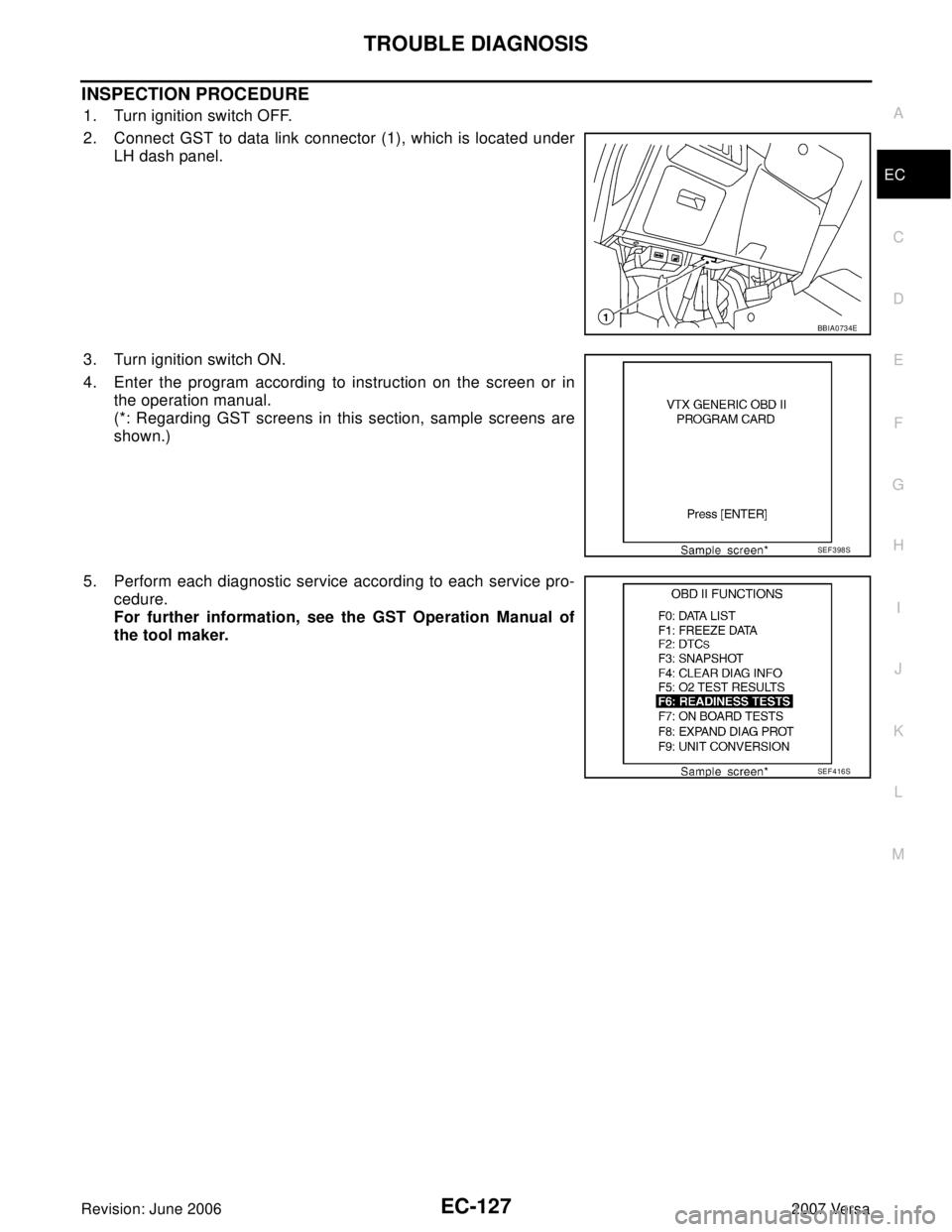

4. Enter the program according to instruction on the screen or in
the operation manual.
(*: Regarding GST screens in this section, sample screens are
shown.)
5. Perform each diagnostic service according to each service pro-
cedure.
For further information, see the GST Operation Manual of
the tool maker.
BBIA0734E
SEF 3 98 S
SEF 4 16 S
