Page 1657 of 2896

EC-488Revision: June 2006
DTC P1805 BRAKE SWITCH
2007 Versa
DTC P1805 BRAKE SWITCHPFP:25320
DescriptionUBS00QLX
Brake switch signal is applied to the ECM through the stop lamp switch when the brake pedal is depressed.
This signal is used mainly to decrease the engine speed when the vehicle is driving.
CONSULT-II Reference Value in Data Monitor ModeUBS00QLY
Specification data are reference values.
On Board Diagnosis LogicUBS00QLZ
The MIL will not light up for this self-diagnosis.
FAIL -S AFE M OD E
When the malfunction is detected, the ECM enters in fail-safe mode.
DTC Confirmation ProcedureUBS00QM1
WITH CONSULT-II
1. Turn ignition switch ON.
2. Fully depress the brake pedal for at least 5 seconds.
3. Erase the DTC with CONSULT-II.
4. Select “DATA MONITOR” mode with CONSULT-II.
5. If 1st trip DTC is detected, go to EC-490, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
MONITOR ITEM CONDITION SPECIFICATION
BRAKE SW
Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1805
1805Brake switchA brake switch signal is not sent to ECM for
extremely long time while the vehicle is driv-
ing.
Harness or connectors
(Stop lamp switch circuit is open or shorted.)
Stop lamp switch
Engine operation condition in fail-fail safe mode
ECM controls the electric throttle control actuator by regulating the throttle opening to a small range.
Therefore, acceleration will be poor.
Vehicle condition Driving condition
Engine: Idling Normal
Accelerating Poor acceleration
PBIB1952E
Page 1658 of 2896
DTC P1805 BRAKE SWITCH
EC-489
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa

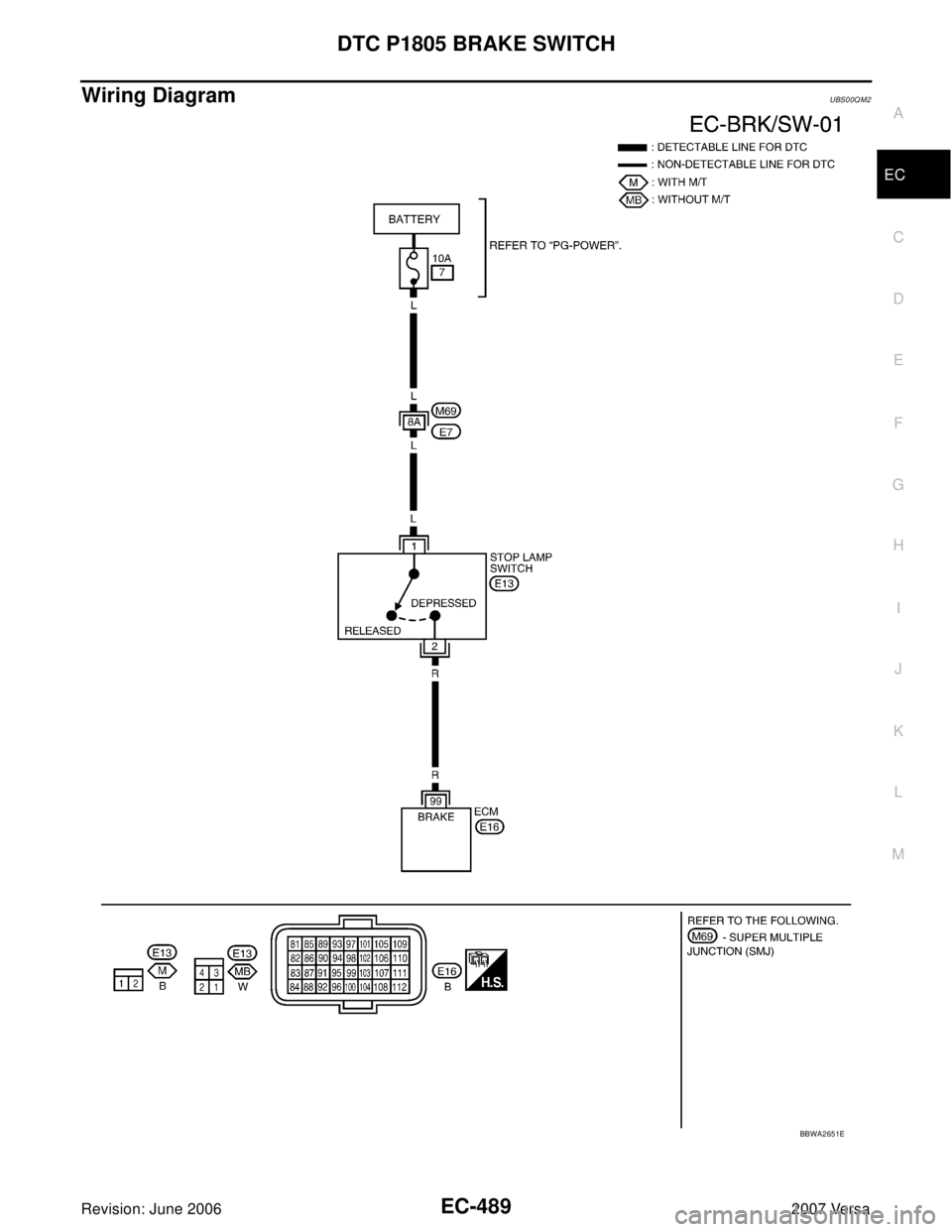

Wiring DiagramUBS00QM2
BBWA2651E
Page 1659 of 2896

EC-490Revision: June 2006
DTC P1805 BRAKE SWITCH
2007 Versa
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureUBS00QM3
1. CHECK STOP LAMP SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Check the stop lamp when depressing and releasing the brake pedal.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Disconnect stop lamp switch (1) harness connector.
–Brake pedal (2)
2. Check voltage between stop lamp switch terminal 1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
99 R Stop lamp switch[Ignition switch: OFF]
Brake pedal: Fully releasedApproximately 0V
[Ignition switch: OFF]
Brake pedal: Slightly depressedBATTERY VOLTAGE
(11 - 14V)
Brake pedal Stop lamp
Fully released Not illuminated
Slightly depressed Illuminated
BBIA0710E
Voltage: Battery voltage
PBIB3317E
Page 1660 of 2896

DTC P1805 BRAKE SWITCH
EC-491
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
3. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M69, E7
10A fuse
Harness for open and short between stop lamp switch and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect stop lamp switch (1) harness connector.
2. Disconnect ECM harness connector.
3. Check harness continuity between stop lamp switch terminal 2 and ECM terminal 99.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness connectors.
5. CHECK STOP LAMP SWITCH
Refer to EC-492, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace stop lamp switch.
6. CHECK INTERMITTENT INCIDENT
Refer to EC-143, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
Page 1661 of 2896
EC-492Revision: June 2006
DTC P1805 BRAKE SWITCH
2007 Versa
Component InspectionUBS00QM4
STOP LAMP SWITCH
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.
If NG, adjust stop lamp switch installation, refer to BR-6, "
BRAKE PEDAL" , and perform step 3 again.
Condition Continuity
Brake pedal: Fully released. Should not exist.
Brake pedal: Slightly depressed. Should exist.
PBIB3318E
Page 1662 of 2896

DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAY
EC-493
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAYPFP:16119
Component DescriptionUBS00QM5
Power supply for the throttle control motor is provided to the ECM via throttle control motor relay. The throttle
control motor relay is ON/OFF controlled by the ECM. When the ignition switch is turned ON, the ECM sends
an ON signal to throttle control motor relay and battery voltage is provided to the ECM. When the ignition
switch is turned OFF, the ECM sends an OFF signal to throttle control motor relay and battery voltage is not
provided to the ECM.
CONSULT-II Reference Value in Data Monitor ModeUBS00QM6
Specification data are reference values.
On Board Diagnosis LogicUBS00QM7
These self-diagnoses have one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureUBS00QM8
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
PROCEDURE FOR DTC P2100
With CONSULT-II
1. Turn ignition switch ON and wait at least 2 seconds.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 5 seconds.
4. If DTC is detected, go to EC-496, "
Diagnostic Procedure" .
With GST
Follow the procedure “With CONSULT-II” above.
MONITOR ITEM CONDITION SPECIFICATION
THRTL RELAY
Ignition switch: ON ON
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2100
2100Throttle control motor
relay circuit openECM detects a voltage of power source for
throttle control motor is excessively low.
Harness or connectors
(Throttle control motor relay circuit is
open)
Throttle control motor relay
P2103
2103Throttle control motor
relay circuit shortECM detects the throttle control motor relay is
stuck ON.
Harness or connectors
(Throttle control motor relay circuit is
shorted)
Throttle control motor relay
Engine operating condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return
spring.
SEF 0 58 Y
Page 1663 of 2896
EC-494Revision: June 2006
DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAY
2007 Versa
PROCEDURE FOR DTC P2103
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
With CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. If DTC is detected, go to EC-496, "
Diagnostic Procedure" .
With GST
Follow the procedure “With CONSULT-II” above.
SEF 0 58 Y
Page 1664 of 2896
DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAY
EC-495
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
Wiring DiagramUBS00QM9
BBWA2644E
