TIMING CHAIN
2007 Versa
13. Cut liquid gasket by prying the position ( ) shown, and then
remove the front cover.
CAUTION:
Be careful not to damage the mating surface.
A more adhesive liquid gasket is applied compared to
previous types when shipped, so it should not be forced
off the position not specified.
14. Remove front oil seal from front cover.
Lift up front oil seal using a suitable tool.
CAUTION:
Be careful not to damage front cover.
15. Push in timing chain tensioner plunger.
16. Insert a stopper pin (A) into the body hole to retain the plunger in
collapsed position.
NOTE:
Use approximately 1.5 mm (0.059 in) diameter. hard metal pin
as a stopper pin.
17. Remove timing chain tensioner (1).
18. Remove timing chain slack guide (2), timing chain tension guide
(3) and timing chain (1).
CAUTION:
Never rotate each crankshaft and camshaft individually
while timing chain is removed. It causes interference
between valve and piston.
PBIC3357J
PBIC3165J
PBIC3166J
Page 1850 of 2896

TIMING CHAIN
EM-41
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: June 20062007 Versa
19. Fully lift up lever (A), and push the slack guide (B) into the inside
of chain tensioner (for oil pump) (1).
The slack guide is released by fully lifting the lever up. As the
result, the slack guide can be moved.
20. Matching the hole on lever with the hole on tensioner body,
insert a stopper pin (C) to secure slack guide.
NOTE:
Use approximately 1.0 mm (0.04 in) diameter. hard metal pin as
a stopper pin.
21. Remove chain tensioner (for oil pump).
When the holes on lever and tensioner body cannot be aligned, align these holes by slightly moving the
slack guide.
22. Hold the WAF part of oil pump shaft (A), and then loosen the oil pump sprocket bolt and remove them.
CAUTION:
Secure the oil pump shaft with the WAF part.
Never loosen the oil pump sprocket bolt by tightening the
oil pump drive chain.
23. Remove crankshaft sprocket, oil pump sprocket and oil pump drive chain as a set.
24. Remove timing chain tension guide (front cover side) from front cover if necessary.
INSPECTION AFTER REMOVAL
Timing Chain
Check timing chain and oil pump drive chain for cracks (A) and
any excessive wear (B) at the roller links of timing chain.
Replace timing chain and/or oil pump drive chain if necessary.
PBIC3453J
1 : Oil pan (upper)
2 : Oil pump
: Engine front
PBIC3539J
PBIC3169J
Page 1851 of 2896

EM-42Revision: June 2006
TIMING CHAIN
2007 Versa
INSTALLATION
NOTE:
The figure shows the relationship between the matching mark on
each timing chain and that on the corresponding sprocket, with the
components installed.
1. Make sure that crankshaft key points straight up.
NOTE:
*: There are two outer grooves in camshaft sprocket (INT). The wider one is a matching mark.
2. If the timing chain tension guide (front cover side) is removed, install it to the front cover.
CAUTION:
Check the joint condition by sound or feeling.
3. Install crankshaft sprocket (2), oil pump sprocket (3) and oil
pump drive chain (1).
Install it by aligning matching marks on each sprocket and oil
pump drive chain.
If these matching marks are not aligned, rotate the oil pump
shaft slightly to correct the position.
CAUTION:
Check matching mark position of each sprocket after
installing the oil pump drive chain.
1 : Timing chain
2 : Camshaft sprocket (EXH)
3 : Timing chain slack guide
4 : Timing chain tensioner
5 : Oil pump sprocket
6 : Oil pump drive chain
7 : Chain tensioner (for oil pump)
8 : Crankshaft sprocket
9 : Timing chain tension guide
10 : Camshaft sprocket (INT)
A : Matching mark (dark blue link)
B : Matching mark (stamping)
C : Crankshaft key position (straight up)
D : Matching mark (gold link)
E : Matching mark (orange link)
F : Matching mark (outer groove*)
A : Matching mark (stamping)
B : Matching mark (orange link)
C : Matching mark (dark blue link)
WBIA0780E
PBIC3171J
Page 1852 of 2896

TIMING CHAIN
EM-43
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: June 20062007 Versa
4. Hold the WAF part of oil pump shaft (A), and then tighten the oil
pump sprocket bolt.
CAUTION:
Secure the oil pump shaft with the WAF part.
Never loosen the oil pump sprocket bolt by tightening the
oil pump drive chain.
5. Install chain tensioner (for oil pump) (1).
Fix the plunger at the most compressed position using a stop-
per pin (A), and then install it.
Securely pull out ( ) the stopper pin after installing the chain
tensioner (for oil pump).
Check matching mark position of oil pump drive chain and
each sprocket again.
6. Align the matching marks of each sprocket with the matching
marks of timing chain.
NOTE:
*: There are 2 outer grooves in camshaft sprocket (INT). The
wider one is a matching mark.
If these matching marks are not aligned, rotate the camshaft
slightly by holding the hexagonal portion to correct the posi-
tion.
CAUTION:
Check matching mark position of each sprocket and timing
chain again after installing the timing chain.
1 : Oil pan (upper)
2 : Oil pump
: Engine front
PBIC3539J
PBIC3456J
1 : Camshaft sprocket (EXH)
2 : Camshaft sprocket (INT)
3 : Timing chain
A : Matching mark (dark blue link)
B : Matching mark (stamping)
C : Matching mark (outer groove*)
D : Matching mark (gold link)
E : Matching mark (stamping)
PBIC3172J
Page 1853 of 2896

EM-44Revision: June 2006
TIMING CHAIN
2007 Versa

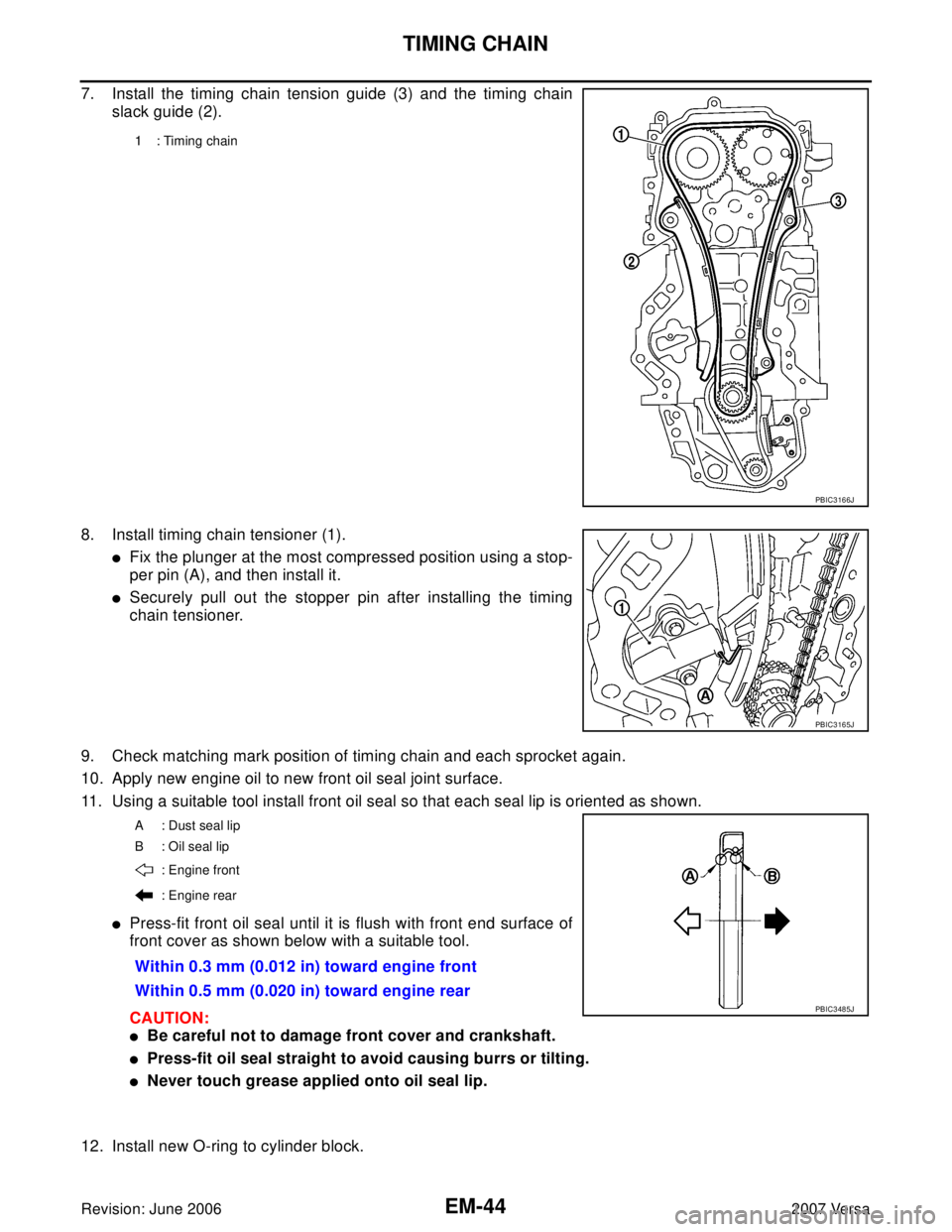

7. Install the timing chain tension guide (3) and the timing chain
slack guide (2).
8. Install timing chain tensioner (1).
Fix the plunger at the most compressed position using a stop-
per pin (A), and then install it.
Securely pull out the stopper pin after installing the timing
chain tensioner.
9. Check matching mark position of timing chain and each sprocket again.
10. Apply new engine oil to new front oil seal joint surface.
11. Using a suitable tool install front oil seal so that each seal lip is oriented as shown.
Press-fit front oil seal until it is flush with front end surface of
front cover as shown below with a suitable tool.
CAUTION:
Be careful not to damage front cover and crankshaft.
Press-fit oil seal straight to avoid causing burrs or tilting.
Never touch grease applied onto oil seal lip.
12. Install new O-ring to cylinder block.
1 : Timing chain
PBIC3166J
PBIC3165J
A : Dust seal lip
B: Oil seal lip
: Engine front
: Engine rear
Within 0.3 mm (0.012 in) toward engine front
Within 0.5 mm (0.020 in) toward engine rear
PBIC3485J
Page 1854 of 2896

TIMING CHAIN
EM-45
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: June 20062007 Versa

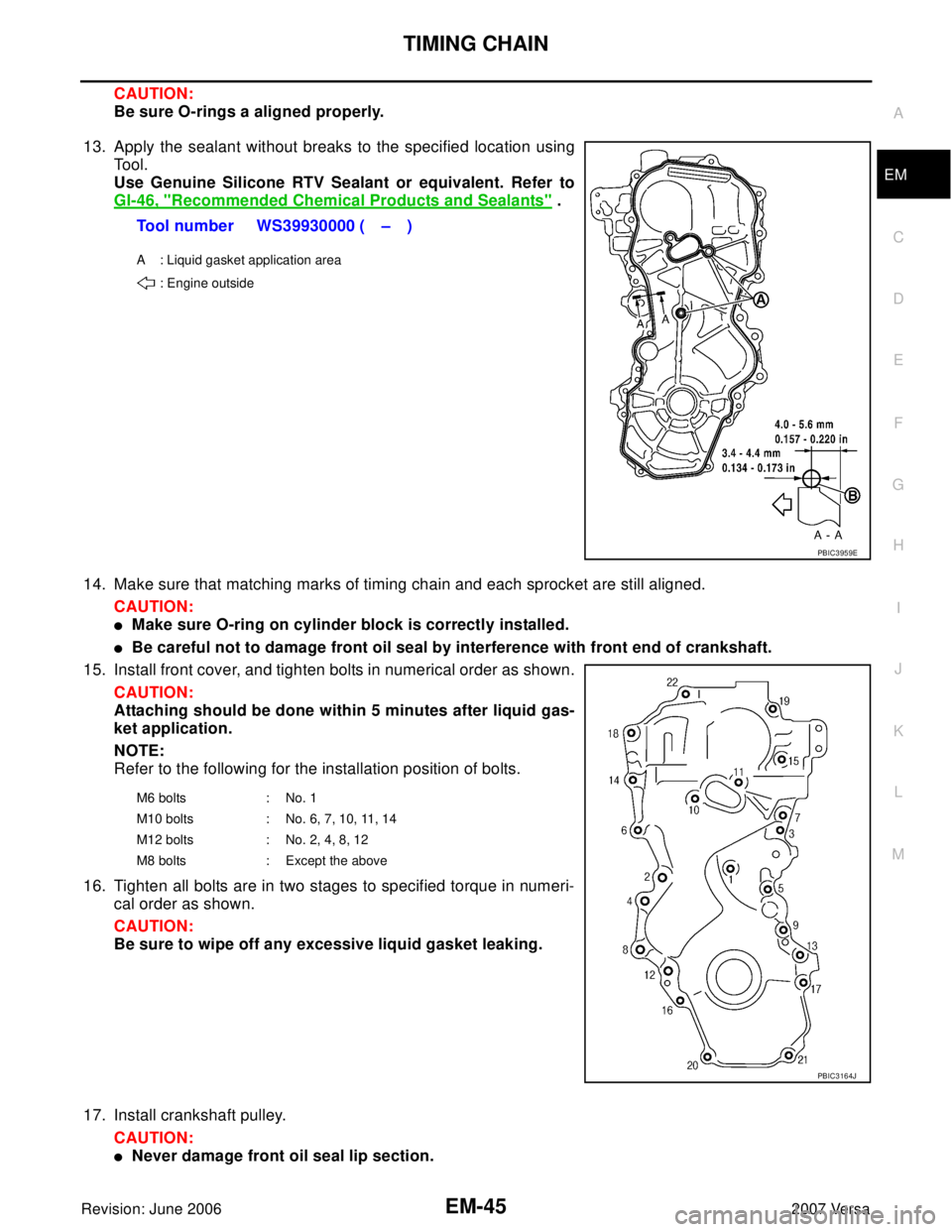

CAUTION:
Be sure O-rings a aligned properly.
13. Apply the sealant without breaks to the specified location using
Tool.
Use Genuine Silicone RTV Sealant or equivalent. Refer to
GI-46, "
Recommended Chemical Products and Sealants" .
14. Make sure that matching marks of timing chain and each sprocket are still aligned.
CAUTION:
Make sure O-ring on cylinder block is correctly installed.
Be careful not to damage front oil seal by interference with front end of crankshaft.
15. Install front cover, and tighten bolts in numerical order as shown.
CAUTION:
Attaching should be done within 5 minutes after liquid gas-
ket application.
NOTE:
Refer to the following for the installation position of bolts.
16. Tighten all bolts are in two stages to specified torque in numeri-
cal order as shown.
CAUTION:
Be sure to wipe off any excessive liquid gasket leaking.
17. Install crankshaft pulley.
CAUTION:
Never damage front oil seal lip section.Tool number WS39930000 ( – )
A : Liquid gasket application area
: Engine outside
PBIC3959E
M6 bolts : No. 1
M10 bolts : No. 6, 7, 10, 11, 14
M12 bolts : No. 2, 4, 8, 12
M8 bolts : Except the above
PBIC3164J
Page 1855 of 2896
EM-46Revision: June 2006
TIMING CHAIN
2007 Versa

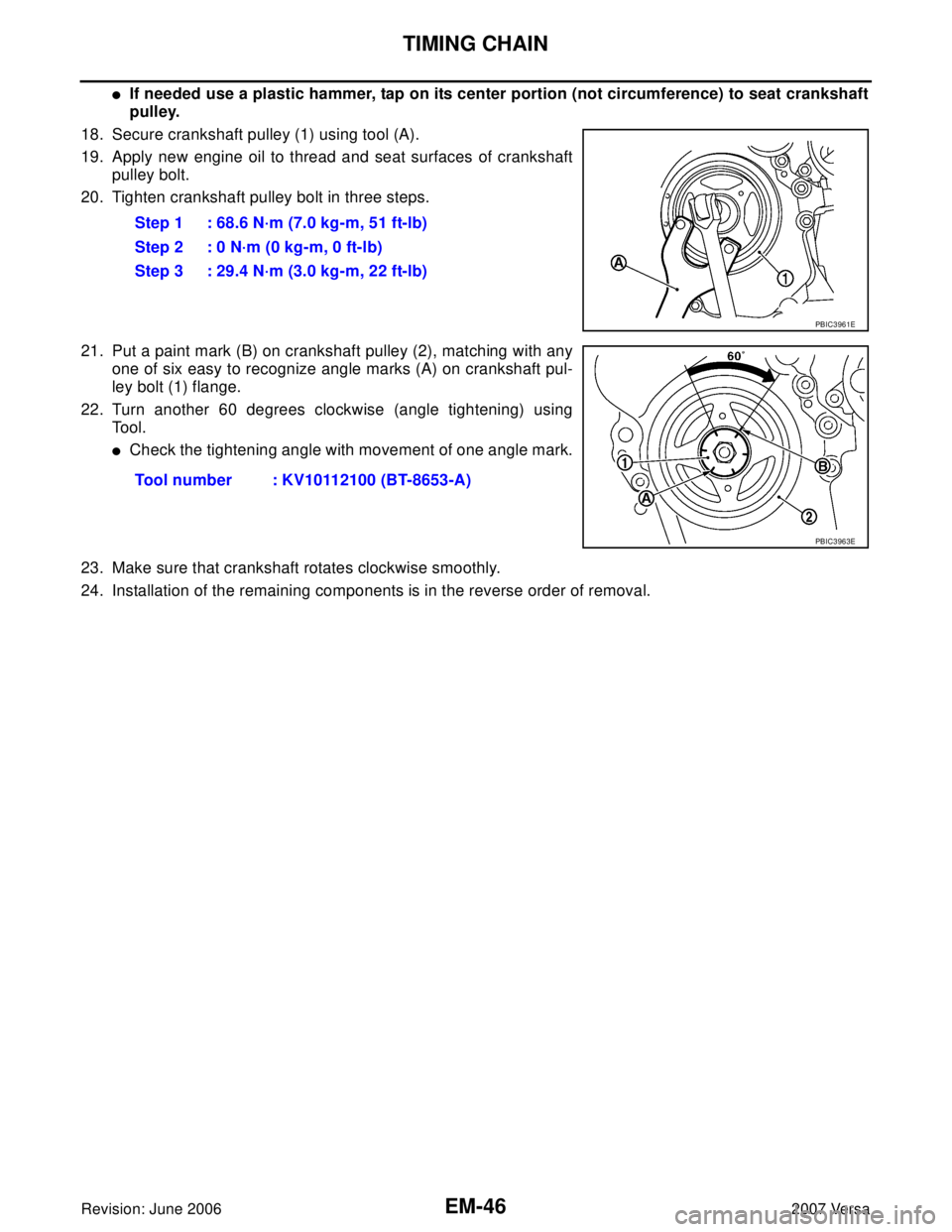

If needed use a plastic hammer, tap on its center portion (not circumference) to seat crankshaft
pulley.
18. Secure crankshaft pulley (1) using tool (A).
19. Apply new engine oil to thread and seat surfaces of crankshaft
pulley bolt.
20. Tighten crankshaft pulley bolt in three steps.
21. Put a paint mark (B) on crankshaft pulley (2), matching with any
one of six easy to recognize angle marks (A) on crankshaft pul-
ley bolt (1) flange.
22. Turn another 60 degrees clockwise (angle tightening) using
Tool.
Check the tightening angle with movement of one angle mark.
23. Make sure that crankshaft rotates clockwise smoothly.
24. Installation of the remaining components is in the reverse order of removal.Step 1 : 68.6 N·m (7.0 kg-m, 51 ft-lb)
Step 2 : 0 N·m (0 kg-m, 0 ft-lb)
Step 3 : 29.4 N·m (3.0 kg-m, 22 ft-lb)
PBIC3961E
Tool number : KV10112100 (BT-8653-A)
PBIC3963E
Page 1856 of 2896

CAMSHAFT
EM-47
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: June 20062007 Versa

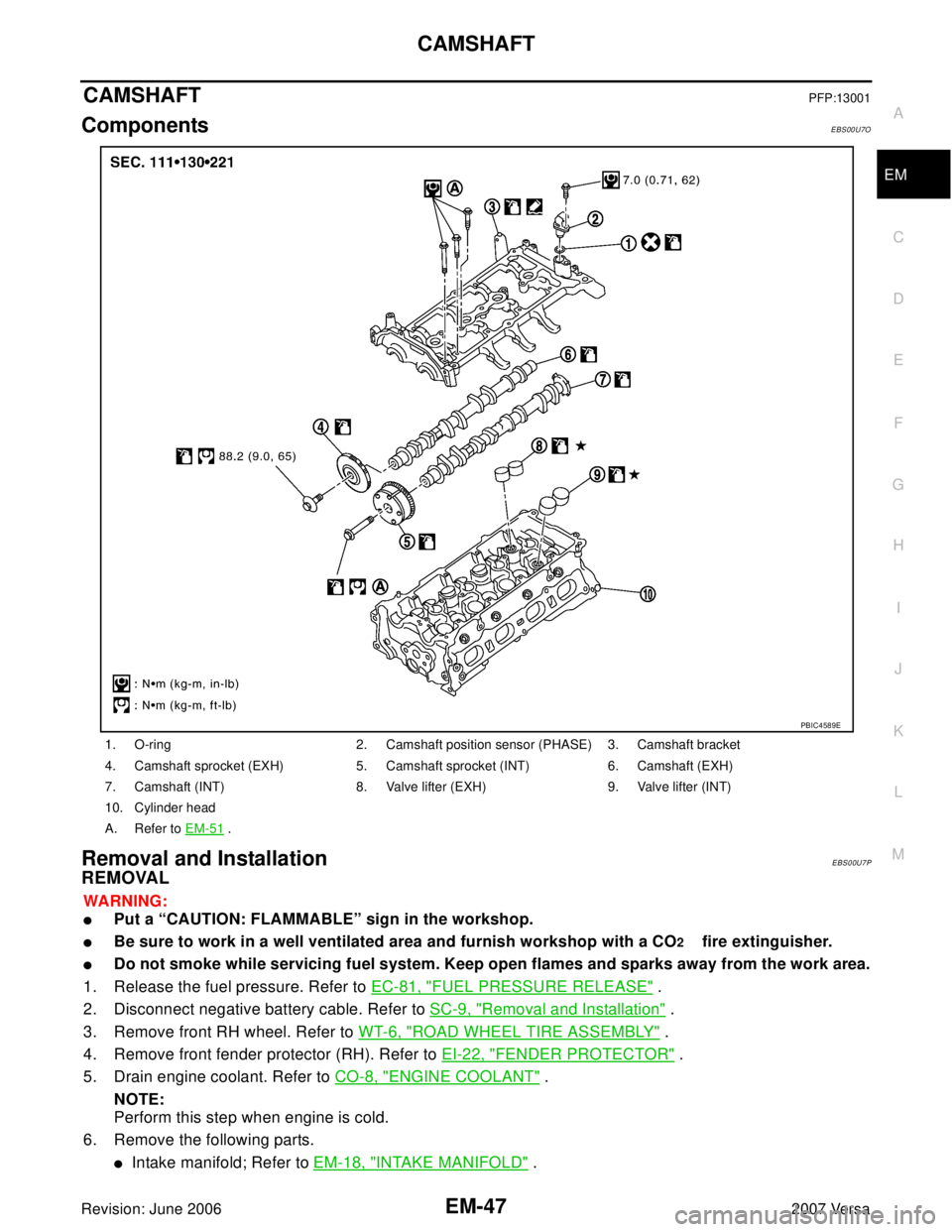

CAMSHAFTPFP:13001
ComponentsEBS00U7O
Removal and InstallationEBS00U7P
REMOVAL
WA RN ING:
Put a “CAUTION: FLAMMABLE” sign in the workshop.
Be sure to work in a well ventilated area and furnish workshop with a CO2 fire extinguisher.
Do not smoke while servicing fuel system. Keep open flames and sparks away from the work area.
1. Release the fuel pressure. Refer to EC-81, "
FUEL PRESSURE RELEASE" .
2. Disconnect negative battery cable. Refer to SC-9, "
Removal and Installation" .
3. Remove front RH wheel. Refer to WT-6, "
ROAD WHEEL TIRE ASSEMBLY" .
4. Remove front fender protector (RH). Refer to EI-22, "
FENDER PROTECTOR" .
5. Drain engine coolant. Refer to CO-8, "
ENGINE COOLANT" .
NOTE:
Perform this step when engine is cold.
6. Remove the following parts.
Intake manifold; Refer to EM-18, "INTAKE MANIFOLD" .
1. O-ring 2. Camshaft position sensor (PHASE) 3. Camshaft bracket
4. Camshaft sprocket (EXH) 5. Camshaft sprocket (INT) 6. Camshaft (EXH)
7. Camshaft (INT) 8. Valve lifter (EXH) 9. Valve lifter (INT)
10. Cylinder head
A. Refer to EM-51
.
PBIC4589E
