NISSAN VERSA 2006 Workshop Service Repair Manual HARNESS CONNECTOR PG-69 C D E F G H I J L MA B PG Revision: June 20062007 Versa HARNESS CONNECTOR (SLIDE-LOCKING TYPE) A new style slide-locking type connector is used on certain systems and componen

Page 2586 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual PG-70 HARNESS CONNECTOR Revision: June 20062007 Versa HARNESS CONNECTOR (LEVER LOCKING TYPE) Lever locking type harness connectors are used on certain control units and control modules such as ECM, A

Page 2587 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual HARNESS CONNECTOR PG-71 C D E F G H I J L MA B PG Revision: June 20062007 Versa HARNESS CONNECTOR (DIRECT-CONNECT SRS COMPONENT TYPE) SRS direct-connect type harness connectors are used on certain SR

Page 2588 of 2896

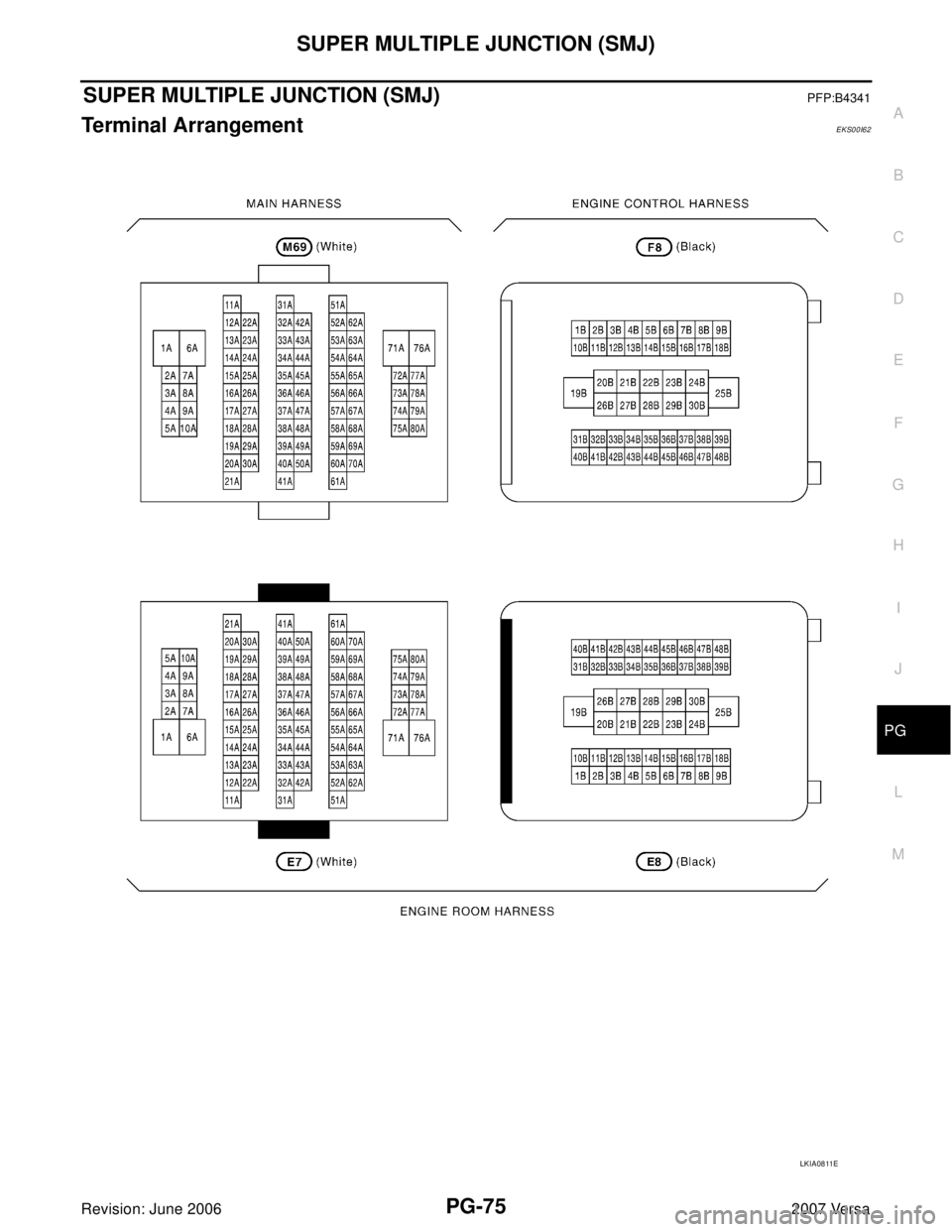

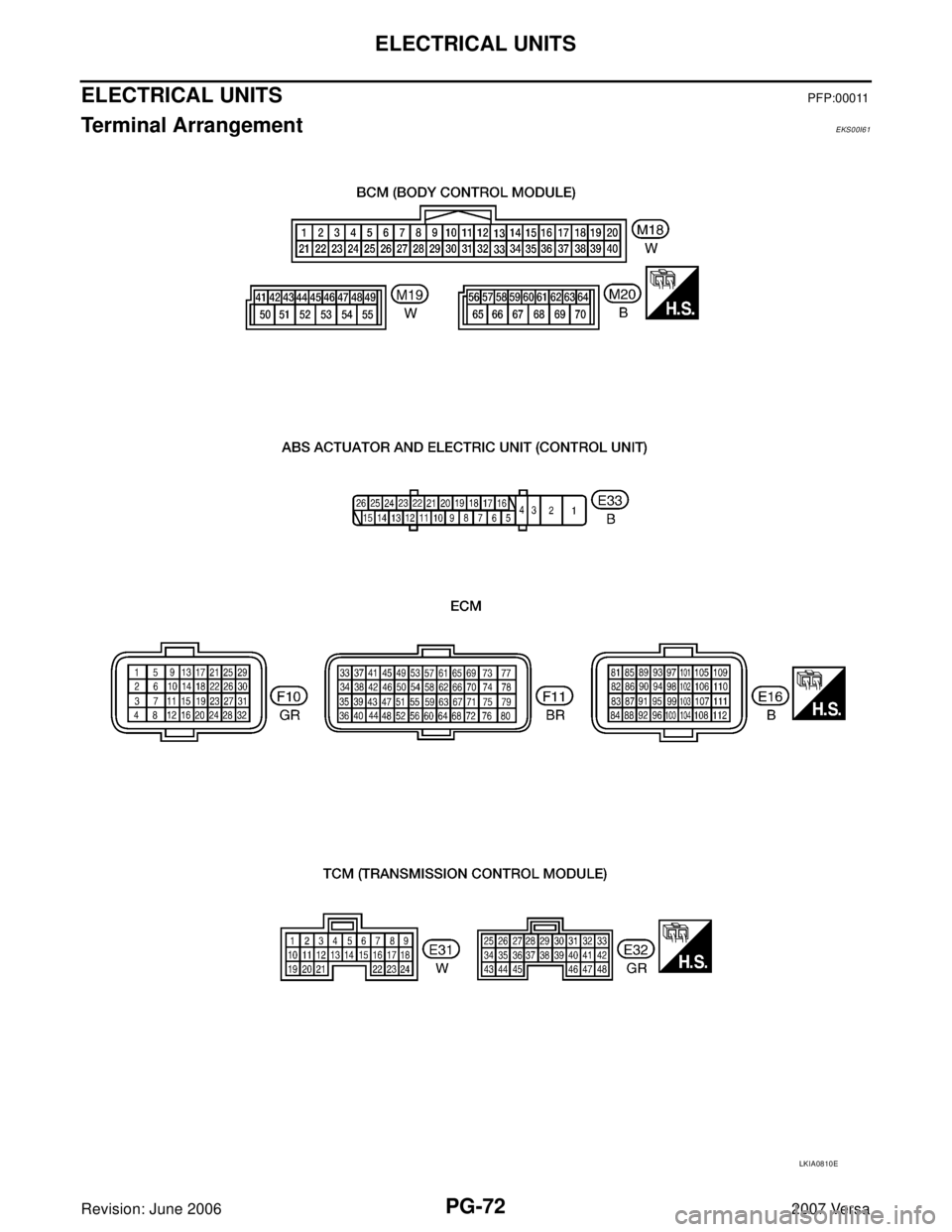

NISSAN VERSA 2006 Workshop Service Repair Manual PG-72 ELECTRICAL UNITS Revision: June 20062007 Versa ELECTRICAL UNITS PFP:00011 Terminal Arrangement EKS00I61 LKIA0810E

Page 2589 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual STANDARDIZED RELAY PG-73 C D E F G H I J L MA B PG Revision: June 20062007 Versa STANDARDIZED RELAY PFP:00011 DescriptionEKS00INH NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS Relays can mainly be

Page 2590 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual PG-74 STANDARDIZED RELAY Revision: June 20062007 Versa WKIA0253E

Page 2591 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual SUPER MULTIPLE JUNCTION (SMJ) PG-75 C D E F G H I J L MA B PG Revision: June 20062007 Versa SUPER MULTIPLE JUNCTION (SMJ)PFP:B4341 Terminal ArrangementEKS00I62 LKIA0811E

Page 2592 of 2896

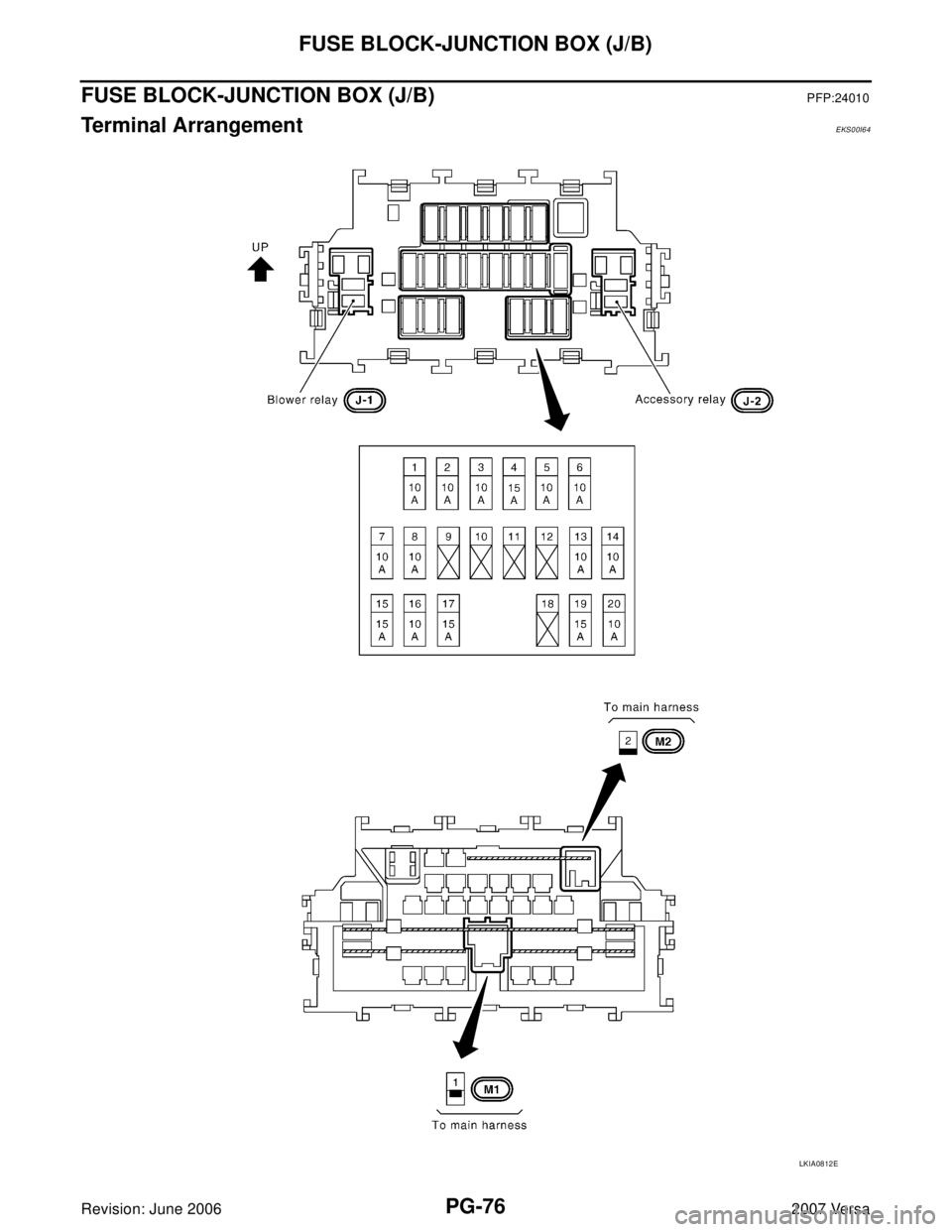

NISSAN VERSA 2006 Workshop Service Repair Manual PG-76 FUSE BLOCK-JUNCTION BOX (J/B) Revision: June 20062007 Versa FUSE BLOCK-JUNCTION BOX (J/B)PFP:24010 Terminal ArrangementEKS00I64 LKIA0812E
