DTC P1760 OVERRUN CLUTCH SOLENOID VALVE
Revision: June 20062007 Versa
2. CHECK OVERRUN CLUTCH SOLENOID VALVE CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect TCM connector.

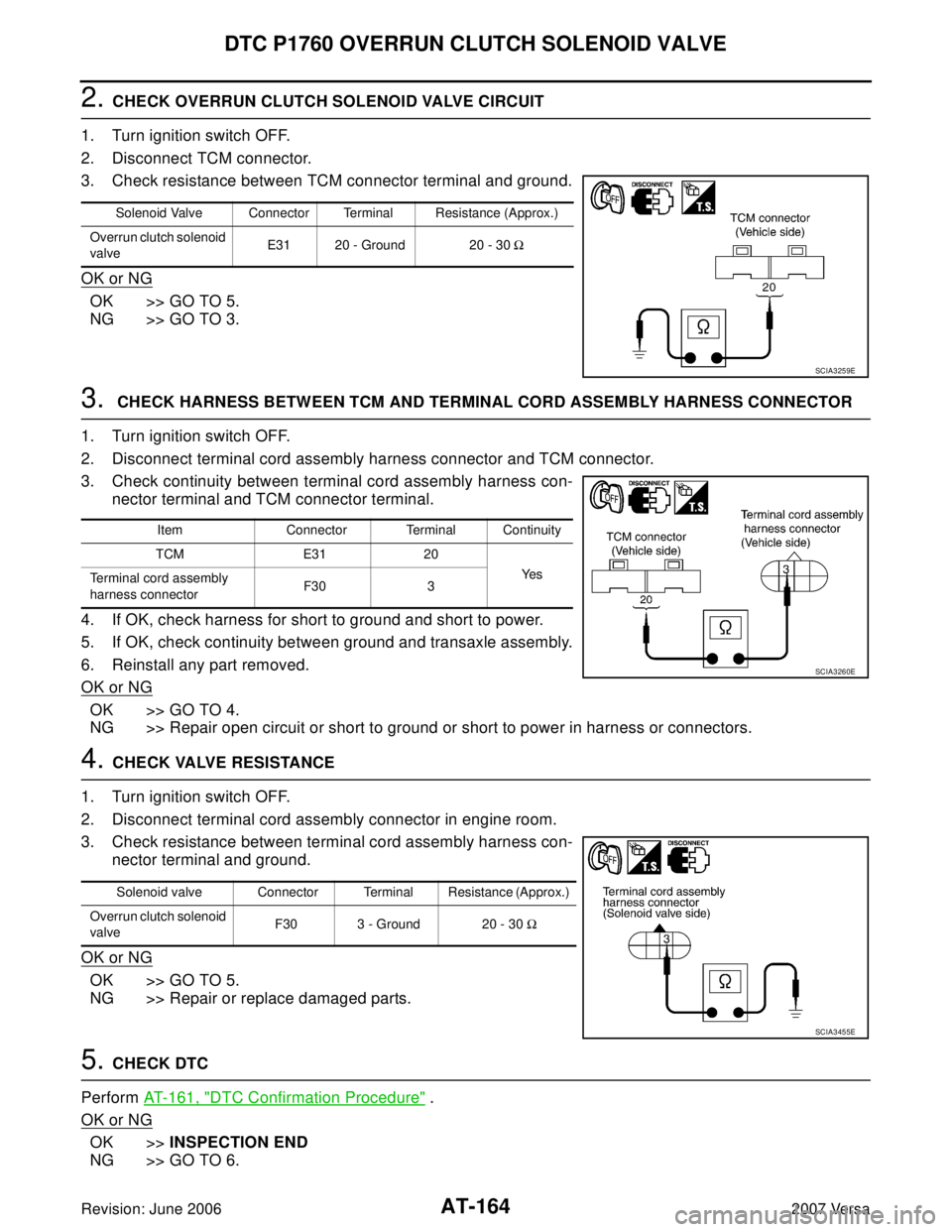

3. Check resistance between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
3. CHECK HARNESS BETWEEN TCM AND TERMINAL CORD ASSEMBLY HARNESS CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly harness connector and TCM connector.
3. Check continuity between terminal cord assembly harness con-
nector terminal and TCM connector terminal.
4. If OK, check harness for short to ground and short to power.
5. If OK, check continuity between ground and transaxle assembly.
6. Reinstall any part removed.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK VALVE RESISTANCE
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly connector in engine room.
3. Check resistance between terminal cord assembly harness con-
nector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK DTC
Perform AT-161, "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 6.
Solenoid Valve Connector Terminal Resistance (Approx.)
Overrun clutch solenoid
valve E31 20 - Ground 20 - 30 Ω
SCIA3259E
Item Connector Terminal Continuity
TCM E31 20
Ye s
Terminal cord assembly
harness connectorF30 3
SCIA3260E
Solenoid valve Connector Terminal Resistance (Approx.)
Overrun clutch solenoid
valveF30 3 - Ground 20 - 30 Ω
SCIA3455E
Page 178 of 2896
DTC P1760 OVERRUN CLUTCH SOLENOID VALVE
AT-165
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
6. CHECK TCM
1. Check TCM input/output signal. Refer to AT-78, "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Component InspectionUCS005Q8
OVERRUN CLUTCH SOLENOID VALVE
For removal, refer to AT-242, "Control Valve Assembly and Accumulators" .
Resistance Check
Check resistance between terminal and ground.
Operation Check
Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
Solenoid valve Connector Terminal Resistance (Approx.)
Overrun clutch solenoid
valveF30 3 - Ground 20 - 30 Ω
SCIA2059E
SCIA2062E
Page 179 of 2896

AT-166
DTC VEHICLE SPEED SENSOR MTR
Revision: June 20062007 Versa
DTC VEHICLE SPEED SENSOR MTRPFP:24814
DescriptionUCS005Q9
The vehicle speed sensor·MTR is built into the speedometer assembly. The sensor functions as an auxiliary
device to the revolution sensor when it is malfunctioning. The TCM will then use a signal sent from the vehicle
speed sensor·MTR.
CONSULT-II Reference ValueUCS005QA
Remarks: Specification data are reference values.
On Board Diagnosis LogicUCS005QB
This is not an OBD-II self-diagnostic item.
Diagnostic trouble code “VHCL SPEED SEN-MTR” with CONSULT-II or 2nd judgement flicker without
CONSULT-II is detected when TCM does not receive the proper voltage signal from the sensor.
Possible CauseUCS005QC
Harness or connector
(The sensor circuit is open or shorted.)
Vehicle speed sensor
DTC Confirmation ProcedureUCS005QD
CAUTION:
Always drive vehicle at a safe speed.
If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II

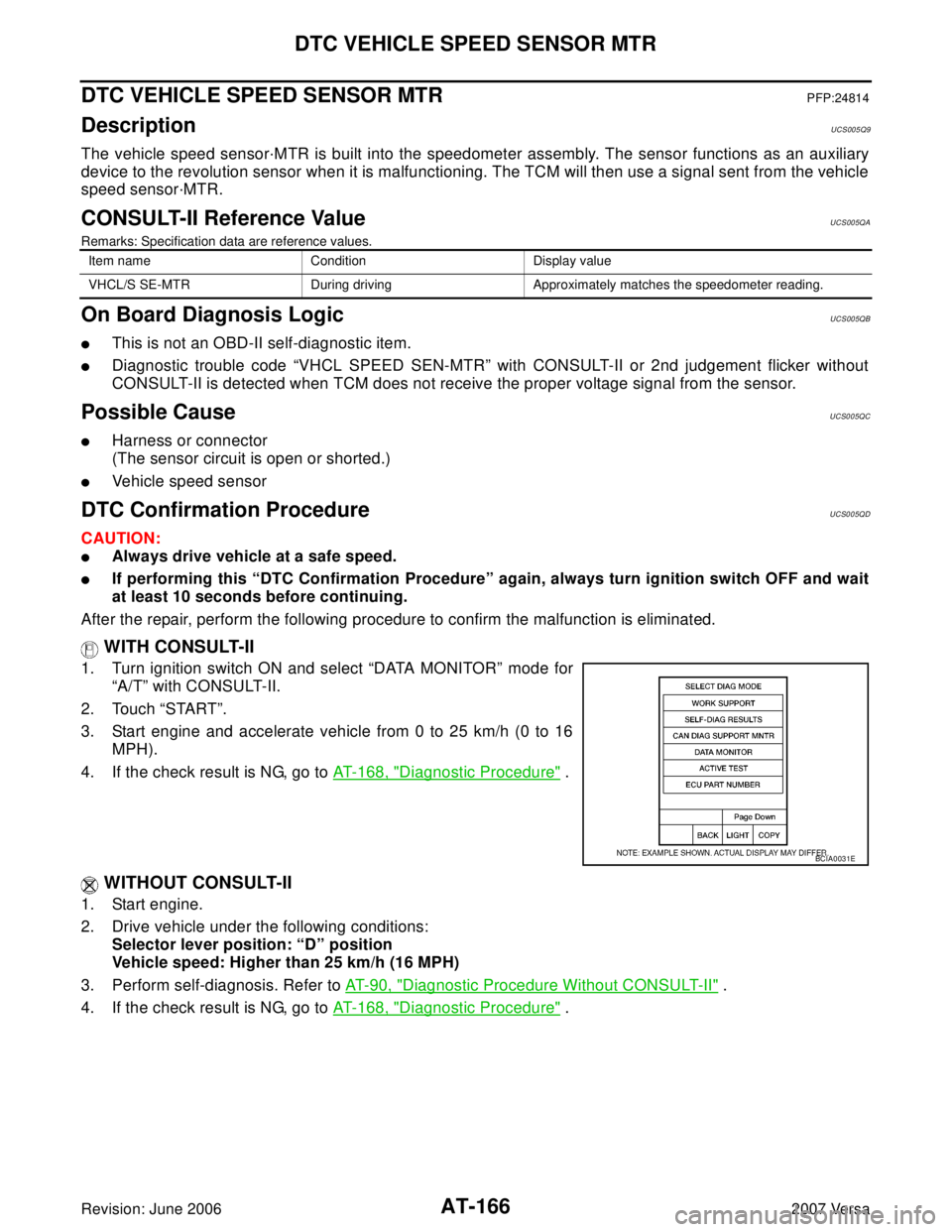

1. Turn ignition switch ON and select “DATA MONITOR” mode for
“A/T” with CONSULT-II.
2. Touch “START”.
3. Start engine and accelerate vehicle from 0 to 25 km/h (0 to 16
MPH).
4. If the check result is NG, go to AT-168, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine.
2. Drive vehicle under the following conditions:
Selector lever position: “D” position
Vehicle speed: Higher than 25 km/h (16 MPH)
3. Perform self-diagnosis. Refer to AT-90, "
Diagnostic Procedure Without CONSULT-II" .
4. If the check result is NG, go to AT-168, "
Diagnostic Procedure" .
Item name Condition Display value
VHCL/S SE-MTR During driving Approximately matches the speedometer reading.
BCIA0031E
Page 180 of 2896
DTC VEHICLE SPEED SENSOR MTR
AT-167
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
Wiring Diagram — AT — VSSMTRUCS005Q E
BCWA0658E
Page 181 of 2896

AT-168
DTC VEHICLE SPEED SENSOR MTR
Revision: June 20062007 Versa
TCM terminal data are reference values, measured between each terminal and ground.
Diagnostic ProcedureUCS005Q F

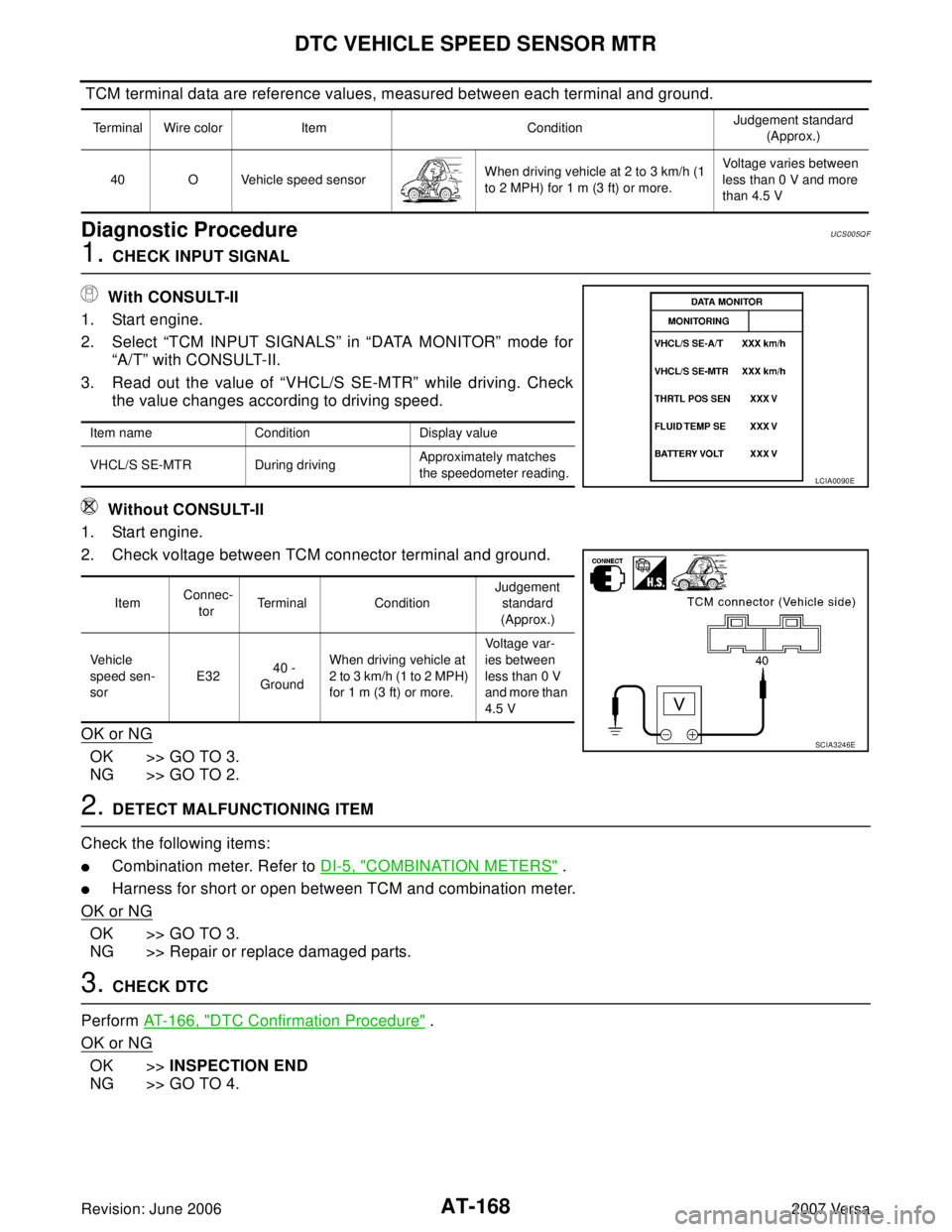

1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out the value of “VHCL/S SE-MTR” while driving. Check
the value changes according to driving speed.
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM connector terminal and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING ITEM
Check the following items:
Combination meter. Refer to DI-5, "COMBINATION METERS" .
Harness for short or open between TCM and combination meter.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. CHECK DTC
Perform AT-166, "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 4.
Terminal Wire color Item ConditionJudgement standard
(Approx.)
40 O Vehicle speed sensorWhen driving vehicle at 2 to 3 km/h (1
to 2 MPH) for 1 m (3 ft) or more.Voltage varies between
less than 0 V and more
than 4.5 V
Item name Condition Display value
VHCL/S SE-MTR During drivingApproximately matches
the speedometer reading.
Item Connec-
torTerminal ConditionJudgement
standard
(Approx.)
Vehicle
speed sen-
sor E32 40 -
GroundWhen driving vehicle at
2 to 3 km/h (1 to 2 MPH)
for 1 m (3 ft) or more.Voltage var-
ies between
less than 0 V
and more than
4.5 V
LCIA0090E
SCIA3246E
Page 182 of 2896
DTC VEHICLE SPEED SENSOR MTR
AT-169
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
4. CHECK TCM
1. Check TCM input/output signal. Refer to AT-78, "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Page 183 of 2896

AT-170
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
Revision: June 20062007 Versa
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
PFP:31940
DescriptionUCS005QG
The A/T fluid temperature sensor detects the A/T fluid temperature and sends a signal to the TCM.
CONSULT-II Reference ValueUCS005QH
Remarks: Specification data are reference values.
On Board Diagnosis LogicUCS005Q I
This is not an OBD-II self-diagnostic item.
Diagnostic trouble code “BATT/FLUID TEMP SEN” with CONSULT-II or 8th judgement flicker without
CONSULT-II is detected when TCM receives an excessively low or high voltage from the sensor.
Possible CauseUCS005QJ
Harness or connector
(The sensor circuit is open or shorted.)
A/T fluid temperature sensor
DTC Confirmation ProcedureUCS005QK
CAUTION:
Always drive vehicle at a safe speed.
If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II

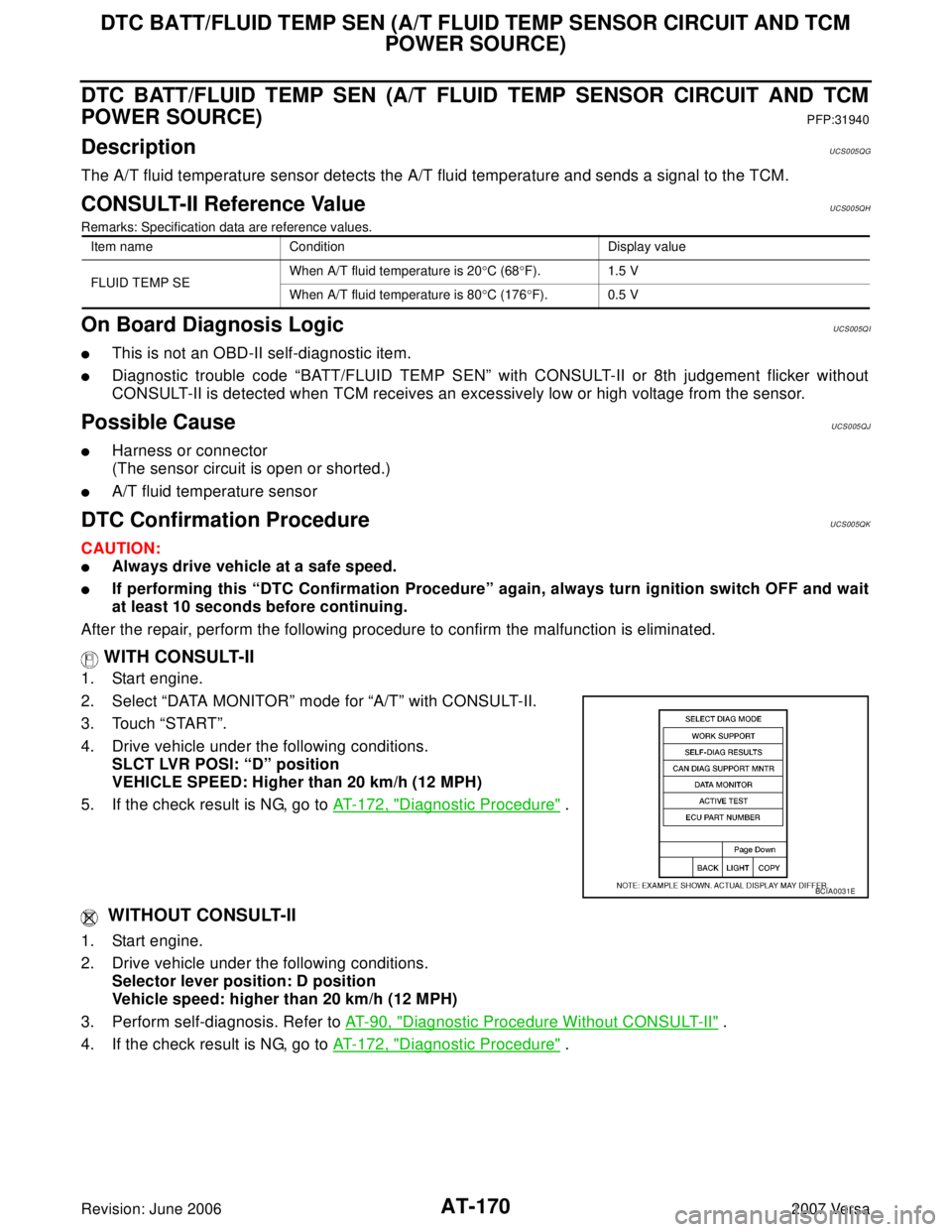

1. Start engine.
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Touch “START”.
4. Drive vehicle under the following conditions.
SLCT LVR POSI: “D” position
VEHICLE SPEED: Higher than 20 km/h (12 MPH)
5. If the check result is NG, go to AT-172, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine.
2. Drive vehicle under the following conditions.
Selector lever position: D position
Vehicle speed: higher than 20 km/h (12 MPH)
3. Perform self-diagnosis. Refer to AT-90, "
Diagnostic Procedure Without CONSULT-II" .
4. If the check result is NG, go to AT-172, "
Diagnostic Procedure" .
Item name Condition Display value
FLUID TEMP SEWhen A/T fluid temperature is 20°C (68°F). 1.5 V
When A/T fluid temperature is 80°C (176°F). 0.5 V
BCIA0031E
Page 184 of 2896
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
AT-171
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
Wiring Diagram — AT — BA/FTSUCS005QL
BCWA0659E
