Page 1673 of 2896

EC-504Revision: June 2006
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION
2007 Versa
10. CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Turn ignition switch OFF.
2. Disconnect electric throttle control actuator (1) harness connec-
tor.
– : Vehicle front
3. Disconnect ECM harness connector.
4. Check harness continuity between the following terminals.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> Repair or replace.
11 . CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Remove the intake air duct.
2. Check if foreign matter is caught between the throttle valve (1)
and the housing.
– : Vehicle front
–Illustration shows the view with intake air duct removed.
OK or NG
OK >> GO TO 12.
NG >> Remove the foreign matter and clean the electric throttle
control actuator inside.
12. CHECK THROTTLE CONTROL MOTOR
Refer to EC-505, "
Component Inspection" .
OK or NG
OK >> GO TO 13.
NG >> GO TO 14.
13. CHECK INTERMITTENT INCIDENT
Refer to EC-143, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 14.
NG >> Repair or replace harness or connectors.
Electric throttle control
actuator terminalECM terminal Continuity
51 Should not exist.
4 Should exist.
61 Should exist.
4 Should not exist.
PBIB3325E
BBIA0 711 E
Page 1674 of 2896
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION
EC-505
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
14. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-78, "
Throttle Valve Closed Position Learning" .
3. Perform EC-78, "
Idle Air Volume Learning" .
>>INSPECTION END
Component InspectionUBS00QMG
THROTTLE CONTROL MOTOR
1. Disconnect electric throttle control actuator harness connector.
2. Check resistance between terminals 5 and 6.
3. If NG, replace electric throttle control actuator and go to next
step.
4. Perform EC-78, "
Throttle Valve Closed Position Learning" .
5. Perform EC-78, "
Idle Air Volume Learning" .
Removal and InstallationUBS00QMH
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-18, "INTAKE MANIFOLD" . Resistance: Approximately 1 - 15 Ω [at 25 °C (77°F)]
PBIB2909E
Page 1675 of 2896

EC-506Revision: June 2006
DTC P2118 THROTTLE CONTROL MOTOR
2007 Versa
DTC P2118 THROTTLE CONTROL MOTORPFP:16119
Component DescriptionUBS00QMI
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The current opening angle of the throttle valve is detected by the throttle position sensor and it provides feed-
back to the ECM to control the throttle control motor to make the throttle valve opening angle properly in
response to driving condition.
On Board Diagnosis LogicUBS00QMJ
This self-diagnosis has the one trip detection logic.
FA I L -S A FE M O D E
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureUBS00QMK
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON and wait at least 2 seconds.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 5 seconds.
4. If DTC is detected, go to EC-508, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2118
2118Throttle control motor
circuit shortECM detects short in both circuits between
ECM and throttle control motor.
Harness or connectors
(Throttle control motor circuit is shorted.)
Electric throttle control actuator
(Throttle control motor)
Engine operating condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return
spring.
SEF 0 58 Y
Page 1676 of 2896
DTC P2118 THROTTLE CONTROL MOTOR
EC-507
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa

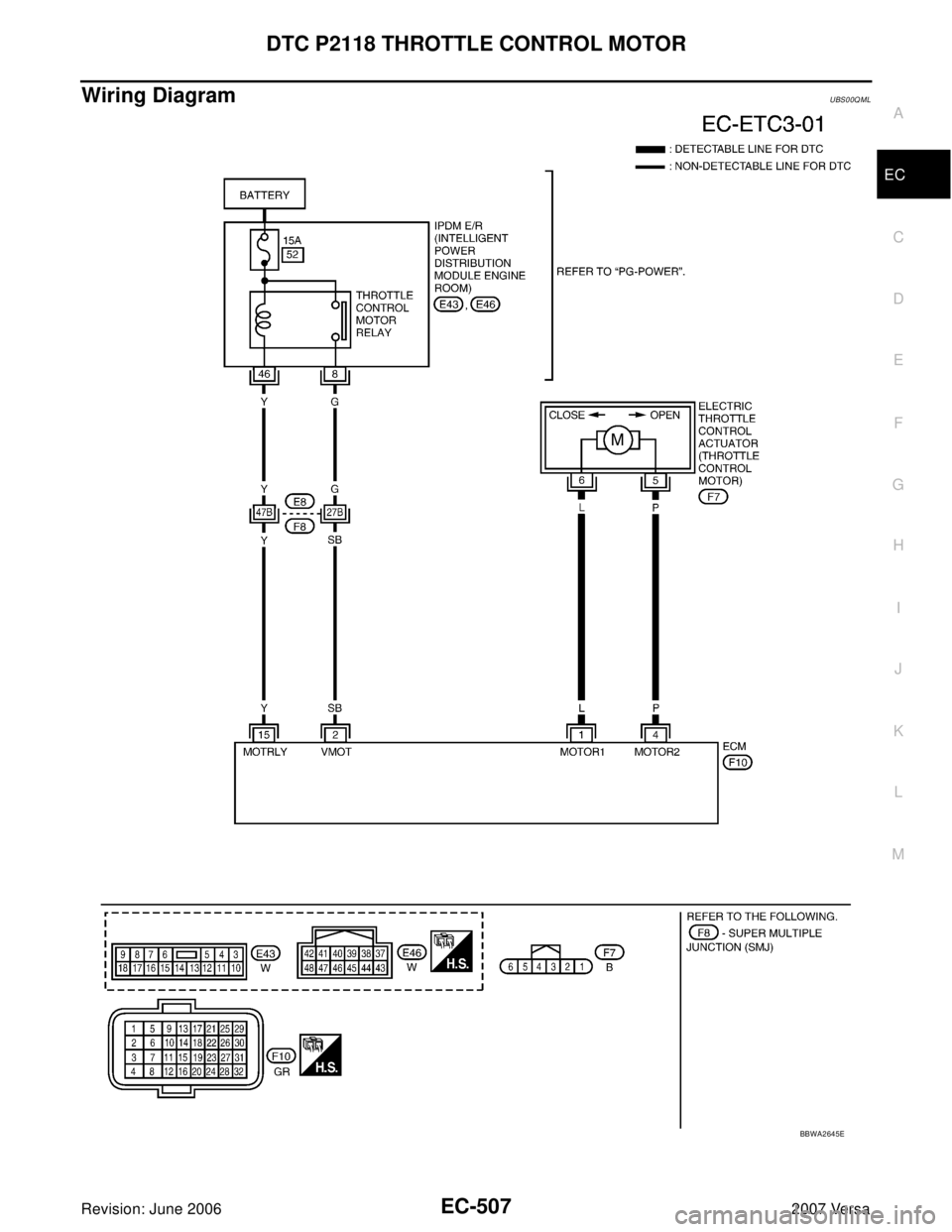

Wiring DiagramUBS00QML
BBWA2645E
Page 1677 of 2896

EC-508Revision: June 2006
DTC P2118 THROTTLE CONTROL MOTOR
2007 Versa
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureUBS00QMM
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten engine screw on the body.
Refer to EC-150, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
1LThrottle control motor
(Open)[Ignition switch: ON]
Engine stopped
Shift lever: D (A/T, CVT), 1st (M/T)
Accelerator pedal: Fully depressedApproximately 3.2V
2SBThrottle control motor power
supply[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
4PThrottle control motor
(Close)[Ignition switch: ON]
Engine stopped
Shift lever: D (A/T, CVT), 1st (M/T)
Accelerator pedal: Fully releasedApproximately 1.8V
15 Y Throttle control motor relay[Ignition switch: OFF]BATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON]0 - 1.0V
PBIA8150J
PBIA8149J
:Vehicle front
1. Body ground E24 2. Engine ground F9 3. Engine ground F16
4. Body ground E15
BBIA0698E
Page 1678 of 2896

DTC P2118 THROTTLE CONTROL MOTOR
EC-509
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
2. CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Disconnect electric throttle control actuator (1) harness connec-
tor.
– : Vehicle front
2. Disconnect ECM harness connector.
3. Check harness continuity between the following terminals.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK THROTTLE CONTROL MOTOR
Refer to EC-509, "
Component Inspection" .
OK or NG
OK >> GO TO 4.
NG >> GO TO 5.
4. CHECK INTERMITTENT INCIDENT
Refer to EC-143, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace harness or connectors.
5. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-78, "
Throttle Valve Closed Position Learning" .
3. Perform EC-78, "
Idle Air Volume Learning" .
>>INSPECTION END
Component InspectionUBS00QMN
THROTTLE CONTROL MOTOR
1. Disconnect electric throttle control actuator harness connector.
2. Check resistance between terminals 5 and 6.
3. If NG, replace electric throttle control actuator and go to next
step.
4. Perform EC-78, "
Throttle Valve Closed Position Learning" .
5. Perform EC-78, "
Idle Air Volume Learning" .
Electric throttle control
actuator terminalECM terminal Continuity
51 Should not exist.
4 Should exist.
61 Should exist.
4 Should not exist.
PBIB3325E
Resistance: Approximately 1 - 15 Ω [at 25 °C (77°F)]
PBIB2909E
Page 1679 of 2896
EC-510Revision: June 2006
DTC P2118 THROTTLE CONTROL MOTOR
2007 Versa
Removal and InstallationUBS00QMO
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-18, "INTAKE MANIFOLD" .
Page 1680 of 2896

DTC P2119 ELECTRIC THROTTLE CONTROL ACTUATOR
EC-511
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
DTC P2119 ELECTRIC THROTTLE CONTROL ACTUATORPFP:16119
Component DescriptionUBS00QMP
Electric throttle control actuator consists of throttle control motor, throttle position sensor, etc.
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The throttle position sensor detects the throttle valve position, and the opening and closing speed of the throt-
tle valve and feeds the voltage signals to the ECM. The ECM judges the current opening angle of the throttle
valve from these signals and the ECM controls the throttle control motor to make the throttle valve opening
angle properly in response to driving condition.
On Board Diagnosis LogicUBS00QMQ
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureUBS00QMR
NOTE:
Perform PROCEDURE FOR MALFUNCTION A AND B first. If the DTC cannot be confirmed, perform
PROCEDURE FOR MALFUNCTION C.
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.
PROCEDURE FOR MALFUNCTION A AND B
With CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Set shift lever to D position (A/T, CVT) or 1st position (M/T), and
wait at least 3 seconds.
4. Set shift lever to P position (A/T, CVT) or Neutral position (M/T).
5. Turn ignition switch OFF and wait at least 10 seconds.
6. Turn ignition switch ON and wait at least 1 second.
7. Set shift lever to D position (A/T, CVT) or 1st position (M/T), and
wait at least 3 seconds.
8. Set shift lever to P position (A/T, CVT) or Neutral position (M/T).
9. Turn ignition switch OFF, wait at least 10 seconds, and then turn
ON.
10. If DTC is detected, go to EC-512, "
Diagnostic Procedure" .
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2119
2119Electric throttle control
actuatorA)Electric throttle control actuator does not func-
tion properly due to the return spring malfunc-
tion.
Electric throttle control actuator
B)Throttle valve opening angle in fail-safe mode is
not in specified range.
C) ECM detects the throttle valve is stuck open.
Detected items Engine operating condition in fail-safe mode
Malfunction AECM controls the electric throttle actuator by regulating the throttle opening around the idle position. The
engine speed will not rise more than 2,000 rpm.
Malfunction B ECM controls the electric throttle control actuator by regulating the throttle opening to 20 degrees or less.
Malfunction CWhile the vehicle is driving, it slows down gradually by fuel cut. After the vehicle stops, the engine stalls.
The engine can restart in N or P position (A/T, CVT), neutral (M/T), and engine speed will not exceed
1,000 rpm or more.
SEF 0 58 Y
