BODY REPAIRPFP:60100
Body Exterior Paint ColorEIS009AG
M: Metallic; 2S: 2-Coat Solid, 2P: 2-Coat Pearl; 3P: 3-Coat Pearl; G01-1: Material color; G02-1: Material color
LIIA2599E
ComponentColor code A20 B14 B23 K23 K36 KH3 QM1
Description Red AlertSapphire
BlueBlue OnyxBrilliant Sil-
verMagnetic
GreySuper
BlackFresh
Powder
Paint type 2S 2M 2M 2M 2M 2S S
Hard clear
coat–- –- –- –- –- –- –-
1Outside
mirrorBody color A20 B14 B23 K23 K36 KH3 QM1
2Radiator
grilleChromium-
plate + BlackCr2P +
G02-1Cr2P +
G02-1Cr2P +
G02-1Cr2P +
G02-1Cr2P +
G02-1Cr2P +
G02-1Cr2P +
G02-1
3Bumper
fasciaBody color A20 B14 B23 K23 K36 KH3 QM1
4Center
mudguard Body color/
BlackA20/G01-1 B14/G01-1 B23/G01-1 K23/G01-1 K36/G01-1 KH3/G01-1QM1/
G01-1
5Outside
handleBody color A20 B14 B23 K23 K36 KH3 QM1
6Rear pillar
trimBlack G01-1 G01-1 G01-1 G01-1 G01-1 G01-1 G01-1
7 Door sash Black tape X X X X X X X
WHEEL SENSORS
BRC-33
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: June 20062007 Versa
WHEEL SENSORSPFP:47910
Removal and InstallationEFS006L4
NOTE:
The top portion of the figure (front side) shows view from LH side of vehicle. RH side is the mirror image.
REMOVAL
Pay attention to the following when removing wheel sensor.
CAUTION:
As much as possible, avoid rotating wheel sensor when removing it. Pull wheel sensors out with-
out pulling on sensor harness.
Take care to avoid damaging wheel sensor edges or rotor teeth. Remove wheel sensor first before
removing front or rear wheel hub. This is to avoid damage to wheel sensor wiring and loss of sen-
sor function.
INSTALLATION
Pay attention to the following when installing wheel sensor. Tighten installation bolts and nuts to the specified
torques.
When installing, make sure there is no foreign material such as iron chips on and in the mounting hole of
the wheel sensor. Make sure no foreign material has been caught in the sensor rotor. Remove any foreign
material and clean the mount.
When installing front wheel sensor, press rubber grommets of strut bracket and body all the way in until
they get locked, and be careful not to apply a twist to harness. Harness should not be twisted after instal-
lation. (Install it with harness paint mark on body side grommet facing front of vehicle, and the strut side
grommet facing outside of vehicle.)
A. Front B. Rear 1. Front wheel sensor connector (LH)
2. Front wheel sensor (LH) 3. Rear wheel sensor (LH) 4. Rear wheel sensor connector (LH)
5. Rear wheel sensor connector (RH) 6. Rear wheel sensor (RH) 7. Side member
8. Left 9. Right : Front
Refer to GI section for symbol marks in the figure.
SFIA3090E
GI-46
RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS
Revision: June 20062007 Versa
RECOMMENDED CHEMICAL PRODUCTS AND SEALANTSPFP:00000
Recommended Chemical Products and SealantsEAS0021Q
Refer to the following chart for help in selecting the appropriate chemical product or sealant.
Product Description PurposeNissan North America
Part No. (USA)Nissan Canada Part
No. (Canada)Aftermarket Cross-
reference Part Nos.
1Rear View Mirror
AdhesiveUsed to permanently
remount rear view mirrors
to windows.999MP-AM000P 99998-50505 Permatex 81844
2Anaerobic Liquid Gas-
ketFor metal-to-metal flange
sealing.
Can fill a 0.38 mm (0.015
inch) gap and provide
instant sealing for most
powertrain applications.999MP-AM001P 99998-50503Permatex 51813 and
51817
3High Performance
Thread SealantProvides instant sealing on
any threaded straight or
parallel threaded fitting.
(Thread sealant only, no
locking ability.)
Do not use on plastic.999MP-AM002P 999MP-AM002P Permatex 56521
4 Silicone RTVGasket Maker999MP-AM003P
(Ultra Grey)99998-50506
(Ultra Grey)Permatex Ultra Grey
82194;
Three Bond
1207,1215, 1216,
1217F and 1217G;
Nissan RTV Part No.
999MP-A7007
Gasket Maker for Maxima/
Quest 5-speed automatic
transmission
(RE5F22A)––Three Bond 1281B
or exact equivalent
in its quality
5High Temperature,
High Strength Thread
Locking Sealant (Red)Threadlocker 999MP-AM004P 999MP-AM004PPermatex 27200;
Three Bond 1360,
1360N, 1305 N&P,
1307N, 1335,
1335B, 1363B,
1377C, 1386B, D&E
and 1388
6Medium Strength
Thread Locking Seal-
ant (Blue)Threadlocker (service tool
removable)999MP-AM005P 999MP-AM005PPermatex 24200,
24206, 24240,
24283 and 09178;
Three Bond 1322,
1322N, 1324 D&N,
1333D, 1361C,
1364D, 1370C and
1374
GW-1
GLASSES, WINDOW SYSTEM & MIRRORS
I BODY
CONTENTS
C
D
E
F
G
H
J
K
L
M
SECTION GW
A
B
GW
Revision: June 20062007 Versa PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Precautions for Procedures without Cowl Top Cover ..... 3
Handling for Adhesive and Primer ........................... 3
PREPARATION ........................................................... 4
Commercial Service Tools ........................................ 4
SQUEAK AND RATTLE TROUBLE DIAGNOSES ..... 5
Work Flow ................................................................ 5
CUSTOMER INTERVIEW ..................................... 5
DUPLICATE THE NOISE AND TEST DRIVE ....... 6
CHECK RELATED SERVICE BULLETINS ........... 6
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE ...................................................... 6
REPAIR THE CAUSE ........................................... 6
CONFIRM THE REPAIR ....................................... 7
Generic Squeak and Rattle Troubleshooting ........... 7
INSTRUMENT PANEL .......................................... 7
CENTER CONSOLE ............................................. 7
DOORS ................................................................. 7
TRUNK .................................................................. 8
SUNROOF/HEADLINING ..................................... 8
OVERHEAD CONSOLE (FRONT AND REAR) ..... 8
SEATS ................................................................... 8
UNDERHOOD ....................................................... 8
Diagnostic Worksheet .............................................. 9
WINDSHIELD GLASS ...............................................11
Removal and Installation .........................................11
REMOVAL ............................................................11
INSTALLATION ................................................... 12
OPERA WINDOW GLASS ....................................... 13
Removal and Installation ........................................ 13
REMOVAL ........................................................... 13
INSTALLATION ................................................... 13
REAR WINDOW GLASS AND MOLDING ............... 15
Removal and Installation ........................................ 15
REMOVAL ........................................................... 15
INSTALLATION ................................................... 16
POWER WINDOW SYSTEM .................................... 17Component Parts and Harness Connector Location ... 17
System Description ................................................. 17
MANUAL OPERATION ........................................ 18
AUTO OPERATION ............................................. 20
POWER WINDOW LOCK ................................... 21
RETAINED POWER OPERATION ...................... 21
CAN Communication System Description .............. 21
Schematic ............................................................... 22
Wiring Diagram — WINDOW — ............................. 23
Main Power Window and Door Lock/Unlock Switch
Harness Connector Terminal Layout ...................... 27
Terminal and Reference Value for Main Power Win-
dow and Door Lock/Unlock Switch ......................... 27
Terminal and Reference Value for BCM ................. 28
Work Flow ............................................................... 28
CONSULT-II Function (BCM) ................................. 28
CONSULT-II START PROCEDURE .................... 28
ACTIVE TEST ..................................................... 29
WORK SUPPORT ............................................... 29
DATA MONITOR ................................................. 29
Trouble Diagnoses Symptom Chart ....................... 29
BCM Power Supply and Ground Circuit Check ...... 30
Main Power Window and Door Lock/Unlock Switch
Power Supply and Ground Circuit Check ............... 30
Front Power Window Motor LH Circuit Check ........ 32
Front Power Window RH Circuit Check (Power Win-
dow and Door Lock/Unlock Switch RH Operation) ... 33
Front Power Window Motor RH Circuit Check ....... 33
Encoder Circuit Check ............................................ 34
Door Switch Check ................................................. 37
Rear Power Window LH Circuit Check (Rear Power
Window Switch LH Operation) ................................ 38
Rear Power Window RH Circuit Check (Rear Power
Window Switch RH Operation) ............................... 39
Rear Power Window Motor LH Circuit Check ......... 39
Rear Power Window Motor RH Circuit Check ........ 41
FRONT DOOR GLASS AND REGULATOR ............. 43
Removal and Installation ........................................ 43
DOOR GLASS ..................................................... 43
REGULATOR ASSEMBLY .................................. 44
GW-2Revision: June 20062007 Versa Disassembly and Assembly .................................... 45
POWER WINDOW REGULATOR ASSEMBLY ... 45
Inspection after Installation ..................................... 45
POWER WINDOW SYSTEM INITIALIZATION ... 45
INSPECT THE FUNCTION OF THE ANTI-
PINCH SYSTEM .................................................. 46
FITTING INSPECTION ........................................ 46
REAR DOOR GLASS AND REGULATOR ............... 47
Removal and Installation ........................................ 47
DOOR GLASS ..................................................... 47
REGULATOR ASSEMBLY .................................. 48
Disassembly and Assembly .................................... 49
POWER WINDOW REGULATOR ASSEMBLY ... 49
Inspection after Installation ..................................... 49
FITTING INSPECTION ........................................ 49
REAR WINDOW DEFOGGER .................................. 50
Component Parts and Harness Connector Location ... 50
System Description ................................................. 50
CAN Communication System Description .............. 51
Wiring Diagram — DEF — ..................................... 52
Terminals and Reference Value for BCM ................ 54
Terminals and Reference Value for IPDM E/R ........ 54
Work Flow ............................................................... 54
CONSULT-II Function (BCM) .................................. 55CONSULT-II START PROCEDURE .....................55
DATA MONITOR ..................................................55
ACTIVE TEST ......................................................55
Trouble Diagnoses Symptom Chart ........................55
BCM Power Supply and Ground Circuit Check ......56
Rear Window Defogger Switch Circuit Check .........56
Rear Window Defogger Circuit Check ....................57
Door Mirror Defogger Circuit Check ........................60
Filament Check .......................................................61
Filament Repair .......................................................62
REPAIR EQUIPMENT .........................................62
REPAIRING PROCEDURE .................................62
DOOR MIRROR .........................................................64
Wiring Diagram — MIRROR — ..............................64
Removal and Installation .........................................65
REMOVAL ............................................................65
INSTALLATION ....................................................65
Disassembly and Assembly ....................................66
DISASSEMBLY ....................................................66
ASSEMBLY ..........................................................66
INSIDE MIRROR .......................................................67
Removal and Installation .........................................67
REMOVAL ............................................................67
INSTALLATION ....................................................67
WINDSHIELD GLASS
GW-11
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: June 20062007 Versa
WINDSHIELD GLASSPFP:72712
Removal and InstallationEIS0094D
REMOVAL
1. Partially remove the headlining (front edge). Refer to EI-39, "HEADLINING" .
2. Remove the front wiper arms. Refer to WW-24, "
Removal and Installation of Front Wiper Arms" .
3. Remove the cowl top cover. Refer to EI-20, "
COWL TOP" .
4. Disconnect the harness connector of wiper deicer.
5. Apply protective tape around the windshield glass to protect the painted surface from damage.

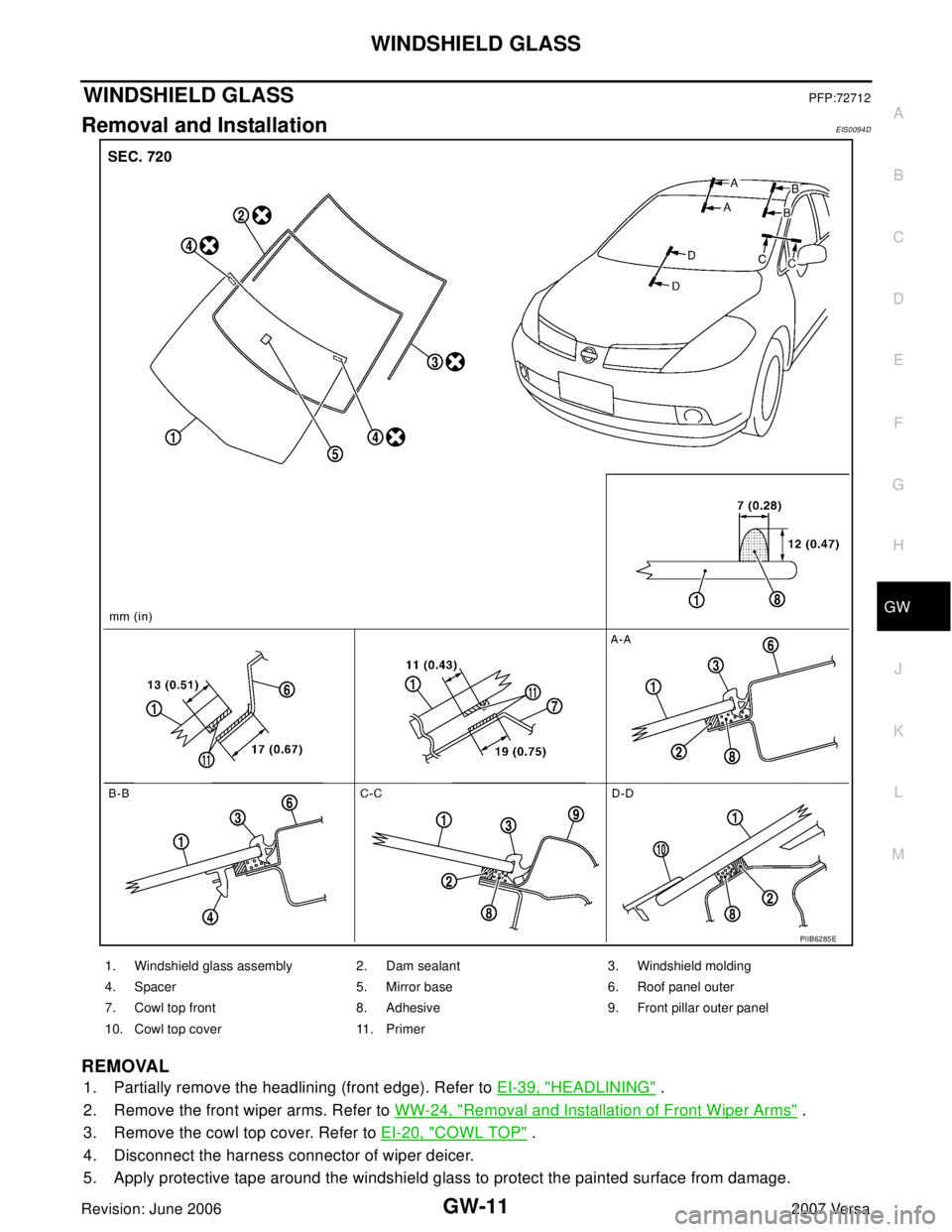

PIIB6285E
1. Windshield glass assembly 2. Dam sealant 3. Windshield molding
4. Spacer 5. Mirror base 6. Roof panel outer
7. Cowl top front 8. Adhesive 9. Front pillar outer panel
10. Cowl top cover 11. Primer
GW-50
REAR WINDOW DEFOGGER
Revision: June 20062007 Versa
REAR WINDOW DEFOGGERPFP:25350
Component Parts and Harness Connector LocationEIS009CK
System DescriptionEIS0 09 CL
The rear window defogger system is controlled by BCM (body control module) and IPDM E/R (intelligent
power distribution module engine room).
The rear window defogger only operates for approximately 15 minutes.
Power is supplied at all times
through 15A fuses (No. 46 and 47, located in the IPDM E/R)
to rear window defogger relay
through 10A fuse [No. 5 (with heated mirrors), located in the fuse block (J/B)]
to heated mirror relay terminal 3
through 40A fusible link (letter g , located in the fuse and fusible link box)
to BCM terminal 70.
With the ignition switch turned to ON or START position, power is supplied
through ignition relay
to rear window defogger relay (located in the IPDM E/R)
through 10A fuse [No. 6, located in the fuse block (J/B)]
to BCM terminal 38.
Ground is supplied
to BCM terminal 67 and
1. BCM M18, M20 (view with glove box
removed)2. Front air control M33 3. A. Rear window defogger ground
connector D413
B. Rear window defogger connector
D412
C. Condenser D409, D411
4. IPDM E/R E46, E48 5. Door mirror LH D4, RH D107 (with
heated mirrors)6. Heated mirror relay M48 (with
heated mirrors)
LIIA2642E
