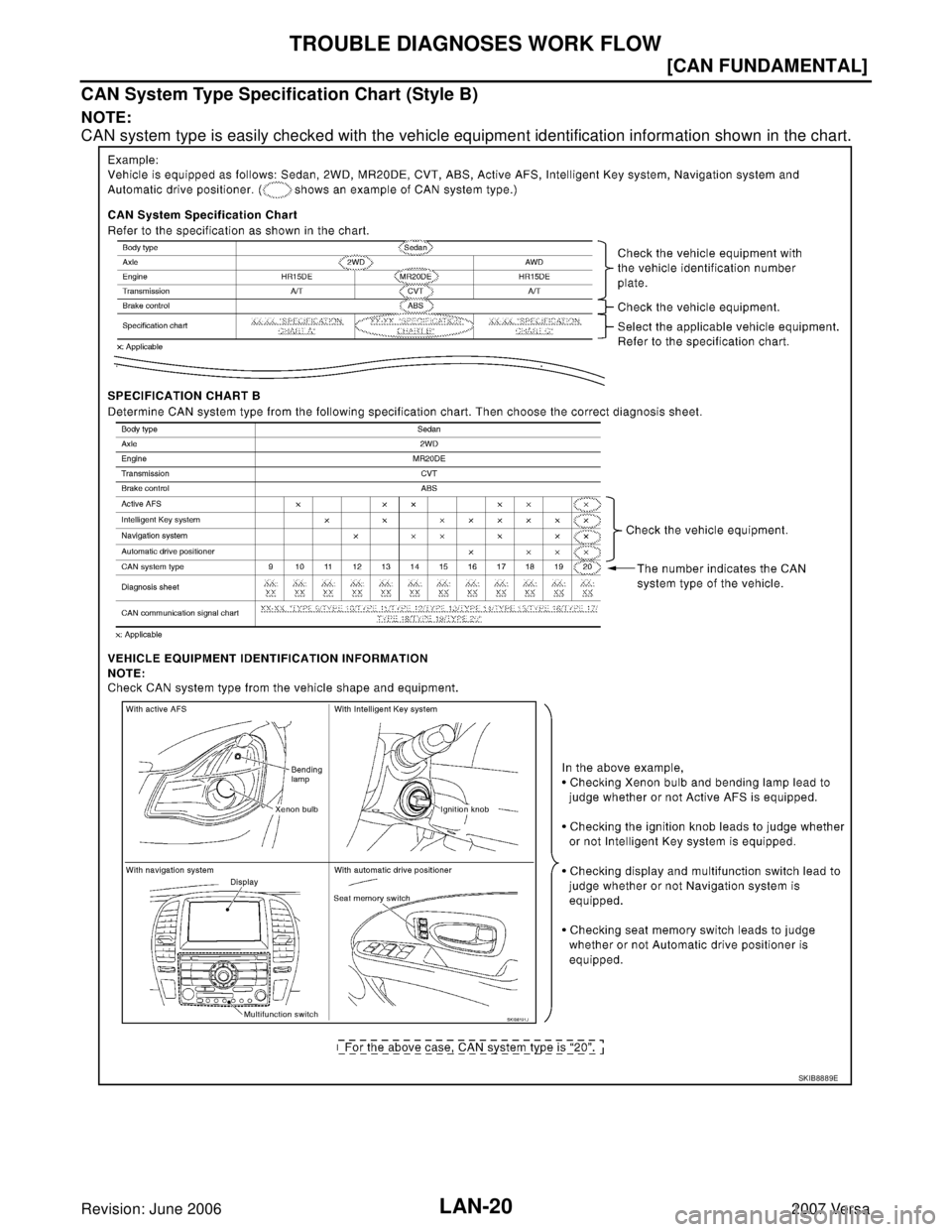

NISSAN VERSA 2006 Workshop Service Repair Manual TROUBLE DIAGNOSES WORK FLOW LAN-19 [CAN FUNDAMENTAL] C D E F G H I J L MA B LAN Revision: June 20062007 Versa CHECK OF CAN SYSTEM TYPE (HOW TO USE CAN SYSTEM TYPE SPECIFICATION CHART) Determine CAN sy

Page 2146 of 2896

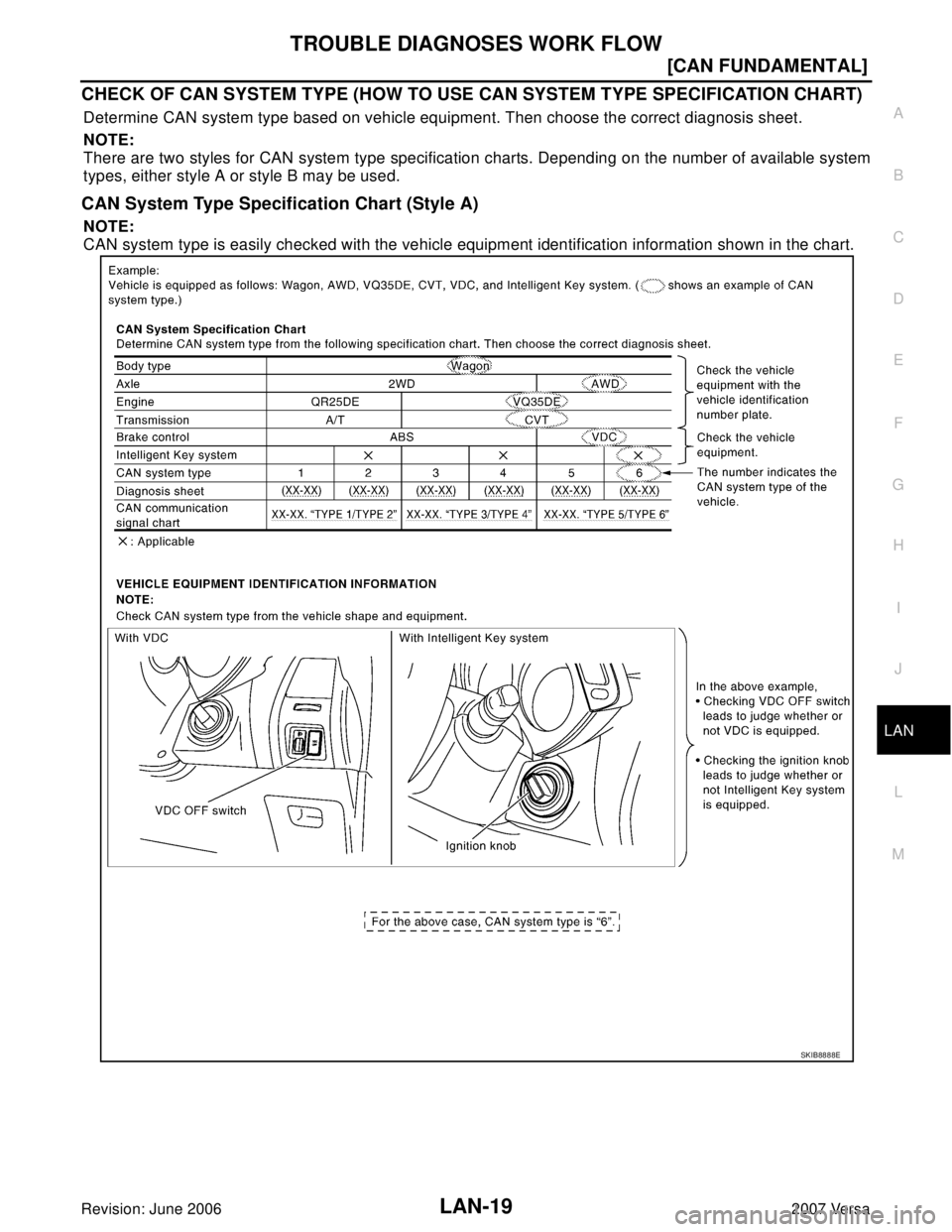

NISSAN VERSA 2006 Workshop Service Repair Manual LAN-20 [CAN FUNDAMENTAL] TROUBLE DIAGNOSES WORK FLOW Revision: June 20062007 Versa CAN System Type Specification Chart (Style B) NOTE: CAN system type is easily checked with the vehicle equipment iden

Page 2147 of 2896

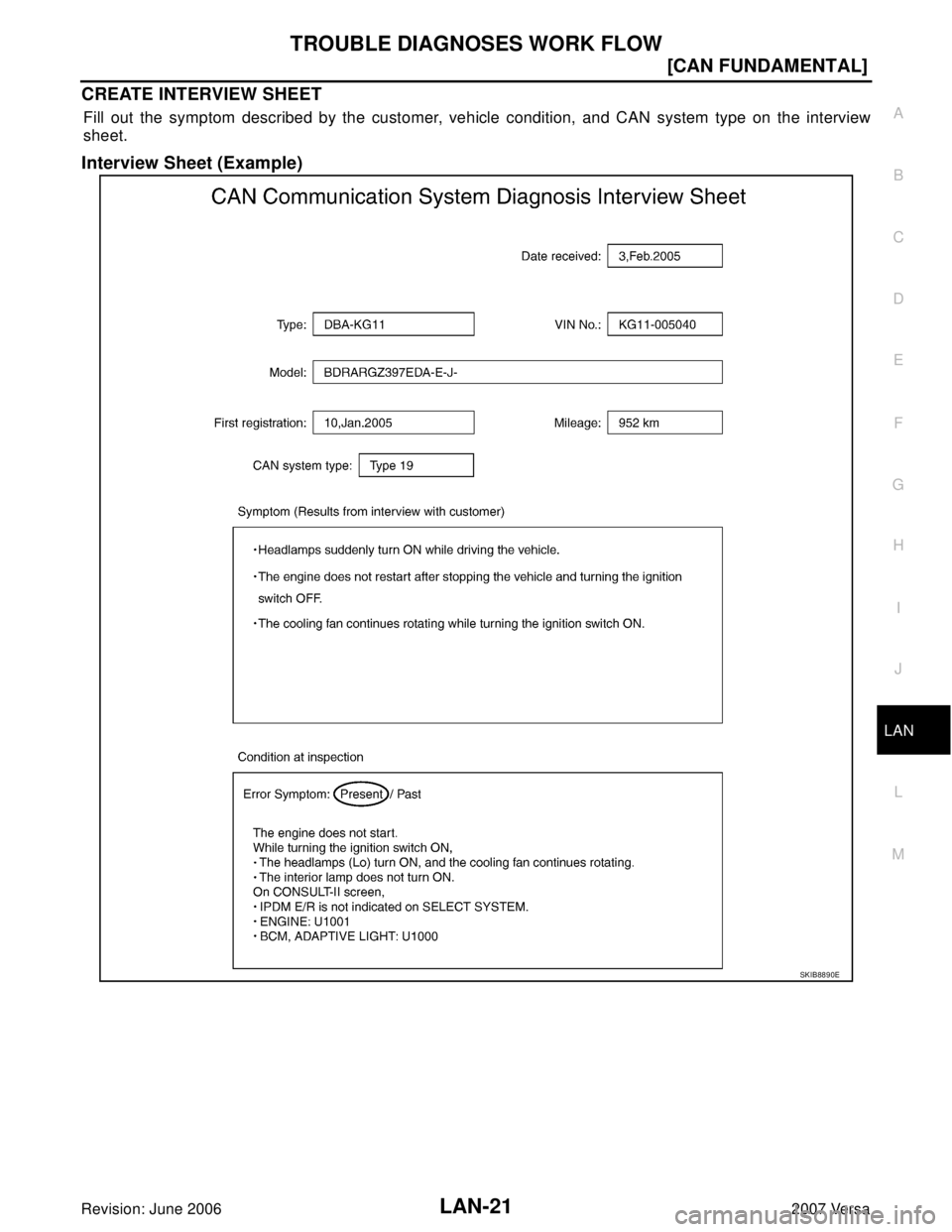

NISSAN VERSA 2006 Workshop Service Repair Manual TROUBLE DIAGNOSES WORK FLOW LAN-21 [CAN FUNDAMENTAL] C D E F G H I J L MA B LAN Revision: June 20062007 Versa CREATE INTERVIEW SHEET Fill out the symptom described by the customer, vehicle condition,

Page 2148 of 2896

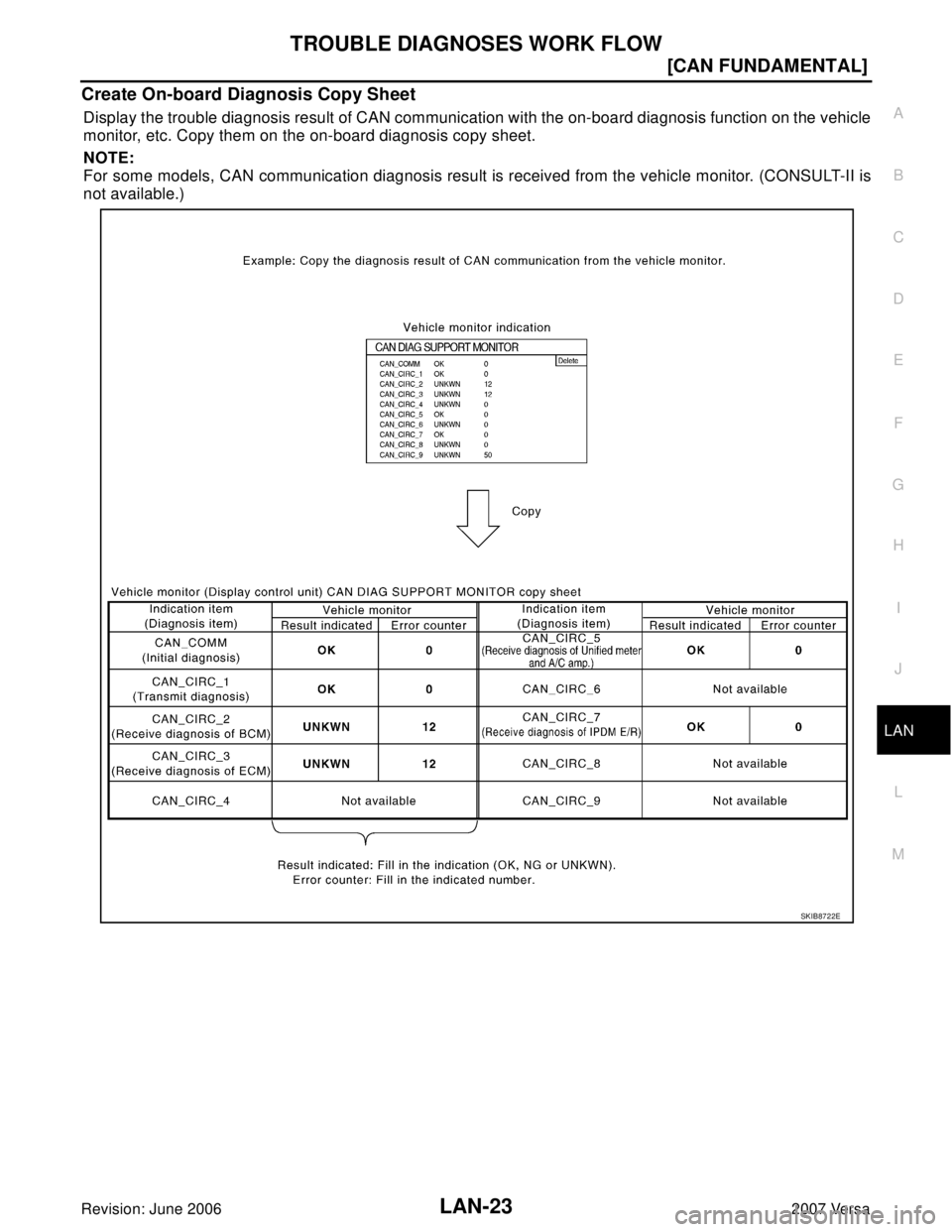

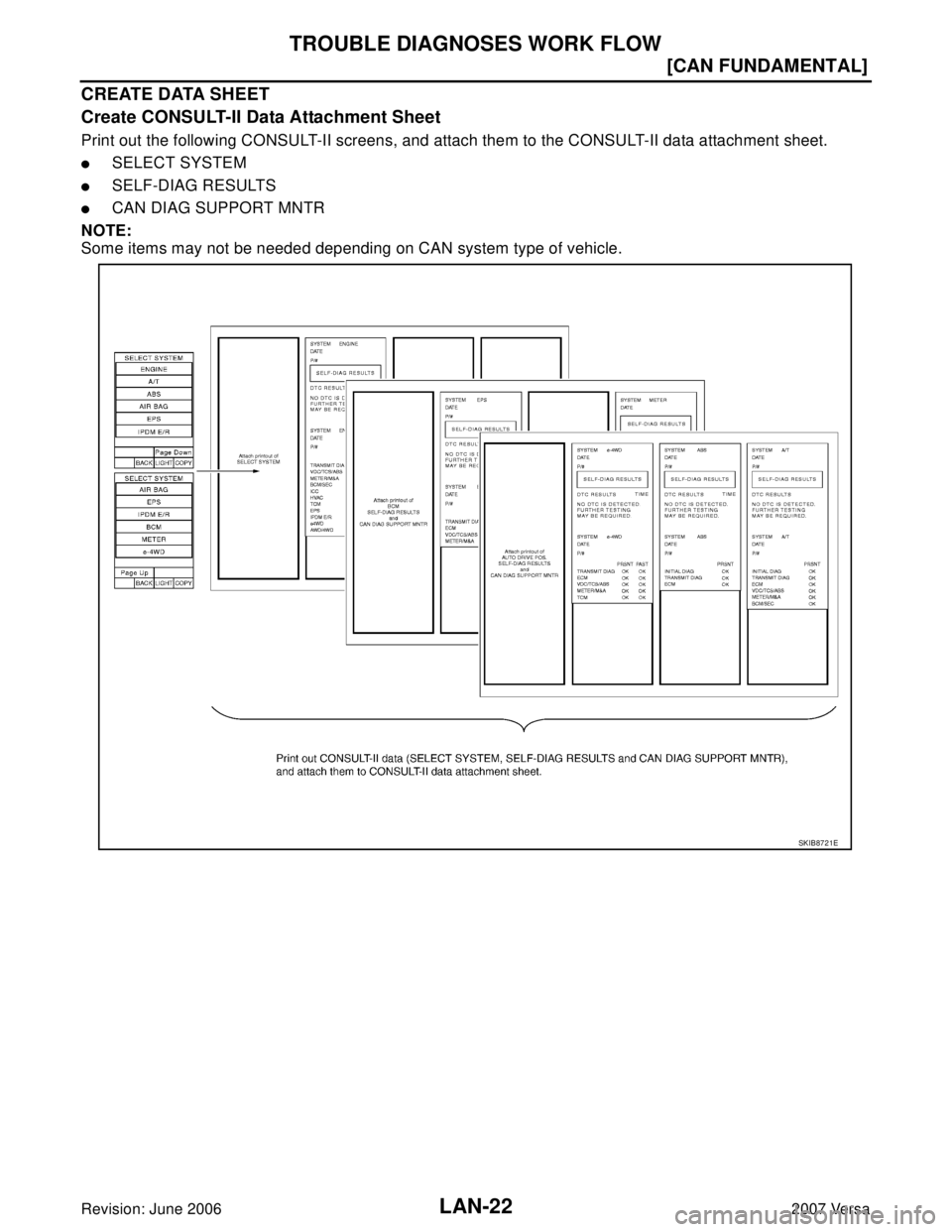

NISSAN VERSA 2006 Workshop Service Repair Manual LAN-22 [CAN FUNDAMENTAL] TROUBLE DIAGNOSES WORK FLOW Revision: June 20062007 Versa CREATE DATA SHEET Create CONSULT-II Data Attachment Sheet Print out the following CONSULT-II screens, and attach them

Page 2149 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual TROUBLE DIAGNOSES WORK FLOW LAN-23 [CAN FUNDAMENTAL] C D E F G H I J L MA B LAN Revision: June 20062007 Versa Create On-board Diagnosis Copy Sheet Display the trouble diagnosis result of CAN communica

Page 2150 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual LAN-24 [CAN FUNDAMENTAL] TROUBLE DIAGNOSES WORK FLOW Revision: June 20062007 Versa CREATE DIAGNOSIS SHEET NOTE: Be sure to use the diagnosis sheet for the correct CAN system type. Print Diagnosis Shee

Page 2151 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual TROUBLE DIAGNOSES WORK FLOW LAN-25 [CAN FUNDAMENTAL] C D E F G H I J L MA B LAN Revision: June 20062007 Versa DETECT THE ROOT CAUSE Identify the root cause using the created diagnosis sheet. Identifyi

Page 2152 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual LAN-26 [CAN FUNDAMENTAL] TROUBLE DIAGNOSES WORK FLOW Revision: June 20062007 Versa Present Error — Open Circuit — Identify the error circuit using information from the “SELECT SYSTEM” and “C
