2006 NISSAN VERSA Workshop Service Repair Manual

jump start terminals coolant level fuel consumption spark plugs replace flat tire low oil pressure

Load previous 8 pages

Page 1857 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual EM-48Revision: June 2006
CAMSHAFT
2007 Versa
Rocker cover; Refer toEM-30, "IGNITION COIL, SPARK PLUG AND ROCKER COVER" .
Fuel tube and fuel injector assembly; Refer to EM-33, "FUEL INJECTOR AND FUEL

Page 1858 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual CAMSHAFT
EM-49
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: June 20062007 Versa
12. Remove camshafts.
13. Remove valve lifters.
NOTE:
Identify installed positions, and store them without mixing them up.
INSPE

Page 1859 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual EM-50Revision: June 2006
CAMSHAFT
2007 Versa
Measure the inner diameter of camshaft bracket with a bore
gauge (A).
CAMSHAFT JOURNAL OIL CLEARANCE
(Oil clearance) = (Camshaft bracket inner diameter)

Page 1860 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual CAMSHAFT
EM-51
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: June 20062007 Versa
2. Measure the camshaft sprocket runout with a dial indicator (A).
(Total indicator reading)
If it exceeds the limit, replace ca

Page 1861 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual EM-52Revision: June 2006
CAMSHAFT
2007 Versa

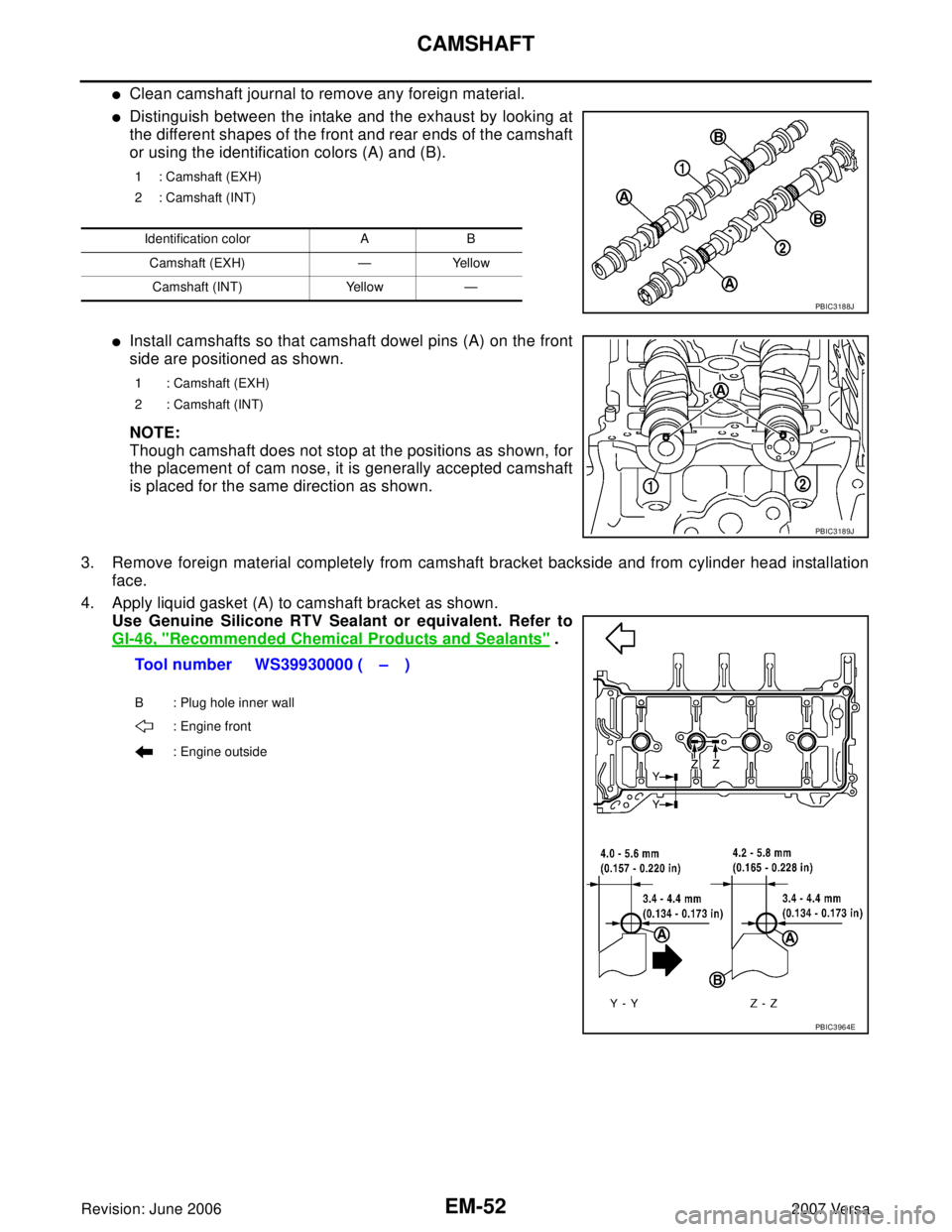

Clean camshaft journal to remove any foreign material.
Distinguish between the intake and the exhaust by looking at
the different shapes of the front and

Page 1862 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual CAMSHAFT
EM-53
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: June 20062007 Versa

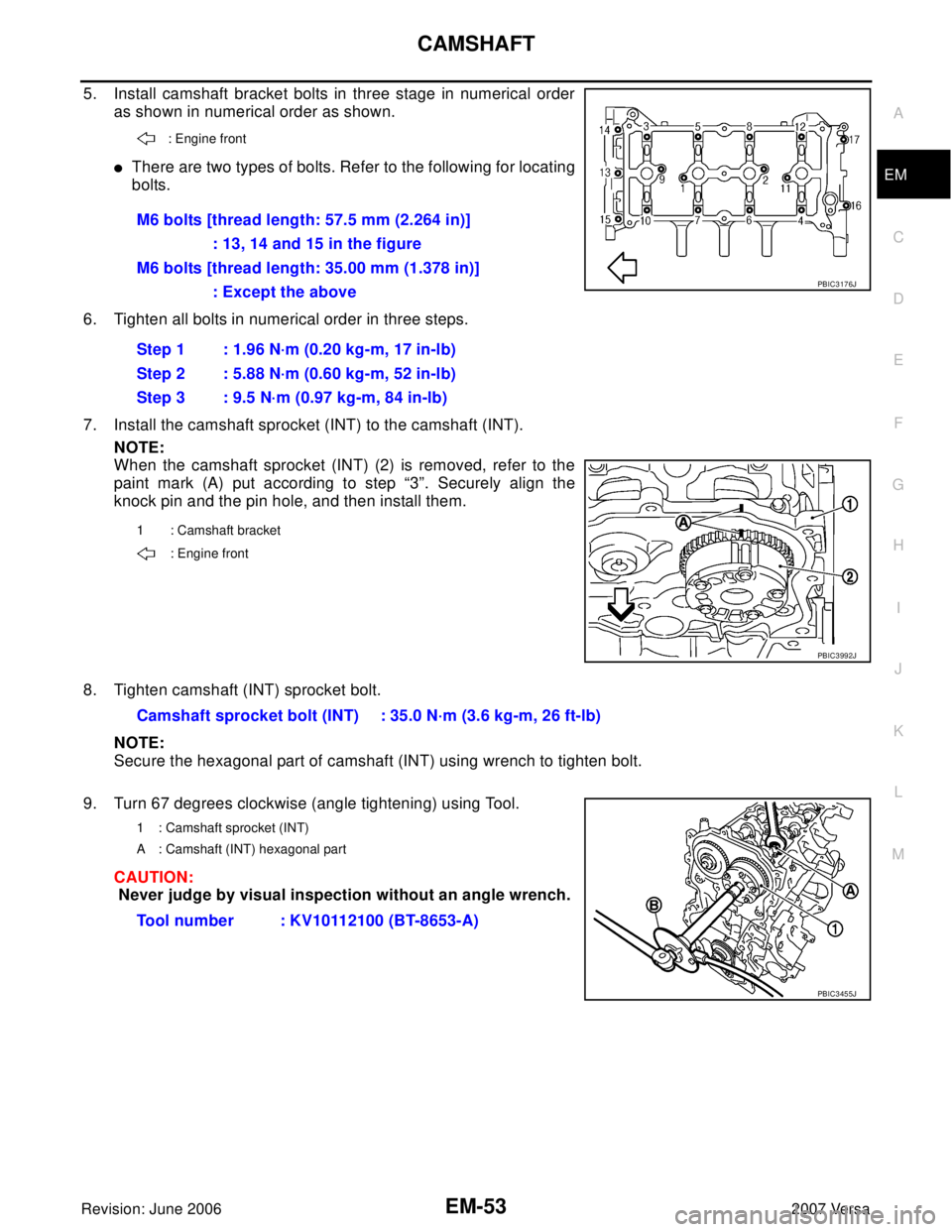

5. Install camshaft bracket bolts in three stage in numerical order
as shown in numerical order as shown.
There are two types of

Page 1863 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual EM-54Revision: June 2006
CAMSHAFT
2007 Versa

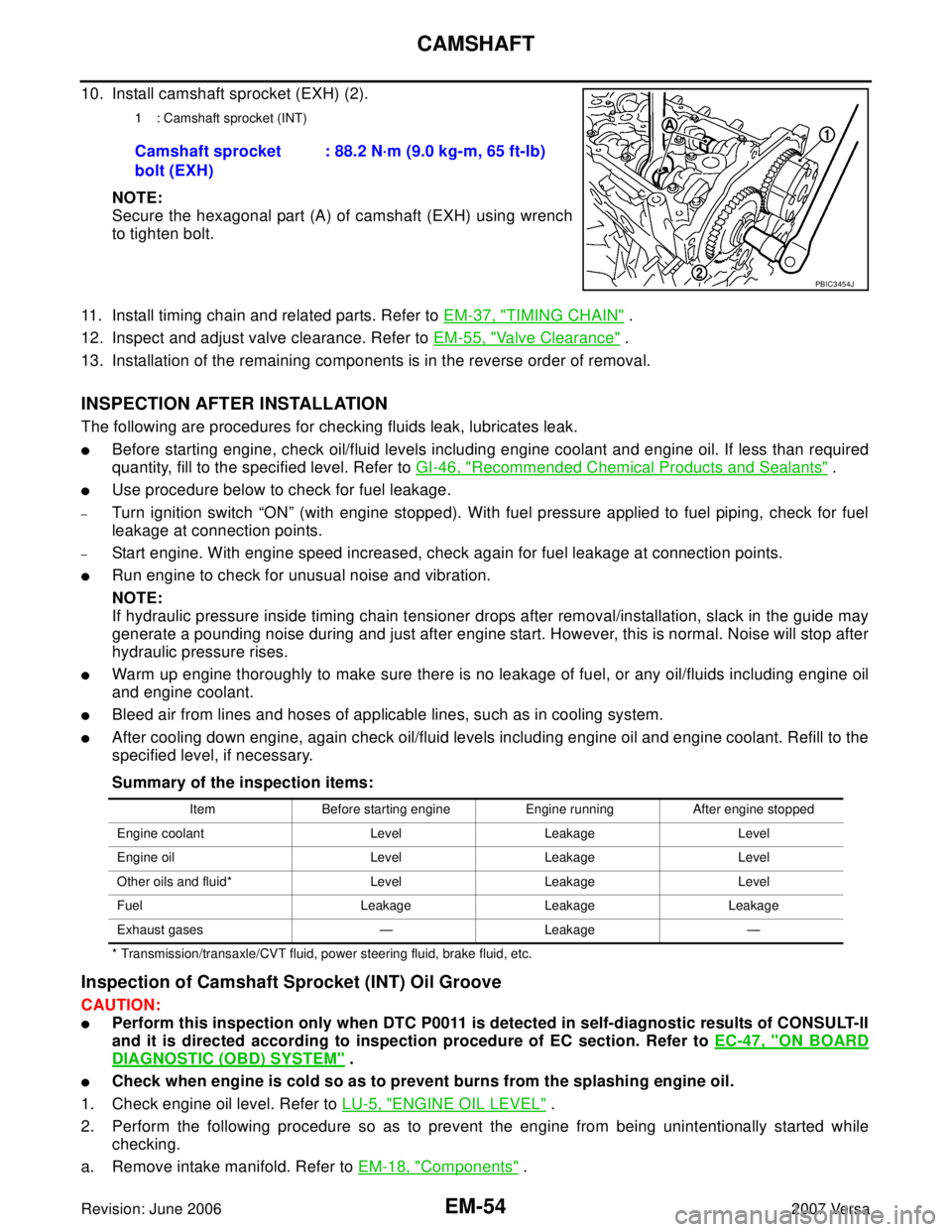

10. Install camshaft sprocket (EXH) (2).
NOTE:
Secure the hexagonal part (A) of camshaft (EXH) using wrench
to tighten bolt.
11. Install timing chain and r

EM-54Revision: June 2006
CAMSHAFT
2007 Versa
10. Install camshaft sprocket (EXH) (2).
NOTE:
Secure the hexagonal part (A) of camshaft (EXH) using wrench
to tighten bolt.
11. Install timing chain and related parts. Refer to EM-37, "
TIMING CHAIN" .
12. Inspect and adjust valve clearance. Refer to EM-55, "
Valve Clearance" .
13. Installation of the remaining components is in the reverse order of removal.
INSPECTION AFTER INSTALLATION
The following are procedures for checking fluids leak, lubricates leak.
Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to GI-46, "
Recommended Chemical Products and Sealants" .
Use procedure below to check for fuel leakage.
–Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel
leakage at connection points.
–Start engine. With engine speed increased, check again for fuel leakage at connection points.
Run engine to check for unusual noise and vibration.
NOTE:
If hydraulic pressure inside timing chain tensioner drops after removal/installation, slack in the guide may
generate a pounding noise during and just after engine start. However, this is normal. Noise will stop after
hydraulic pressure rises.
Warm up engine thoroughly to make sure there is no leakage of fuel, or any oil/fluids including engine oil
and engine coolant.
Bleed air from lines and hoses of applicable lines, such as in cooling system.
After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the
specified level, if necessary.
Summary of the inspection items:
* Transmission/transaxle/CVT fluid, power steering fluid, brake fluid, etc.
Inspection of Camshaft Sprocket (INT) Oil Groove
CAUTION:
Perform this inspection only when DTC P0011 is detected in self-diagnostic results of CONSULT-II
and it is directed according to inspection procedure of EC section. Refer to EC-47, "
ON BOARD
DIAGNOSTIC (OBD) SYSTEM" .
Check when engine is cold so as to prevent burns from the splashing engine oil.
1. Check engine oil level. Refer to LU-5, "
ENGINE OIL LEVEL" .
2. Perform the following procedure so as to prevent the engine from being unintentionally started while
checking.
a. Remove intake manifold. Refer to EM-18, "
Components" .
1 : Camshaft sprocket (INT)
Camshaft sprocket
bolt (EXH): 88.2 N·m (9.0 kg-m, 65 ft-lb)
PBIC3454J
Item Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Other oils and fluid* Level Leakage Level
Fuel Leakage Leakage Leakage
Exhaust gases — Leakage —

Page 1864 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual CAMSHAFT
EM-55
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: June 20062007 Versa
b. Disconnect ignition coil and injector harness connectors.
3. Remove intake valve timing control solenoid valve. Refer to EM-37

CAMSHAFT
EM-55
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: June 20062007 Versa
b. Disconnect ignition coil and injector harness connectors.
3. Remove intake valve timing control solenoid valve. Refer to EM-37, "
Components" .
4. Clean the mating area of intake valve timing control solenoid
valve. Insert a clean shop cloth (with no oil adhesion) into the oil
hole (A) of the cylinder head.
5. Install engine mounting bracket (RH), engine mounting insulator,
and torque rod (RH) under the Step 4 condition. (With intake
valve timing control solenoid valve removed, and a shop cloth
inserted into the oil hole.) Refer to EM-73, "
Components" .
6. Crank engine, and then make sure that engine oil comes out
from intake valve timing control solenoid valve hole (A). End crank after checking.
Check engine oil leakage by oil amount adhered to the waste inserted into the oil hole.
WAR NIN G:
Be careful not to touch rotating parts (drive belts, idler pulley, and crankshaft pulley, etc.).
CAUTION:
Do not perform cranking without installing right engine mount bracket, right engine mount insu-
lator, and right torque rod.
Prevent splashing by using a shop cloth so as to prevent the worker from injury from engine oil
and so as to prevent engine oil contamination.
Prevent splashing by using a shop cloth so as to prevent engine oil from being splashed to
engine and vehicle. Especially, be careful not to apply engine oil to rubber parts of drive belts,
engine mounting insulator, etc. Wipe engine oil off immediately if it is splashed.
7. Perform the following inspection if engine oil does not come out from intake valve timing control solenoid
valve oil hole of the cylinder head.
Remove oil filter (for intake valve timing control), and then clean it. Refer to EM-77, "Components" .
Clean oil groove between oil strainer and intake valve timing control solenoid valve. Refer to LU-4,
"LUBRICATION SYSTEM" .
8. Remove components between intake valve timing control solenoid valve and camshaft sprocket (INT),
and then check each oil groove for clogging.
Clean oil groove if necessary. Refer to LU-4, "LUBRICATION SYSTEM" .
9. Installation of the remaining components is in the reverse order of removal
Valv e C le aranceEBS00U7Q
INSPECTION
Perform inspection as follows after removal, installation or replacement of camshaft or valve-related parts, or if
there is unusual engine conditions regarding valve clearance.
1. Remove rocker cover. Refer to EM-30, "
IGNITION COIL, SPARK PLUG AND ROCKER COVER" .
2. Measure the valve clearance with the following procedure:
a. Set No. 1 cylinder at TDC of its compression stroke.
Rotate crankshaft pulley (1) clockwise and align TDC mark (no paint) (B) to timing indicator (A) on front
cover.
1 : Front cover
:Vehicle front
WBIA0781E
C : White paint mark (Not use for service)
PBIC3960E
