Page 2281 of 2896
BACK-UP LAMP
LT-73
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
BACK-UP LAMPPFP:26550

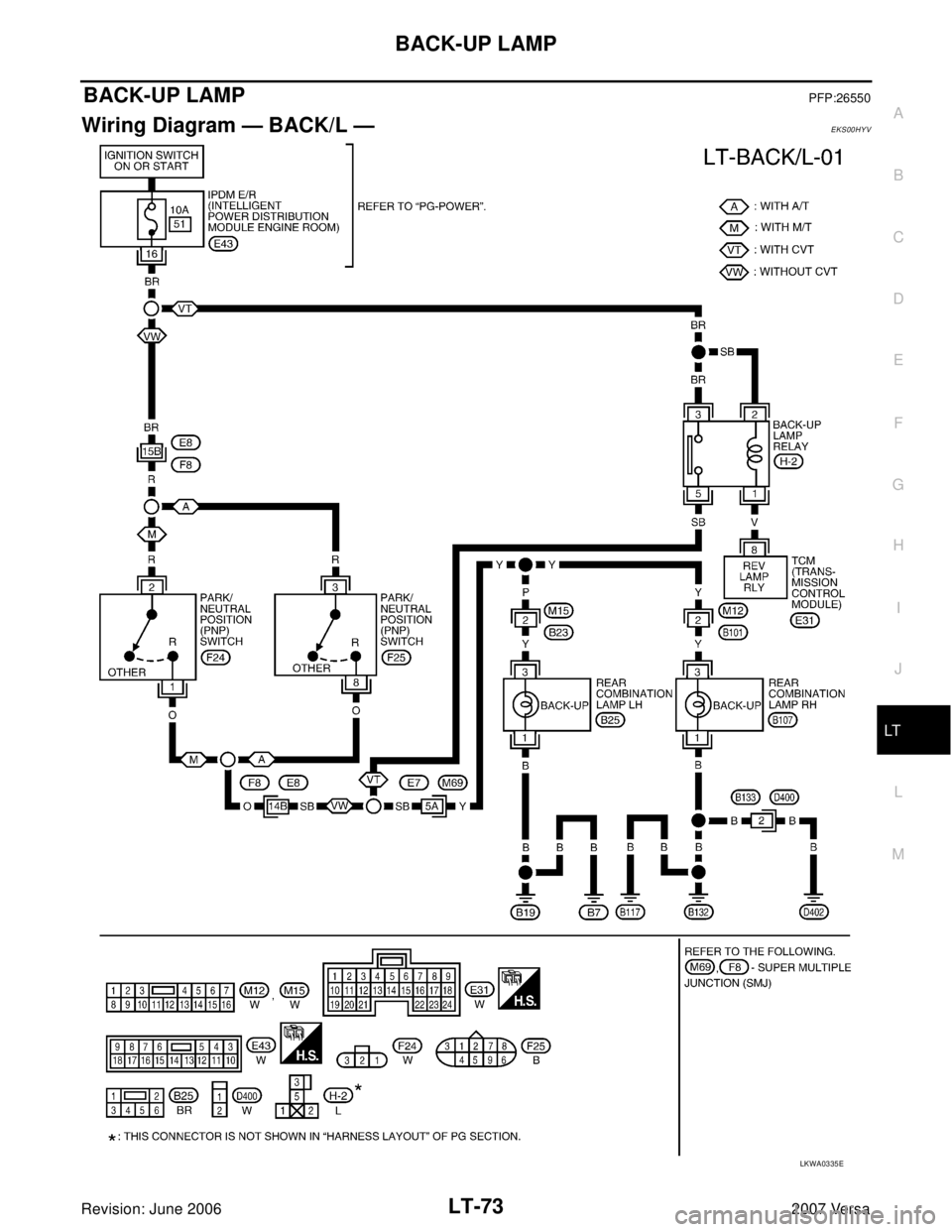

Wiring Diagram — BACK/L —EKS00HYV
LKWA0335E
Page 2282 of 2896
LT-74
BACK-UP LAMP
Revision: June 20062007 Versa
Bulb ReplacementEKS00HYW
Refer to LT- 8 7 , "Bulb Replacement" .
Removal and InstallationEKS00HYX
Refer to LT- 8 7 , "Removal and Installation" .
Page 2283 of 2896

PARKING, LICENSE PLATE AND TAIL LAMPS
LT-75
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
PARKING, LICENSE PLATE AND TAIL LAMPSPFP:26550
Component Parts and Harness Connector LocationEKS00HYY
System DescriptionEKS00HYZ
The control of the parking, license plate and tail lamp operation is dependent upon the position of lighting
switch. When the lighting switch is placed in the 1ST position, the BCM (body control module) receives input
signal requesting the parking, license plate and tail lamps to illuminate. This input signal is communicated to
the IPDM E/R (intelligent power distribution module engine room) via the CAN communication lines. The CPU
(central processing unit) located in the IPDM E/R controls the tail lamp relay coil. This relay, when energized,
directs power to parking, license plate and tail lamps, which then illuminate.
Power is supplied at all times
to ignition relay located in IPDM E/R,
to tail lamp relay located in IPDM E/R,
through 15A fuse (No. 52, located in IPDM E/R) and
through 20A fuse (No. 53, located in IPDM E/R)
to the CPU located in the IPDM E/R,
through 40A fusible link (letter g , located in fuse and fusible link block)
to BCM terminal 70,
through 10A fuse [No. 8, located in fuse block (J/B)],
to BCM terminal 57.
With the ignition switch in the ON or START position, power is supplied
through 10A fuse [No. 6, located in fuse block (J/B)]
to BCM terminal 38,
to ignition relay located in IPDM E/R and
through the ignition relay
to the CPU of the IPDM E/R.
With the ignition switch in the ACC or ON position, power is supplied
through 10A fuse [No. 20, located in fuse block (J/B)]
to BCM terminal 11.
Ground is supplied
to BCM terminal 67
through grounds M20 and M61,
to IPDM E/R terminals 59 and 39
through grounds E15 and E24.
OPERATION BY LIGHTING SWITCH
With the lighting switch in the 1ST or 2ND position, the BCM receives an input signal requesting parking,
license plate and tail lamps to illuminate. This input signal is communicated to the IPDM E/R via the CAN com-
munication lines. The CPU, located in the IPDM E/R, controls the tail lamp relay coil. When energized, the tail
lamp relay directs power
1. IPDM E/R E45, E46 and E48 2. BCM M18 and M20 (view with glove
box removed)3. Combination switch (lighting switch)
M28
WKIA5554E
Page 2284 of 2896

LT-76
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: June 20062007 Versa
through 10A fuse (No. 37, located in IPDM E/R),
through IPDM E/R terminal 26
to front combination lamp LH terminal 6, and
through IPDM E/R terminal 27
to front combination lamp RH terminal 6,
through IPDM E/R terminal 28
to rear combination lamp LH terminal 4 and
to license plate lamp LH and RH terminal 1,
through IPDM E/R terminal 29
to rear combination lamp RH terminal 4.
Ground is supplied
to front combination lamp LH and RH terminal 7
through grounds E15 and E24,
to rear combination lamp LH terminal 1 and
to license plate lamp LH and RH terminal 2
through grounds B7 and B19, and
to rear combination lamp RH terminal 1
through grounds B117, B132 and D402.
With power and ground supplied, parking, license plate and tail lamps illuminate.
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
EXTERIOR LAMP BATTERY SAVER CONTROL
When the combination switch (lighting switch) is in the 1ST (or 2ND) position and the ignition switch is turned
from ON or ACC to OFF, the battery saver control feature is activated.
Under this condition, the parking, license and tail lamps remain illuminated for 5 minutes, then the parking,
license plate and tail lamps are turned off.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-II.
CAN Communication System DescriptionEKS00HZ0
Refer to LAN-4, "CAN Communication System" .
Page 2285 of 2896
PARKING, LICENSE PLATE AND TAIL LAMPS
LT-77
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa

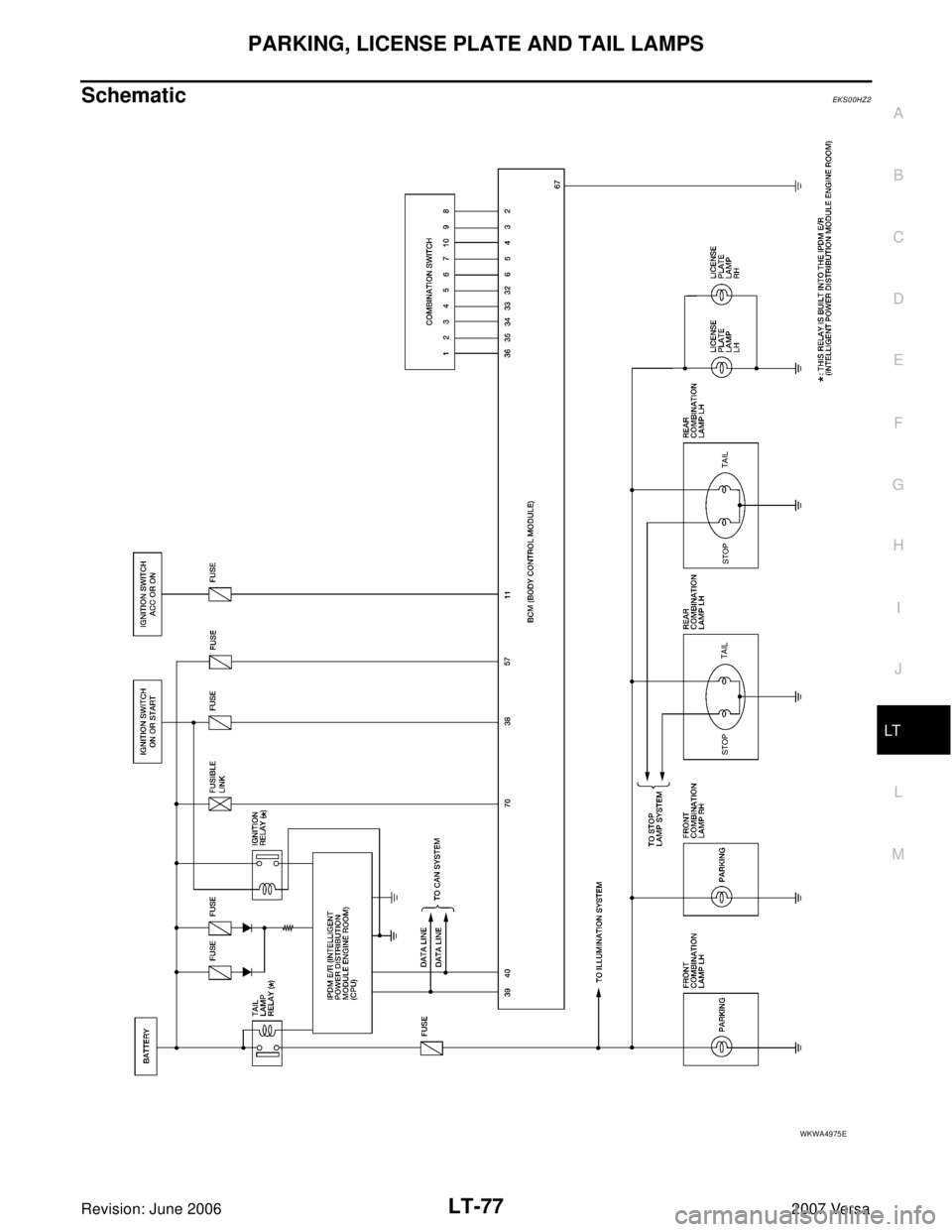

SchematicEKS00HZ2
WKWA4975E
Page 2286 of 2896
LT-78
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: June 20062007 Versa

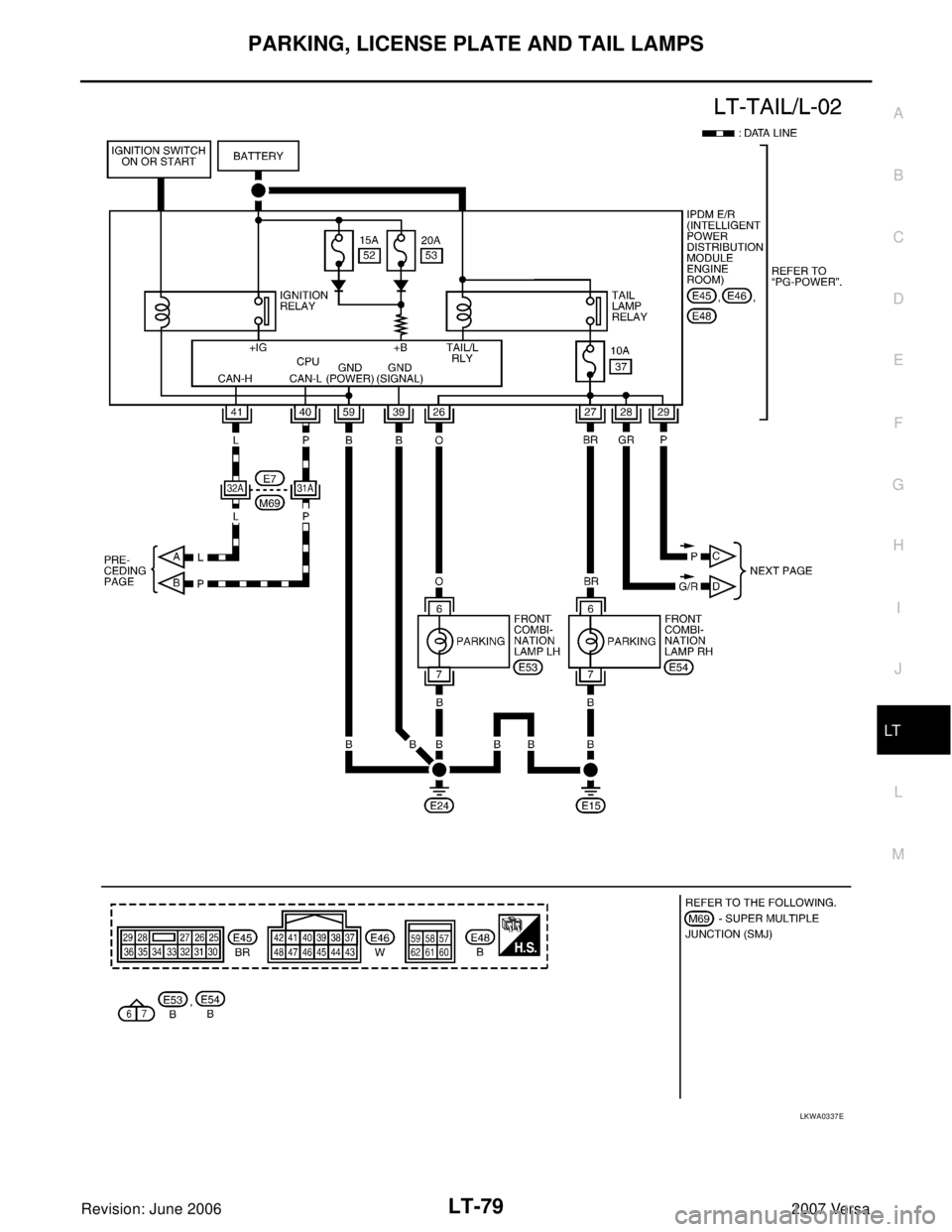

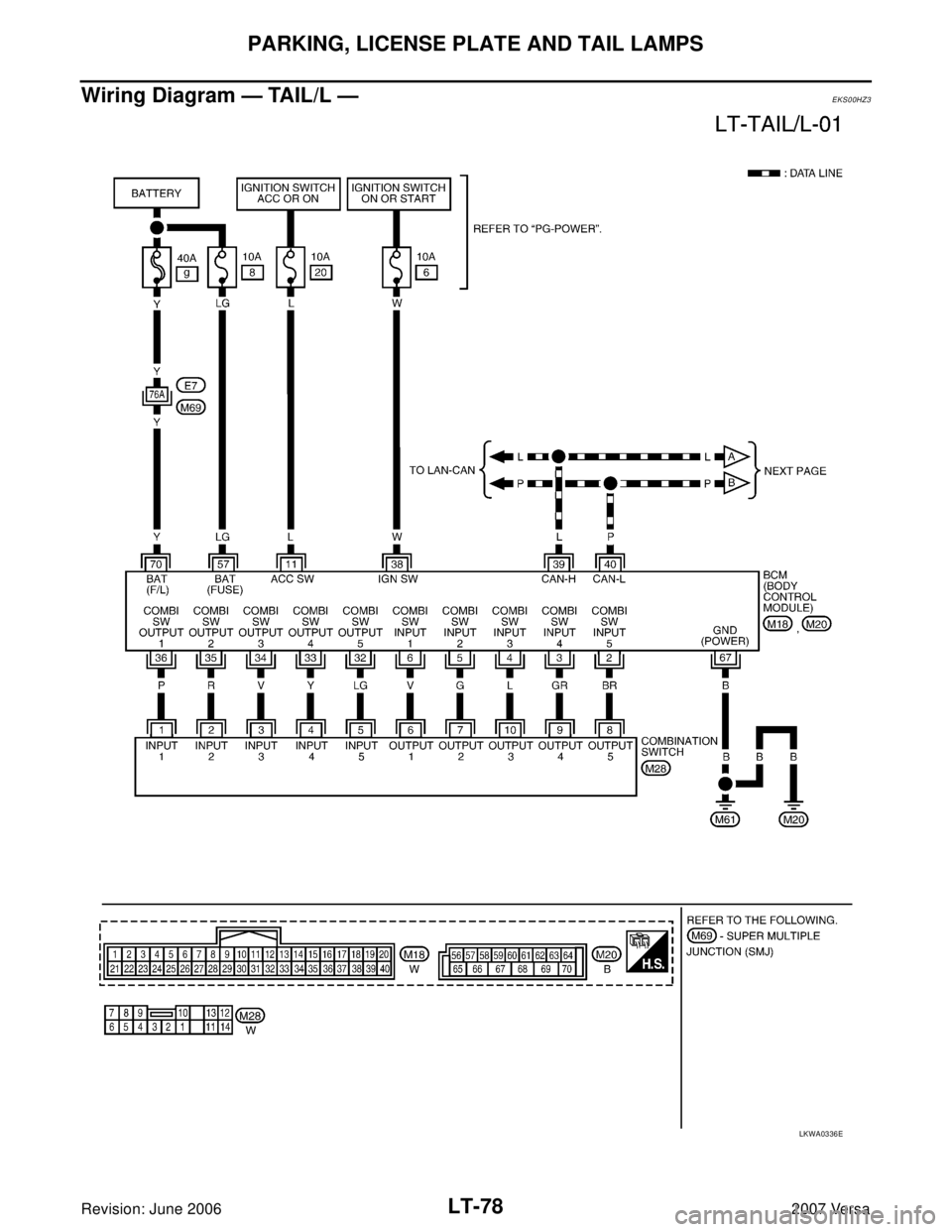

Wiring Diagram — TAIL/L —EKS00HZ3
LKWA0336E
Page 2287 of 2896
PARKING, LICENSE PLATE AND TAIL LAMPS
LT-79
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa

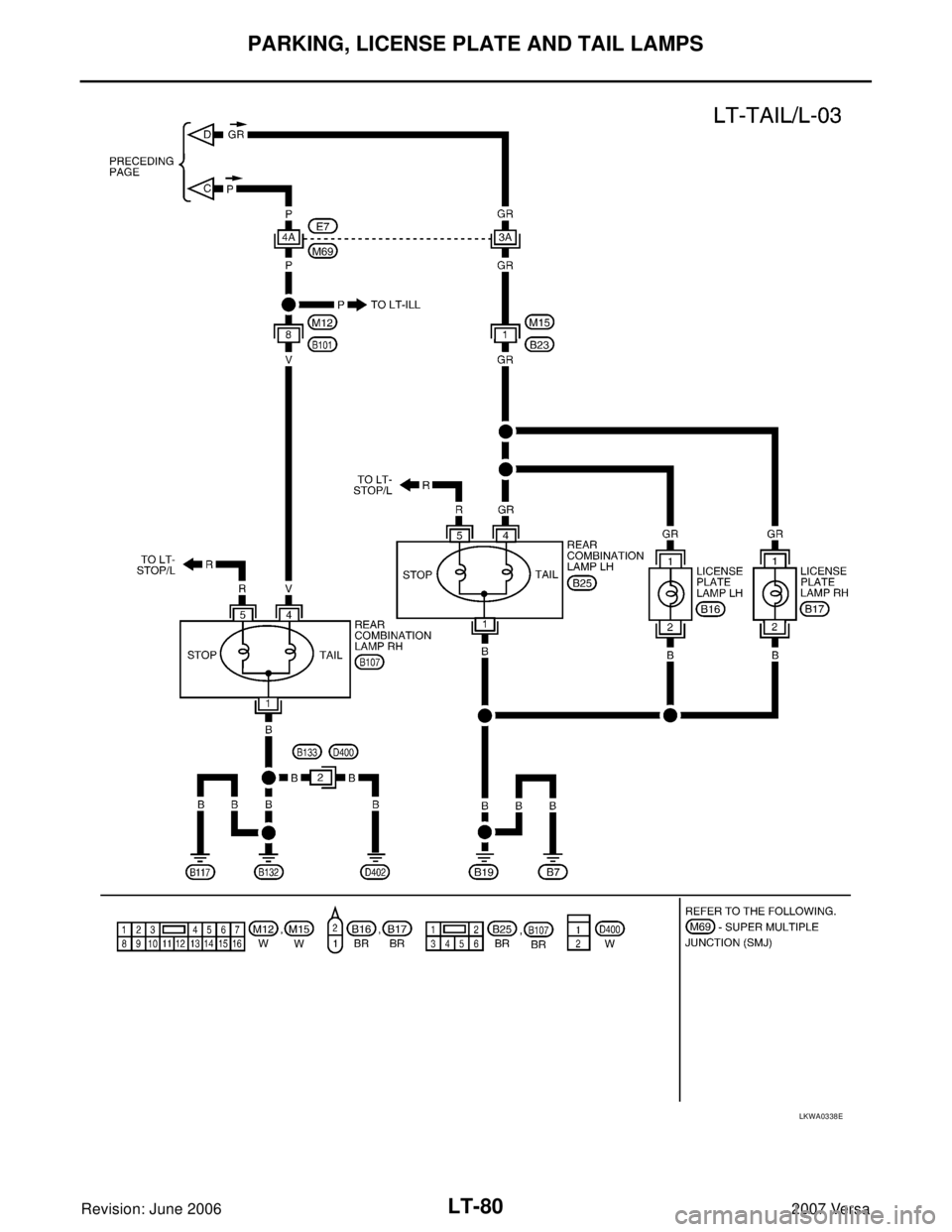

LKWA0337E
Page 2288 of 2896
LT-80
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: June 20062007 Versa
LKWA0338E
