WARNING LAMPS
Revision: June 20062007 Versa
4. CHECK OIL PRESSURE SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.

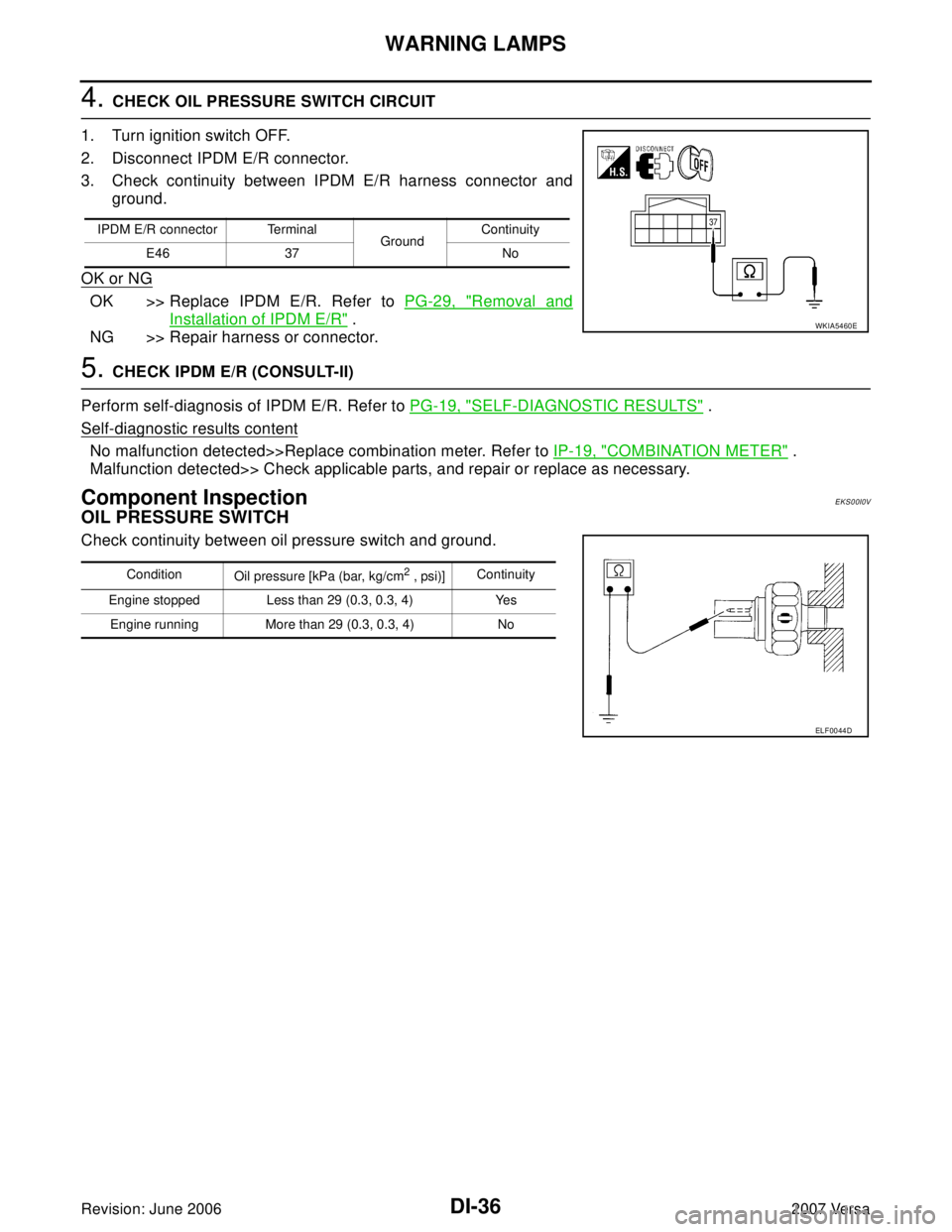

3. Check continuity between IPDM E/R harness connector and
ground.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-29, "Removal and
Installation of IPDM E/R" .
NG >> Repair harness or connector.
5. CHECK IPDM E/R (CONSULT-II)
Perform self-diagnosis of IPDM E/R. Refer to PG-19, "
SELF-DIAGNOSTIC RESULTS" .
Self
-diagnostic results content
No malfunction detected>>Replace combination meter. Refer to IP-19, "COMBINATION METER" .
Malfunction detected>> Check applicable parts, and repair or replace as necessary.
Component InspectionEKS00I0V
OIL PRESSURE SWITCH
Check continuity between oil pressure switch and ground.
IPDM E/R connector Terminal
GroundContinuity
E46 37 No
WKIA5460E
Condition
Oil pressure [kPa (bar, kg/cm2 , psi)]Continuity
Engine stopped Less than 29 (0.3, 0.3, 4) Yes
Engine running More than 29 (0.3, 0.3, 4) No
ELF0044D
Page 1146 of 2896
A/T INDICATOR
DI-37
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: June 20062007 Versa
A/T INDICATORPFP:24814
System DescriptionEKS00I0W
The TCM receives A/T indicator signals from the park/neutral position (PNP) switch (R-range, D-range, 2-
range and 1-range) and the combination meter (P-range and N-range). The TCM then sends A/T position indi-
cator signals to the combination meter via CAN communication lines. The combination meter indicates the
received shift position.

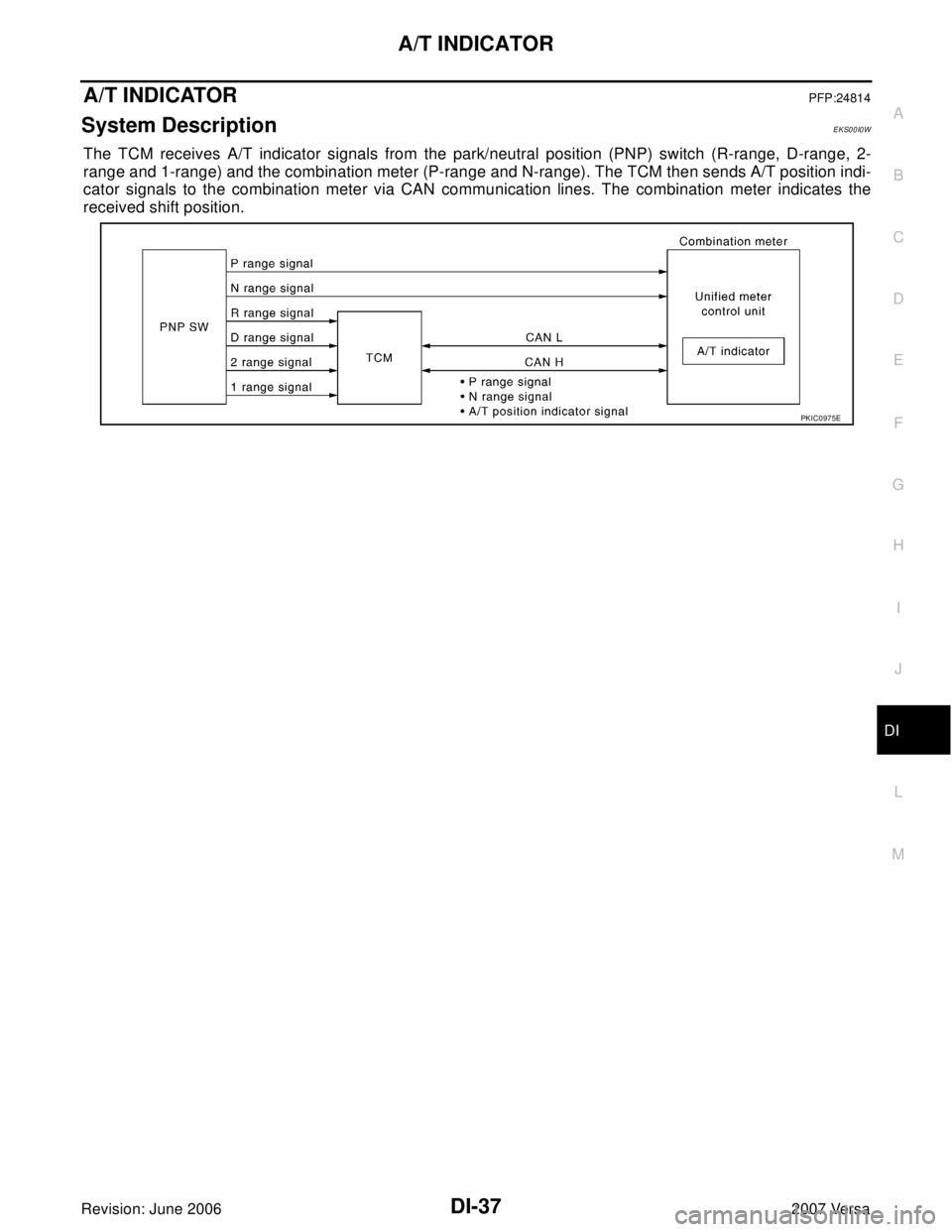

PKIC0975E
Page 1147 of 2896
DI-38
A/T INDICATOR
Revision: June 20062007 Versa

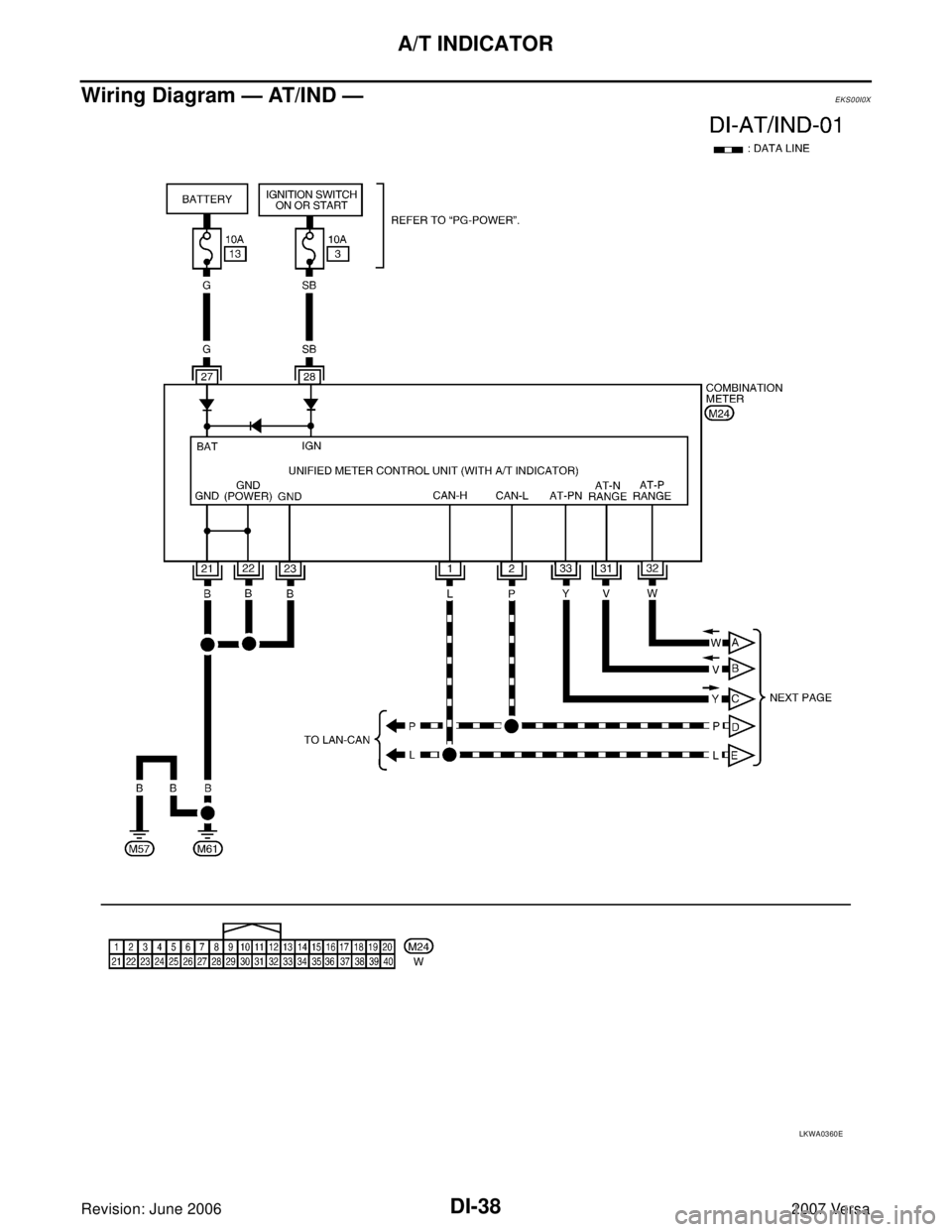

Wiring Diagram — AT/IND —EKS00I0X
LKWA0360E
Page 1148 of 2896
A/T INDICATOR
DI-39
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: June 20062007 Versa

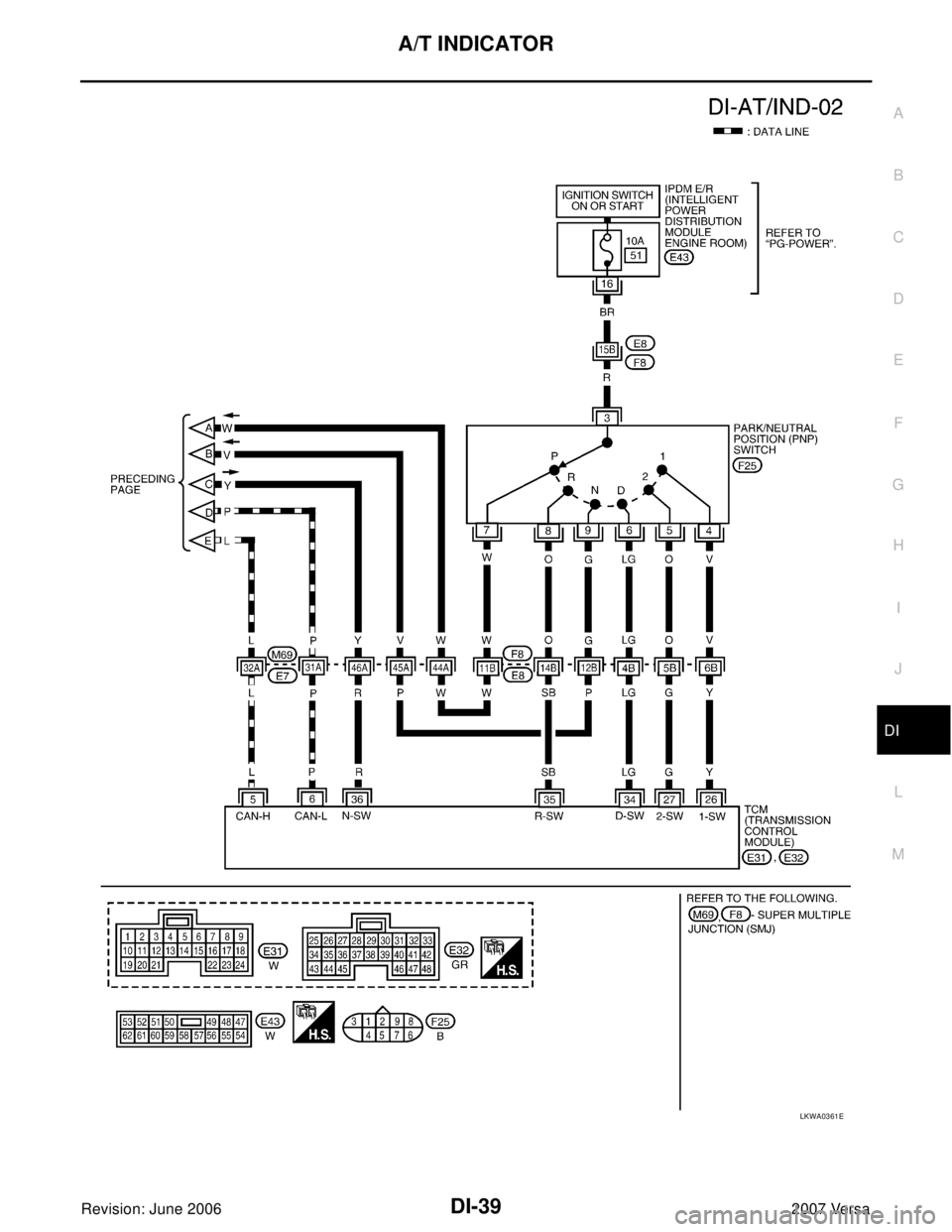

LKWA0361E
Page 1149 of 2896

DI-40
A/T INDICATOR
Revision: June 20062007 Versa
A/T Indicator Does Not IlluminateEKS00I0Y

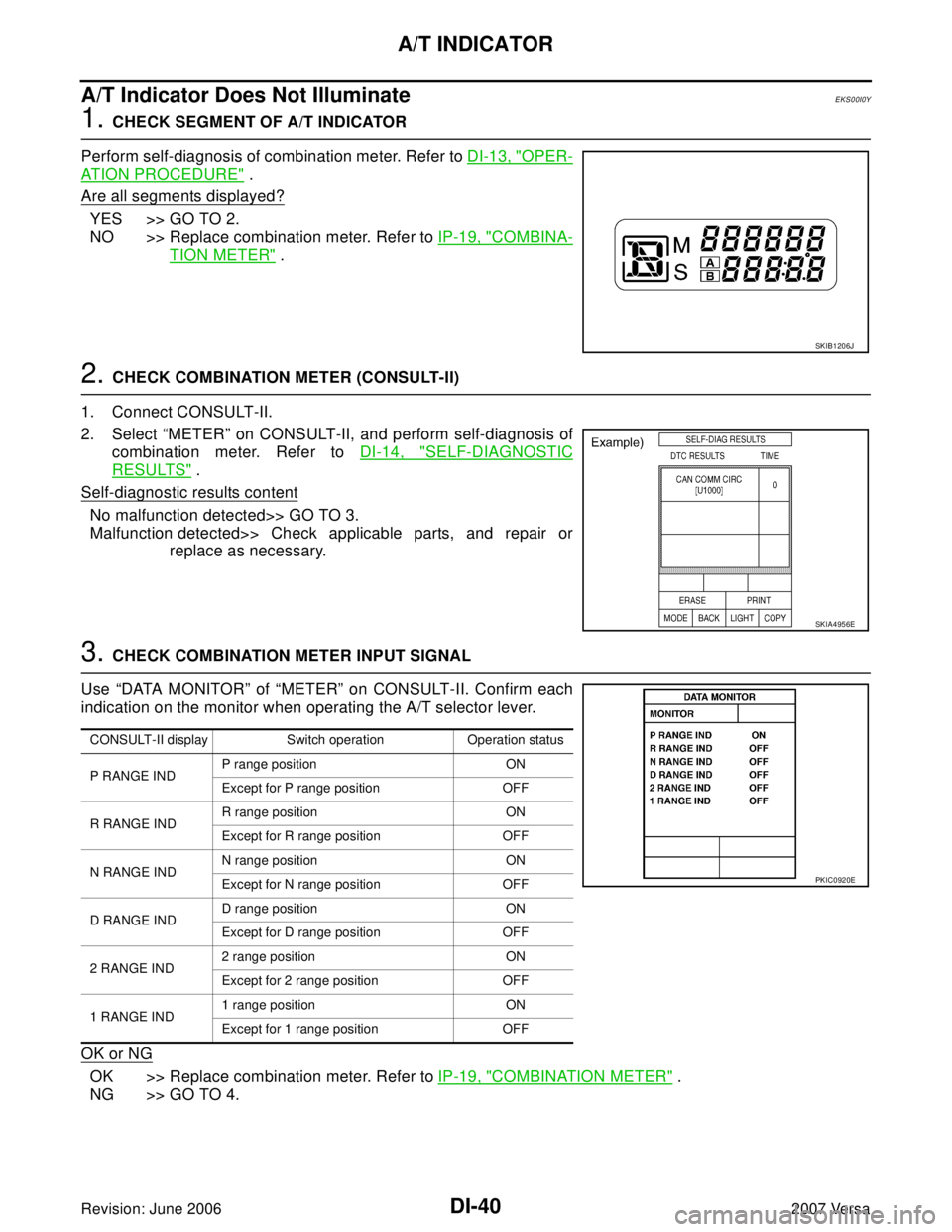

1. CHECK SEGMENT OF A/T INDICATOR
Perform self-diagnosis of combination meter. Refer to DI-13, "
OPER-
ATION PROCEDURE" .
Are all segments displayed?
YES >> GO TO 2.
NO >> Replace combination meter. Refer to IP-19, "
COMBINA-
TION METER" .
2. CHECK COMBINATION METER (CONSULT-II)
1. Connect CONSULT-II.
2. Select “METER” on CONSULT-II, and perform self-diagnosis of
combination meter. Refer to DI-14, "
SELF-DIAGNOSTIC
RESULTS" .
Self
-diagnostic results content
No malfunction detected>> GO TO 3.
Malfunction detected>> Check applicable parts, and repair or
replace as necessary.
3. CHECK COMBINATION METER INPUT SIGNAL
Use “DATA MONITOR” of “METER” on CONSULT-II. Confirm each
indication on the monitor when operating the A/T selector lever.
OK or NG
OK >> Replace combination meter. Refer to IP-19, "COMBINATION METER" .
NG >> GO TO 4.
SKIB1206J
SKIA4956E
CONSULT-II display Switch operation Operation status
P RANGE INDP range position ON
Except for P range position OFF
R RANGE INDR range position ON
Except for R range position OFF
N RANGE INDN range position ON
Except for N range position OFF
D RANGE INDD range position ON
Except for D range position OFF
2 RANGE IND2 range position ON
Except for 2 range position OFF
1 RANGE IND1 range position ON
Except for 1 range position OFF
PKIC0920E
Page 1150 of 2896
A/T INDICATOR
DI-41
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: June 20062007 Versa
4. CHECK SELF-DIAGNOSIS RESULTS OF TCM
Perform self-diagnosis of TCM. Refer to AT-82, "
SELF-DIAGNOSTIC RESULT MODE" .
OK or NG
OK >> Check TCM input/output signal. Repair or replace malfunctioning part, if necessary. Refer to AT-
31, "Input/Output Signal of TCM" .
NG >> Check applicable part, and repair or replace as necessary.
Page 1151 of 2896
DI-42
CVT INDICATOR
Revision: June 20062007 Versa
CVT INDICATORPFP:24820
System DescriptionEKS00IB6
The TCM receives CVT indicator signals from the CVT unit. The TCM then sends CVT position indicator sig-
nals to the combination meter via CAN communication lines. The combination meter indicates the received
shift position.
Page 1152 of 2896
CVT INDICATOR
DI-43
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: June 20062007 Versa

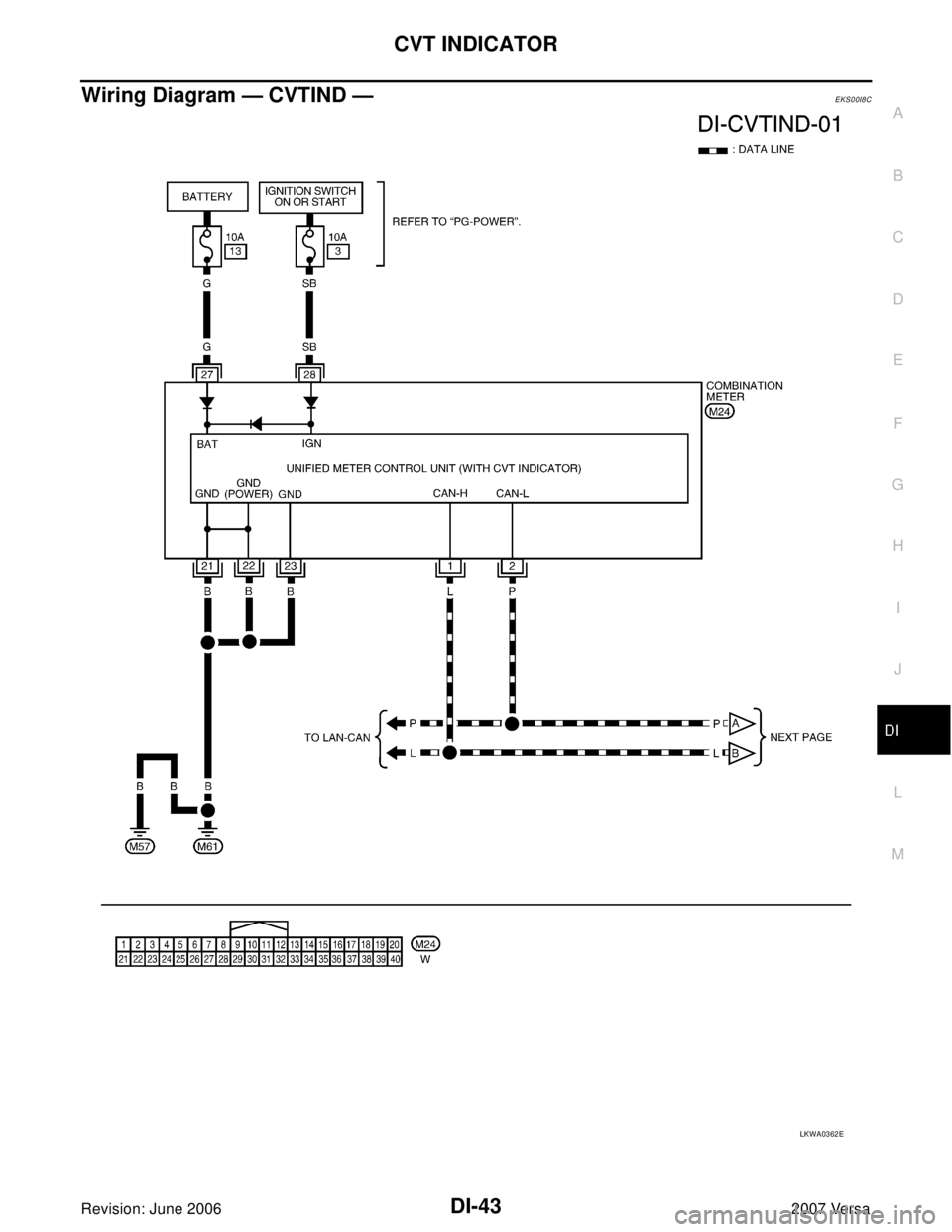

Wiring Diagram — CVTIND —EKS00I8C
LKWA0362E
