Page 1089 of 2896
CVT-192
SHIFT CONTROL SYSTEM
Revision: June 20062007 Versa
CONTROL CABLE COMPONENTS
Refer to the figure below for control cable removal and installation procedure.
REMOVAL
CAUTION:
Make sure that parking brake is applied before removal and installation.
1. Place the selector lever in the “N” position.
2. Remove the center console assembly. Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
3. Disconnect the CVT device harness connector (1).
4. Remove the key interlock cable from the control device assem-
bly. Refer to CVT-202, "
Removal and Installation" .
5. Remove the bolts (A) from the control device assembly (1).
6. Remove exhaust front tube, center muffler and heat plates.
Refer to EM-21, "
EXHAUST MANIFOLD" .
1. Selector lever knob 2. Control device assembly 3. Lock plate
4. Bracket 5. Control cable 6. Bracket
7. Lock plate 8. Bracket 9. Transaxle assembly
A. Floor
WCIA0639E
SCIA6965E
WCIA0609E
Page 1090 of 2896
SHIFT CONTROL SYSTEM
CVT-193
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
7. Remove the plate (1) from the control device assembly.
: Vehicle front
8. Remove the lock plate (1) from the control cable (2).
: Vehicle front
9. Remove the control cable (2) from the control device assembly.
10. Insert flat-bladed screwdrivers at points (A) and (B) as shown,
and press both tabs (E) and (F) at the front (C) and rear (D)
slightly toward the center of the control device assembly to
remove the control device assembly from the underside of the
vehicle.
: Vehicle front
SCIA6967E
SCIA6968E
SCIA6970E
Page 1091 of 2896

CVT-194
SHIFT CONTROL SYSTEM
Revision: June 20062007 Versa
INSTALLATION
Installation is in the reverse order of removal.
When installing the control cable (1) to the control device
assembly (2), make sure that the control cable (1) is fully
pressed in with the ribbed surface (A) facing downward from the
vehicle.
: Vehicle front
After installation is completed, adjust and check the CVT posi-
tion. Refer to CVT-195, "
Adjustment of CVT Position" and CVT-
196, "Checking of CVT Position" .
Control Device Disassembly and AssemblyUCS006XP
DISASSEMBLY
NOTE:
Refer to CVT-191, "
CONTROL DEVICE COMPONENTS" to disassemble.
1. Remove selector lever knob from control device assembly. Refer to CVT-195, "
Selector Lever Knob
Removal and Installation" .
2. Remove position lamp from position indicator plate (1).
3. Insert a flat-bladed screwdriver to (A) (at 4 locations) as shown,
and bend each hook slightly to raise position indicator plate (1)
and remove from control device assembly (2).
4. Remove bracket from control device assembly (2).
5. Remove CVT device harness connector from control device
assembly (2).
6. Release tabs (A) on shift lock solenoid and park position switch
assembly from hooks (B) on control device assembly to shift
lock solenoid and park position switch assembly.
ASSEMBLY
Assembly is in the reverse order of disassembly.
SCIA6253E
SCIA6969E
SCIA6977E
Page 1092 of 2896

SHIFT CONTROL SYSTEM
CVT-195
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
Selector Lever Knob Removal and InstallationUCS006XQ
REMOVAL
CAUTION:
Make sure that parking brake is applied before removal/installation.
1. Set selector lever knob (1) in “N” position.
2. Slide knob cover (2) downward.
3. Pull out lock pin (3) from selector lever knob (1).
4. Remove selector lever knob (1) and knob cover (2) as a set from
selector lever.
CAUTION:
Do not push selector button.
INSTALLATION
1. Insert lock pin (1) to selector lever knob (2).
2. Install knob cover (3) to selector lever knob (2).
3. Set selector lever in “N” position.
4. Install selector lever knob over selector lever until a click is felt.
CAUTION:
Do not tilt selector lever knob when installing. Install it
straight, and do not tap or apply any shock to install it.
Do not push selector button.
Adjustment of CVT PositionUCS0064J
CAUTION:
Make sure that parking brake is applied before adjustment.
1. Loosen the control cable nut (A) and place the manual lever (1)
in “P” position.
2. Place selector lever in “P” position.
3. Push the control cable (2) in with a load of 9.8 N (approximately
1 kg, 2.2 lb). Release the control cable and temporarily tighten
the control cable nut.
NOTE:
Do not move the manual lever. Make sure the manual lever
stays in the “P” position.
4. Tighten the control cable nut.
CAUTION:
Secure the manual lever when tightening nut.
5. Check the operation of the CVT. Refer to CVT-196, "
Checking of CVT Position" .
SCIA6971E
SCIA6972E
Control cable nut: Refer to CVT-192, "CON-
TROL CABLE COMPO-
NENTS" .
WCIA0608E
Page 1093 of 2896

CVT-196
SHIFT CONTROL SYSTEM
Revision: June 20062007 Versa
Checking of CVT PositionUCS0064K
1. Place selector lever in “P” position, and turn ignition switch ON. (Do not start engine.)
2. Make sure selector lever can be shifted to other than “P” position when brake pedal is depressed. Also
make sure selector lever can be shifted from “P” position only when brake pedal is depressed.
3. Move the selector lever and check for excessive effort, sticking, noise or rattle.
4. Confirm the selector lever stops at each position with the feel of engagement when it is moved through all
the positions. Check that the actual position of the selector lever matches the position shown by the shift
position indicator and the manual lever on the transaxle.
5. The method of operating the selector lever to individual posi-
tions correctly should be as shown.
(A): Press selector button to operate selector lever, while
depressing the brake pedal.
(B): Press selector button to operate selector lever.
(C): Selector lever can be operated without pressing selector
button.
6. Confirm the back-up lamps illuminate only when selector lever is
placed in the “R” position. Confirm the back-up lamps do not illu-
minate when the selector lever is pushed toward the “R” position
side with the gear position remained in the “P” or “N” position.
7. Confirm the engine can only be started with the selector lever in the “P” and “N” positions.
8. Make sure transaxle is locked completely in “P” position.
WCIA0620E
Page 1094 of 2896
CVT SHIFT LOCK SYSTEM
CVT-197
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
CVT SHIFT LOCK SYSTEMPFP:00000
DescriptionUCS0064L
The mechanical key interlock mechanism also operates as a shift lock:
With the ignition switch turned to ON, selector lever cannot be shifted from “P” position to any other posi-
tion unless brake pedal is depressed.
With the key removed, selector lever cannot be shifted from “P” position to any other position.
The key cannot be removed unless selector lever is placed in “P” position.
The shift lock and key interlock mechanisms are controlled by the ON-OFF operation of the shift lock sole-
noid and by the operation of the rotator and slider located inside key cylinder, respectively.
Shift Lock System Electrical Parts LocationUCS0064M
1. Key interlock cable 2. Key cylinder 3. Stop lamp switch
4. Brake pedal 5. Shift lock release button 6. Key interlock cable
7. Shift lock solenoid 8. Park position switch
BCIA0034E
Page 1095 of 2896
CVT-198
CVT SHIFT LOCK SYSTEM
Revision: June 20062007 Versa

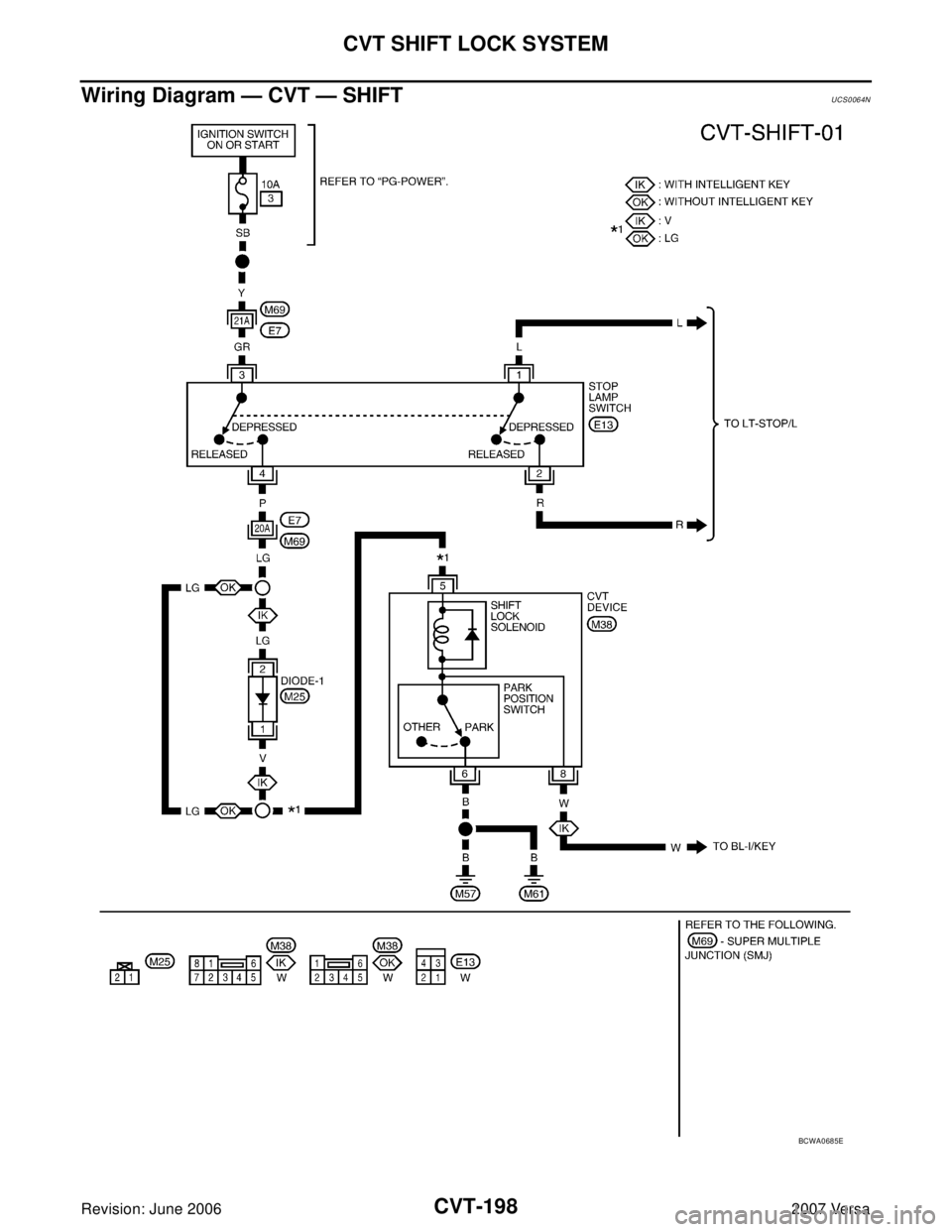

Wiring Diagram — CVT — SHIFTUCS0064N
BCWA0685E
Page 1096 of 2896

CVT SHIFT LOCK SYSTEM
CVT-199
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
Diagnostic ProcedureUCS006KN
SYMPTOM 1:
Selector lever cannot be moved from “P” position with ignition switch in ON position and brake
pedal depressed.
Selector lever can be moved from “P” position with ignition key in ON position and brake pedal
released.
Selector lever can be moved from “P” position when ignition switch is removed from key cylinder.
SYMPTOM 2:
Ignition key cannot be removed when selector lever is set to “P” position.
Ignition key can be removed when selector lever is set to any position except “P” position.
1. CHECK KEY INTERLOCK CABLE
Check key interlock cable for damage.
OK or NG
OK >> GO TO 2.
NG >> Repair key interlock cable. Refer to AT-239, "
Removal and Installation" .
2. CHECK CVT POSITION
Check CVT position. Refer to CVT-196, "
Checking of CVT Position" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to CVT-195, "
Adjustment of CVT Position" .
3. CHECK SHIFT LOCK SOLENOID AND PARK POSITION SWITCH
1. Turn ignition switch ON. (Do not start engine.)
2. Selector lever is set in “P” position.
3. Check operation sound.
OK or NG
OK >>INSPECTION END
NG - 1 >> With intelligent key: GO TO 4.
NG - 2 >> Without intelligent key: GO TO 5.
4. CHECK POWER SOURCE
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between CVT device harness connector terminal
5 and ground.
OK or NG
OK >> GO TO 8.
NG >> GO TO 6.
Condition Brake pedal Operation sound
When ignition switch is turned to ON position and selector lever is set in
“P” position.Depressed Yes
Released No
Voltage:
Brake pedal depressed: Battery voltage
Brake pedal released: 0V
SCIA7934E
