2006 NISSAN VERSA wiper fluid

IDX-4
ALPHABETICAL INDEX
EC-398, EC-406
EVAP control system pressure sensor .... EC-382, EC-
385, EC-391
EVAP control system purge flow monitoring diagnosis
EC-340
EVAP vapor lines inspection ............................. MA-19
Evaporative emission (EVAP) system ............... EC-31
Evaporator ...................................................... MTC-90
Exhaust manifold .............................................. EM-21
Exhaust system inspection ................... MA-20, MA-22
Expansion valve .............................................. MTC-91
F
F/FOG - Wiring diagram ..................................... LT-43
F/PUMP - Wiring diagram ................................ EC-571
Final drive (FF M/T) ........................................... MT-22
Floor trim ............................................................. EI-37
Flow charts ......................................................... GI-27
Fluid temparature sensor (CVT) ...................... CVT-85
Fluid temperature sensor (A/T) ........................ AT-106
Fluids ................................................................ MA-11
Fluorescent leak detector ............................... MTC-92
Flywheel (clutch) ................................................ CL-13
Flywheel runout .............................................. EM-103
Fork rod (M/T) .................................................... MT-21
Freeze frame data ............................... EC-52, EC-116
Front bumper ...................................................... EI-14
Front door ......................................................... GW-43
Front passenger air bag .................................. SRS-46
Front seat belt ...................................................... SB-3
Front seat belt pre-tensioner ..... SB-2, SRS-3, SRS-51
Front washer ...................................................... WW-4
Front wiper ......................................................... WW-4
FTS - Wiring diagram ......................... AT-103, CVT-86
FTTS - Wiring diagram ...................... EC-293, EC-298
FUEL - Wiring diagram ...................... EC-278, EC-286
Fuel cut control (at no load high engine speed) . EC-26
Fuel gauge ............................................................ DI-5
Fuel injection system ......................... EC-276, EC-284
Fuel injector ..................................................... EC-564
Fuel injector and fuel tube ................................ EM-33
Fuel level sensor ................. EC-415, EC-417, EC-419
Fuel line inspection .................................. FL-4, MA-15
Fuel precautions ................................................... GI-6
Fuel pressure check .......................................... EC-81
Fuel pressure release ........................................ EC-81
Fuel pump ........................................................ EC-570
Fuel systemCommercial Service Tools ................ FL-3
Fuel systemPREPARATION ................................. FL-3
Fuel tank temperature sensor ............ EC-291, EC-297
Fuel tank vacuum relief valve ............................ EC-34
Fuse ................................................................... PG-16
Fuse and fusible link box ................................... PG-77
Fusible link ......................................................... PG-16
G
Gauges ................................................................. DI-5
Gear components (M/T) .................................... MT-18
Generic scan tool (GST) ................................. EC-126
Glass ...................................... GW-11, GW-43, GW-47
Grille - See Exterior ............................................. EI-19
Ground distribution ............................................ PG-30
H
H/LAMP - Wiring diagram .................................... LT-8
H/PHON - Wiring diagram .................................. AV-52
Handling precautions for plastics ..................... BL-255
Harness connector ............................................ PG-68
Harness layout .................................................. PG-39
Hazard warning lamp ......................................... LT-51
Headlining - See Roof trim .................................. EI-39
Heated oxygen sensor 2 ..... EC-248, EC-257, EC-267
Heated oxygen sensor 2 heater ...................... EC-166
HEATER - Wiring diagram .............................. MTC-28
Heater system - Wiring diagram ..................... MTC-28
HFC134a (R134a) system precaution .............. MTC-4
HFC134a (R134a) system service procedure . MTC-80
HFC134a (R134a) system service tools ......... MTC-12
HFC134a system service equipment precaution MTC-9
HO2S2 - Wiring diagram ..... EC-251, EC-260, EC-270
HO2S2H - Wiring diagram .............................. EC-168
Horn ................................................................. WW-46
HORN - Wiring diagram ................................... WW-46
How to erase DTC for OBD system .................. EC-60
I
IATS - Wiring diagram ..................................... EC-197
Idle air volume learning ..................................... EC-78
Idle speed ......................................................... EC-75
Idle speed control (ISC) .................... EC-423, EC-425
Ignition coil ...................................................... EC-576
Ignition control system .................................... EC-576
Ignition timing .................................................... EC-75
IGNSYS - Wiring diagram ............................... EC-577
ILL - Wiring diagram ......................................... LT-111
Illumination control ........................................... LT-108
In-cabin Microfilter ............................................. MA-20
INJECT - Wiring diagram ................................ EC-565
Input shaft (FF M/T) .......................................... MT-18
Input/Output signal of TCM ............................. CVT-25
Instrument panel ................................................. IP-10
INT/L - Wiring diagram ....................................... LT-96
Intake air temperature sensor ........... EC-195, EC-215
Intake door control linkage adjustment ........... MTC-69
Intake manifold .................................................. EM-18
Intake valve timing control .............................. EC-156
Intake valve timing control solenoid valve ....... EC-173
Interior ................................................................. EI-32
Interior lamp ....................................................... LT-91
IPDM (Intelligent power distribution module engine
room) ................................................................. PG-17
IVC - Wiring diagram ....................................... EC-174

PG-46
HARNESS
Revision: June 20062007 Versa
G2 E1 GR/5 : Front wiper motor D3 E30 B/2: Front combination lamp RH
(turn signal)
C3 E2 B/2 : Front and rear washer motor F2 E33 B/26: ABS actuator and electric unit (control
unit)
F5 E4 Y/2 : Crash zone sensor E2 E37 B/5 : Daytime light relay 1
E4 E17 B/3 : Refrigerant pressure sensor D2 E38 L/5 : Daytime light relay 2
E5 E21 B/1 : Horn (high) E2 E41 — : Ground (ABS)
E5 E22 B/1 : Horn (high) C3 E50 W/2 : Washer fluid level switch
D2 E24 — : Engine ground D1 E52 B/2 : Front wheel sensor RH
C3 E26 B/3: Front combination lamp RH
(headlamp)D2 E54 B/2: Front combination lamp RH
(parking)
C4 E28 B/2 : Front fog lamp RH

WW-2Revision: June 20062007 Versa REAR WIPER OPERATION ................................ 31
INTERMITTENT OPERATION ............................ 31
AUTO STOP OPERATION .................................. 31
REAR WASHER OPERATION ............................ 31
BCM WIPER SWITCH READING FUNCTION .... 32
Wiring Diagram — WIP/R — .................................. 33
Terminals and Reference Values for BCM .............. 35
How to Proceed With Trouble Diagnosis ................ 35
Preliminary Check .................................................. 35
CHECK POWER SUPPLY AND GROUND CIR-
CUIT FOR BCM ................................................... 35
CONSULT-II Function (BCM) .................................. 35
Rear Wiper Does Not Operate ............................... 35
Rear Wiper Stop Position Is Incorrect ..................... 37
Only Rear Wiper Does Not Operate ....................... 38
Only Rear Wiper Intermittent Does Not Operate .... 38
Wiper Does Not Wipe When Rear Washer Operates ... 39
Removal and Installation ........................................ 40REAR WIPER ARM .............................................40
REAR WIPER MOTOR ........................................41

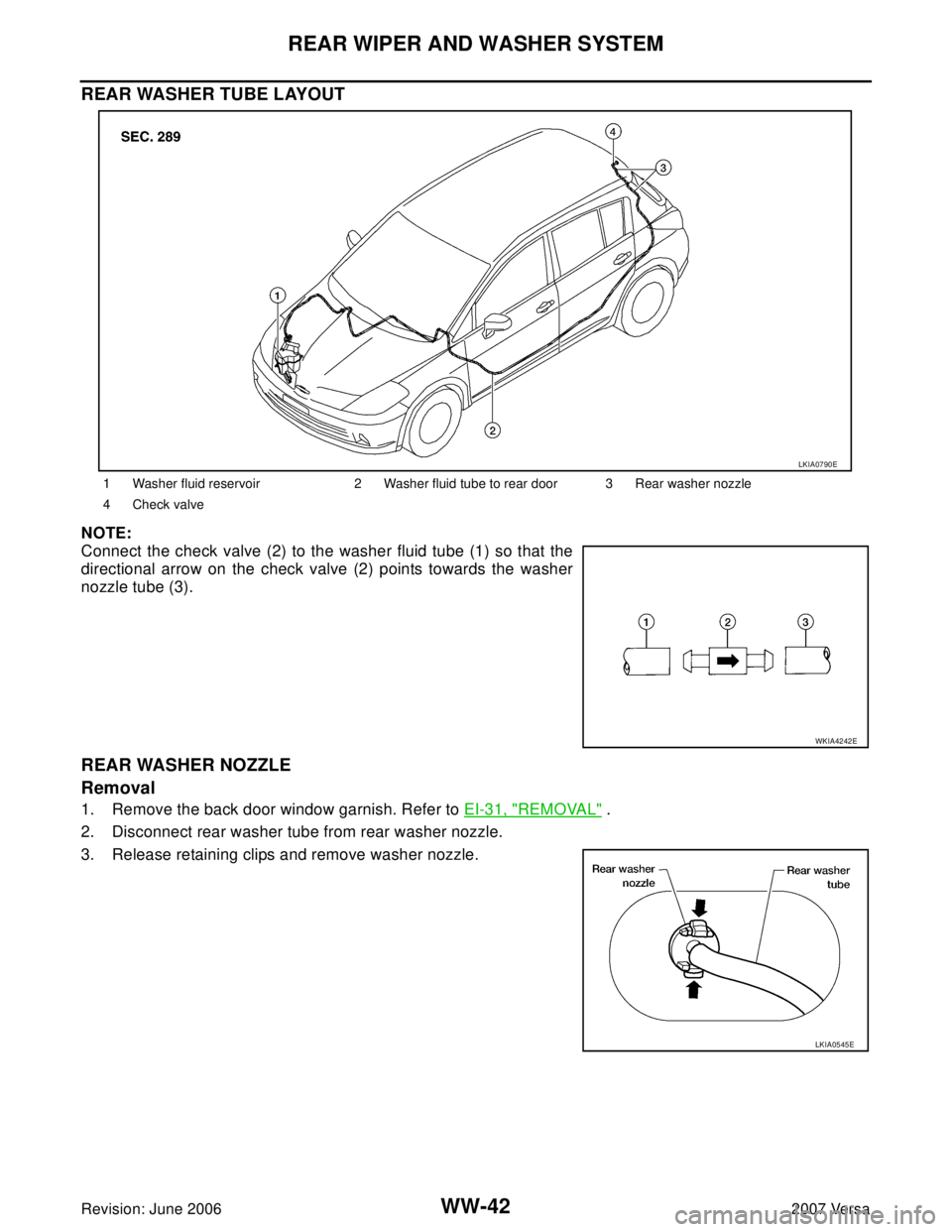

REAR WASHER TUBE LAYOUT .........................42
REAR WASHER NOZZLE ...................................42
WASHER FLUID RESERVOIR ............................43
WIPER AND WASHER SWITCH .........................43
WASHER MOTOR ...............................................43
Washer Nozzle Adjustment .....................................43
POWER SOCKET .....................................................44
Wiring Diagram — P/SCKT — ................................44
Removal and Installation .........................................45
REMOVAL ............................................................45
INSTALLATION ....................................................45
HORN ........................................................................46
Wiring Diagram — HORN — ..................................46
Removal and Installation .........................................47
REMOVAL ............................................................47
INSTALLATION ....................................................47

WW-24
FRONT WIPER AND WASHER SYSTEM
Revision: June 20062007 Versa

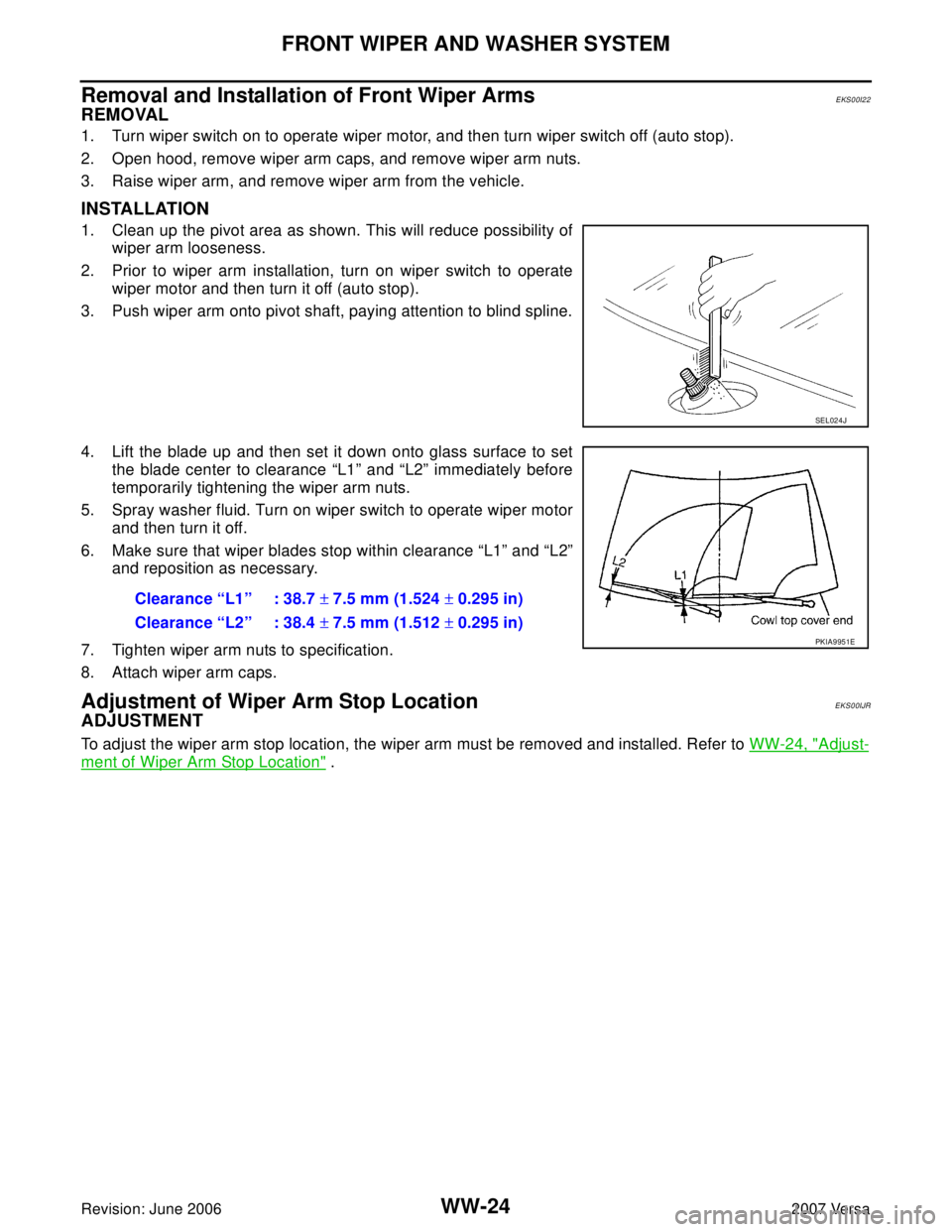

Removal and Installation of Front Wiper ArmsEKS00I22
REMOVAL
1. Turn wiper switch on to operate wiper motor, and then turn wiper switch off (auto stop).
2. Open hood, remove wiper arm caps, and remove wiper arm nuts.
3. Raise wiper arm, and remove wiper arm from the vehicle.
INSTALLATION
1. Clean up the pivot area as shown. This will reduce possibility of
wiper arm looseness.
2. Prior to wiper arm installation, turn on wiper switch to operate
wiper motor and then turn it off (auto stop).
3. Push wiper arm onto pivot shaft, paying attention to blind spline.
4. Lift the blade up and then set it down onto glass surface to set
the blade center to clearance “L1” and “L2” immediately before
temporarily tightening the wiper arm nuts.
5. Spray washer fluid. Turn on wiper switch to operate wiper motor
and then turn it off.
6. Make sure that wiper blades stop within clearance “L1” and “L2”
and reposition as necessary.
7. Tighten wiper arm nuts to specification.
8. Attach wiper arm caps.
Adjustment of Wiper Arm Stop Location EKS00IJR
ADJUSTMENT
To adjust the wiper arm stop location, the wiper arm must be removed and installed. Refer to WW-24, "Adjust-
ment of Wiper Arm Stop Location" .
SEL024J
Clearance “L1” : 38.7 ± 7.5 mm (1.524 ± 0.295 in)
Clearance “L2” : 38.4 ± 7.5 mm (1.512 ± 0.295 in)
PKIA9951E

FRONT WIPER AND WASHER SYSTEM
WW-29
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: June 20062007 Versa

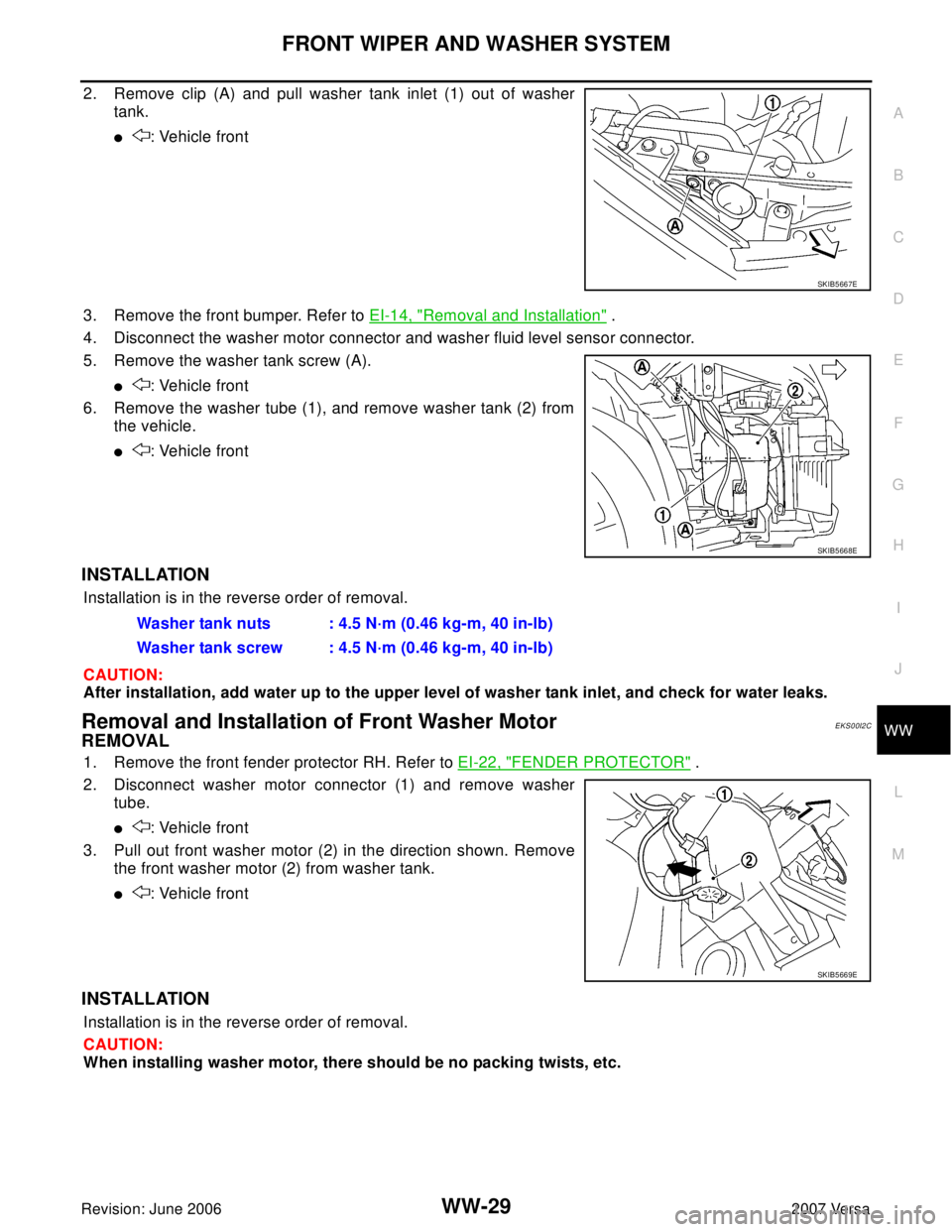

2. Remove clip (A) and pull washer tank inlet (1) out of washer
tank.

: Vehicle front
3. Remove the front bumper. Refer to EI-14, "
Removal and Installation" .
4. Disconnect the washer motor connector and washer fluid level sensor connector.
5. Remove the washer tank screw (A).

: Vehicle front
6. Remove the washer tube (1), and remove washer tank (2) from
the vehicle.

: Vehicle front
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
After installation, add water up to the upper level of washer tank inlet, and check for water leaks.
Removal and Installation of Front Washer MotorEKS00I2C
REMOVAL
1. Remove the front fender protector RH. Refer to EI-22, "FENDER PROTECTOR" .
2. Disconnect washer motor connector (1) and remove washer
tube.

: Vehicle front
3. Pull out front washer motor (2) in the direction shown. Remove
the front washer motor (2) from washer tank.

: Vehicle front
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
When installing washer motor, there should be no packing twists, etc.
SKIB5667E
SKIB5668E
Washer tank nuts : 4.5 N·m (0.46 kg-m, 40 in-lb)
Washer tank screw : 4.5 N·m (0.46 kg-m, 40 in-lb)
SKIB5669E

WW-42
REAR WIPER AND WASHER SYSTEM
Revision: June 20062007 Versa
REAR WASHER TUBE LAYOUT
NOTE:
Connect the check valve (2) to the washer fluid tube (1) so that the
directional arrow on the check valve (2) points towards the washer
nozzle tube (3).
REAR WASHER NOZZLE
Removal
1. Remove the back door window garnish. Refer to EI-31, "REMOVAL" .
2. Disconnect rear washer tube from rear washer nozzle.
3. Release retaining clips and remove washer nozzle.
1 Washer fluid reservoir 2 Washer fluid tube to rear door 3 Rear washer nozzle
4 Check valve
LKIA0790E
WKIA4242E
LKIA0545E

REAR WIPER AND WASHER SYSTEM
WW-43
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: June 20062007 Versa
Installation
Installation is in the reverse order of removal.
NOTE:
Inspect rear washer nozzle for proper spray pattern, adjust as necessary. Refer to WW-43, "
Washer Nozzle
Adjustment" .
WASHER FLUID RESERVOIR
Refer to WW-28, "Removal and Installation of Washer Tank" .
WIPER AND WASHER SWITCH
Refer to WW-28, "Removal and Installation of Front Wiper and Washer Switch" .
WASHER MOTOR
Refer to WW-29, "Removal and Installation of Front Washer Motor" .
Washer Nozzle AdjustmentEKS00ILU
Adjust the washer nozzle to specification using suitable tool as
shown.
Adjustable range : ±15° (In any direction)
LKIA0349E
WEL912A
