Page 401 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual AV-4
PREPARATION
Revision: June 20062007 Versa
PREPARATIONPFP:00002
Commercial Service ToolEKS00I9D
Tool nameDescription
Power toolLoosening bolts and nuts
PBIC0191E

Page 402 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual AUDIO
AV-5
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: June 20062007 Versa
AUDIOPFP:28111
Component Parts LocationEKS00I4B
System DescriptionEKS00IA5
BASE SYSTEM
Refer to Owners Manual for audio system opera

Page 403 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual AV-6
AUDIO
Revision: June 20062007 Versa
through body grounds M57 and M61 and
to subwoofer terminal 3 (with premium system)
through body grounds B7 and B19.
Then audio signals are supplied
through

AV-6
AUDIO
Revision: June 20062007 Versa
through body grounds M57 and M61 and
to subwoofer terminal 3 (with premium system)
through body grounds B7 and B19.
Then audio signals are supplied
through audio unit terminals 2, 3, 4, 5, 11, 12, 13, and 14
to terminals + and - of front door speaker LH and RH and
to terminals + and - of tweeter LH and RH and
to terminals + and - of rear door speaker LH and RH and
to terminals 2 and 6 of subwoofer (with premium system).
Steering Wheel Audio Control Switches (with Bluetooth)
When one of steering wheel audio control switches is pushed, the resistance in steering switch circuit changes
depending on which button is pushed.
Satellite Radio Tuner (Pre-wiring)
The satellite radio tuner pre-wiring allows connection of a satellite radio tuner.
Power is supplied at all times
through 20A fuse (No. 27, located in the fuse and fusible link box)
to satellite radio tuner pre-wiring terminal 32.
With the ignition switch in the ACC or ON position, power is supplied
through 10A fuse (No. 20, located in the fuse and fusible link box)
to satellite radio tuner pre-wiring terminal 36.
Then audio signals are supplied
through satellite radio tuner pre-wiring terminals 21, 22, 23 and 24
to audio unit terminals 41, 42, 43 and 44.
Satellite Radio Tuner (Factory Installed)
Power is supplied at all times
through 20A fuse (No. 27, located in the fuse and fusible link box)
to satellite radio tuner terminal 32.
With the ignition switch in the ACC or ON position, power is supplied
through 10A fuse (No. 20, located in the fuse and fusible link box)
to satellite radio tuner terminal 36.
Ground is supplied through the case of the satellite radio tuner.
Then audio signals are supplied
through satellite radio tuner terminals 21, 22, 23 and 24
to audio unit terminals 41, 42, 43 and 44.
Ground is supplied through the case of the satellite radio tuner.
SPEED SENSITIVE VOLUME SYSTEM (MID LEVEL AND PREMIUM SYSTEM)
Volume level of this system goes up and down automatically in proportion to the vehicle speed. The control
level can be selected by the customer. Refer to Owner's Manual for operating instructions.

Page 404 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual AUDIO
AV-7
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: June 20062007 Versa
SchematicEKS00I4C
MID LEVEL SYSTEM
WKWA4979E

Page 405 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual AV-8
AUDIO
Revision: June 20062007 Versa

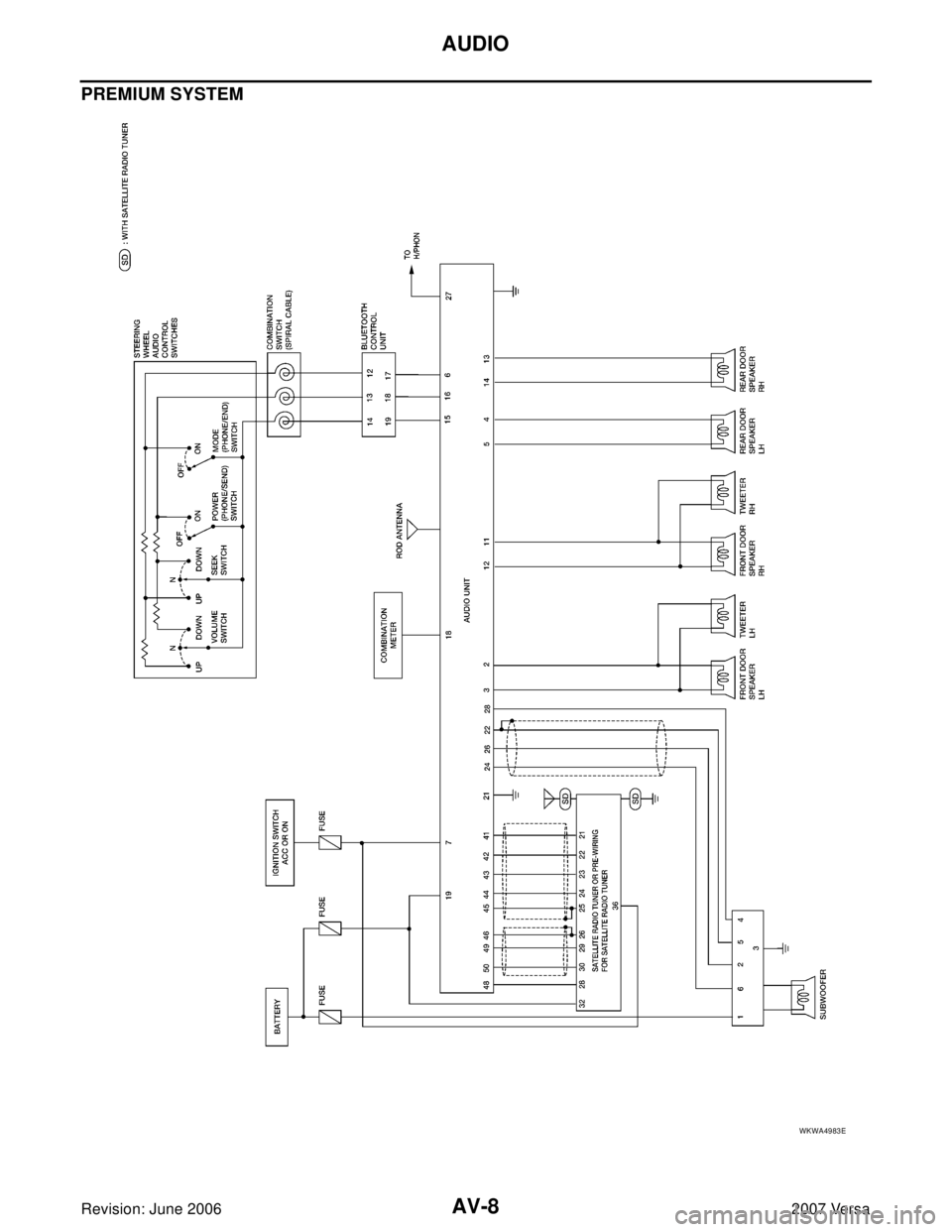

PREMIUM SYSTEM
WKWA4983E

Page 406 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual AUDIO
AV-9
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: June 20062007 Versa

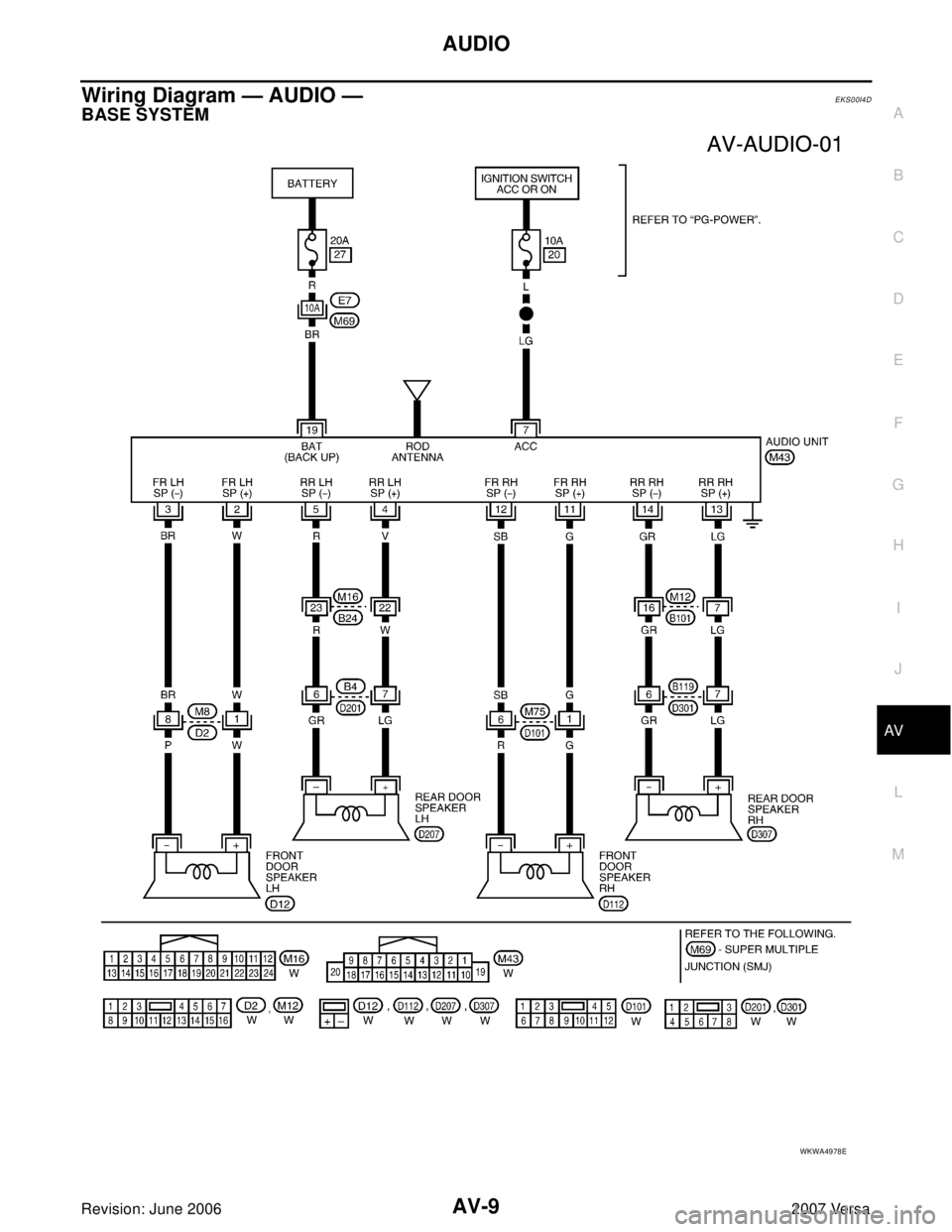

Wiring Diagram — AUDIO —EKS00I4D
BASE SYSTEM
WKWA4978E

Page 407 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual AV-10
AUDIO
Revision: June 20062007 Versa

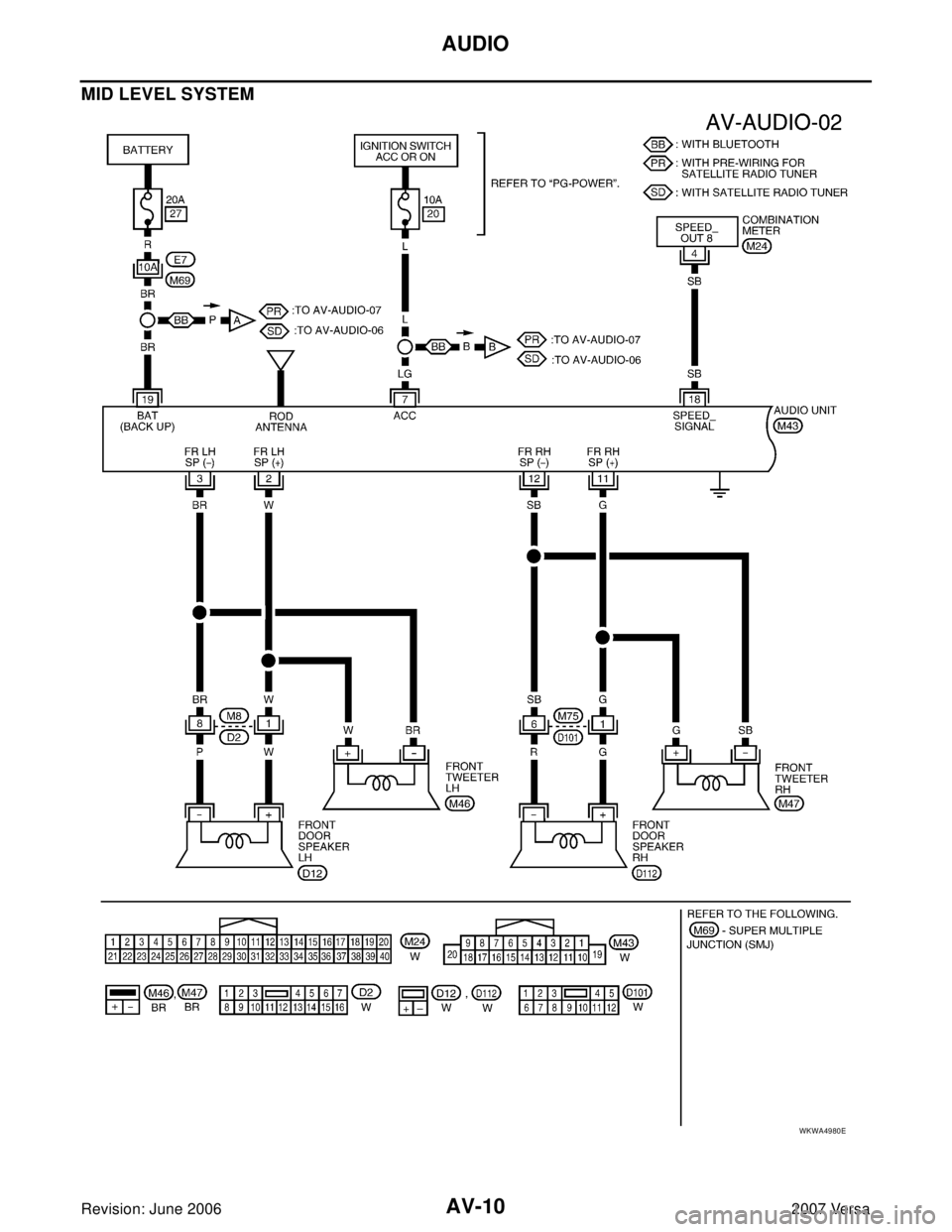

MID LEVEL SYSTEM
WKWA4980E

Page 408 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual AUDIO
AV-11
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: June 20062007 Versa
WKWA4981E
