7th judgement flicker is longer than others.
Torque converter clutch solenoid valve circuit is short-circuited or
disconnected.
Go to AT- 1 3 4 , "DTC P0740 TORQUE CONVERTER CLUTCH
SOLENOID VALVE" .8th judgement flicker is longer than others.
A/T fluid temperature sensor is disconnected or TCM power sup-
ply circuit is damaged.
Go to AT-170, "DTC BATT/FLUID TEMP SEN (A/T FLUID
TEMP SENSOR CIRCUIT AND TCM POWER SOURCE)" .
9th judgement flicker is longer than others.
Engine speed signal circuit is short-circuited or disconnected.
Go to AT-11 3 , "DTC P0725 ENGINE SPEED SIGNAL" .10th judgement flicker is longer than others.
Turbine revolution sensor (power train revolution sensor) circuit is
short-circuited or disconnected.
Go to AT-176, "DTC TURBINE REVOLUTION SENSOR" . OD OFF indicator lamp
SCIA5597ESCIA5598E
SCIA5599ESCIA7082E
Page 106 of 2896

TROUBLE DIAGNOSIS
AT-93
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
t1 = 2.5 seconds t2 = 2.0 seconds t3 = 1.0 second
How to Erase Self-diagnostic Results
1. If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once. Wait for at least
5 seconds and then turn it ON again.
2. Perform AT-90, "
Diagnostic Procedure Without CONSULT-II" .
3. Turn ignition switch OFF. (The self-diagnostic results will be erased.)
11th judgement flicker is longer than others.
Line pressure solenoid valve circuit is short-circuited or discon-
nected.
Go to AT- 1 4 5 , "DTC P0745 LINE PRESSURE SOLENOID
VA LV E" .12th judgement flicker is longer than others.
CAN communication line is damaged.
Go to AT - 9 4 , "DTC U1000 CAN COMMUNICATION LINE" .
Lamp turns off.
Park/neutral position (PNP) switch, overdrive control switch,
closed throttle position signal or wide open throttle position signal
circuit is disconnected or TCM is damaged.
(Because overdrive control switch signal, closed throttle position
signal and wide open throttle position signal are input via CAN
communication line malfunction may continue after self-diagno-
sis.)
Go to AT- 2 2 7 , "TCM Self-diagnosis Does Not Activate" . OD OFF indicator lamp
SCIA7083ESCIA7085E
SCIA4674E
Page 107 of 2896

AT-94
DTC U1000 CAN COMMUNICATION LINE
Revision: June 20062007 Versa
DTC U1000 CAN COMMUNICATION LINEPFP:31940
DescriptionUCS005N8
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent malfunction detection ability.
Many electronic control units are equipped onto a vehicle, and each control unit shares information and links
with other control units during operation (not independent). In CAN communication, control units are con-
nected with 2 communication lines (CAN H line, CAN L line) allowing a high rate of information transmission
with less wiring. Each control unit transmits/receives data but selectively reads required data only.
On Board Diagnosis LogicUCS005N9
This is an OBD-II self-diagnostic item.
Diagnostic trouble code “U1000 CAN COMM CIRCUIT” with CONSULT-II or 12th judgement flicker with-
out CONSULT-II is detected when TCM cannot communicate to other control units.
Possible CauseUCS005NA
Harness or connector
(CAN communication line is open or shorted.)
DTC Confirmation ProcedureUCS005NB
CAUTION:
If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait at
least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Touch “START”.
4. Wait at least 6 seconds or start engine and wait for at least 6
seconds.
5. If DTC is detected, go to AT-96, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
WITHOUT CONSULT-II
1. Turn ignition switch ON.
2. Wait at least 6 seconds or start engine and wait at least 6 seconds.
3. Perform self-diagnosis. Refer to AT-90, "
Diagnostic Procedure Without CONSULT-II" .
4. If DTC is detected, go to AT-96, "
Diagnostic Procedure" .
BCIA0031E
Page 108 of 2896
DTC U1000 CAN COMMUNICATION LINE
AT-95
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
Wiring Diagram — AT — CANUCS005N C
BCWA0648E
Page 109 of 2896
AT-96
DTC U1000 CAN COMMUNICATION LINE
Revision: June 20062007 Versa
TCM terminal data are reference values, measured between each terminal and ground.
Diagnostic ProcedureUCS005ND
1. CHECK CAN COMMUNICATION CIRCUIT
With CONSULT-II
1. Turn ignition switch ON and start engine.
2. Select “SELF-DIAG RESULTS” mode for “A/T” with CONSULT-
II.
Is any malfunction of the
“U1000 CAN COMM CIRCUIT” indicated?
YES >> Print out CONSULT-II screen, Go to LAN section. Refer
to LAN-47, "
CAN System Specification Chart" .
NO >>INSPECTION END
Terminal Wire color Item ConditionJudgement standard
(Approx.)
5 L CAN H — —
6 P CAN L — —
SCIA7135E
Page 110 of 2896

DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
AT-97
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCHPFP:32006
DescriptionUCS005NE
The PNP switch assembly includes a transaxle range switch.
The transaxle range switch detects the selector lever position and sends a signal to the TCM.
CONSULT-II Reference ValueUCS005NF
On Board Diagnosis LogicUCS005NG
This is an OBD-II self-diagnostic item.
Diagnostic trouble code “P0705 PNP SW/CIRC” with CONSULT-II is detected when TCM does not
receive the correct voltage signal from the switch based on the gear position.
Possible CauseUCS005N H
Harness or connectors
[The PNP switch circuit is open or shorted.]
PNP switch
DTC Confirmation ProcedureUCS005NI
CAUTION:
Always drive vehicle at a safe speed.
If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

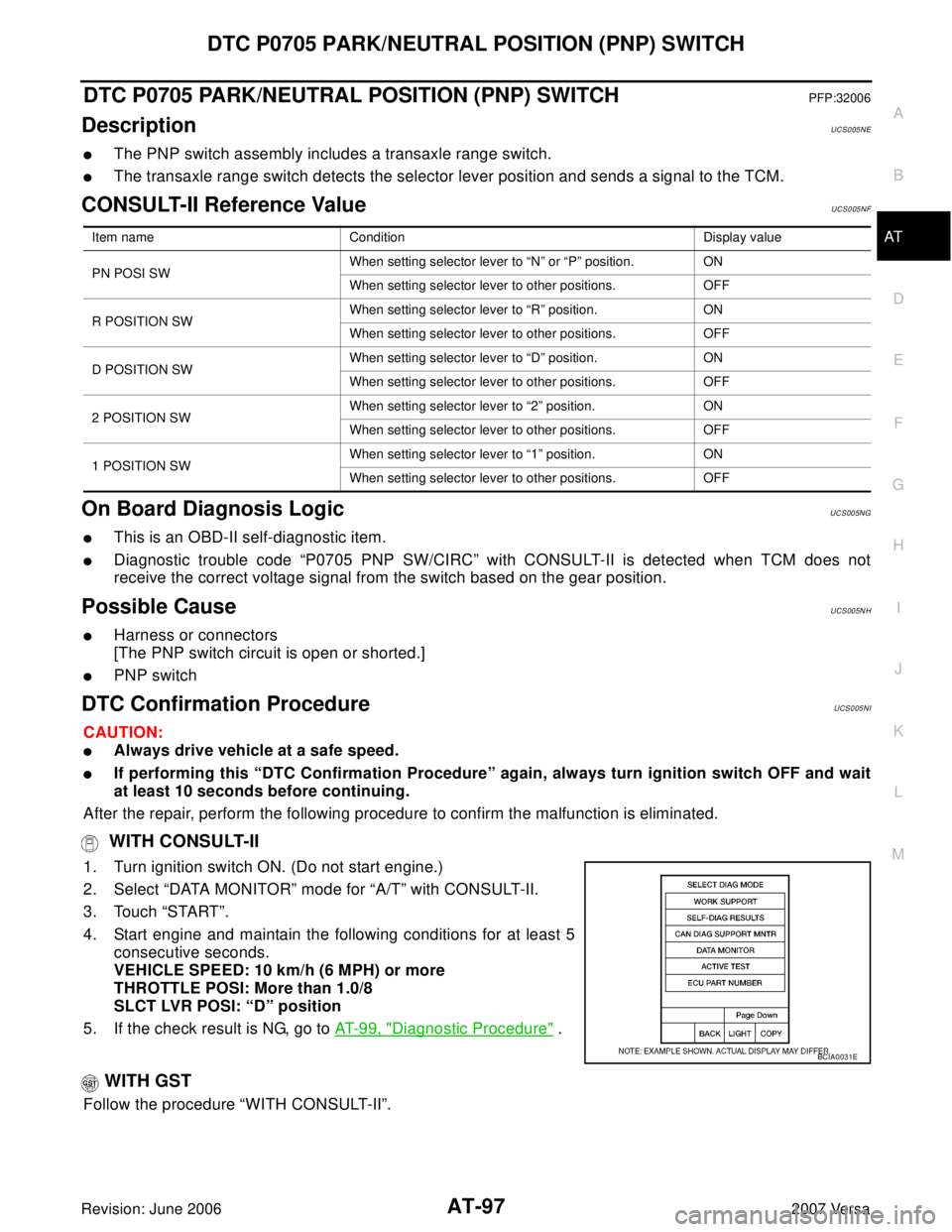

WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Touch “START”.
4. Start engine and maintain the following conditions for at least 5
consecutive seconds.
VEHICLE SPEED: 10 km/h (6 MPH) or more
THROTTLE POSI: More than 1.0/8
SLCT LVR POSI: “D” position
5. If the check result is NG, go to AT- 9 9 , "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
Item name Condition Display value
PN POSI SWWhen setting selector lever to “N” or “P” position. ON
When setting selector lever to other positions. OFF
R POSITION SWWhen setting selector lever to “R” position. ON
When setting selector lever to other positions. OFF
D POSITION SWWhen setting selector lever to “D” position. ON
When setting selector lever to other positions. OFF
2 POSITION SWWhen setting selector lever to “2” position. ON
When setting selector lever to other positions. OFF
1 POSITION SWWhen setting selector lever to “1” position. ON
When setting selector lever to other positions. OFF
BCIA0031E
Page 111 of 2896
AT-98
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
Revision: June 20062007 Versa
Wiring Diagram — AT — PNP/SWUCS005NJ
BCWA0649E
Page 112 of 2896

DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
AT-99
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
TCM terminal data are reference values, measured between each terminal and ground.
Diagnostic ProcedureUCS005NK
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out “P·N”, “R”, “D”, “2” and “1” position switches moving
selector lever to each position.
OK or NG
OK >> GO TO 6.
NG >> GO TO 3.
Terminal Wire color Item ConditionJudgement standard
(Approx.)
26 YPNP switch “1” posi-
tion
andWhen setting selector lever to “1” position. Battery voltage
When setting selector lever to other positions. 0 V
27 GPNP switch “2” posi-
tionWhen setting selector lever to “2” position. Battery voltage
When setting selector lever to other positions. 0 V
34 LGPNP switch “D” posi-
tionWhen setting selector lever to “D” position. Battery voltage
When setting selector lever to other positions. 0 V
35 SBPNP switch “R” posi-
tionWhen setting selector lever to “R” position. Battery voltage
When setting selector lever to other positions. 0 V
36 RPNP switch “N” or
“P” positionWhen setting selector lever to “N” or “P” posi-
tion.Battery voltage
When setting selector lever to other positions. 0 V
Item name Condition Display value
PN POSI SWWhen setting selector lever to “N” or “P” posi-
tion.ON
When setting selector lever to other positions. OFF
R POSITION SWWhen setting selector lever to “R” position. ON
When setting selector lever to other positions. OFF
D POSITION SWWhen setting selector lever to “D” positions. ON
When setting selector lever to other positions. OFF
2 POSITION SWWhen setting selector lever to “2” position. ON
When setting selector lever to other positions. OFF
1 POSITION SWWhen setting selector lever to “1” position. ON
When setting selector lever to other positions. OFF
SAT7 0 1J
