DTC P0615 START SIGNAL CIRCUIT
Revision: June 20062007 Versa
DTC P0615 START SIGNAL CIRCUITPFP:25230
DescriptionUCS005YQ
TCM controls starter relay in IPDM E/R.
TCM switches starter relay ON at “P” or “N” position and allows to crank engine.
Then it prohibits cranking other than at “P” or “N” position.
CONSULT-II Reference ValueUCS005YR
On Board Diagnosis LogicUCS005YS
This is not an OBD-II self-diagnostic item.
Diagnostic trouble code “P0615 STARTER RELAY/CIRC” with CONSULT-II is detected when starter relay
switched ON other than at “P” or “N” position. (or when switched OFF at “P” or “N” position).
Possible CauseUCS005YT
Harness or connectors
(Starter relay and TCM circuit is open or shorted.)
Starter relay
DTC Confirmation ProcedureUCS005YU
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “TRANSMISSION” with
CONSULT-II.
3. Start engine.
4. Drive vehicle for at least 2 consecutive seconds.
5. If DTC is detected, go to CVT-74, "
Diagnostic Procedure" .
Item name Condition Display value
STRTR RLY OUTSelector lever in “P” and “N” positions ON
Selector lever in other positions OFF
STRTR RLY MONSelector lever in “P” and “N” positions ON
Selector lever in other positions OFF
BCIA0031E
Page 970 of 2896
DTC P0615 START SIGNAL CIRCUIT
CVT-73
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
Wiring Diagram — CVT — STSIGUCS005YV
BCWA0669E
Page 971 of 2896

CVT-74
DTC P0615 START SIGNAL CIRCUIT
Revision: June 20062007 Versa
TCM terminal data are reference values, measured between each terminal and ground.
Diagnostic ProcedureUCS005YW
1. CHECK STARTER RELAY SIGNAL
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode
for “TRANSMISSION” with CONSULT-II and check monitor
“STRTR RLY OUT”, “STRTR RLY MON”(PNP relay) ON/OFF.
Without CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between the TCM connector terminal and
ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING ITEM
Check the following:
Starter relay. Refer to PG-73, "STANDARDIZED RELAY" .
Open or short-circuit in the harness between TCM and the starter relay. Refer to CVT-73, "Wiring Diagram
— CVT — STSIG" .
Ground circuit for the starter relay. Refer to SC-12, "Wiring Diagram — START —" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
Te r m i n a lWire
colorItem Condition Data (Approx.)
24 BR Starter relaySelector lever in “N” and “P” positions Battery voltage
Selector lever in other positions 0 V
Item name Condition Display value
STRTR RLY OUTSelector lever in “P” and
“N” positionsON
Selector lever in other
positionsOFF
STRTR RLY MONSelector lever in “P” and
“N” positionsON
Selector lever in other
positionsOFF
Terminal Item Condition Data (Approx.)
24St a r t e r
relaySelector lever in “N” and “P”
positionsBattery voltage
Selector lever in other posi-
tions0 V
SCIA2274E
SCIA2022E
Page 972 of 2896
DTC P0615 START SIGNAL CIRCUIT
CVT-75
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
3. CHECK DTC
Perform CVT-72, "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 4.
4. CHECK TCM
1. Check TCM input/output signals. Refer to CVT-54, "
TCM Input/Output Signal Reference Values" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Page 973 of 2896

CVT-76
DTC P0703 STOP LAMP SWITCH CIRCUIT
Revision: June 20062007 Versa
DTC P0703 STOP LAMP SWITCH CIRCUITPFP:25320
DescriptionUCS005YX
ON, OFF status of the stop lamp switch is sent via the CAN communication from the combination meter to
TCM using the signal.
CONSULT-II Reference ValueUCS005YY
On Board Diagnosis LogicUCS005YZ
This is not an OBD-II self-diagnostic item.
Diagnostic trouble code “P0703 BRAKE SW/CIRC” with CONSULT-II is detected when the stop lamp
switch does not switch to ON and OFF.
–The stop lamp switch does not switch to ON, OFF.
Possible CauseUCS005Z0
Harness or connectors
(Stop lamp switch, and combination meter circuit are open or shorted.)
(CAN communication line is open or shorted.)
Stop lamp switch
DTC Confirmation ProcedureUCS005Z1
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “TRANSMISSION” with
CONSULT-II.
3. Start engine.
4. Start vehicle for at least 3 consecutive seconds.
5. If DTC is detected, go to CVT-77, "
Diagnostic Procedure" .
Item name Condition Display value
BRAKE SWDepressed brake pedal ON
Released brake pedal OFF
BCIA0031E
Page 974 of 2896

DTC P0703 STOP LAMP SWITCH CIRCUIT
CVT-77
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
Diagnostic ProcedureUCS005Z2
1. CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis check. Refer to CVT-60, "
SELF-DIAGNOSTIC RESULT MODE" .
Is any malfunction of the
“U1000 CAN COMM CIRCUIT” indicated?
YES >> Check CAN communication line. Refer to CVT-68, "DTC U1000 CAN COMMUNICATION LINE" .
NO >> GO TO 2.
2. CHECK STOP LAMP SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)

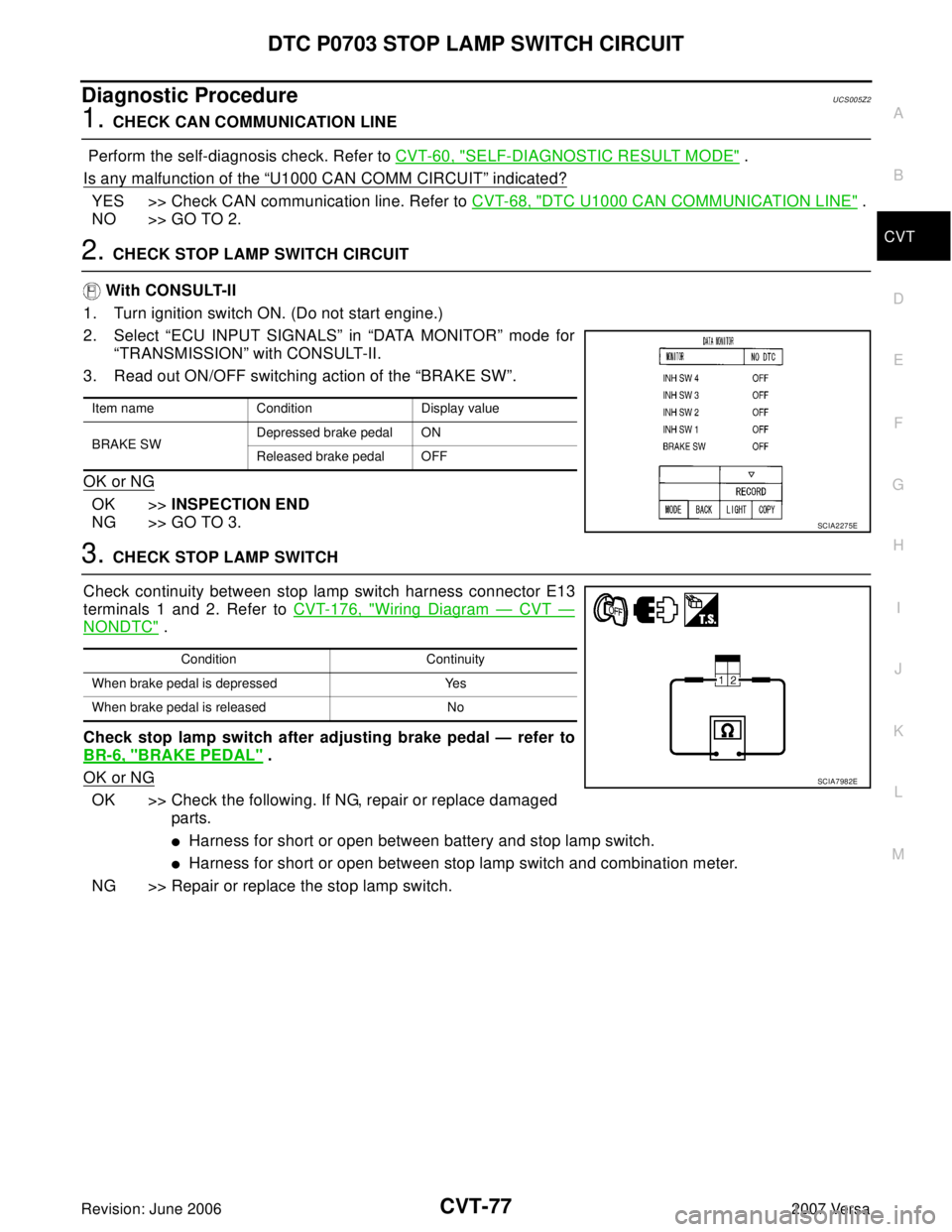

2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
3. Read out ON/OFF switching action of the “BRAKE SW”.
OK or NG
OK >>INSPECTION END
NG >> GO TO 3.
3. CHECK STOP LAMP SWITCH
Check continuity between stop lamp switch harness connector E13
terminals 1 and 2. Refer to CVT-176, "
Wiring Diagram — CVT —
NONDTC" .
Check stop lamp switch after adjusting brake pedal — refer to
BR-6, "
BRAKE PEDAL" .
OK or NG
OK >> Check the following. If NG, repair or replace damaged
parts.
Harness for short or open between battery and stop lamp switch.
Harness for short or open between stop lamp switch and combination meter.
NG >> Repair or replace the stop lamp switch.
Item name Condition Display value
BRAKE SWDepressed brake pedal ON
Released brake pedal OFF
SCIA2275E
Condition Continuity
When brake pedal is depressed Yes
When brake pedal is released No
SCIA7982E
Page 975 of 2896

CVT-78
DTC P0705 PARK/NEUTRAL POSITION SWITCH
Revision: June 20062007 Versa
DTC P0705 PARK/NEUTRAL POSITION SWITCHPFP:32006
DescriptionUCS005Z3
The PNP switch is included in the control valve assembly.
The PNP switch includes 4 transmission position switches.
TCM judges the selector lever position by the PNP switch signal.
CONSULT-II Reference ValueUCS005Z4
On Board Diagnosis LogicUCS005Z5
This is an OBD-II self-diagnostic item.
Diagnostic trouble code “P0705 PNP SW/CIRC” with CONSULT-II is detected under the following condi-
tions.
–When TCM does not receive the correct voltage signal from the PNP switches 1, 2, 3 and 4 based on the
gear position.
–When the signal from monitor terminal of PNP switch 3 is different from PNP switch 3.
Possible CauseUCS005Z6
Harness or connectors
(PNP switches 1, 2, 3, 4 and TCM circuit is open or shorted.)
PNP switches 1, 2, 3, 4
PNP switch 3 monitor terminal is open or shorted
DTC Confirmation ProcedureUCS005Z7
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
Shift position PNP switch 1 PNP switch 2 PNP switch 3 PNP switch 4 PNP switch 3 (monitor)
P OFF OFF OFF OFF OFF
R ON OFF OFF ON OFF
N ON ON OFF OFF OFF
DONONONON ON
L OFF ON ON OFF ON
Item name Condition Display value
INH SW3MSelector lever in “D” and “L” positions ON
Selector lever in “P”, “R” and “N” positions OFF
INH SW4Selector lever in “R” and “D” positions ON
Selector lever in “P”, “N” and “L” positions OFF
INH SW3Selector lever in “D” and “L” positions ON
Selector lever in “P”, “R” and “N” positions OFF
INH SW2Selector lever in “N”, “D” and “L” positions ON
Selector lever in “P” and “R” positions OFF
INH SW1Selector lever in “R”, “N” and “D” positions ON
Selector lever in “P” and “L” positions OFF
Page 976 of 2896
DTC P0705 PARK/NEUTRAL POSITION SWITCH
CVT-79
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “TRANSMISSION” with
CONSULT-II.
3. Start engine.
4. Drive vehicle and maintain the following conditions for at least 2
consecutive seconds.
VEHICLE SPEED: More than 10 km/h (6 MPH)
ENG SPEED: More than 450 rpm
ACC PEDAL OPEN: More than 1.0/8
5. If DTC is detected, go to CVT-82, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
BCIA0031E
