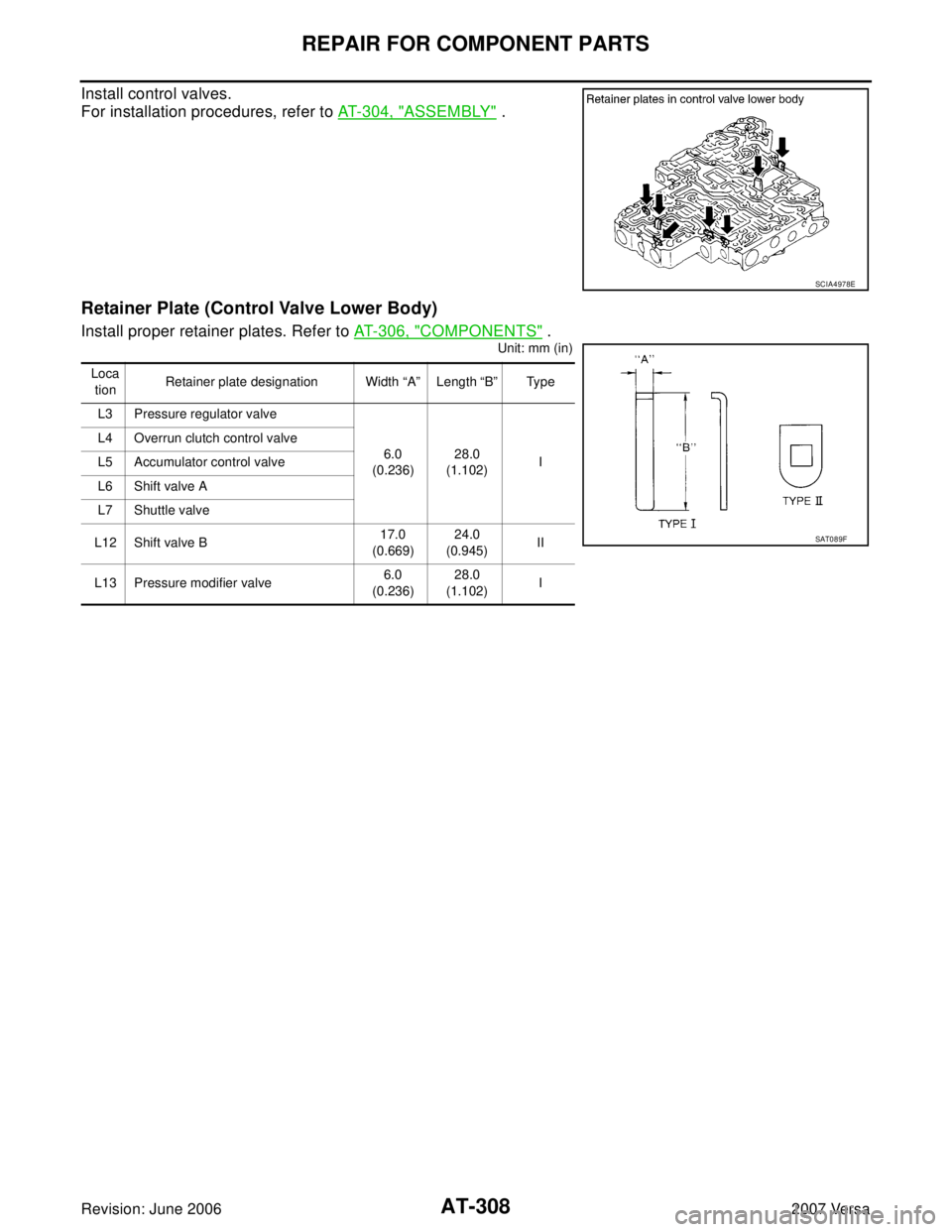

NISSAN VERSA 2006 Workshop Service Repair Manual AT-308 REPAIR FOR COMPONENT PARTS Revision: June 20062007 Versa Install control valves. For installation procedures, refer to AT-304, " ASSEMBLY" . Retainer Plate (Control Valve Lower Body) Install pr

Page 322 of 2896

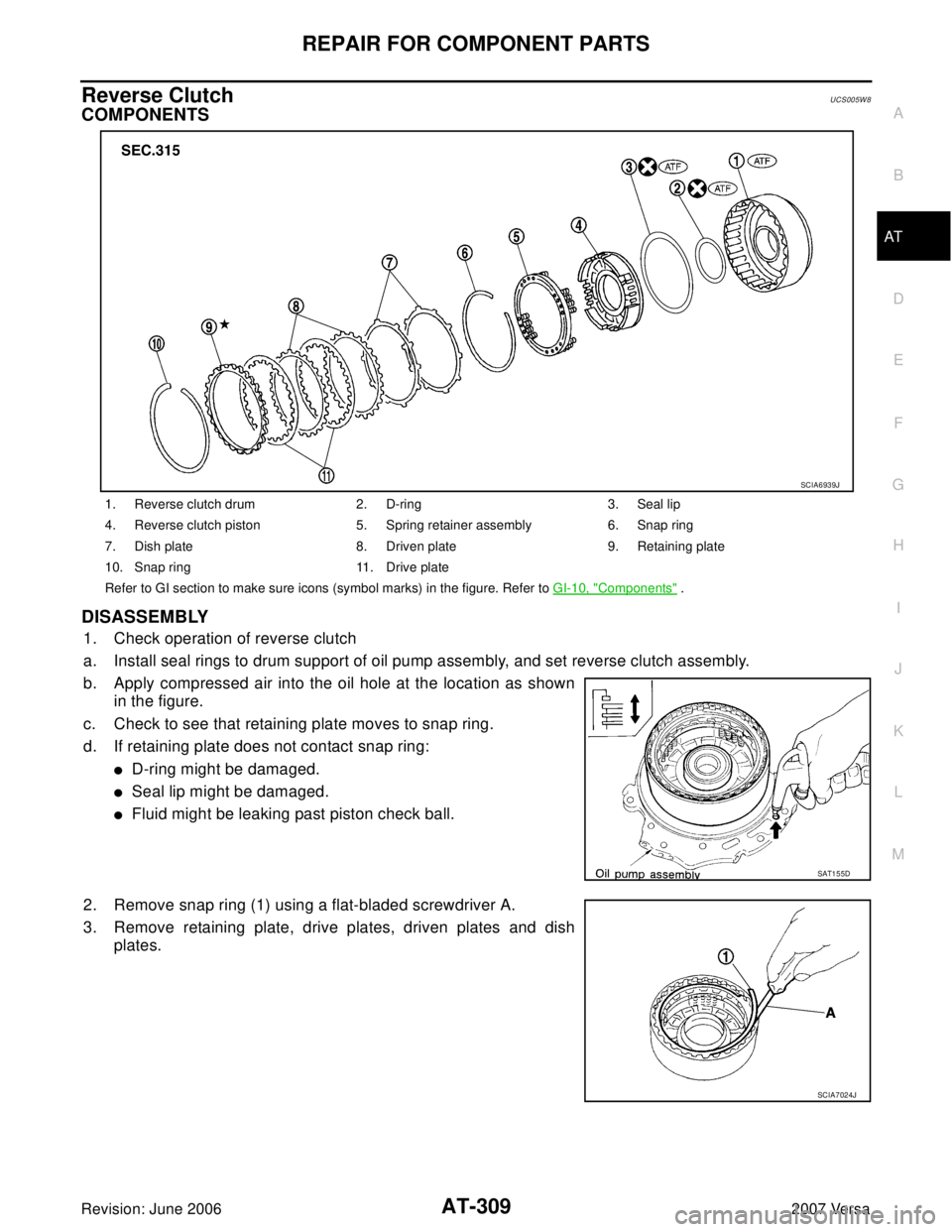

NISSAN VERSA 2006 Workshop Service Repair Manual REPAIR FOR COMPONENT PARTS AT-309 D E F G H I J K L MA B AT Revision: June 20062007 Versa Reverse ClutchUCS005W 8 COMPONENTS DISASSEMBLY 1. Check operation of reverse clutch a. Install seal rings to d

Page 323 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual AT-310 REPAIR FOR COMPONENT PARTS Revision: June 20062007 Versa 4. Set Tool A on spring retainer assembly, and remove snap ring (1) from reverse clutch drum while compressing spring retainer assembly.

Page 324 of 2896

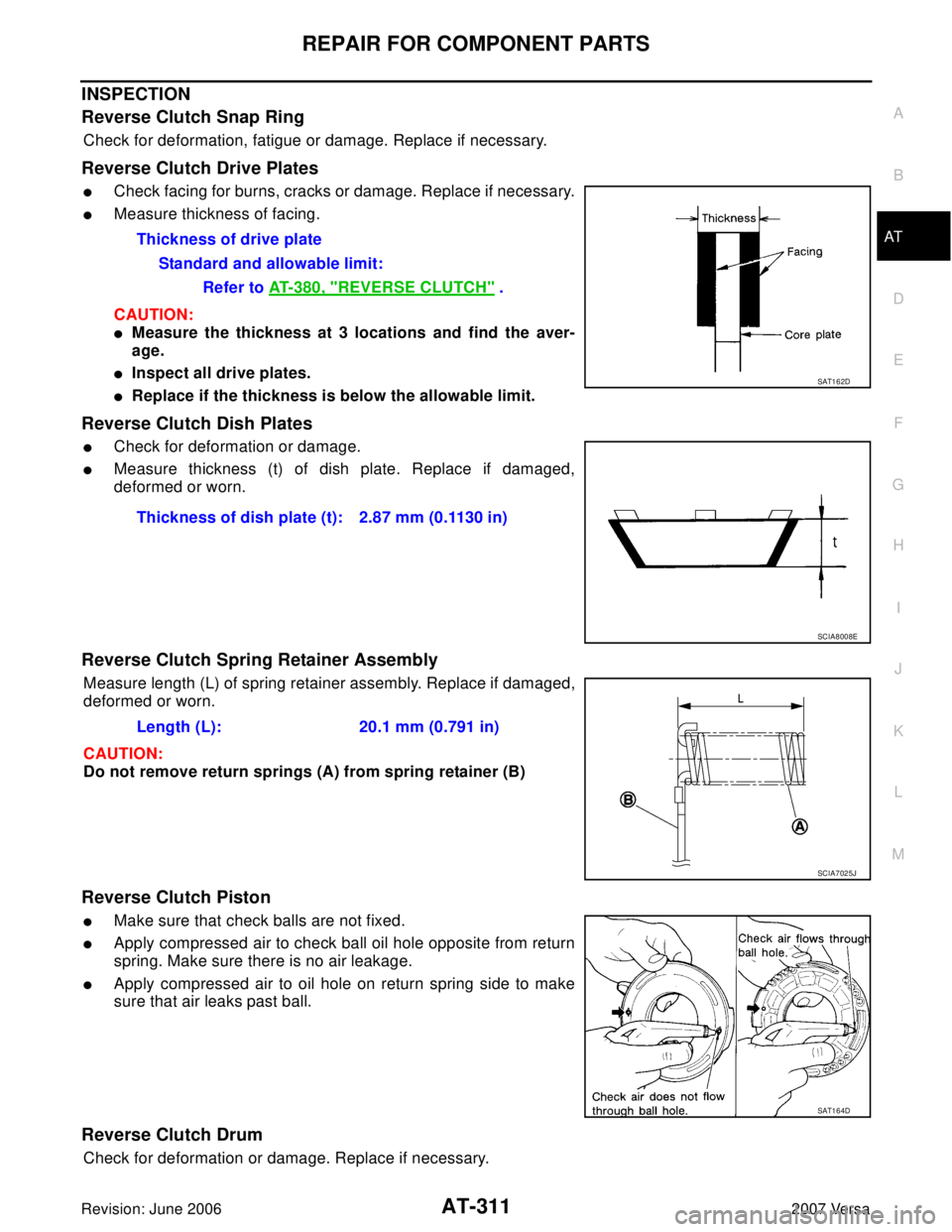

NISSAN VERSA 2006 Workshop Service Repair Manual REPAIR FOR COMPONENT PARTS AT-311 D E F G H I J K L MA B AT Revision: June 20062007 Versa INSPECTION Reverse Clutch Snap Ring Check for deformation, fatigue or damage. Replace if necessary. Reverse Cl

Page 325 of 2896

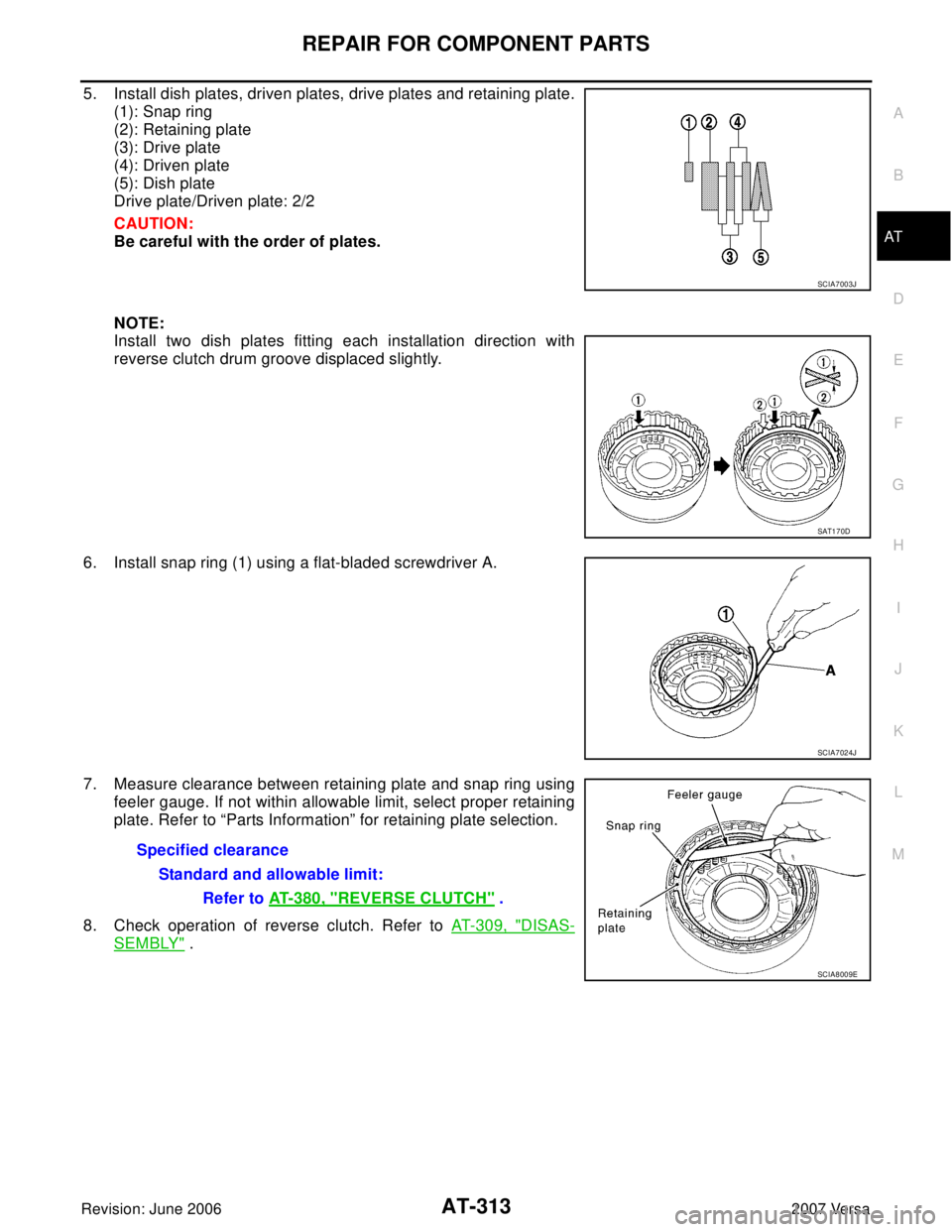

NISSAN VERSA 2006 Workshop Service Repair Manual AT-312 REPAIR FOR COMPONENT PARTS Revision: June 20062007 Versa ASSEMBLY 1. Install D-ring (1) and seal lip (2) on reverse clutch piston (3). CAUTION: Be careful with the direction of seal lip (2). 2.

Page 326 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual REPAIR FOR COMPONENT PARTS AT-313 D E F G H I J K L MA B AT Revision: June 20062007 Versa 5. Install dish plates, driven plates, drive plates and retaining plate. (1): Snap ring (2): Retaining plate (

Page 327 of 2896

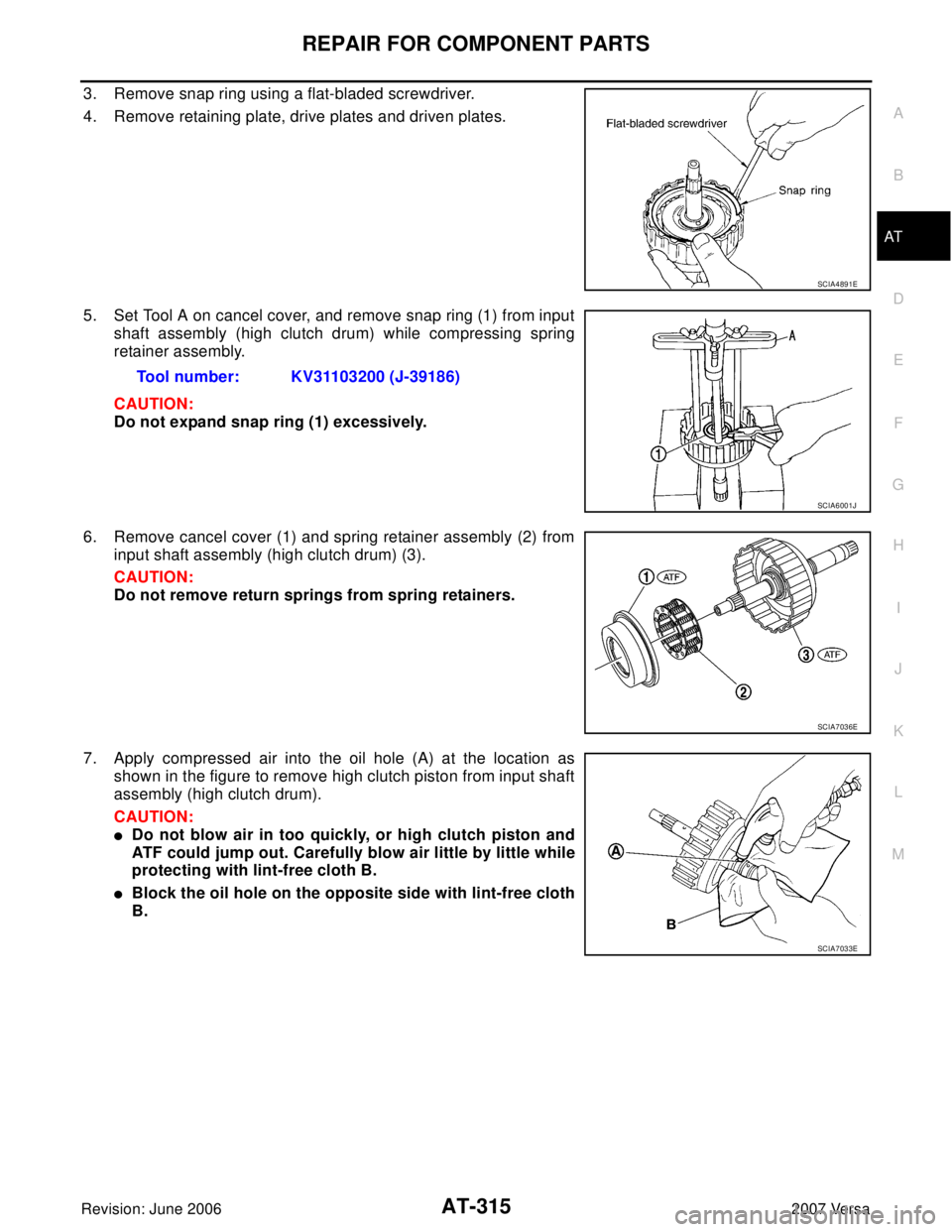

NISSAN VERSA 2006 Workshop Service Repair Manual AT-314 REPAIR FOR COMPONENT PARTS Revision: June 20062007 Versa High ClutchUCS005W9 COMPONENTS DISASSEMBLY 1. Check operation of high clutch. a. Apply compressed air into the oil hole (A) of input sha

Page 328 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual REPAIR FOR COMPONENT PARTS AT-315 D E F G H I J K L MA B AT Revision: June 20062007 Versa 3. Remove snap ring using a flat-bladed screwdriver. 4. Remove retaining plate, drive plates and driven plates
