HOW TO USE THIS MANUAL
Revision: June 20062007 Versa
Reference Area

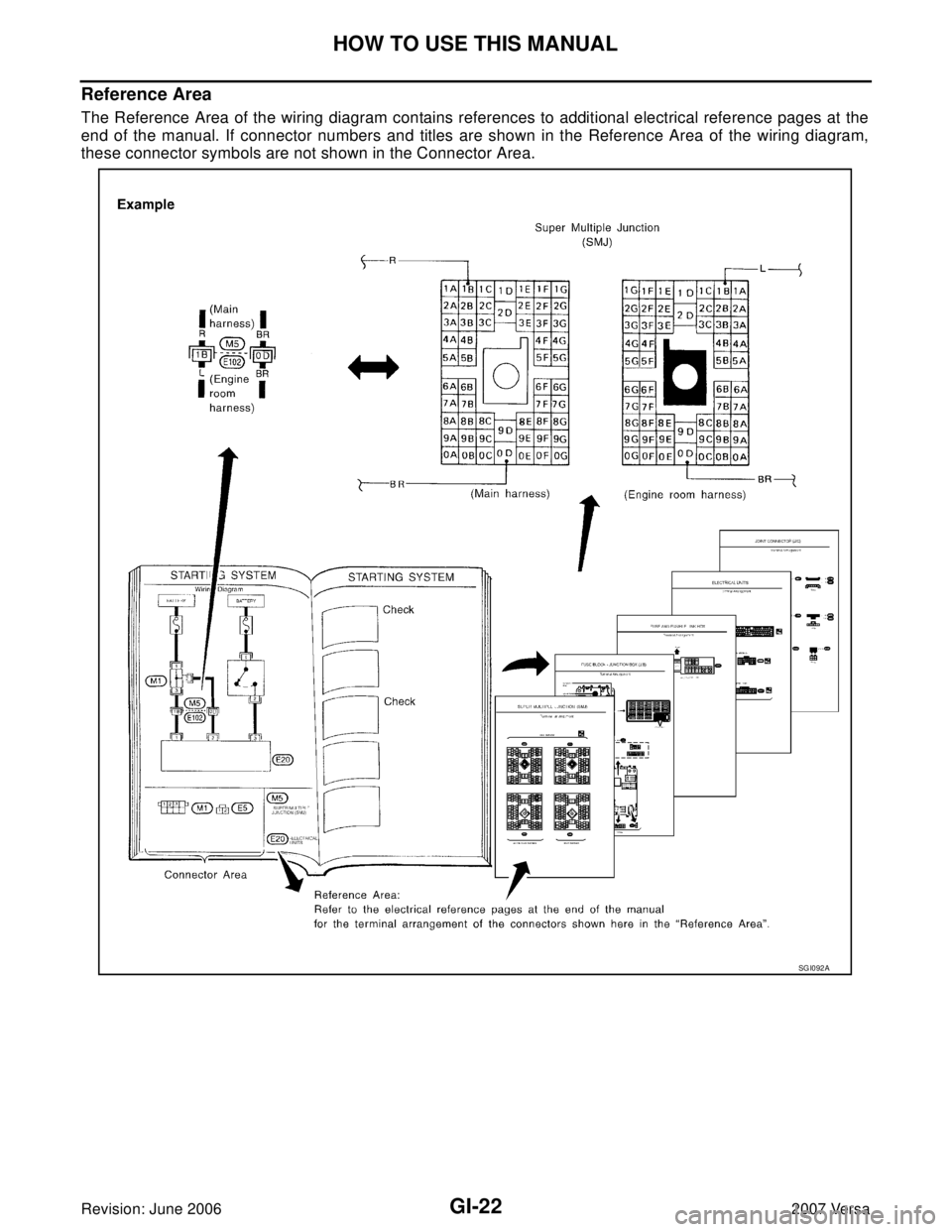

The Reference Area of the wiring diagram contains references to additional electrical reference pages at the
end of the manual. If connector numbers and titles are shown in the Reference Area of the wiring diagram,
these connector symbols are not shown in the Connector Area.
