Page 201 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual AT-188
PNP, OD SWITCH AND CLOSED THROTTLE, WIDE OPEN THROTTLE POSI-
TION SIGNAL CIRCUIT
Revision: June 20062007 Versa
3. CHECK PNP SWITCH CIRCUIT
Without CONSULT-II
1. Turn ignition switch ON. (Do no

Page 202 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual PNP, OD SWITCH AND CLOSED THROTTLE, WIDE OPEN THROTTLE POSI-
TION SIGNAL CIRCUIT
AT-189
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
6. DETECT MALFUNCTIONING ITEM
Check the following.
Harn

Page 203 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual AT-190
PNP, OD SWITCH AND CLOSED THROTTLE, WIDE OPEN THROTTLE POSI-
TION SIGNAL CIRCUIT
Revision: June 20062007 Versa
8. CHECK OVERDRIVE CONTROL SWITCH
1. Turn ignition switch OFF.
2. Disconnect A/T d

Page 204 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual PNP, OD SWITCH AND CLOSED THROTTLE, WIDE OPEN THROTTLE POSI-
TION SIGNAL CIRCUIT
AT-191
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
11 . PERFORM SELF-DIAGNOSIS
Without CONSULT-II
Perform

Page 205 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual AT-192
SHIFT POSITION INDICATOR CIRCUIT
Revision: June 20062007 Versa
SHIFT POSITION INDICATOR CIRCUITPFP:24810
DescriptionUCS006XM
TCM sends the switch signals to combination meter via CAN communicat

AT-192
SHIFT POSITION INDICATOR CIRCUIT
Revision: June 20062007 Versa
SHIFT POSITION INDICATOR CIRCUITPFP:24810
DescriptionUCS006XM
TCM sends the switch signals to combination meter via CAN communication line. Then selector lever position
is indicated on the shift position indicator.
CONSULT-II Reference ValueUCS006XN
Diagnostic ProcedureUCS006XO
1. CHECK INPUT SIGNALS
With CONSULT-II
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II and read out the value of
“SLCT LVR POSI”.
3. Check that the following three positions or indicators are same.
–Actual position of the selector lever
–“SLCT LVR POSI” on CONSULT-II screen
–Shift position indicator in the combination meter
OK or NG
OK >>INSPECTION END
NG >> Check the following.
SHIFT POSITION INDICATOR SYMPTOM CHART
Item name Condition Display value
SLCT LVR POSIWhen setting selector lever to “N” or “P” positions. N · P
When setting selector lever to “R” position. R
When setting selector lever to “D” position. D
When setting selector lever to “2” position. 2
When setting selector lever to “1” position. 1
Items Presumed location of trouble
Actual position does not change.Park/neutral position (PNP) switch
Refer to AT- 9 7 , "DTC P0705 PARK/NEUTRAL POSITION
(PNP) SWITCH" .
A/T main system (Fail-safe function actuated)
Refer to AT- 8 2 , "SELF-DIAGNOSTIC RESULT MODE" and
AT- 9 0 , "
Diagnostic Procedure Without CONSULT-II" .
Shift position indicator in the combination meter does not indicate
any position.
Perform the self-diagnosis for A/T and the combination meter.
Refer to AT - 8 2 , "SELF-DIAGNOSTIC RESULT MODE" and DI-
5, "COMBINATION METERS" . Actual position changes, but the shift position indicator in the
combination meter does not change.
Actual position differs from the shift position indicator in the com-
bination meter.
Shift position indicator in the combination meter does not indicate
specific position only.Check the combination meter.
Refer to DI-5, "COMBINATION METERS" .

Page 206 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-193
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
TROUBLE DIAGNOSIS FOR SYMPTOMSPFP:00007
Wiring Diagram — AT — NONDTCUCS005UV
BCWA0662E

Page 207 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual AT-194
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: June 20062007 Versa

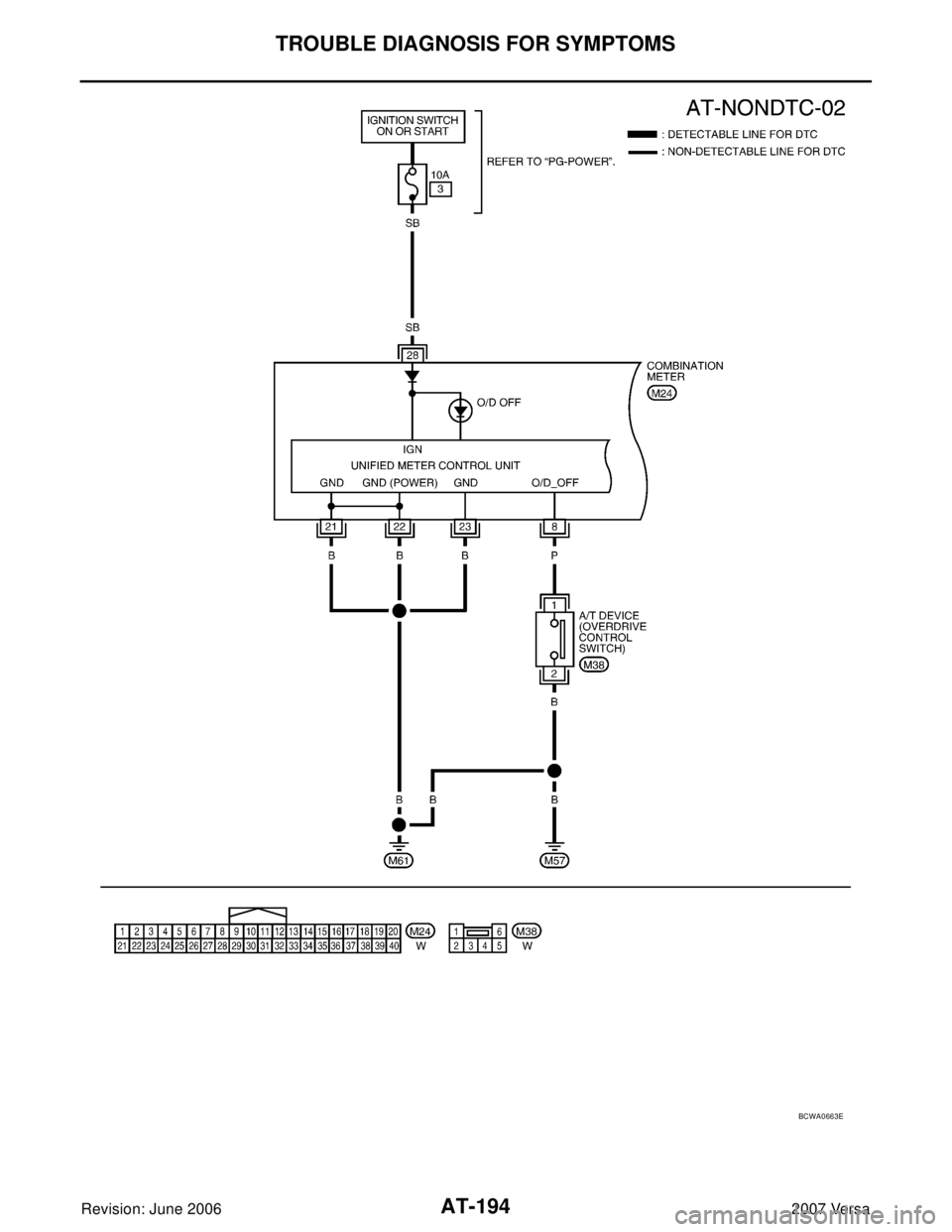

BCWA0663E

Page 208 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-195
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa

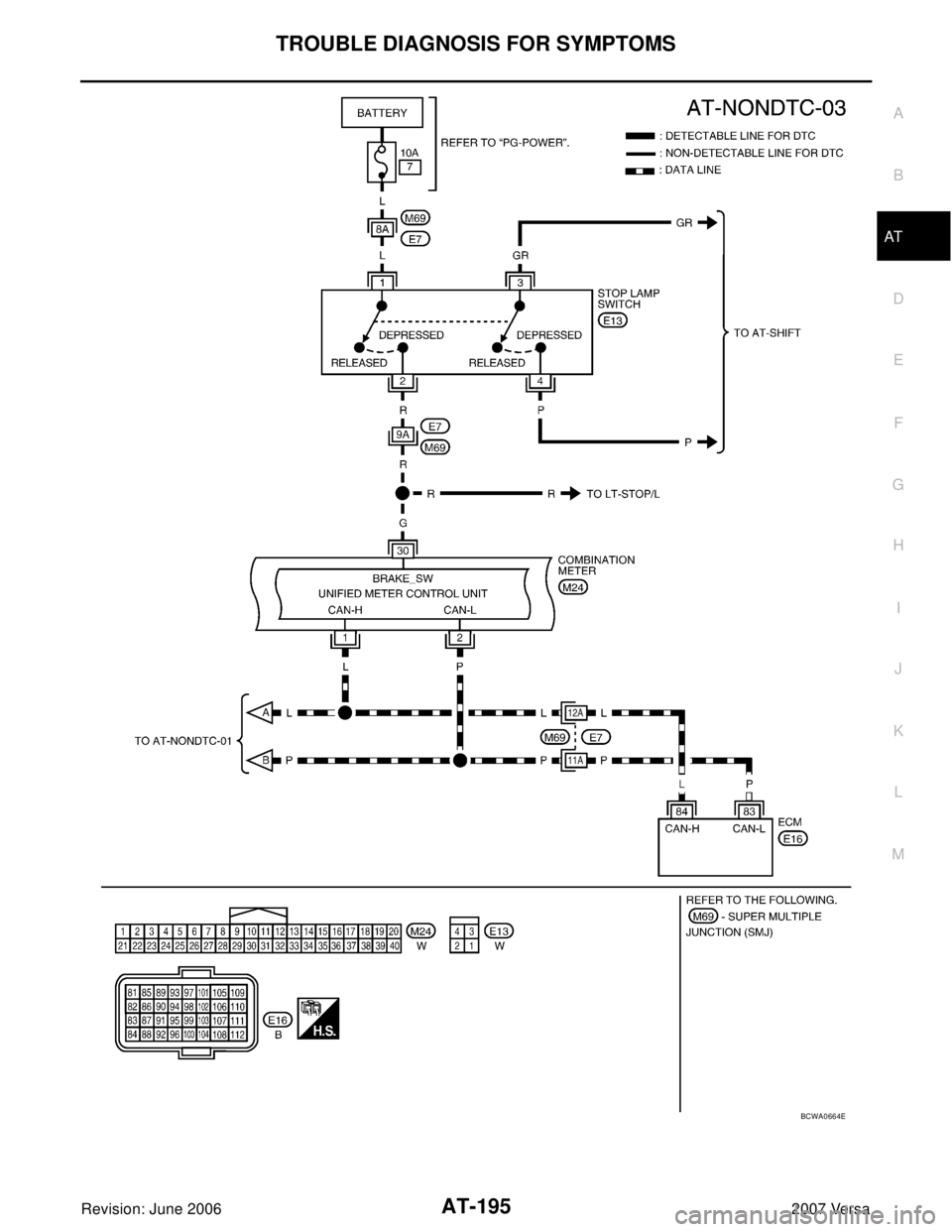

BCWA0664E
