Page 1033 of 2896
CVT-136
DTC P0841 PRESSURE SENSOR FUNCTION
Revision: June 20062007 Versa
PRESSURE SENSOR A CIRCUIT (SEC PRESSURE SENSOR)" , CVT-137, "DTC P0845 TRANSMISSION
FLUID PRESSURE SENSOR B CIRCUIT (PRI PRESSURE SENSOR)" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. DETECT MALFUNCTIONING ITEM
Check the following:
Pressure control solenoid valve A (Line pressure solenoid valve). Refer to CVT-117, "Component Inspec-
tion" .
Pressure control solenoid valve B (Secondary pressure solenoid valve). Refer to CVT-128, "Component
Inspection" .
Step motor. Refer to CVT-167, "Component Inspection" .
OK or NG6
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6. CHECK DTC
Perform CVT-134, "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> Replace TCM or transaxle assembly. Refer to CVT-207, "
Removal and Installation" .
Page 1034 of 2896

DTC P0845 TRANSMISSION FLUID PRESSURE SENSOR B CIRCUIT (PRI
PRESSURE SENSOR)
CVT-137
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
DTC P0845 TRANSMISSION FLUID PRESSURE SENSOR B CIRCUIT (PRI PRES-
SURE SENSOR)
PFP:31936
DescriptionUCS00620
The transmission fluid pressure sensor B (primary pressure sensor) is included in the control valve
assembly.
The transmission fluid pressure sensor B (primary pressure sensor) detects primary pressure of CVT and
sends TCM the signal.
CONSULT-II Reference ValueUCS00621
Remarks: Specification data are reference values.
On Board Diagnosis LogicUCS00622
This is an OBD-II self-diagnostic item.
Diagnostic trouble code “P0845 TR PRS SENS/B CIRC” with CONSULT-II is detected under the following
conditions.
–When TCM detects an improper voltage drop when it receives the sensor signal.
–When TCM compares target value with monitor value and detects an irregularity.
Possible CauseUCS00623
Transmission fluid pressure sensor B (Primary pressure sensor)
Harness or connectors
(Sensor circuit is open or shorted.)
DTC Confirmation ProcedureUCS00624
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
2. Make sure that output voltage of line temperature sensor is
within the range below.
ATF TEMP SEN: 1.0 - 2.0 V
If out of range, drive the vehicle to decrease the voltage
(warm up the fluid) or stop engine to increase the voltage
(cool down the fluid)
3. Start engine and wait for at least 5 consecutive seconds.
4. If DTC is detected, go to CVT-139, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
Item name Condition Display value (Approx.)
PRI HYDR SEN “N” position idle 0.7 V
BCIA0031E
Page 1035 of 2896
CVT-138
DTC P0845 TRANSMISSION FLUID PRESSURE SENSOR B CIRCUIT (PRI
PRESSURE SENSOR)
Revision: June 20062007 Versa

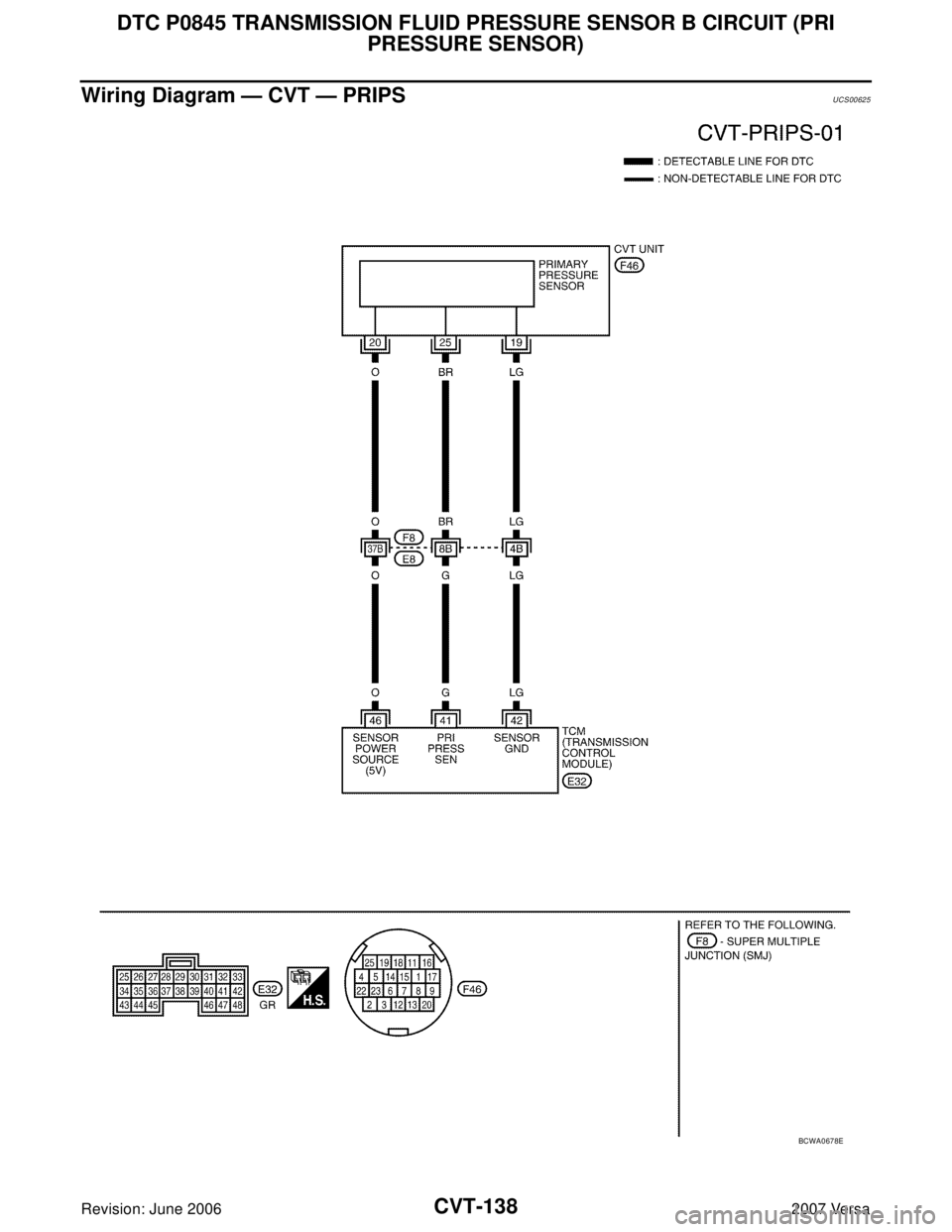

Wiring Diagram — CVT — PRIPSUCS00625
BCWA0678E
Page 1036 of 2896

DTC P0845 TRANSMISSION FLUID PRESSURE SENSOR B CIRCUIT (PRI
PRESSURE SENSOR)
CVT-139
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
TCM terminal data are reference values, measured between each terminal and ground.
Diagnostic ProcedureUCS00626
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
3. Start vehicle and read out the value of “PRI HYDR SEN”.
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
Terminal Wire color Item Condition Data (Approx.)
41 GTransmission fluid
pressure sensor B
(Primary pressure
sensor)and “N” position idle 0.7 V
42 LG Sensor ground Always 0 V
46 O Sensor power—5.0 V
—0 V
Item name Condition Display value (Approx.)
PRI HYDR SEN “N” position idle 0.7 V
SCIA2277E
Name Connector Terminal ConditionVoltage
(Approx.)
Tra ns mis -
sion fluid
pressure
sensor B
(Primary
pressure
sensor)E32 41 - Ground “N” position idle 0.7 V
SCIA4509E
Page 1037 of 2896

CVT-140
DTC P0845 TRANSMISSION FLUID PRESSURE SENSOR B CIRCUIT (PRI
PRESSURE SENSOR)
Revision: June 20062007 Versa
2. CHECK SENSOR POWER AND SENSOR GROUND
1. Turn ignition switch ON. (Do not start engine)
2. Check voltage between TCM connector terminals.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. CHECK HARNESS BETWEEN TCM AND CVT UNIT HARNESS CONNECTOR (SENSOR POWER
AND SENSOR GROUND)
1. Turn ignition switch OFF.
2. Disconnect TCM connector and CVT unit harness connector.
3. Check continuity between TCM connector terminals and CVT
unit harness connector terminals.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> Replace TCM. Refer to CVT-9, "Service After Replacing TCM and Transaxle Assembly" .
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK HARNESS BETWEEN TCM AND TRANSMISSION FLUID PRESSURE SENSOR B (PRIMARY
PRESSURE SENSOR)
1. Turn ignition switch OFF.
2. Disconnect TCM connector and CVT unit harness connector.
3. Check continuity between TCM connector terminal and CVT unit
harness connector terminal.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
Item Connector TerminalData
(Approx.)
TCM connector E32 46 - 42 5.0 V
SCIA2367E
Item Connector Terminal Continuity
TCM E32 42
Ye s
CVT unit harness connector F46 19
TCM E32 46
Ye s
CVT unit harness connector F46 20
SCIA4681E
Item Connector Terminal Continuity
TCM E32 41
Ye s
CVT unit harness connector F46 25
SCIA4691E
Page 1038 of 2896
DTC P0845 TRANSMISSION FLUID PRESSURE SENSOR B CIRCUIT (PRI
PRESSURE SENSOR)
CVT-141
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
5. CHECK DTC
Perform CVT-137, "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 6.
6. CHECK TCM
1. Check TCM input/output signals. Refer to CVT-54, "
TCM Input/Output Signal Reference Values" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> Replace the transaxle assembly. Refer to CVT-207, "Removal and Installation" .
NG >> Repair or replace damaged parts.
Page 1039 of 2896

CVT-142
DTC P0868 SECONDARY PRESSURE DOWN
Revision: June 20062007 Versa
DTC P0868 SECONDARY PRESSURE DOWNPFP:31941
DescriptionUCS00627
The pressure control solenoid valve B (secondary pressure solenoid valve) is included in the control valve
assembly.
The pressure control solenoid valve B (secondary pressure solenoid valve) regulates the secondary pres-
sure to suit the driving condition in response to a signal sent from the TCM.
CONSULT-II Reference ValueUCS00628
Remarks: Specification data are reference values.
On Board Diagnosis LogicUCS00629
This is not an OBD-II self-diagnostic item.
Diagnostic trouble code “P0868 SEC/PRESS DOWN” with CONSULT-II is detected when secondary fluid
pressure is too low compared with the commanded value while driving.
Possible CauseUCS0062A
Harness or connectors
(Solenoid circuit is open or shorted.)
Pressure control solenoid valve B (Secondary pressure solenoid valve) system
Transmission fluid pressure sensor A (Secondary pressure sensor)
Line pressure control system
DTC Confirmation ProcedureUCS0062B
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
2. Make sure that output voltage of CVT fluid temperature sensor
is within the range below.
ATF TEMP SEN: 1.0 - 2.0 V
If out of range, drive the vehicle to decrease the voltage
(warm up the fluid) or stop engine to increase the voltage
(cool down the fluid)
3. Start engine and maintain the following conditions for at least 10
consecutive seconds.
VEHICLE SPEED (accelerate slowly): 0 → 50 km/h (31 MPH)
ACC PEDAL OPEN: 0.5/8 - 1.0/8
RANGE: “D” position
4. If DTC is detected, go to CVT-143, "
Diagnostic Procedure" .
Item name Condition Display value (Approx.)
SEC PRESS “N” position idle 0.8 MPa
BCIA0031E
Page 1040 of 2896

DTC P0868 SECONDARY PRESSURE DOWN
CVT-143
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
Diagnostic ProcedureUCS0062C
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
3. Start vehicle and read out the value of “SEC PRESS”.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2. CHECK LINE PRESSURE
Perform line pressure test. Refer to CVT-45, "
LINE PRESSURE TEST" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts. Refer to CVT-46, "
Judgement of Line Pressure Test" .
3. DETECT MALFUNCTIONING ITEM
Check the following:
Pressure control solenoid valve B (Secondary pressure solenoid valve). Refer to CVT-128, "Component
Inspection" .
Pressure control solenoid valve A (Line pressure solenoid valve). Refer to CVT-117, "Component Inspec-
tion" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. CHECK TRANSMISSION FLUID PRESSURE SENSOR A (SECONDARY PRESSURE SENSOR) SYS-
TEM
Check transmission fluid pressure sensor A (secondary pressure sensor) system. Refer to CVT-129, "
DTC
P0840 TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT (SEC PRESSURE SENSOR)" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. DETECT MALFUNCTIONING ITEM
Check the following:
Power supply and ground circuit for TCM. Refer to CVT-146, "Wiring Diagram — CVT — POWER" .
The TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
Item name Condition Display value (Approx.)
SEC PRESS “N” position idle 0.8 MPa
SCIA2366E
