Page 2545 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) PG-29 C D E F G H I J L MA B PG Revision: June 20062007 Versa Inspection with CONSULT-II (Self-Diagnosis)EKS00JLR CAUTION: If a CONSULT-II

Page 2546 of 2896

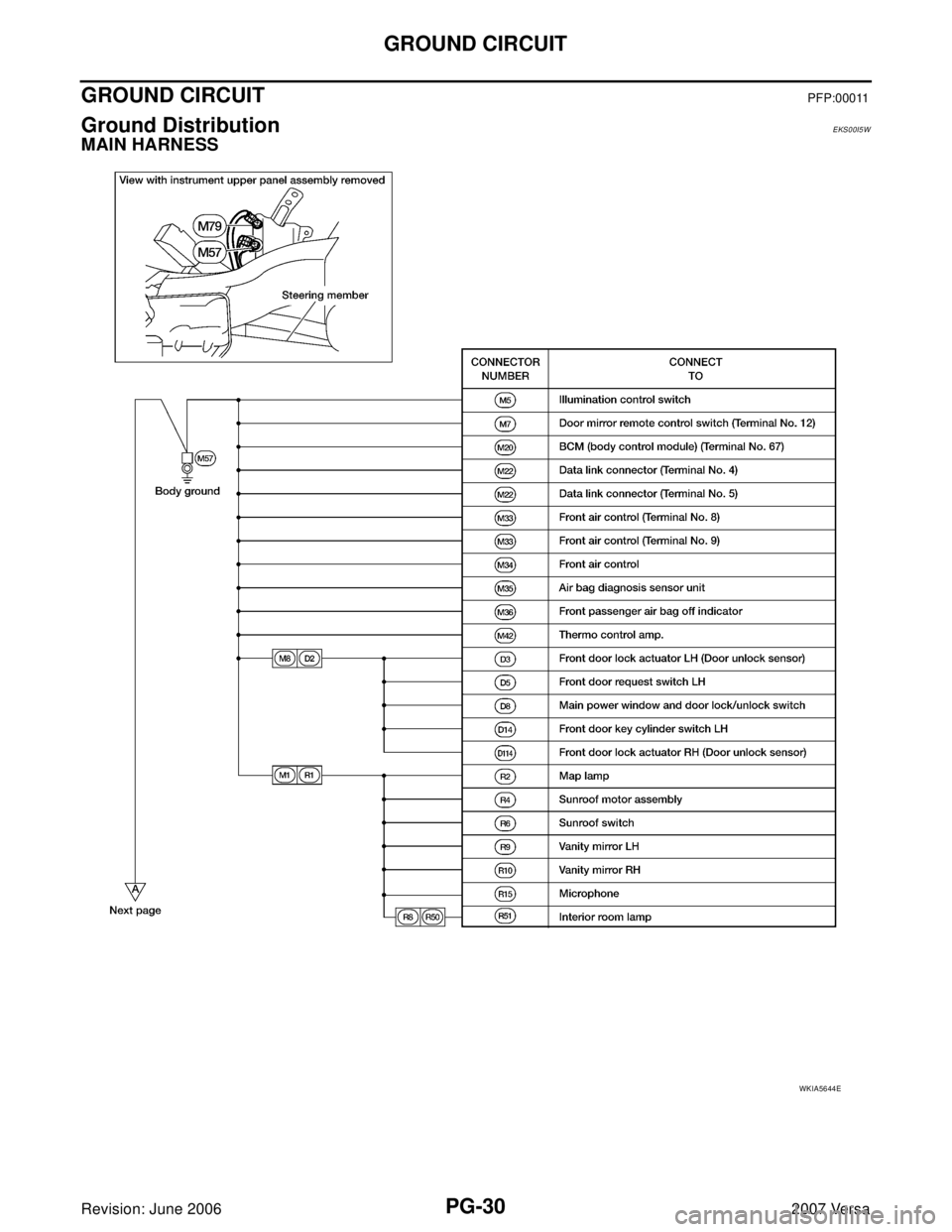

NISSAN VERSA 2006 Workshop Service Repair Manual PG-30 GROUND CIRCUIT Revision: June 20062007 Versa GROUND CIRCUIT PFP:00011 Ground Distribution EKS00I5W MAIN HARNESS WKIA5644E

Page 2547 of 2896

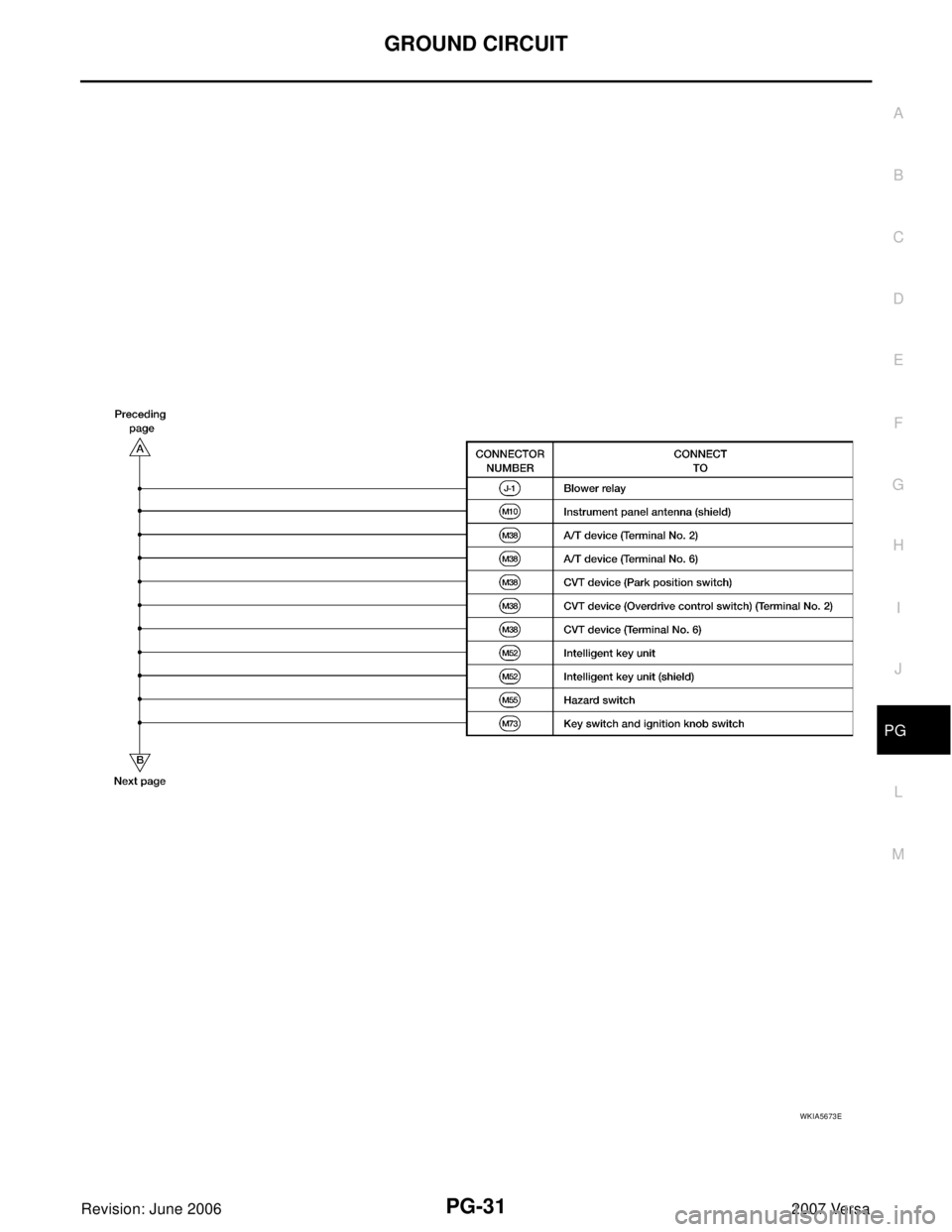

NISSAN VERSA 2006 Workshop Service Repair Manual GROUND CIRCUIT PG-31 C D E F G H I J L MA B PG Revision: June 20062007 Versa WKIA5673E

Page 2548 of 2896

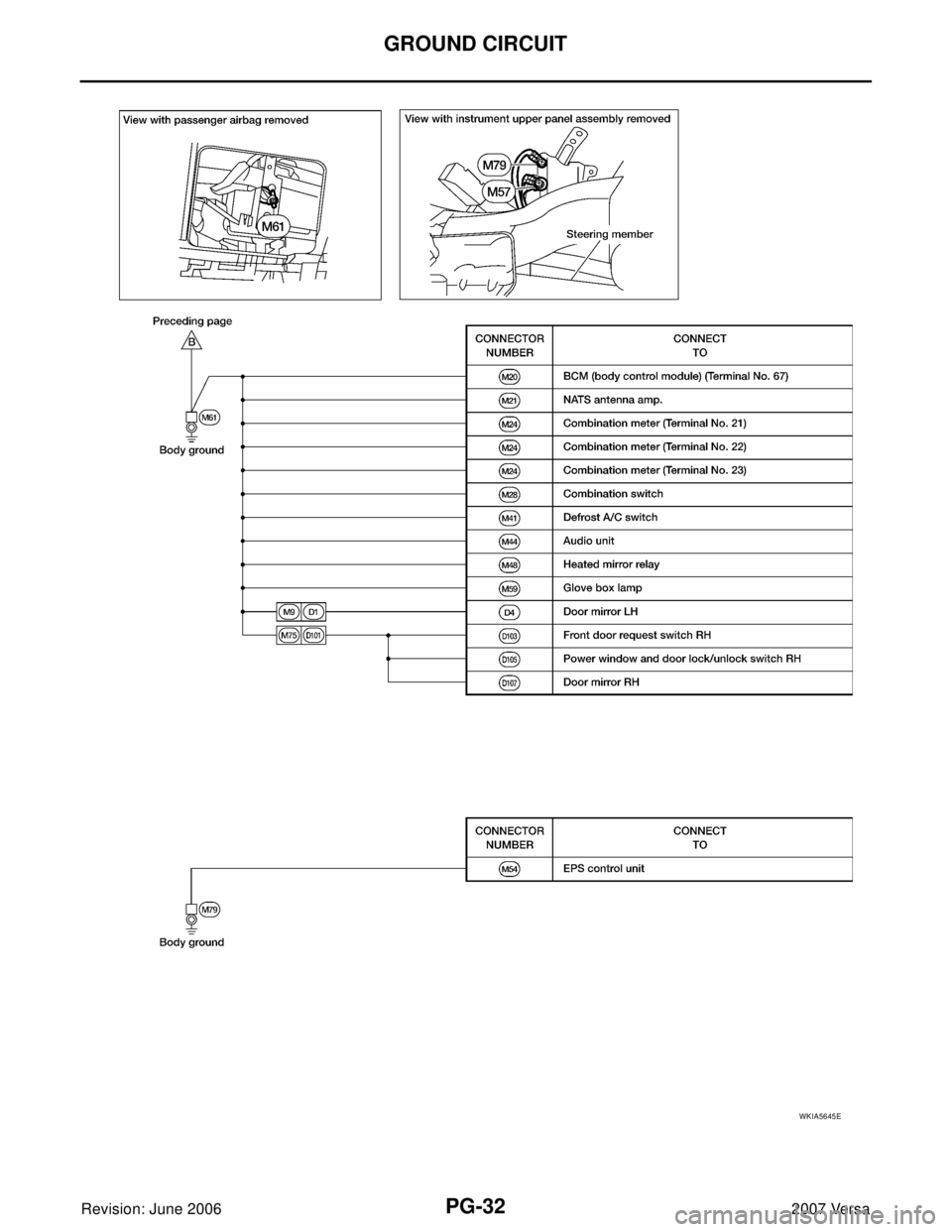

NISSAN VERSA 2006 Workshop Service Repair Manual PG-32 GROUND CIRCUIT Revision: June 20062007 Versa WKIA5645E

Page 2549 of 2896

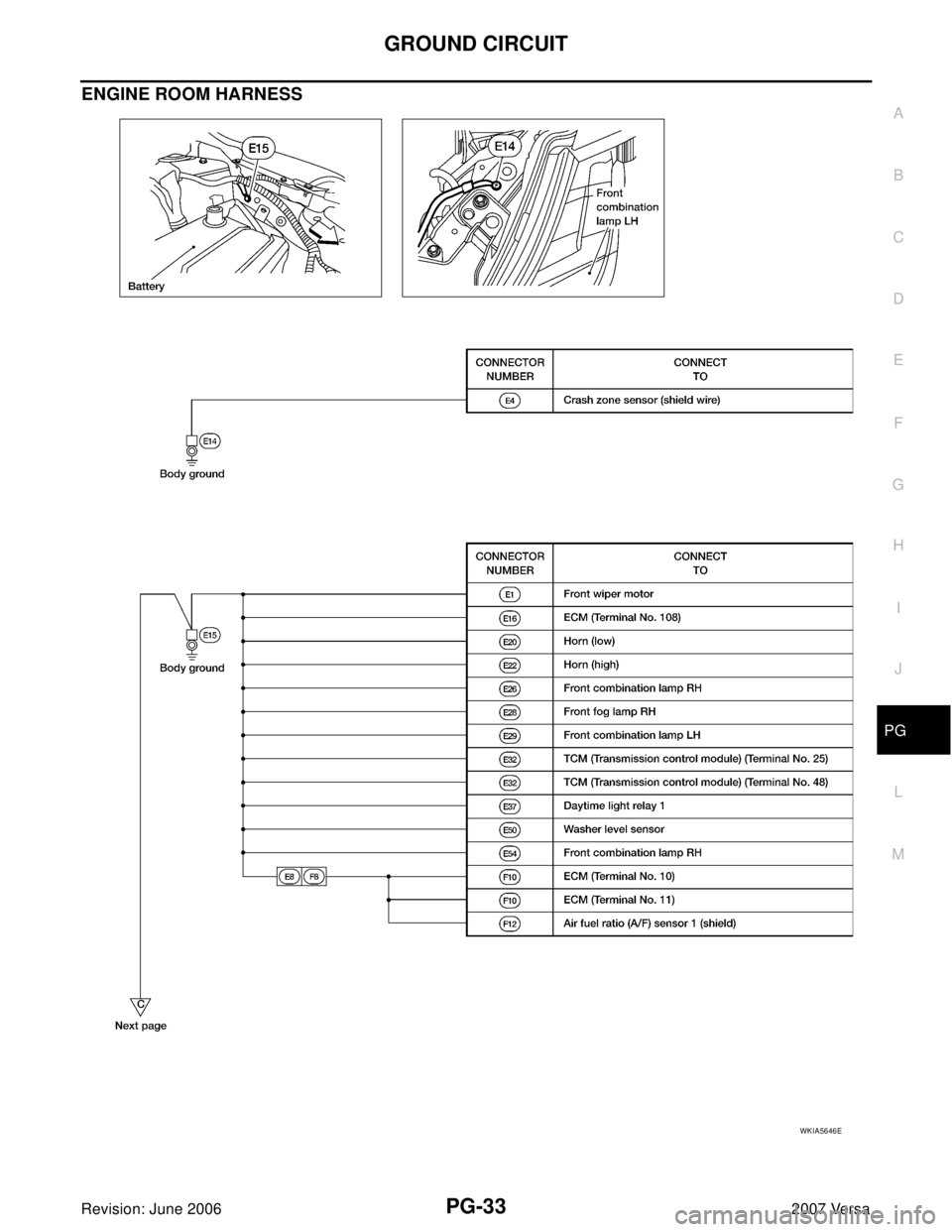

NISSAN VERSA 2006 Workshop Service Repair Manual GROUND CIRCUIT PG-33 C D E F G H I J L MA B PG Revision: June 20062007 Versa ENGINE ROOM HARNESS WKIA5646E

Page 2550 of 2896

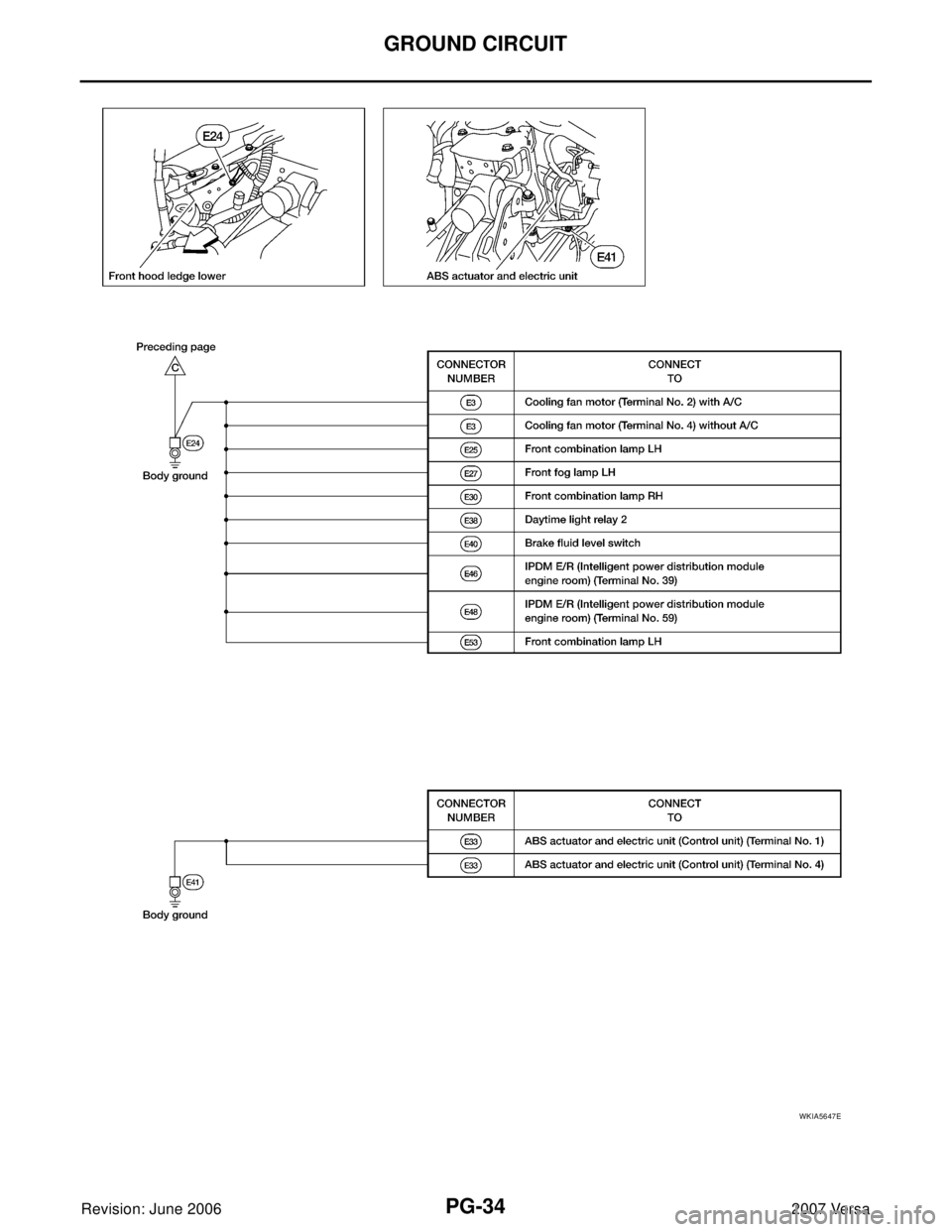

NISSAN VERSA 2006 Workshop Service Repair Manual PG-34 GROUND CIRCUIT Revision: June 20062007 Versa WKIA5647E

Page 2551 of 2896

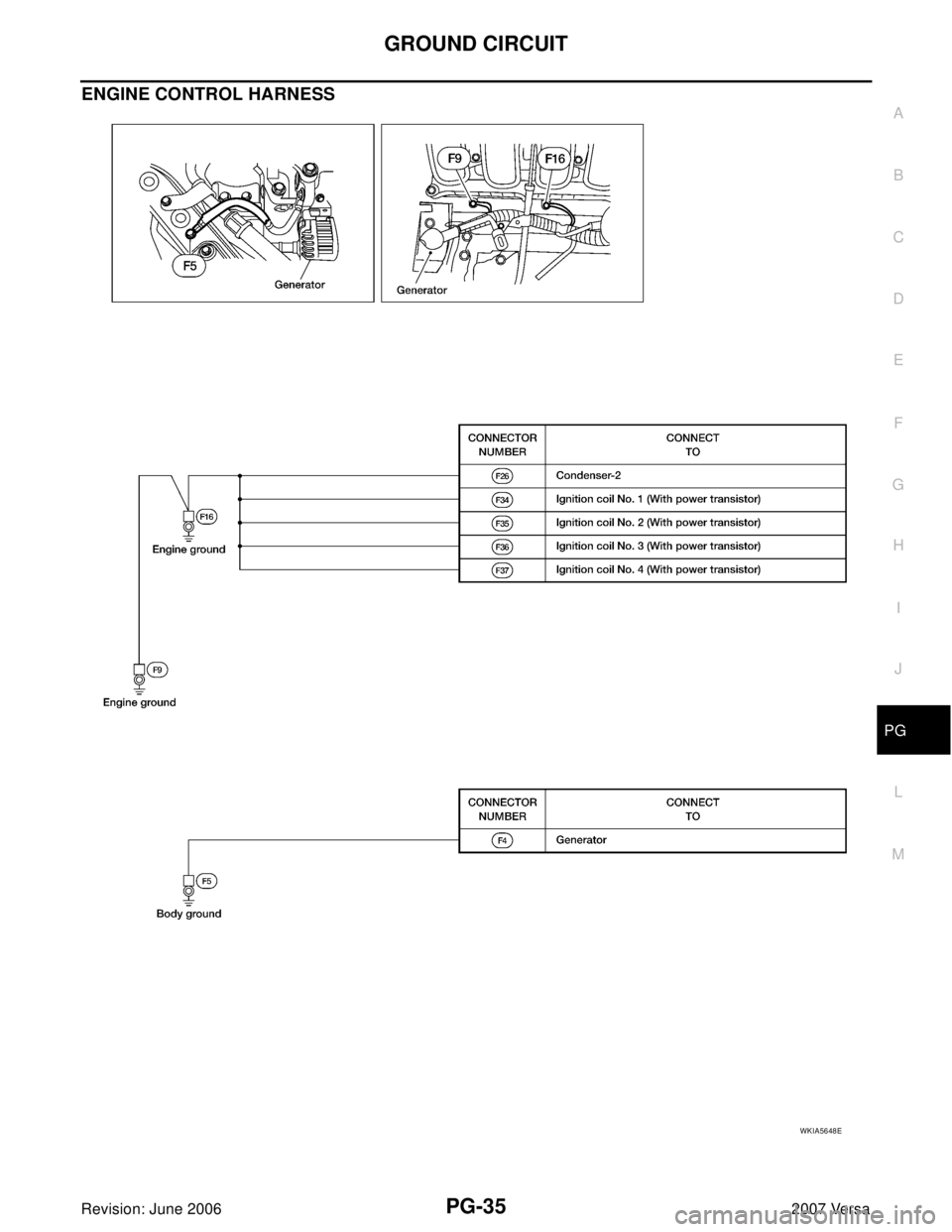

NISSAN VERSA 2006 Workshop Service Repair Manual GROUND CIRCUIT PG-35 C D E F G H I J L MA B PG Revision: June 20062007 Versa ENGINE CONTROL HARNESS WKIA5648E

Page 2552 of 2896

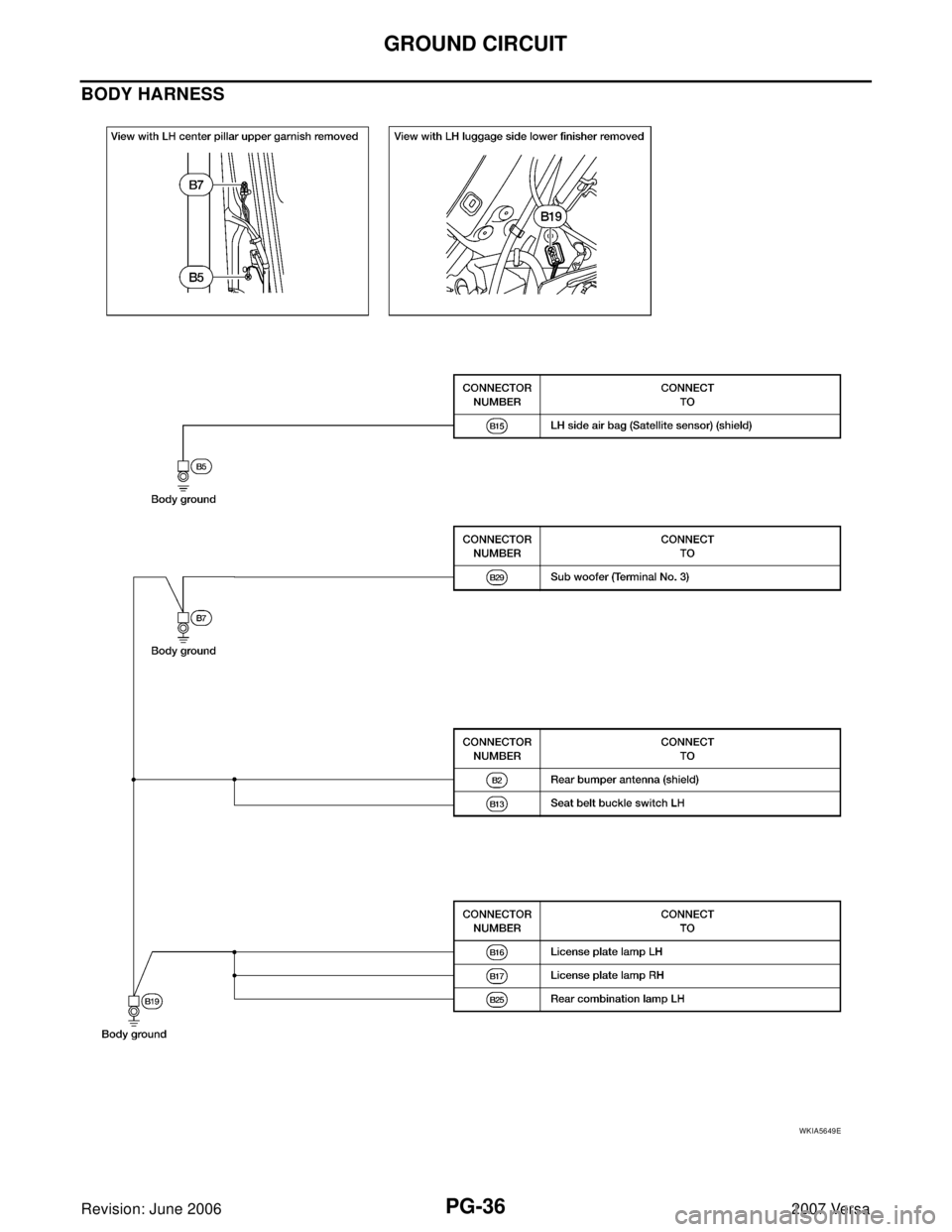

NISSAN VERSA 2006 Workshop Service Repair Manual PG-36 GROUND CIRCUIT Revision: June 20062007 Versa BODY HARNESS WKIA5649E
