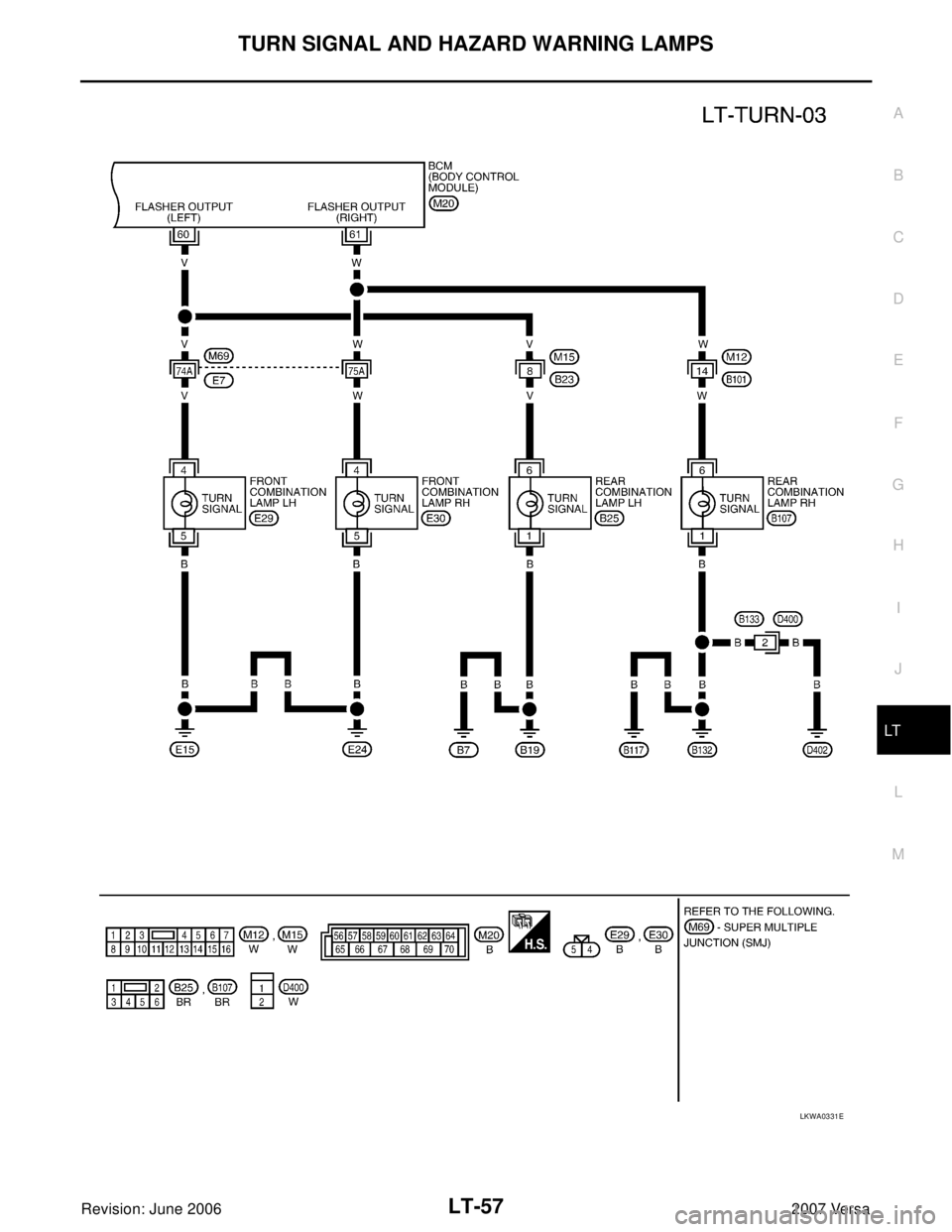

NISSAN VERSA 2006 Workshop Service Repair Manual TURN SIGNAL AND HAZARD WARNING LAMPS
LT-57
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
LKWA0331E

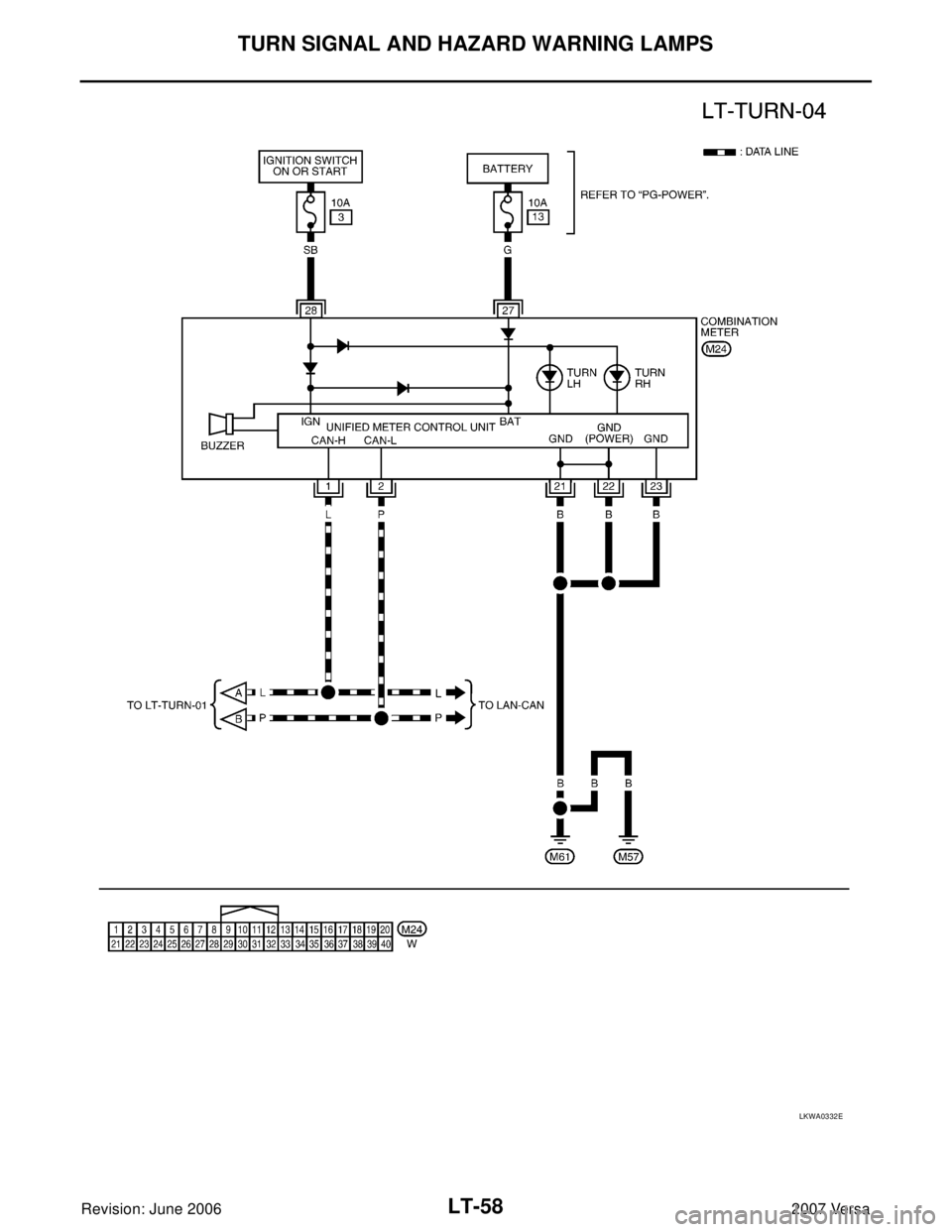

Page 2266 of 2896

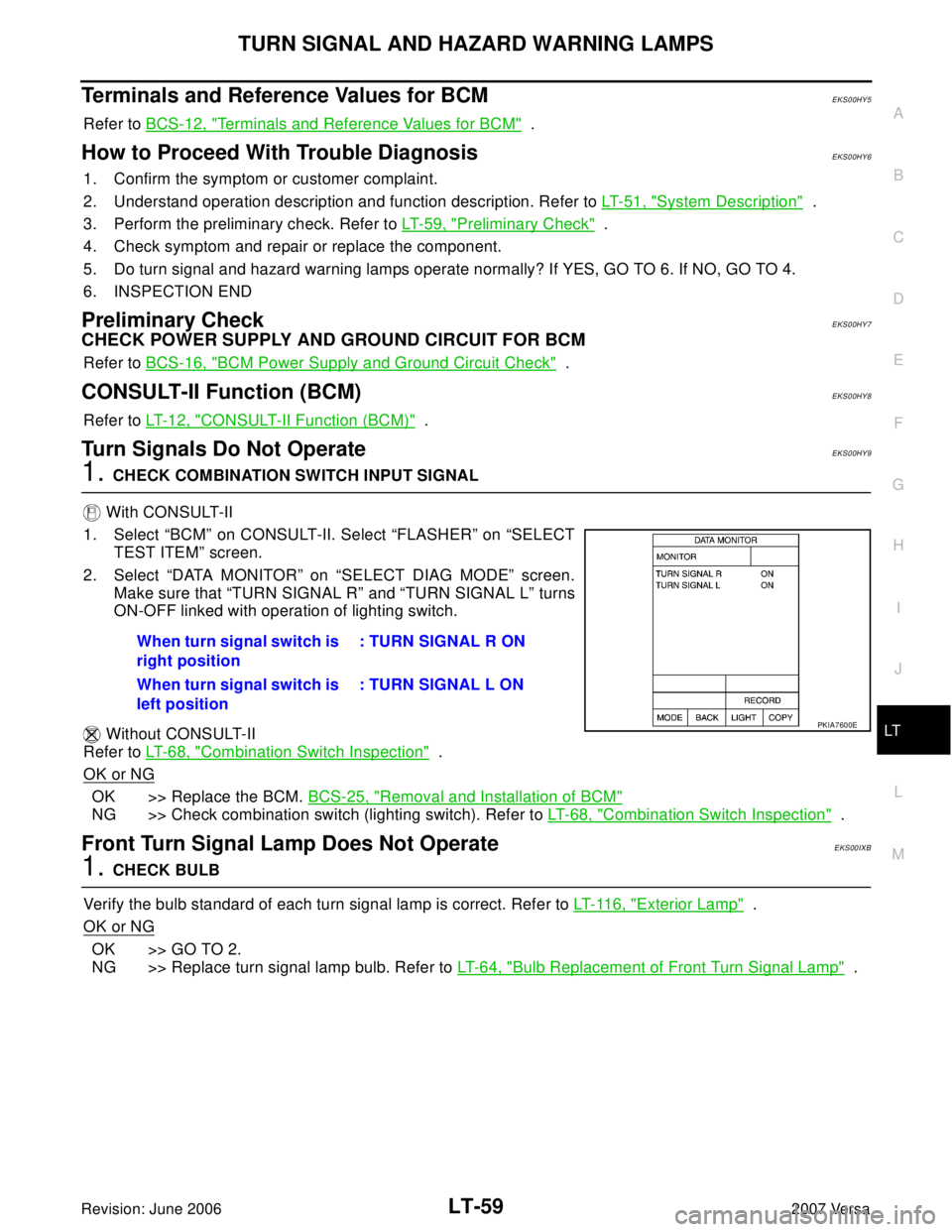

NISSAN VERSA 2006 Workshop Service Repair Manual LT-58
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: June 20062007 Versa
LKWA0332E

Page 2267 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual TURN SIGNAL AND HAZARD WARNING LAMPS
LT-59
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
Terminals and Reference Values for BCMEKS00HY5
Refer to BCS-12, "Terminals and Reference Values for B

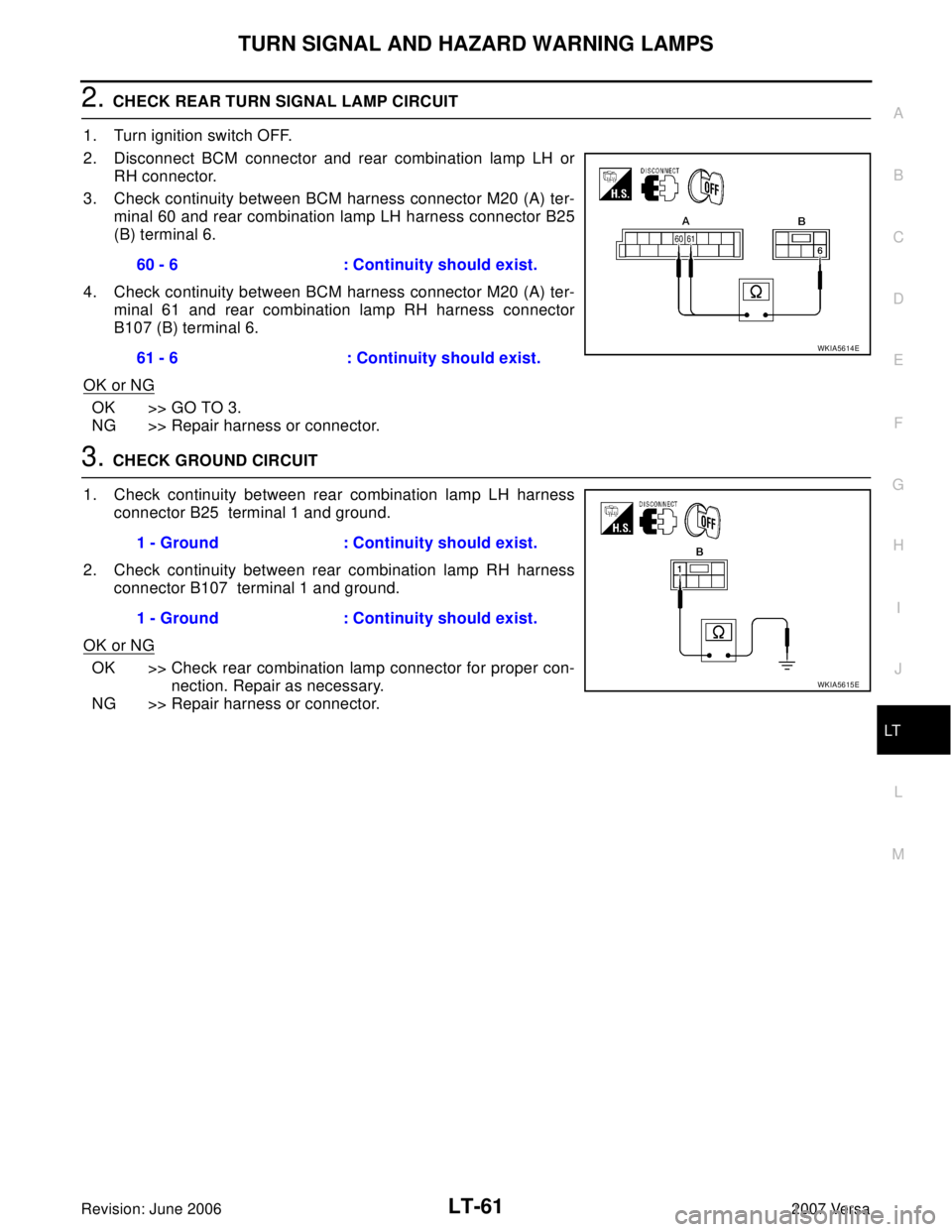

Page 2268 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual LT-60
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: June 20062007 Versa
2. CHECK FRONT TURN SIGNAL LAMP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and front combination lamp LH

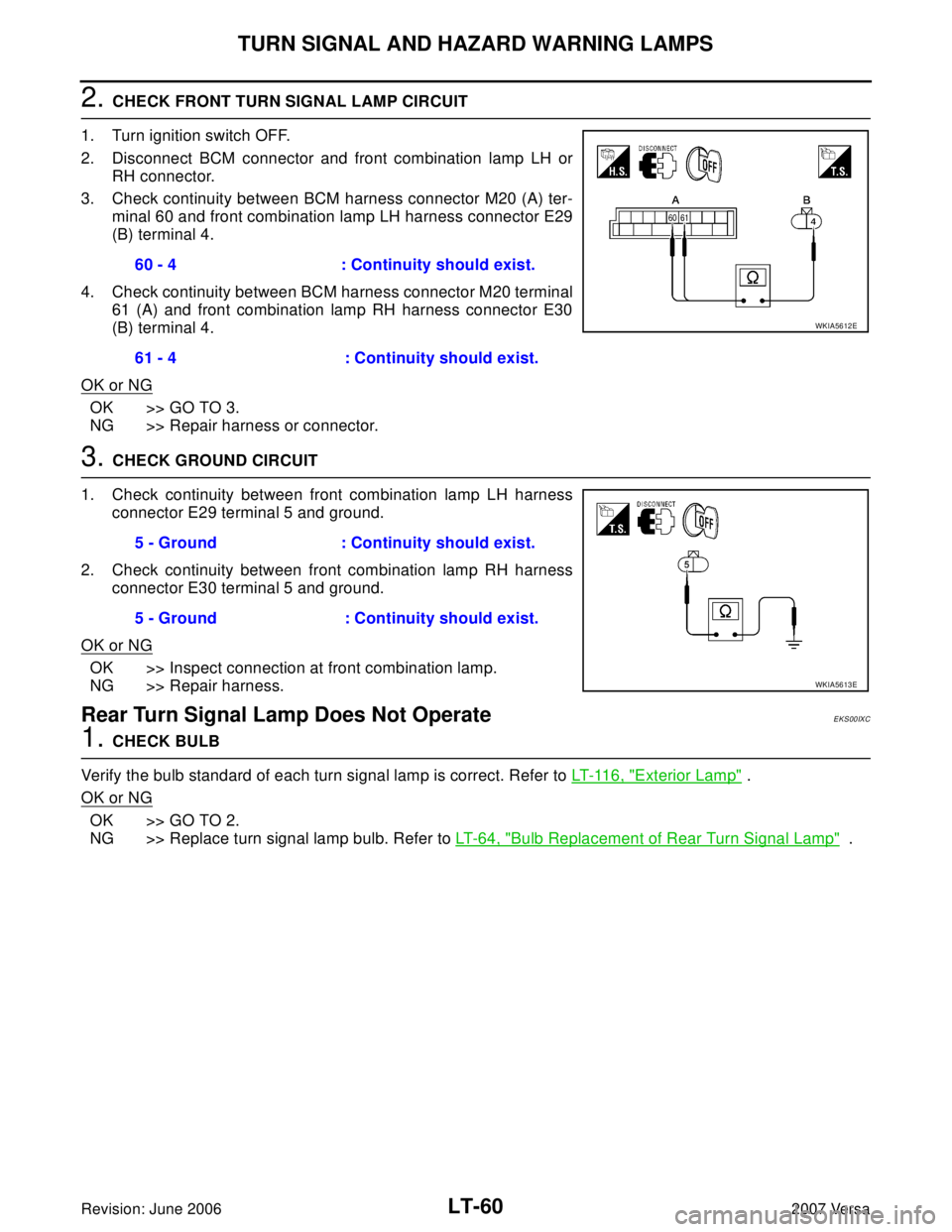

Page 2269 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual TURN SIGNAL AND HAZARD WARNING LAMPS
LT-61
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
2. CHECK REAR TURN SIGNAL LAMP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and r

Page 2270 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual LT-62
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: June 20062007 Versa
Hazard Warning Lamp Does Not Operate But Turn Signal Lamp OperatesEKS00HYA
1. CHECK HAZARD SWITCH INPUT SIGNAL
With CONSULT-II

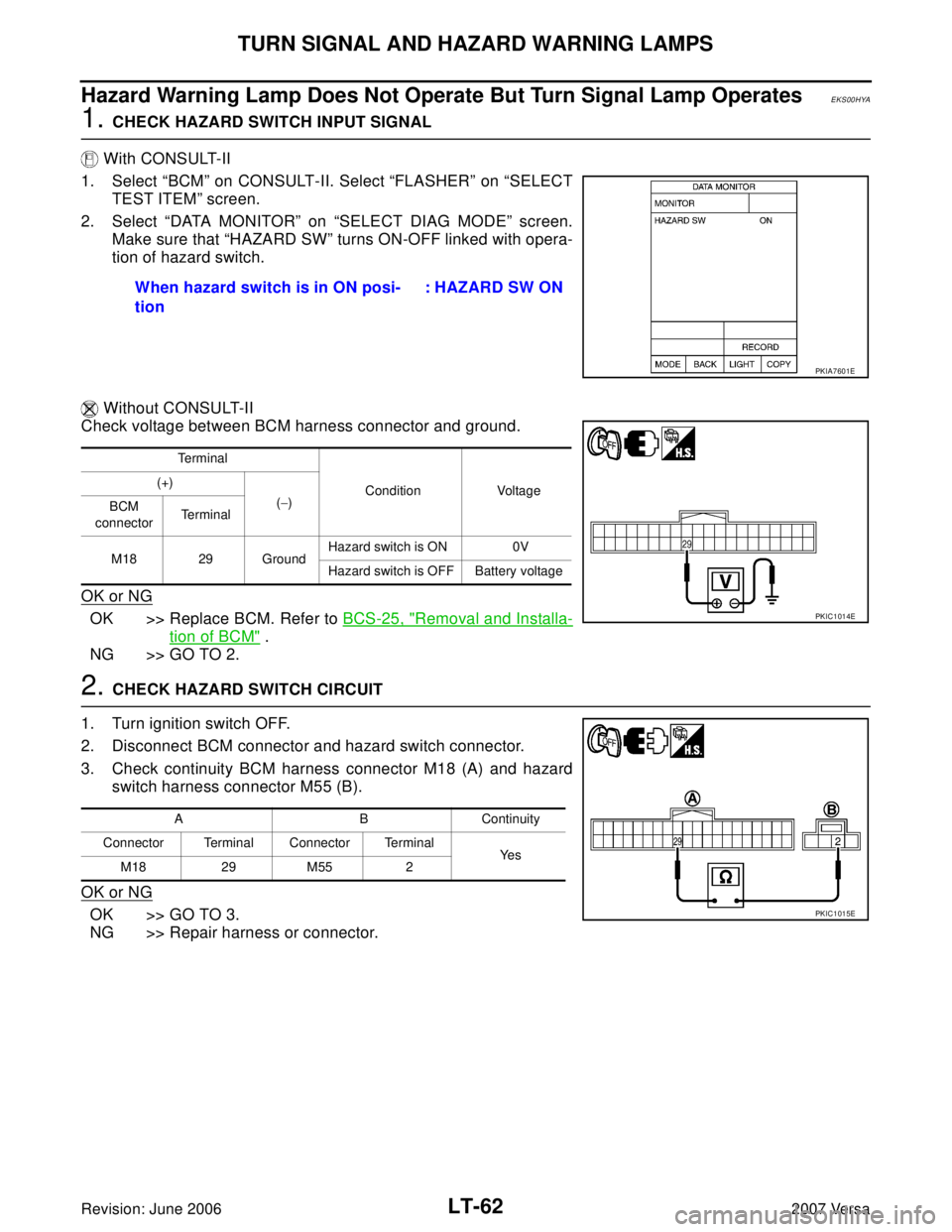

Page 2271 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual TURN SIGNAL AND HAZARD WARNING LAMPS
LT-63
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
3. CHECK GROUND CIRCUIT
Check continuity between hazard switch harness connector M55 ter-
minal 1 and

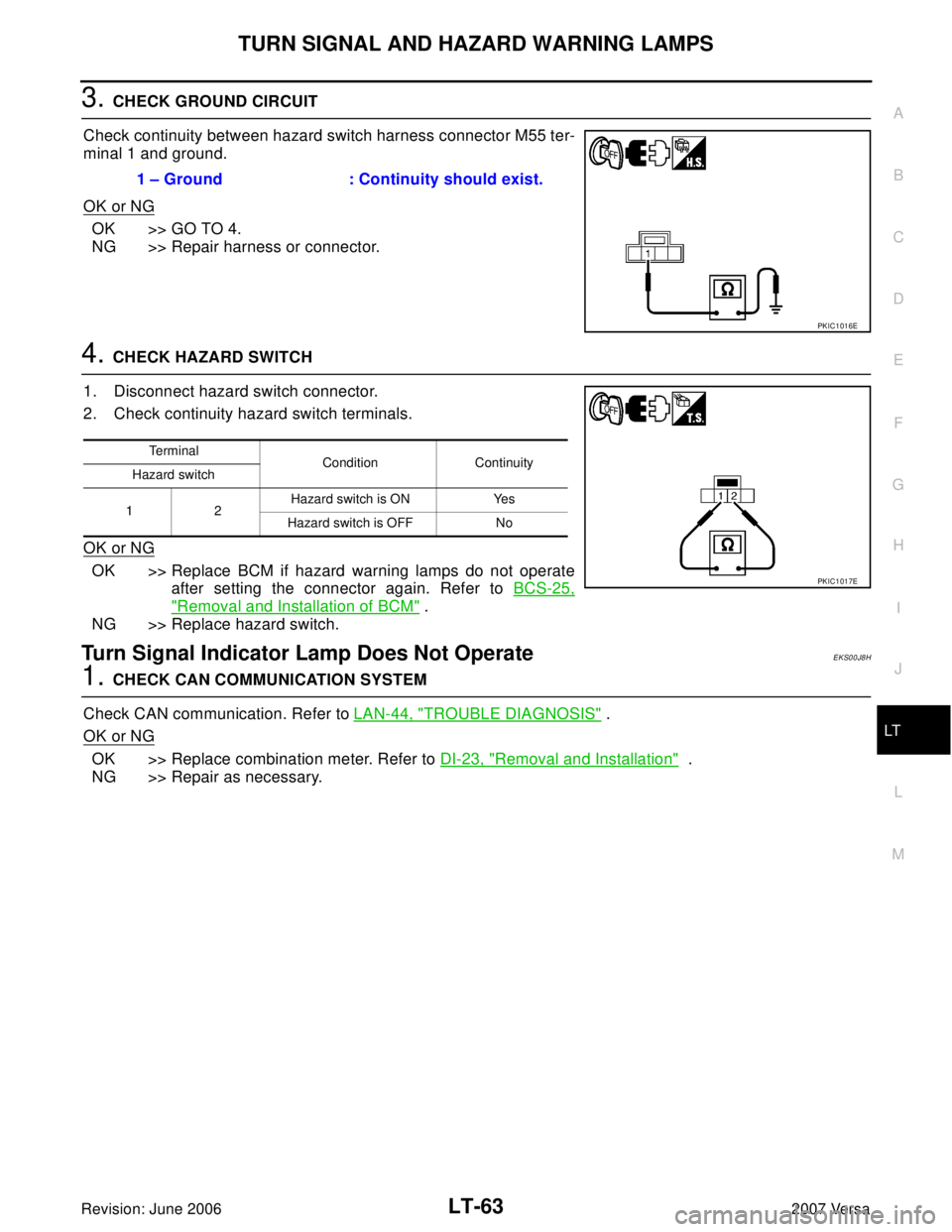

Page 2272 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual LT-64
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: June 20062007 Versa
Bulb Replacement of Front Turn Signal LampEKS00HYB
Refer to LT- 2 5 , "Bulb Replacement" .
Bulb Replacement of Rear Turn Signa
