NISSAN VERSA 2006 Workshop Service Repair Manual TROUBLE DIAGNOSIS
STC-7
[EPS]
C
D
E
F
H
I
J
K
L
MA
B
STC
Revision: June 20062007 Versa
TROUBLE DIAGNOSISPFP:00004
Fail-Safe FunctionUGS0008G
If any malfunction occurs in the system, and control unit

TROUBLE DIAGNOSIS
STC-7
[EPS]
C
D
E
F
H
I
J
K
L
MA
B
STC
Revision: June 20062007 Versa
TROUBLE DIAGNOSISPFP:00004
Fail-Safe FunctionUGS0008G
If any malfunction occurs in the system, and control unit detects the malfunction, EPS warning lamp on
combination meter turns ON to indicate system malfunction.
When EPS warning lamp is ON, enters a manual steering state. (Control turning force steering wheel
becomes heavy.)

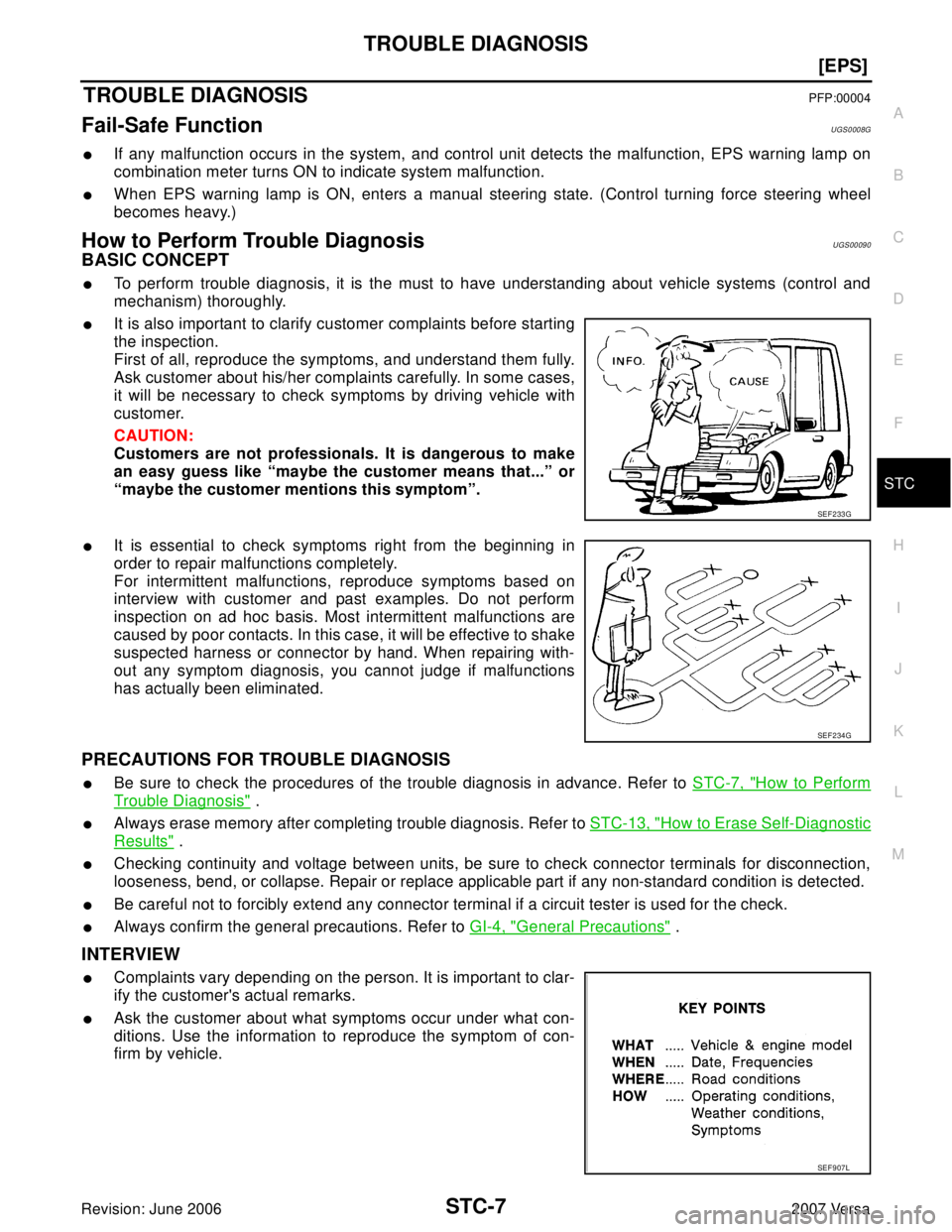

How to Perform Trouble DiagnosisUGS00090
BASIC CONCEPT
To perform trouble diagnosis, it is the must to have understanding about vehicle systems (control and
mechanism) thoroughly.
It is also important to clarify customer complaints before starting
the inspection.
First of all, reproduce the symptoms, and understand them fully.
Ask customer about his/her complaints carefully. In some cases,
it will be necessary to check symptoms by driving vehicle with
customer.
CAUTION:
Customers are not professionals. It is dangerous to make
an easy guess like “maybe the customer means that...” or
“maybe the customer mentions this symptom”.
It is essential to check symptoms right from the beginning in
order to repair malfunctions completely.
For intermittent malfunctions, reproduce symptoms based on
interview with customer and past examples. Do not perform
inspection on ad hoc basis. Most intermittent malfunctions are
caused by poor contacts. In this case, it will be effective to shake
suspected harness or connector by hand. When repairing with-
out any symptom diagnosis, you cannot judge if malfunctions
has actually been eliminated.
PRECAUTIONS FOR TROUBLE DIAGNOSIS
Be sure to check the procedures of the trouble diagnosis in advance. Refer to STC-7, "How to Perform
Trouble Diagnosis" .
Always erase memory after completing trouble diagnosis. Refer to STC-13, "How to Erase Self-Diagnostic
Results" .
Checking continuity and voltage between units, be sure to check connector terminals for disconnection,
looseness, bend, or collapse. Repair or replace applicable part if any non-standard condition is detected.
Be careful not to forcibly extend any connector terminal if a circuit tester is used for the check.
Always confirm the general precautions. Refer to GI-4, "General Precautions" .
INTERVIEW
Complaints vary depending on the person. It is important to clar-
ify the customer's actual remarks.
Ask the customer about what symptoms occur under what con-
ditions. Use the information to reproduce the symptom of con-
firm by vehicle.
SEF 2 33 G
SEF 2 34 G
SEF 9 07 L

Page 2794 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual STC-8
[EPS]
TROUBLE DIAGNOSIS
Revision: June 20062007 Versa

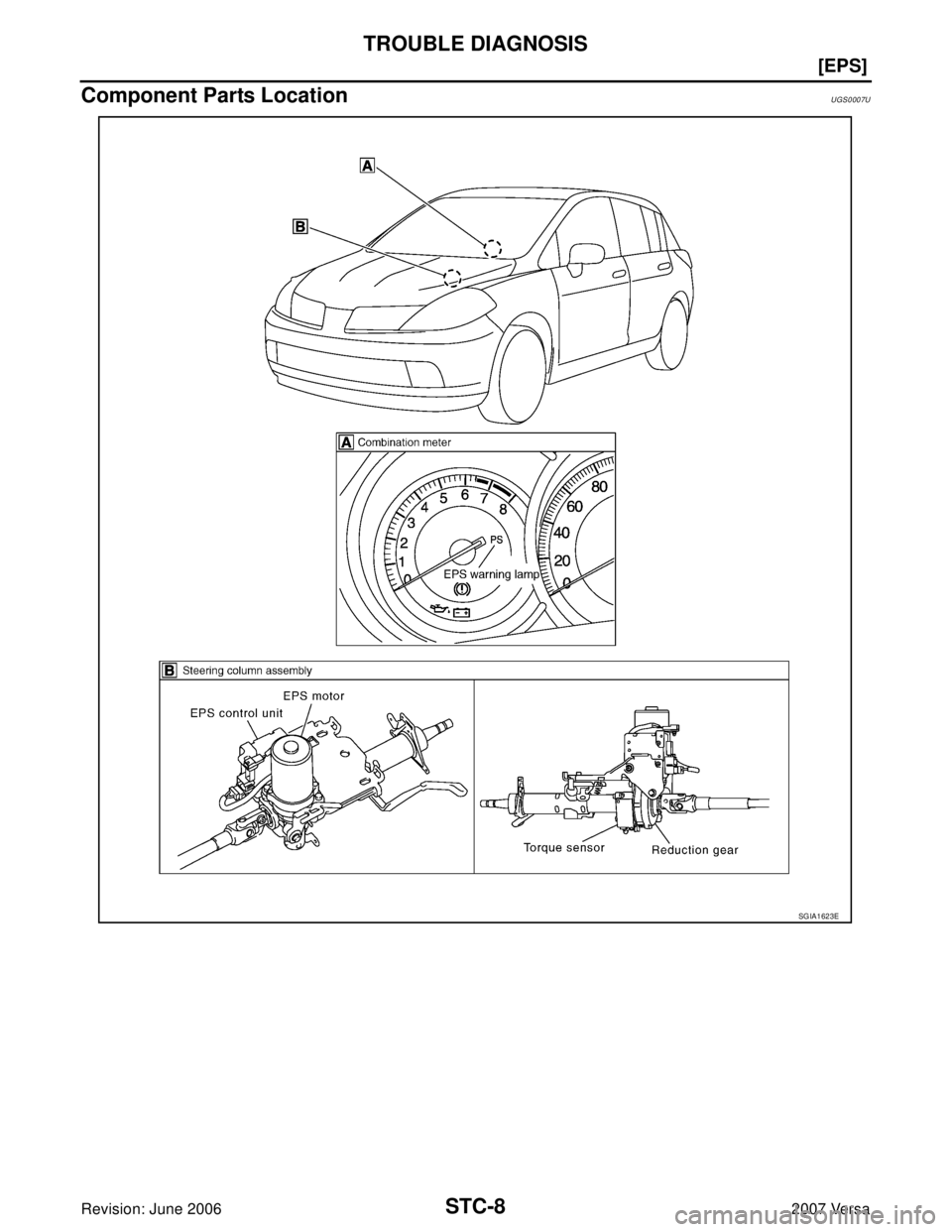

Component Parts LocationUGS0007U
SGIA1623E

Page 2795 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual TROUBLE DIAGNOSIS
STC-9
[EPS]
C
D
E
F
H
I
J
K
L
MA
B
STC
Revision: June 20062007 Versa

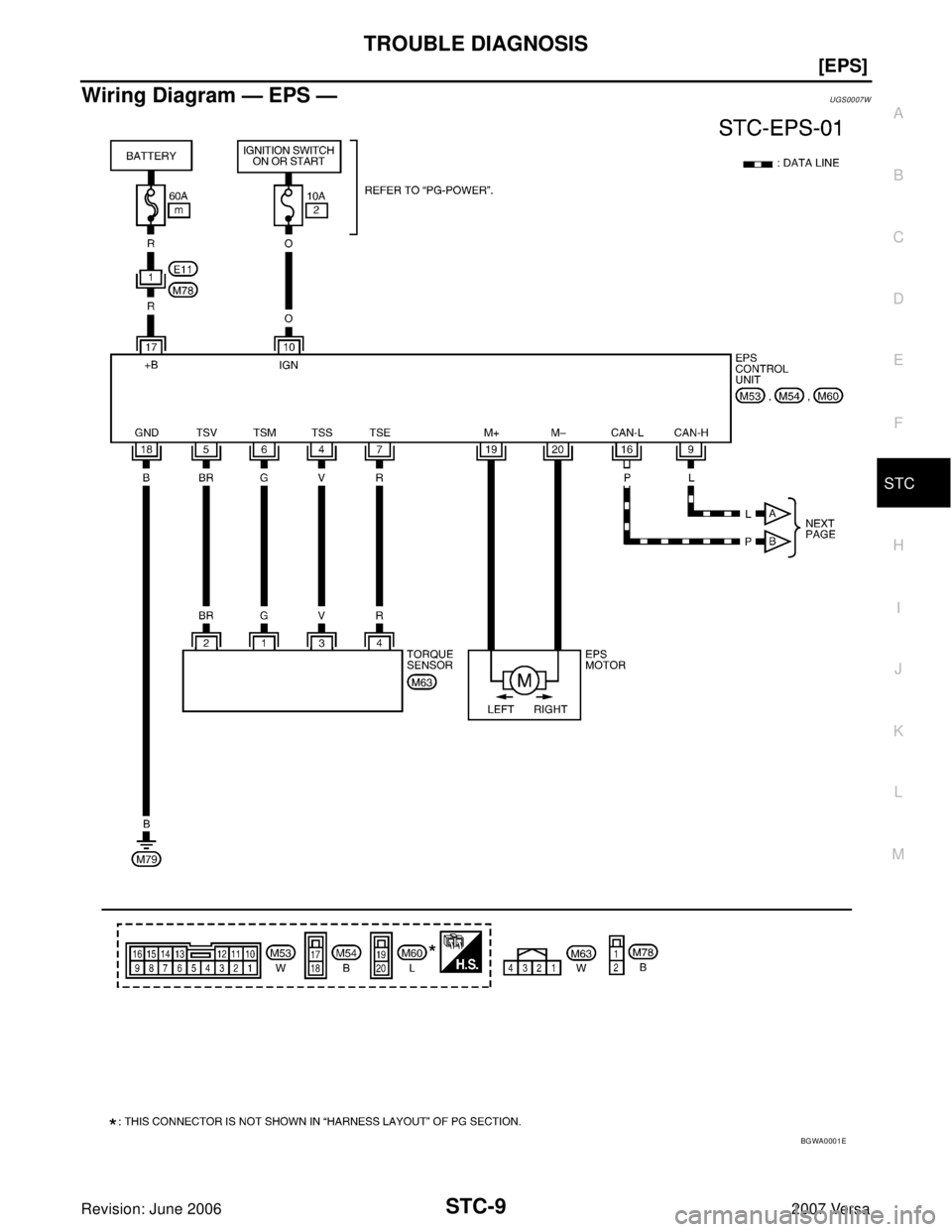

Wiring Diagram — EPS —UGS0007W
BGWA0001E

Page 2796 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual STC-10
[EPS]
TROUBLE DIAGNOSIS
Revision: June 20062007 Versa

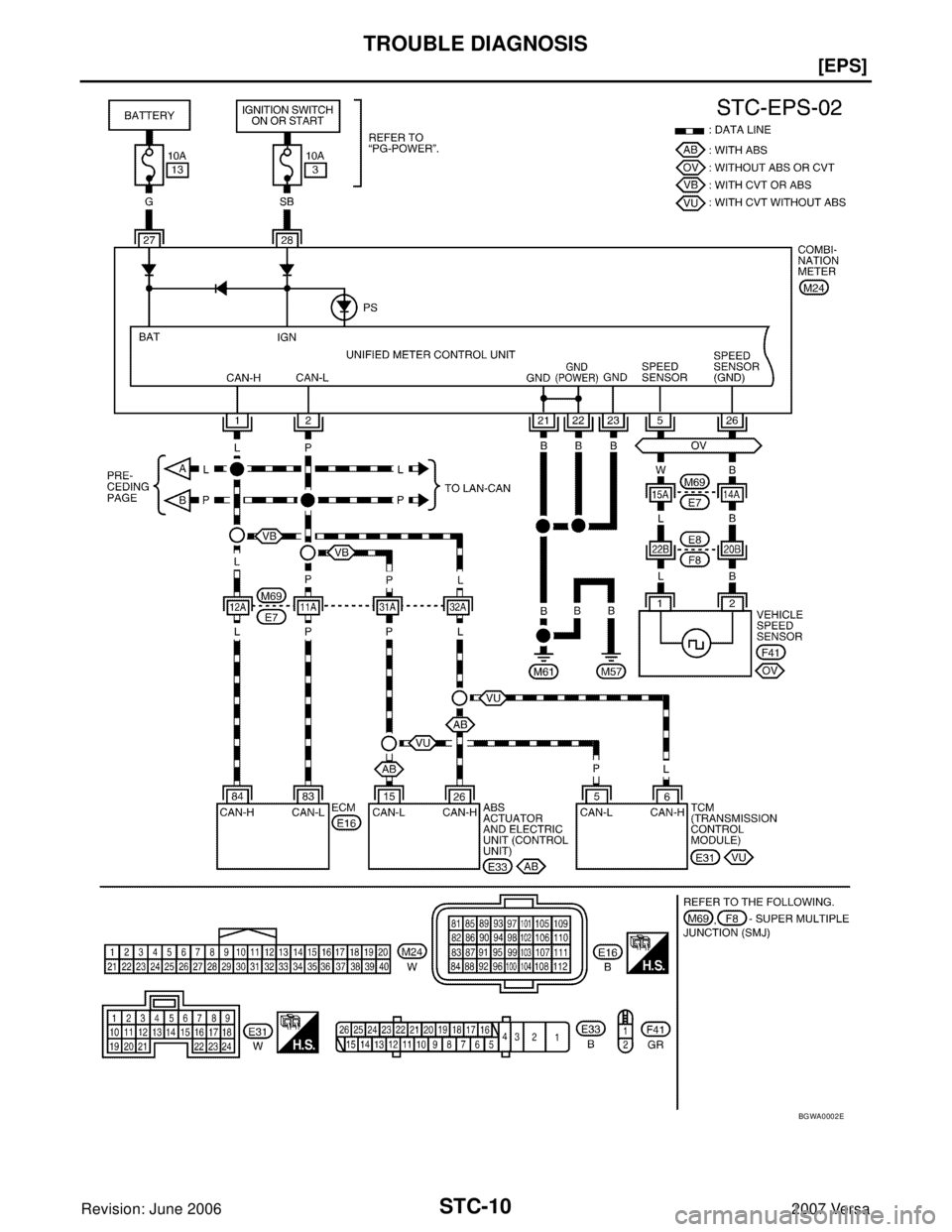

BGWA0002E

Page 2797 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual TROUBLE DIAGNOSIS
STC-11
[EPS]
C
D
E
F
H
I
J
K
L
MA
B
STC
Revision: June 20062007 Versa
EPS Control Unit Input/Output Signal Reference ValuesUGS0007X
SPECIFICATIONS WITH CONSULT-II
CAUTION:
The output

TROUBLE DIAGNOSIS
STC-11
[EPS]
C
D
E
F
H
I
J
K
L
MA
B
STC
Revision: June 20062007 Versa
EPS Control Unit Input/Output Signal Reference ValuesUGS0007X
SPECIFICATIONS WITH CONSULT-II
CAUTION:
The output signal indicates the EPS control unit calculation date. The normal values will be displayed
even in the event that the output circuit (harness) is open.
*1 : In the front of the value, “L” is displayed at steering left and “R” is displayed at steering right.
*2 : Almost in accordance with the value of “MOTOR SIG”. It is not a malfunction though these values are not accorded when steering
quickly.
*3 : It is not a malfunction, though it might not be corresponding just after ignition switch is turned ON.
*4 : It turns to OFF after waiting for a short period of time.Monitor item (Unit) Content Condition Display value
MOTOR VOL (V)Power supply voltage for
EPS control unitIgnition switch: ON Battery voltage
TORQUE SENSOR (Nm)Steering wheel turning
forceEngine runningSteering wheel: Not
steering (There is no
steering force) 0.00 Nm
Steering wheel: Steer-
ing0 – 8.19 Nm
*1 (The value
is changed according to
steering left or right)
MOTOR SIG (A)Command current to EPS
motorEngine runningSteering wheel: Not
steering (There is no
steering force)0.00 A
Steering wheel: Steer-
ing0 – 65.00 A (The value is
changed according to
steering left or right)
MOTOR CURRENT (A)Consumption current of
EPS motorEngine runningSteering wheel: Not
steering (There is no
steering force)0.00 A
Steering wheel: Steer-
ing0 – 65.00 A
*2 (The value
is changed according to
steering left or right)
VEHICLE SPEED (km/h) or (mph) Vehicle speedVehicle stopped 0 km/h (0 mph)
While drivingApproximately equal to
the indication on speed-
ometer (Inside of ±10%)
*3
WARNING LAMP (ON/OFF)EPS warning lamp condi-
tionEPS warning lamp: ON ON
EPS warning lamp: OFF OFF
DERATING STAT (ON/OFF) Protect overload status Engine runningSteering wheel: Nor-
mal steeringOFF
Steering wheel: Steer-
ing over the stopON
*4
ENGINE STATUS (RUN/STOP) Engine statusEngine stopped
(Engine speed: Less than 400 rpm)STOP
Engine running
(Engine speed: 400 rpm or more)RUN

Page 2798 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual STC-12
[EPS]
TROUBLE DIAGNOSIS
Revision: June 20062007 Versa
SPECIFICATIONS BETWEEN EPS CONTROL UNIT TERMINALS

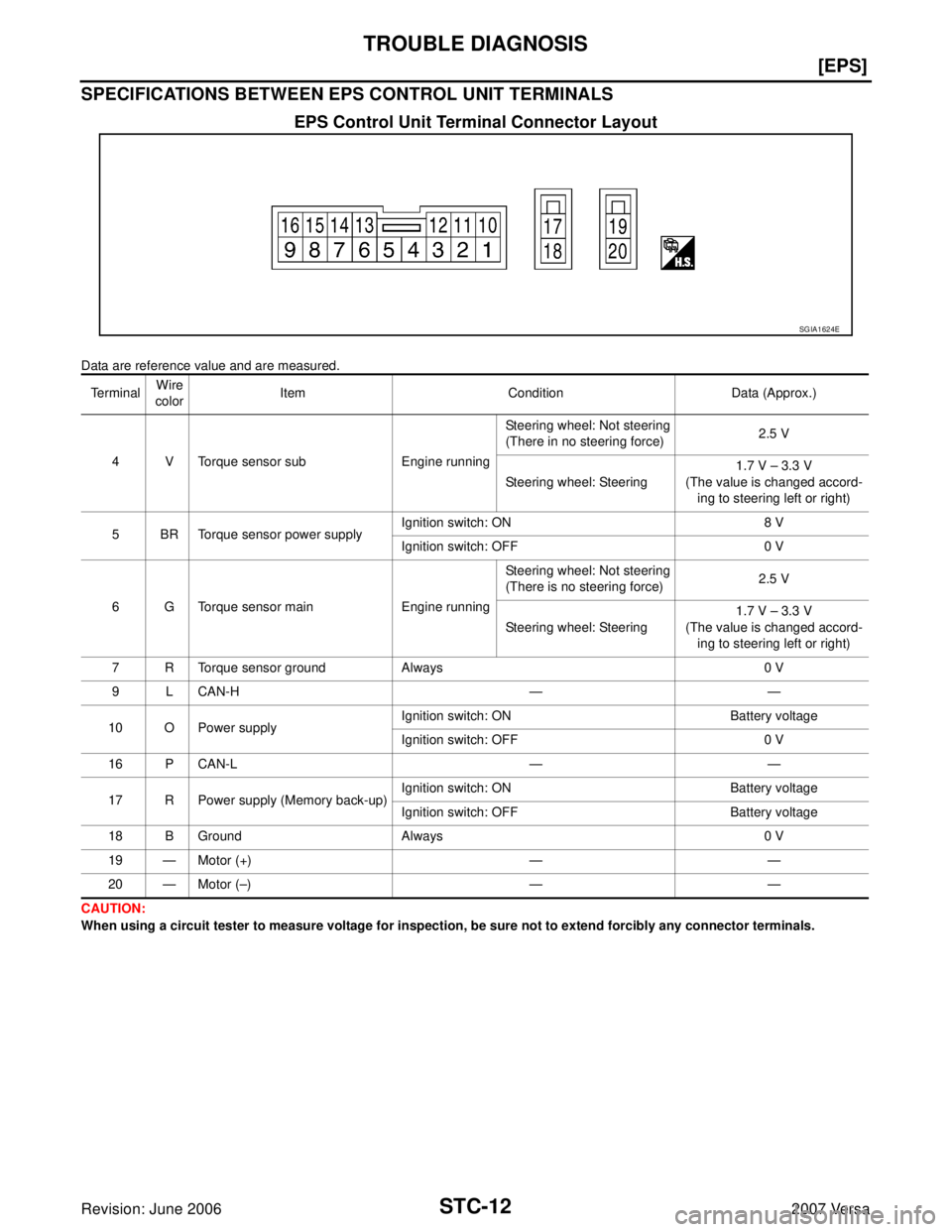

EPS Control Unit Terminal Connector Layout
Data are reference value and are measured.
CAU

Page 2799 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual TROUBLE DIAGNOSIS
STC-13
[EPS]
C
D
E
F
H
I
J
K
L
MA
B
STC
Revision: June 20062007 Versa

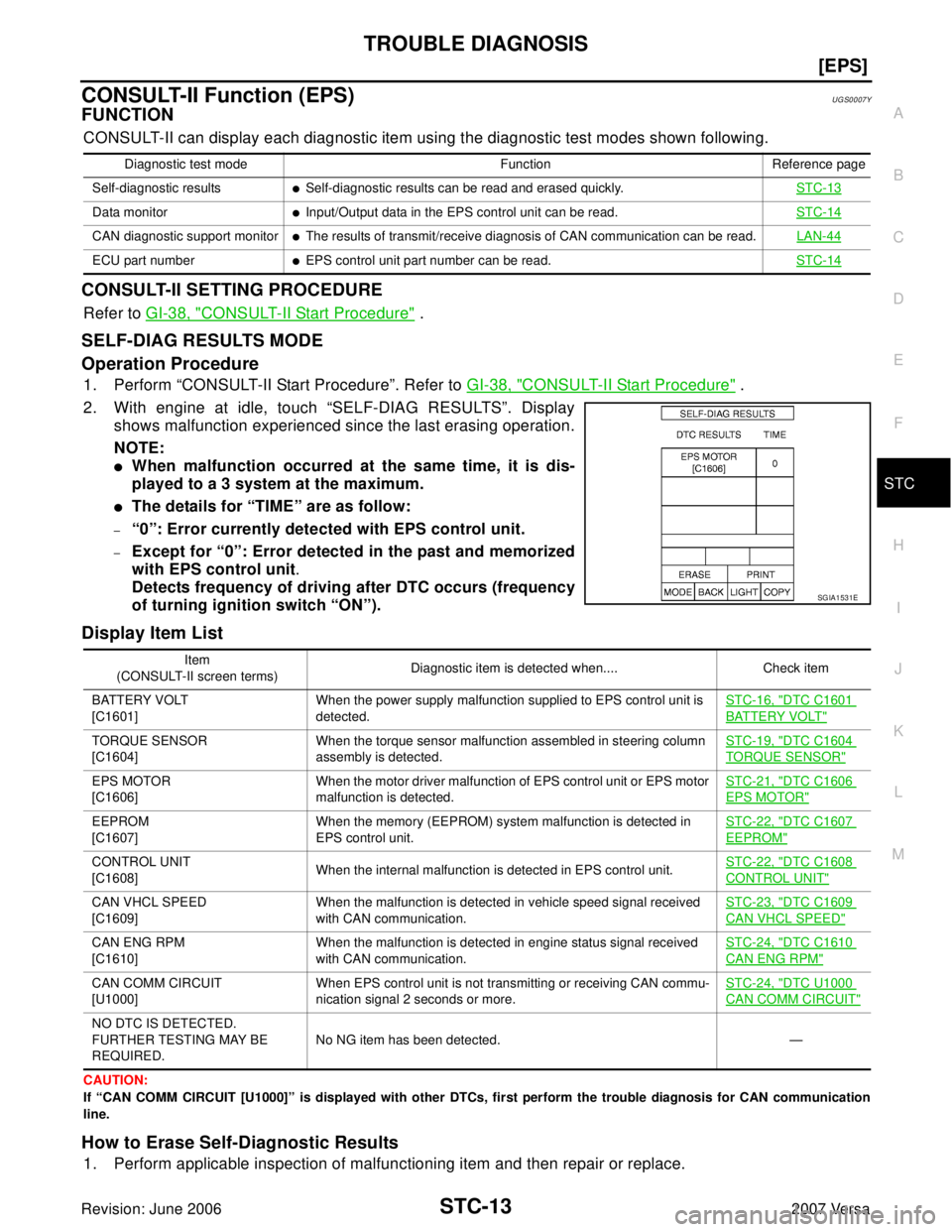

CONSULT-II Function (EPS)UGS0007Y
FUNCTION
CONSULT-II can display each diagnostic item using the diagnostic test

TROUBLE DIAGNOSIS
STC-13
[EPS]
C
D
E
F
H
I
J
K
L
MA
B
STC
Revision: June 20062007 Versa
CONSULT-II Function (EPS)UGS0007Y
FUNCTION
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II SETTING PROCEDURE
Refer to GI-38, "CONSULT-II Start Procedure" .
SELF-DIAG RESULTS MODE
Operation Procedure
1. Perform “CONSULT-II Start Procedure”. Refer to GI-38, "CONSULT-II Start Procedure" .
2. With engine at idle, touch “SELF-DIAG RESULTS”. Display
shows malfunction experienced since the last erasing operation.
NOTE:
When malfunction occurred at the same time, it is dis-
played to a 3 system at the maximum.
The details for “TIME” are as follow:
–“0”: Error currently detected with EPS control unit.
–Except for “0”: Error detected in the past and memorized
with EPS control unit.
Detects frequency of driving after DTC occurs (frequency
of turning ignition switch “ON”).
Display Item List
CAUTION:
If “CAN COMM CIRCUIT [U1000]” is displayed with other DTCs, first perform the trouble diagnosis for CAN communication
line.
How to Erase Self-Diagnostic Results
1. Perform applicable inspection of malfunctioning item and then repair or replace.
Diagnostic test mode Function Reference page
Self-diagnostic results
Self-diagnostic results can be read and erased quickly.STC-13
Data monitorInput/Output data in the EPS control unit can be read.STC-14
CAN diagnostic support monitorThe results of transmit/receive diagnosis of CAN communication can be read.LAN-44

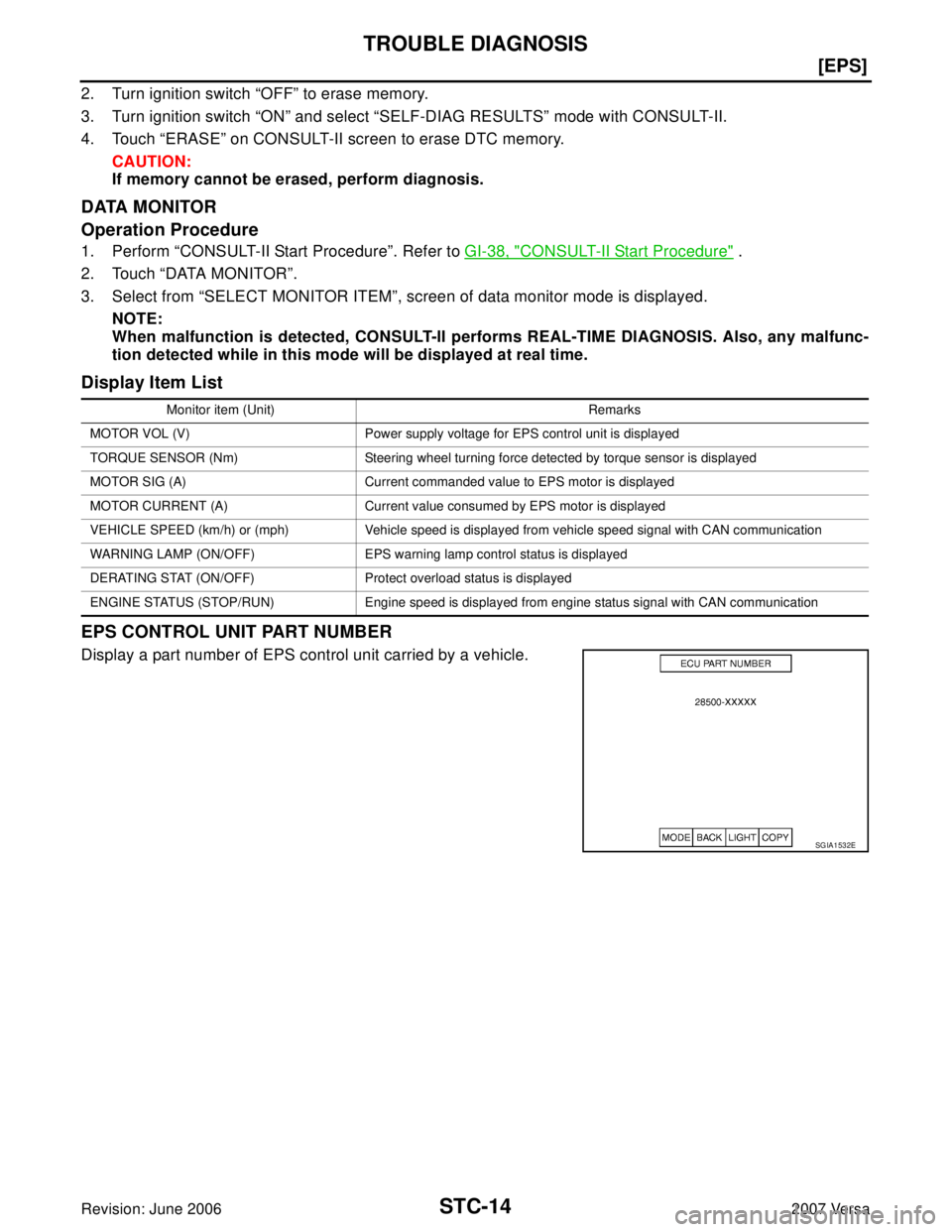

ECU part numberEPS control unit part number can be read.STC-14
SGIA1531E
Item
(CONSULT-II screen terms)Diagnostic item is detected when.... Check item
BATTERY VOLT
[C1601]When the power supply malfunction supplied to EPS control unit is
detected.STC-16, "
DTC C1601
BATTERY VOLT"
TORQUE SENSOR
[C1604]When the torque sensor malfunction assembled in steering column
assembly is detected. STC-19, "DTC C1604
TORQUE SENSOR"
EPS MOTOR
[C1606]When the motor driver malfunction of EPS control unit or EPS motor
malfunction is detected.STC-21, "DTC C1606
EPS MOTOR"
EEPROM
[C1607]When the memory (EEPROM) system malfunction is detected in
EPS control unit.STC-22, "DTC C1607
EEPROM"
CONTROL UNIT
[C1608]When the internal malfunction is detected in EPS control unit.STC-22, "DTC C1608
CONTROL UNIT"
CAN VHCL SPEED
[C1609]When the malfunction is detected in vehicle speed signal received
with CAN communication.STC-23, "DTC C1609
CAN VHCL SPEED"
CAN ENG RPM
[C1610]When the malfunction is detected in engine status signal received
with CAN communication.STC-24, "DTC C1610
CAN ENG RPM"
CAN COMM CIRCUIT
[U1000]When EPS control unit is not transmitting or receiving CAN commu-
nication signal 2 seconds or more.STC-24, "DTC U1000
CAN COMM CIRCUIT"
NO DTC IS DETECTED.
FURTHER TESTING MAY BE
REQUIRED.No NG item has been detected. —

Page 2800 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual STC-14
[EPS]
TROUBLE DIAGNOSIS
Revision: June 20062007 Versa
2. Turn ignition switch “OFF” to erase memory.
3. Turn ignition switch “ON” and select “SELF-DIAG RESULTS” mode with CONSULT-II
