CONSULT-II CHECKING SYSTEM
Revision: June 20062007 Versa
Nickel Metal Hydride Battery Replacement EAS001ZU
CONSULT-II contains a nickel metal hydride battery. When replacing the battery obey the following:
WAR NIN G:
Replace the nickel metal hydride battery with Genuine CONSULT-II battery only. Use of another bat-
tery may present a risk of fire or explosion. The battery may present a fire or chemical burn hazard if
mistreated. Do not recharge, disassemble or dispose of in fire.
Keep the battery out of reach of children and discard used battery conforming to the local regulations.
Checking Equipment EAS001ZV
When ordering the following equipment, contact your NISSAN/INFINITI distributor.
NOTE:
The CONSULT-II must be used in conjunction with a program card.
CONSULT-II does not require loading (Initialization) procedure.
Be sure the CONSULT-II is turned off before installing or removing a program card.
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
If CONSULT-II CONVERTER is not connected with CONSULT-II, the vehicle enters “FAIL SAFE
MODE” which will “LIGHT UP the HEAD LIGHT” and/or “COOLING FAN ROTATING” when CON-
SULT-II is started.
Previous CONSULT-II “I” and “Y” DLC-I and DLC-II cables should NOT be used anymore because
their DDL connector pins can be damaged during cable swapping.
CONSULT-II Start ProcedureEAS001ZW
NOTE:
Turning ignition switch off when performing CAN diagnosis could cause CAN memory to be erased.
1. Connect CONSULT-II and CONSULT-II CONVERTER to the
data link connector.
Tool name Description
NISSAN CONSULT-II (J-44200)
1. CONSULT-II unit (Tester internal soft: Resident version
3.4.0) and accessories
2. Program cards UED05C-1 and AEN06B (for NATS) or later.
To confirm the best combination of these software, refer to
CONSULT-II Operation Manual.
3. CONSULT-II CONVERTER.
4. "CONSULT-II Pigtail" cable.
SAIA0363E
PAIA0070E
Page 2010 of 2896
CONSULT-II CHECKING SYSTEM
GI-39
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: June 20062007 Versa
2. If necessary, turn ON the ignition switch.
3. Touch “START (NISSAN BASED VHCL)” or system shortcut key
(e.g.: ENGINE) on the screen.
4. Touch necessary system on "SELECT SYSTEM" screen.
If necessary system is not indicated, check power supply and
ground of system control unit. If it is normal, refer to GI-40,
"CONSULT-II Data Link Connector (DLC) Circuit" .
5. Select the desired part to be diagnosed on the "SELECT DIAG
MODE" screen.
BCIA0029E
BCIA0030E
BCIA0031E
Page 2011 of 2896
GI-40
CONSULT-II CHECKING SYSTEM
Revision: June 20062007 Versa

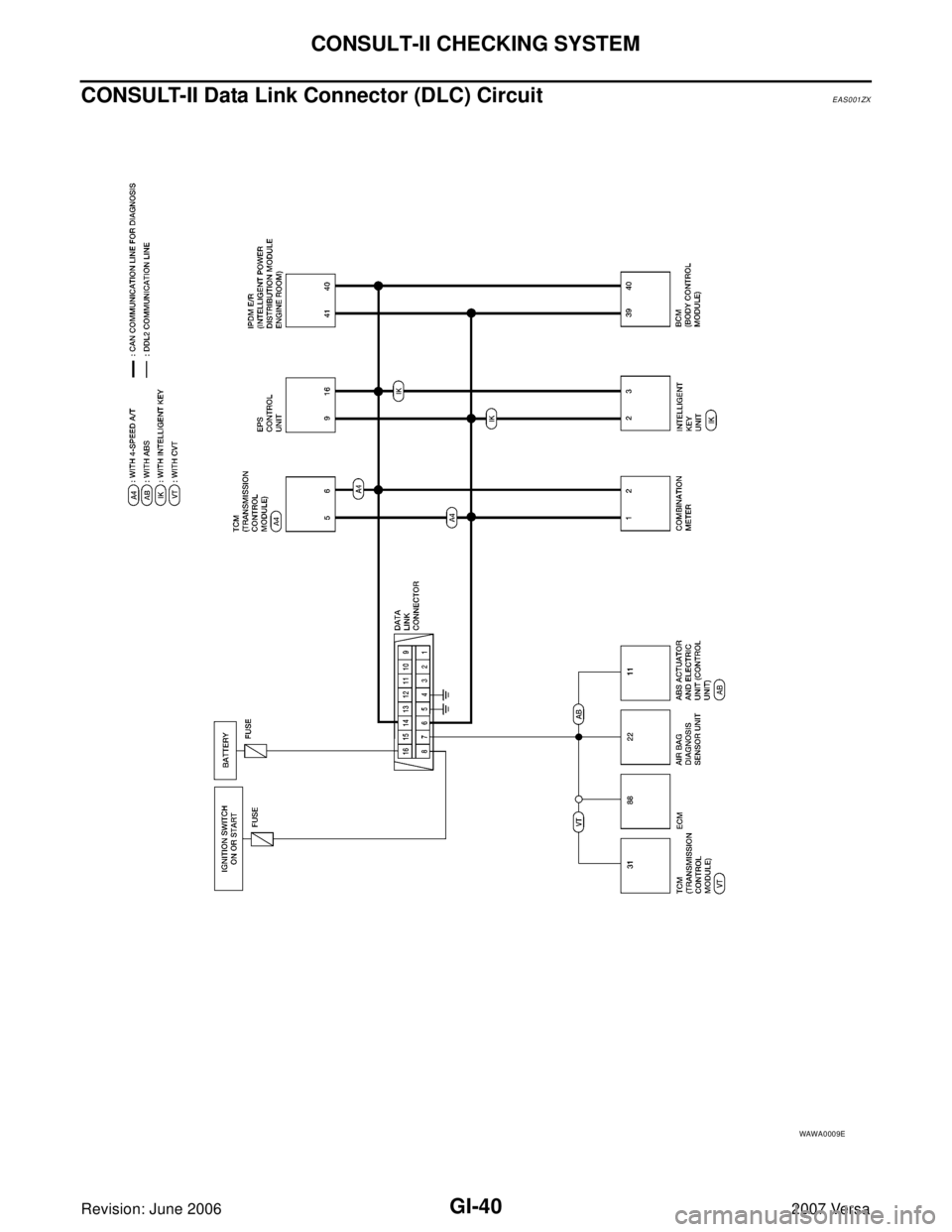

CONSULT-II Data Link Connector (DLC) CircuitEAS001ZX
WAWA0009E
Page 2012 of 2896

CONSULT-II CHECKING SYSTEM
GI-41
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: June 20062007 Versa
INSPECTION PROCEDURE
If the CONSULT-II cannot diagnose the system properly, check the following items.
NOTE:
The DDL1 and DDL2 circuits from DLC pins 6, 7 and 14 may be connected to more than one system. A short
in a DDL circuit connected to a control unit in one system may affect CONSULT-II access to other systems.
Symptom Check item
CONSULT-II cannot access
any system.
CONSULT-II DLC power supply circuit (Terminal 8) and ground circuit (Terminal 4). For detailed cir-
cuit, refer to EC-592, "
MIL AND DATA LINK CONNECTOR" .
CONSULT-II DLC cable and CONSULT-II CONVERTER.
CONSULT-II cannot access
individual system. (Other sys-
tems can be accessed.)
CONSULT-II program card. Check the appropriate CONSULT-II program card for the system.
Refer to GI-38, "
Checking Equipment" .
Power supply and ground circuit for the control unit of the system (For detailed circuit, refer to wir-
ing diagram for each system).
Open or short circuit between the system and CONSULT-II DLC (For detailed circuit, refer to wiring
diagram for each system).
Open or short circuit CAN communication line. Refer to LAN-42, "Precautions When Using CON-
SULT-II" .
Page 2013 of 2896

GI-42
LIFTING POINT
Revision: June 20062007 Versa
LIFTING POINTPFP:00000
Special Service Tools EAS001ZY
CAUTION:
Every time the vehicle is lifted up, maintain the complete vehicle curb condition.
Since the vehicle's center of gravity changes when removing main parts on the front side (engine,
transmission, suspension etc.), support a jack up point on the rear side garage jack with a mission
jack or equivalent.
Since the vehicle's center of gravity changes when removing main parts on the rear side (rear axle,
suspension, etc.), support a jack up point on the front side garage jack with a mission jack or
equivalent.
Be careful not to smash or do not do anything that would affect piping parts.
Garage Jack and Safety Stand and 2-Pole LiftEAS001ZZ
WAR NIN G:
Park the vehicle on a level surface when using the jack. Make sure to avoid damaging pipes,
tubes, etc. under the vehicle.
Never get under the vehicle while it is supported only by the jack. Always use safety stands when
you have to get under the vehicle.
Place wheel chocks at both front and back of the wheels on the ground.
When lifting the vehicle, open the lift arms as wide as possible and ensure that the front and rear
of the vehicle are well balanced.
When setting the lift arm, do not allow the arm to contact the brake tubes, brake cable, fuel lines
and sill spoiler.
Tool number
Tool nameDescription
LM4086-0200
Board on attachment
LM4519-0000
Safety stand attachment
S-NT001
S-NT002
Page 2014 of 2896
LIFTING POINT
GI-43
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: June 20062007 Versa
CAUTION:
There is canister just behind Garage jack point rear. Jack up be carefully.
Board-On Lift EAS00200
CAUTION:
Make sure vehicle is empty when lifting.
The board-on lift attachment (LM4086-0200) set at front end
of vehicle should be set on the front of the sill under the
front door opening.
Position attachments at front and rear ends of board-on lift.
1. Safety stand point and lift up point (front) 2. Safety stand point and lift up point
(rear)3. Garage jack point (front)
4. Garage jack point (rear)
PIIB2498E
AGI016
Page 2015 of 2896

GI-44
TOW TRUCK TOWING
Revision: June 20062007 Versa
TOW TRUCK TOWINGPFP:00000
To w Tr u c k To w i n gEAS00201
CAUTION:
All applicable local laws regarding the towing operation must be obeyed.
It is necessary to use proper towing equipment to avoid possible damage to the vehicle during
towing operation. Towing is in accordance with Towing Procedure Manual at dealer.
Always attach safety chains before towing.
When towing, make sure that the transmission, steering system and power train are in good order.
If any unit is damaged, dollies must be used.
NISSAN recommends that the vehicle be towed with the driving (front) wheels off the ground as illustrated.
TOWING AN AUTOMATIC TRANSAXLE MODEL WITH FOUR WHEELS ON GROUND
CAUTION:
Never tow an automatic transaxle model with four wheels on the ground as this may cause serious
and expensive damage to the transaxle.
Vehicle Recovery (Freeing a Stuck Vehicle)EAS00202
Tow chains or cables must be attached only to the main structural members of the vehicle.
Pulling devices should be routed so they do not touch any part of the suspension, steering, brake or cool-
ing systems.
Always pull the cable straight out from the front or rear of the vehicle. Never pull on the vehicle at an
angle.
Pulling devices such as ropes or canvas straps are not recommended for use in vehicle towing or recov-
ery.
WAR NIN G:
Do not spin the tires at high speed. This could cause them to explode and result in serious injury.
Parts of the vehicle could also overheat and be damaged.
Install removable recovery hook securely using wheel nut wrench.
PIIB6801E
Page 2016 of 2896

TIGHTENING TORQUE OF STANDARD BOLTS
GI-45
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: June 20062007 Versa
TIGHTENING TORQUE OF STANDARD BOLTSPFP:00000
Tightening Torque Table EAS00203
*: Nominal diameter
1.Special parts are excluded.
2.This standard is applicable to bolts having the following marks embossed on the bolt head. Grade Bolt sizeBolt diam-
eter *
mmPitch
mmTightening torque (Without lubricant)
Hexagon head bolt Hexagon flange bolt
N·m kg-m ft-lb in-lb N·m kg-m ft-lb in-lb
4TM6 6.0 1.0 5.1 0.52 3.8 45.1 6.1 0.62 4.5 53.8
M8 8.01.25 13 1.3 9 — 15 1.5 11 —
1.0 13 1.3 9 — 16 1.6 12 —
M10 10.01.5252.518— 293.022—
1.25 25 2.6 19 — 30 3.1 22 —
M12 12.01.75 42 4.3 31 — 51 5.2 38 —
1.25 46 4.7 34 — 56 5.7 41 —
M14 14.0 1.5 74 7.5 54 — 88 9.0 65 —
7TM6 6.0 1.0 8.4 0.86 6.2 74.6 10 1.0 7 87
M8 8.01.25 21 2.1 15 — 25 2.5 18 —
1.0222.216— 262.720—
M10 10.01.5414.230— 484.935—
1.25 43 4.4 32 — 51 5.2 38 —
M12 12.01.75 71 7.2 52 — 84 8.6 62 —
1.25 77 7.9 57 — 92 9.4 68 —
M14 14.0 1.5 127 13.0 94 — 147 15.0 108 —
9TM6 6.0 1.0 12 1.2 9 — 15 1.5 11 —
M8 8.01.25 29 3.0 22 — 35 3.6 26 —
1.0313.223— 373.827—
M10 10.01.5596.043— 707.151—
1.25 62 6.3 46 — 74 7.5 54 —
M12 12.01.75 98 10.0 72 — 118 12.0 87 —
1.25 108 11.0 80 — 137 14.0 101 —
M14 14.0 1.5 177 18.0 130 — 206 21.0 152 —
MGI044A
