Page 569 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual BL-80
INTELLIGENT KEY SYSTEM
Revision: June 20062007 Versa
INTELLIGENT KEY SYSTEMPFP:285e2
Component Parts and Harness Connector LocationEIS0091V
LIIA2591E

Page 570 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual INTELLIGENT KEY SYSTEM
BL-81
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
1. Horn (Low) E18, E20
(view with front fascia removed)2. Horn (High) E21, E22 3. Horn relay H-1
4. Instrument pane

Page 571 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual BL-82
INTELLIGENT KEY SYSTEM
Revision: June 20062007 Versa

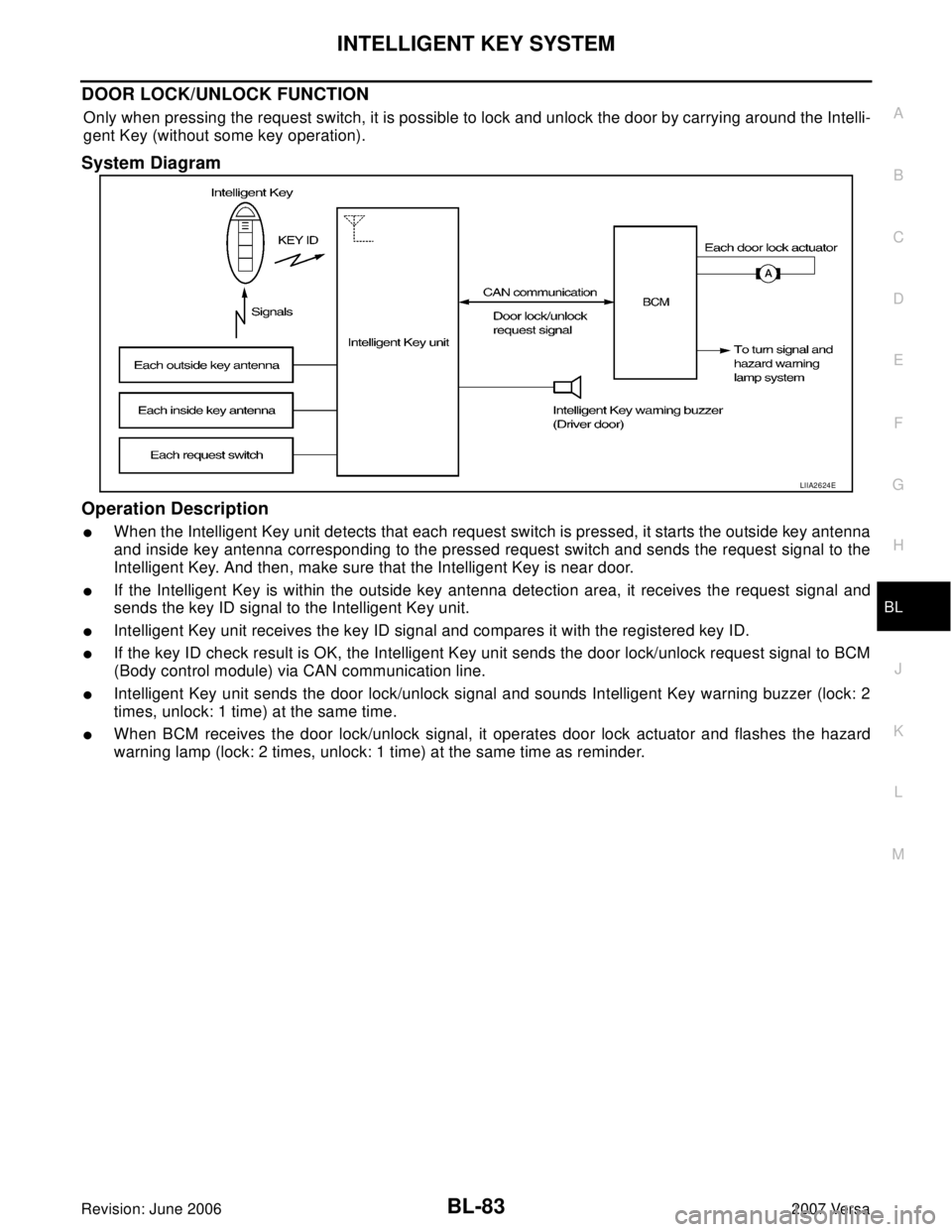

System DescriptionEIS0091W
The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock/
unloc

Page 572 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual INTELLIGENT KEY SYSTEM
BL-83
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa

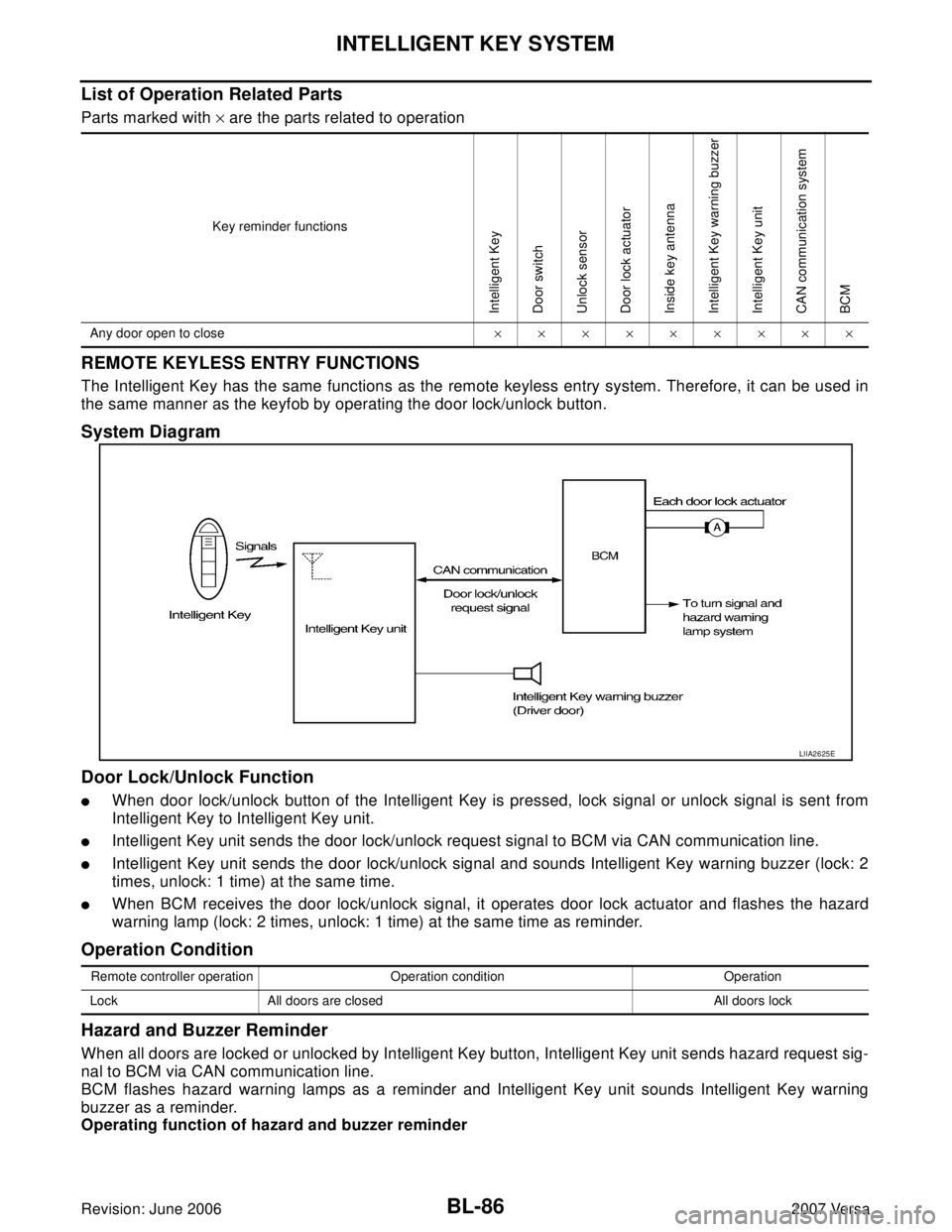

DOOR LOCK/UNLOCK FUNCTION
Only when pressing the request switch, it is possible to lock and unlock the door by carr

Page 573 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual BL-84
INTELLIGENT KEY SYSTEM
Revision: June 20062007 Versa
Operation Condition
If the following conditions are not satisfied, door lock/unlock operations are not performed even if the request
switch i

BL-84
INTELLIGENT KEY SYSTEM
Revision: June 20062007 Versa
Operation Condition
If the following conditions are not satisfied, door lock/unlock operations are not performed even if the request
switch is operated.
*: Even with a registered Intelligent Key remaining inside the vehicle, door locks can be unlocked from outside of the vehicle with a spare
Intelligent Key as long as Key IDs are different.
Outside Key Antenna Detection Area
The outside key antenna detection area of door lock/unlock function is in the range of approximately 80 cm
(31.50 in) surrounding the request switch (driver side, passenger side and back door area).
Hazard and Buzzer Reminder
When all doors are locked or unlocked by each request switch, Intelligent Key unit sends hazard request sig-
nal to BCM via CAN communication line.
BCM flashes hazard warning lamps as a reminder and Intelligent Key unit sounds Intelligent Key warning
buzzer (driver door) as a reminder.
Operating function of hazard and buzzer reminder
Auto Door Lock Function
When all doors are locked, ignition knob switch is OFF (when ignition switch is not pressed) and key switch is
OFF (when mechanical key is out of ignition key cylinder), all doors are unlocked with each request switch.
When Intelligent Key unit does not receive the following signals within 30 seconds, all doors are locked.
Door switch is ON (door is opened)
Door lock signal from Intelligent Key button
Ignition knob switch is ON (ignition switch is pressed)
Key switch is ON (mechanical key is inserted in ignition key cylinder)
Auto door lock mode can be changed by “AUTO RELOCK TIMER” mode in “WORK SUPPORT”. Refer to BL-
11 3 , "WORK SUPPORT" .
Each request switch operation Operation condition Operation
Lock operation
All doors are closed
Intelligent Key is outside of the vehicle
Intelligent Key is within outside key antenna detection areaAll doors lock
Unlock Operation
All doors are closed
Intelligent Key is outside of the vehicle
Intelligent Key is within outside key antenna detection area*All doors unlock
Request switch operation Hazard warning lamp flashIntelligent Key warning buzzer
(driver door)
Unlock Once Once
Lock Twice Twice

Page 574 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual INTELLIGENT KEY SYSTEM
BL-85
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
List of Operation Related Parts
Parts marked with × are the parts related to operation.
KEY REMINDER FUNCTION
Key

Page 575 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual BL-86
INTELLIGENT KEY SYSTEM
Revision: June 20062007 Versa
List of Operation Related Parts
Parts marked with × are the parts related to operation
REMOTE KEYLESS ENTRY FUNCTIONS
The Intelligent Key ha

Page 576 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual INTELLIGENT KEY SYSTEM
BL-87
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
Auto Door Lock Function
When all doors are locked, ignition knob switch is OFF (when ignition switch is not pressed
