Page 305 of 2896

AT-292
REPAIR FOR COMPONENT PARTS
Revision: June 20062007 Versa
ASSEMBLY
1. Install oil pump housing oil seal on oil pump housing.
CAUTION:
Do not reuse oil pump housing oil seal.
Apply ATF to outer surface of oil pump housing oil seal.
2. Install inner gear and outer gear on oil pump housing.
CAUTION:
Be careful with the direction of inner gear.
3. Install oil pump cover on oil pump housing.
a. Wrap masking tape around splines of oil pump cover assembly
to protect seal. Position oil pump cover assembly on oil pump
housing assembly, then remove masking tape.
b. Tighten oil pump cover fitting bolts in the order as shown in the
figure, and then tighten them to the specified torque in the same
order. Refer to AT-289, "
COMPONENTS" .
4. Install seal rings (1) to oil pump assembly (2) carefully after
packing ring groove with petroleum jelly.
CAUTION:
Do not spread gap of seal rings (1) excessively while install-
ing. The seal rings (1) may be deformed.
SCIA5386E
SAT0 9 2D
SAT1 0 1D
SCIA7016E
Page 306 of 2896
REPAIR FOR COMPONENT PARTS
AT-293
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
Control Valve AssemblyUCS005W 5
COMPONENTS
1. Pilot filter 2. Control valve upper body 3. Steel ball
4. Separating plate 5. Control valve inter body 6. Steel ball
7. Support plate 8. Separating plate 9. Control valve lower body
10. Line pressure relief valve spring 11. Check ball 12. Torque converter pressure holding
spring
13. Solenoid valve assembly 14. Terminal body 15. O-ring
16. O-ring 17. O-ring 18. Oil strainer
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-10, "
Components" .
SCIA5967J
Page 307 of 2896
AT-294
REPAIR FOR COMPONENT PARTS
Revision: June 20062007 Versa
DISASSEMBLY
Place control valve assembly with control valve upper body (1) side
down. Remove bolts (A) to (G), reamer bolts (F), nuts and support
plates (4) according to the following procedures. Separate control
valve upper body (1), control valve inter body (2) and control valve
lower body (3).
Bolt length, number and location:
*: Reamer bolt and nut.
1. Remove bolts (A), (D), reamer bolt (F) and nut , and remove oil
strainer (1) from control valve assembly.
2. Remove bolts (A), (C) and (G), and then remove solenoid valve
assembly (1) from control valve assembly.
SCIA7058E
Bolt symbol A B C D E F*G
Bolt length “ ” [mm (in)]
13.5
(0.531)58.0
(2.283) 40.0
(1.575)66.0
(2.598)33.0
(1.299)78.0
(3.071)18.0
(0.709)
Number of bolts 63611221
SCIA7007E
SCIA7008E
Page 308 of 2896

REPAIR FOR COMPONENT PARTS
AT-295
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa

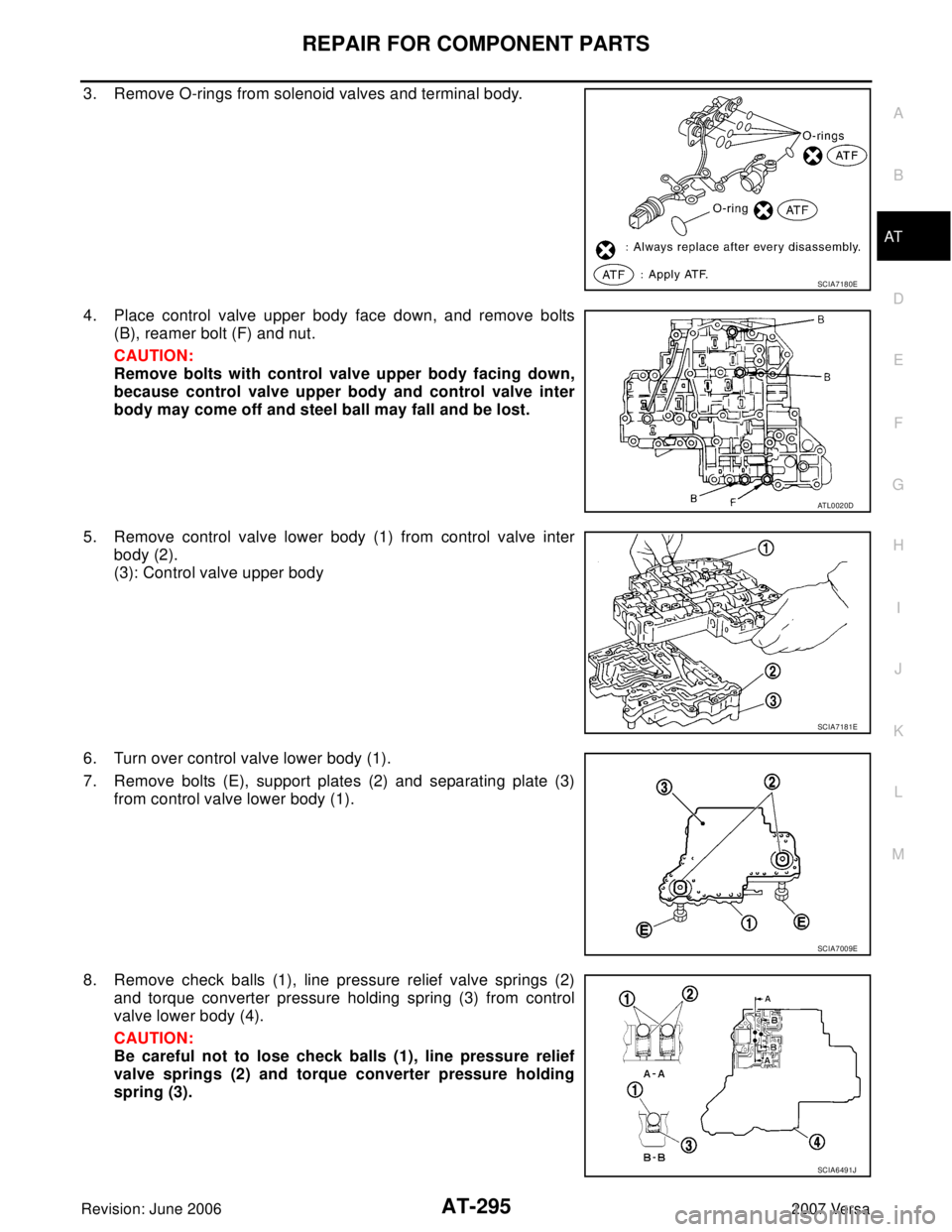

3. Remove O-rings from solenoid valves and terminal body.
4. Place control valve upper body face down, and remove bolts
(B), reamer bolt (F) and nut.
CAUTION:
Remove bolts with control valve upper body facing down,
because control valve upper body and control valve inter
body may come off and steel ball may fall and be lost.
5. Remove control valve lower body (1) from control valve inter
body (2).
(3): Control valve upper body
6. Turn over control valve lower body (1).
7. Remove bolts (E), support plates (2) and separating plate (3)
from control valve lower body (1).
8. Remove check balls (1), line pressure relief valve springs (2)
and torque converter pressure holding spring (3) from control
valve lower body (4).
CAUTION:
Be careful not to lose check balls (1), line pressure relief
valve springs (2) and torque converter pressure holding
spring (3).
SCIA7180E
ATL0020D
SCIA7181E
SCIA7009E
SCIA6491J
Page 309 of 2896
AT-296
REPAIR FOR COMPONENT PARTS
Revision: June 20062007 Versa
9. Remove control valve inter body from control valve upper body.
10. Remove pilot filter (1) from control valve upper body (2).
11. Remove separating plate from control valve upper body (2).
12. Check to see that steel balls are properly positioned in control
valve inter body and then remove them.
CAUTION:
Be careful not to lose steel balls.
13. Check to see that steel balls are properly positioned in control
valve upper body and then remove them.
CAUTION:
Be careful not to lose steel balls.
SCIA4977E
SCIA7 011 E
SAT8 7 0J
SAT8 7 1J
Page 310 of 2896

REPAIR FOR COMPONENT PARTS
AT-297
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa

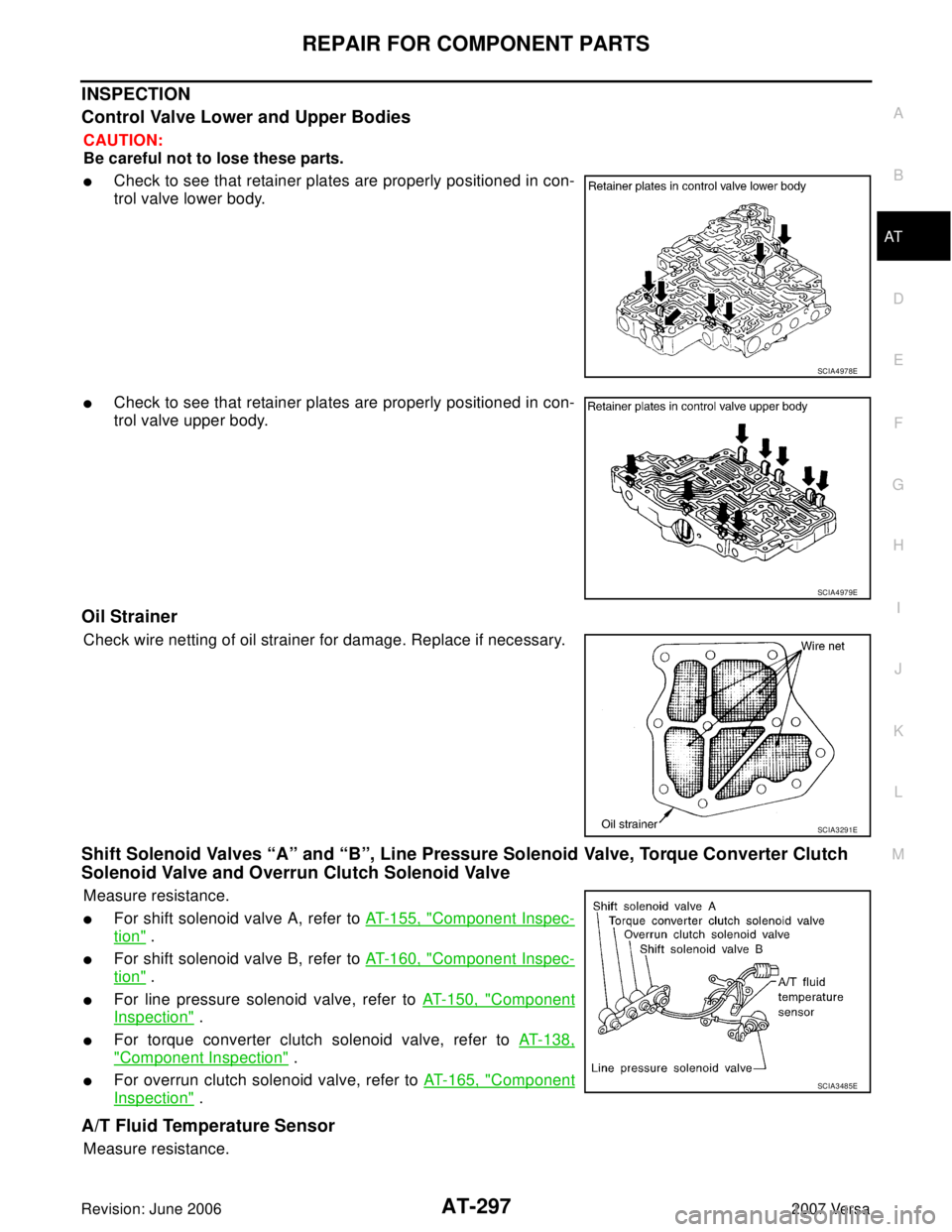

INSPECTION
Control Valve Lower and Upper Bodies
CAUTION:
Be careful not to lose these parts.
Check to see that retainer plates are properly positioned in con-
trol valve lower body.
Check to see that retainer plates are properly positioned in con-
trol valve upper body.
Oil Strainer
Check wire netting of oil strainer for damage. Replace if necessary.
Shift Solenoid Valves “A” and “B”, Line Pressure Solenoid Valve, Torque Converter Clutch
Solenoid Valve and Overrun Clutch Solenoid Valve
Measure resistance.
For shift solenoid valve A, refer to AT-155, "Component Inspec-
tion" .
For shift solenoid valve B, refer to AT-160, "Component Inspec-
tion" .
For line pressure solenoid valve, refer to AT-150, "Component
Inspection" .
For torque converter clutch solenoid valve, refer to AT-138,
"Component Inspection" .
For overrun clutch solenoid valve, refer to AT-165, "Component
Inspection" .
A/T Fluid Temperature Sensor
Measure resistance.
SCIA4978E
SCIA4979E
SCIA3291E
SCIA3485E
Page 311 of 2896
AT-298
REPAIR FOR COMPONENT PARTS
Revision: June 20062007 Versa
For A/T fluid temperature sensor, refer to AT-175, "Component
Inspection" .
Line Pressure Relief Valve Springs and Torque Converter Pressure Holding Spring
Check each spring for damage or deformation. Also measure
free length and outer diameter. Refer to AT-380, "
Control
Va l v e s" .
Replace springs if deformed or fatigued.
ASSEMBLY
1. Install control valve upper, inter and lower body.
a. Place oil circuit of control valve upper body face up. Install steel
balls in their proper positions.
b. Install reamer bolts (F) from bottom of control valve upper body
(1). Using reamer bolts (F) as guides, install separating plate (2)
as a set.
SCIA7533E
SAT1 3 8D
SAT8 7 1J
SCIA7010E
Page 312 of 2896
REPAIR FOR COMPONENT PARTS
AT-299
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
c. Install pilot filter (1) on control valve upper body (2).
d. Place control valve inter body as shown in figure (side of control
valve lower body face up). Install steel balls in their proper posi-
tions.
e. Install control valve inter body (1) on control valve upper body
(2) using reamer bolts (F) as guides.
CAUTION:
Be careful not to dislocate or drop steel balls.
f. Install check balls (1), line pressure relief valve springs (2) and
torque converter pressure holding spring (3) in their proper posi-
tions in control valve lower body (4).
g. Install bolts (E) from bottom of control valve lower body (1).
Using bolts (E) as guides, install separating plate (2) as a set.
h. Install support plates (3) on control valve lower body (1).
SCIA7 011 E
SAT8 7 0J
SCIA7012E
SCIA6491J
SCIA7013E
