NISSAN VERSA 2006 Workshop Service Repair Manual AT-172
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
Revision: June 20062007 Versa
TCM terminal data are reference values, measured between each terminal and ground.
D

Page 186 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
AT-173
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
2. DETECT MALFUNCTIONING ITEM
Check the following items:
H

Page 187 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual AT-174
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
Revision: June 20062007 Versa
5. CHECK FLUID TEMPERATURE SENSOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconne

Page 188 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
AT-175
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa

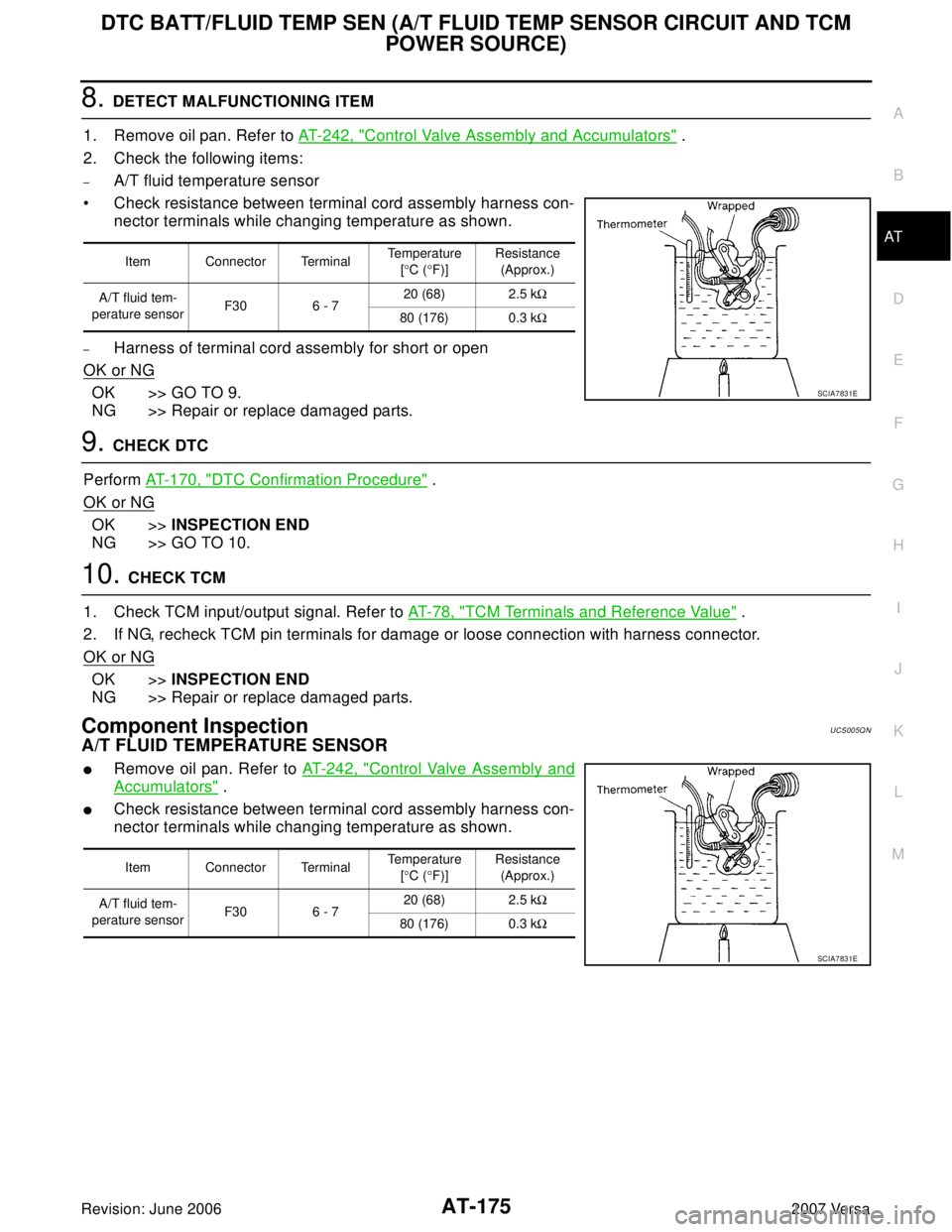

8. DETECT MALFUNCTIONING ITEM
1. Remove oil pan. Refer to A

Page 189 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual AT-176
DTC TURBINE REVOLUTION SENSOR
Revision: June 20062007 Versa
DTC TURBINE REVOLUTION SENSORPFP:31935
DescriptionUCS005QO
The turbine revolution sensor (power train revolution sensor) detects forw

AT-176
DTC TURBINE REVOLUTION SENSOR
Revision: June 20062007 Versa
DTC TURBINE REVOLUTION SENSORPFP:31935
DescriptionUCS005QO
The turbine revolution sensor (power train revolution sensor) detects forward clutch drum rpm (revolutions per
minute). It is located on the input side of the automatic transaxle. The vehicle speed sensor A/T (Revolution
sensor) is located on the output side of the automatic transaxle. With the two sensors, input and output rpms
are accurately detected. As a result, optimal shift timing during deceleration and shift quality can be improved.
CONSULT-II Reference ValueUCS005QP
Remarks: Specification data are reference values.
On Board Diagnosis LogicUCS005QQ
This is not an OBD-II self-diagnostic item.

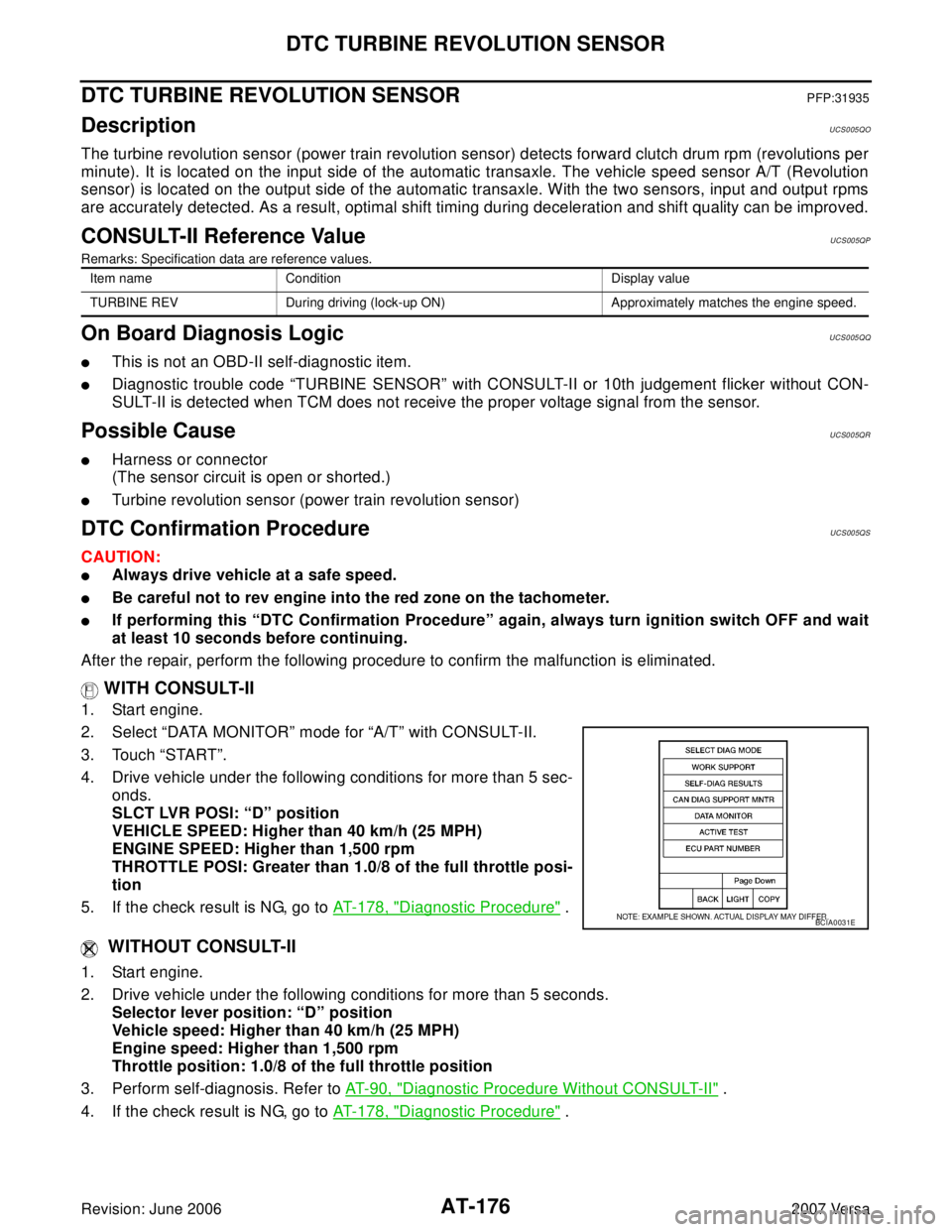

Diagnostic trouble code “TURBINE SENSOR” with CONSULT-II or 10th judgement flicker without CON-
SULT-II is detected when TCM does not receive the proper voltage signal from the sensor.
Possible CauseUCS005QR
Harness or connector
(The sensor circuit is open or shorted.)
Turbine revolution sensor (power train revolution sensor)
DTC Confirmation ProcedureUCS005QS
CAUTION:
Always drive vehicle at a safe speed.
Be careful not to rev engine into the red zone on the tachometer.
If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II

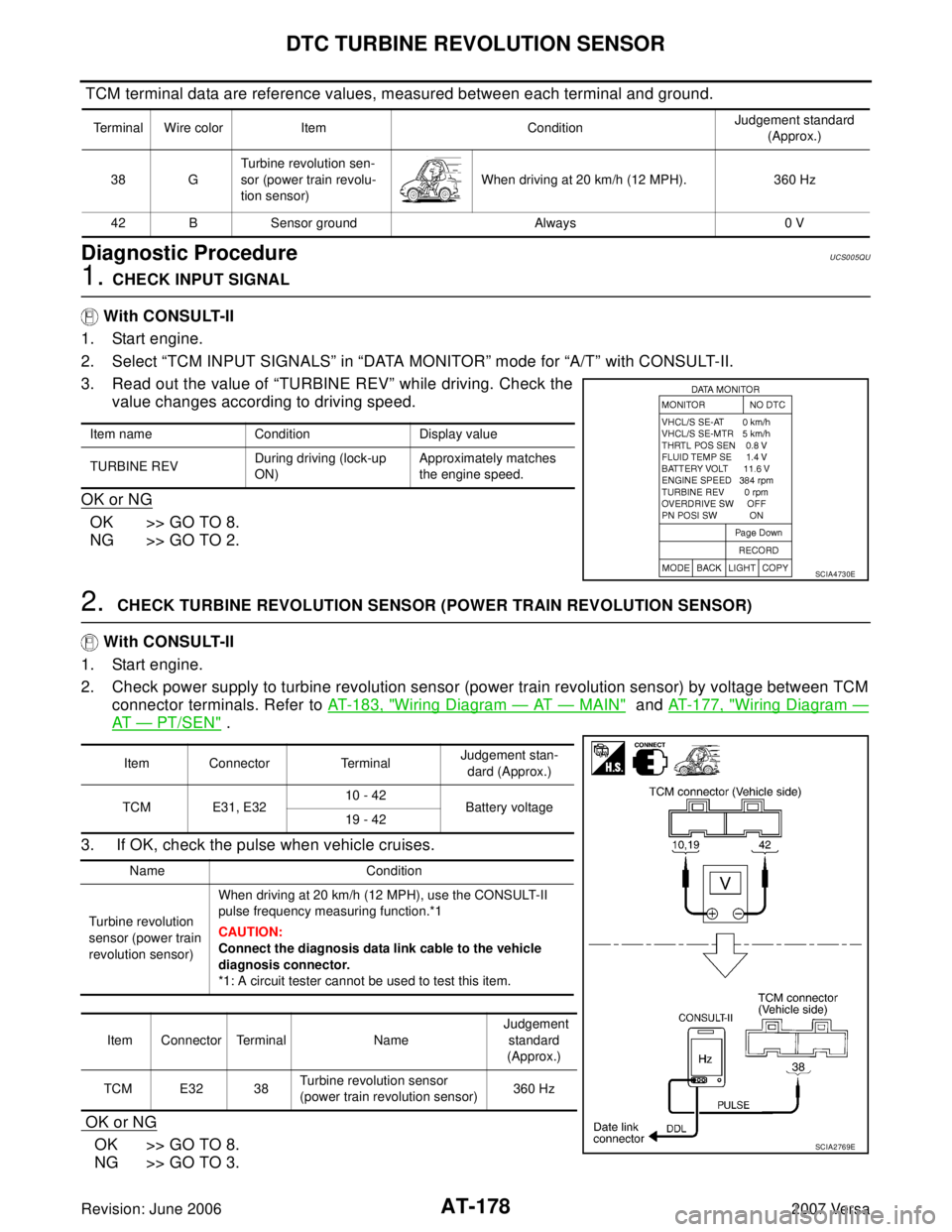

1. Start engine.
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Touch “START”.
4. Drive vehicle under the following conditions for more than 5 sec-
onds.
SLCT LVR POSI: “D” position
VEHICLE SPEED: Higher than 40 km/h (25 MPH)
ENGINE SPEED: Higher than 1,500 rpm
THROTTLE POSI: Greater than 1.0/8 of the full throttle posi-
tion
5. If the check result is NG, go to AT-178, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine.
2. Drive vehicle under the following conditions for more than 5 seconds.
Selector lever position: “D” position
Vehicle speed: Higher than 40 km/h (25 MPH)
Engine speed: Higher than 1,500 rpm
Throttle position: 1.0/8 of the full throttle position
3. Perform self-diagnosis. Refer to AT-90, "
Diagnostic Procedure Without CONSULT-II" .
4. If the check result is NG, go to AT-178, "
Diagnostic Procedure" .
Item name Condition Display value
TURBINE REV During driving (lock-up ON) Approximately matches the engine speed.
BCIA0031E

Page 190 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual DTC TURBINE REVOLUTION SENSOR
AT-177
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
Wiring Diagram — AT — PT/SENUCS005QT
BCWA0660E

Page 191 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual AT-178
DTC TURBINE REVOLUTION SENSOR
Revision: June 20062007 Versa
TCM terminal data are reference values, measured between each terminal and ground.
Diagnostic ProcedureUCS005QU

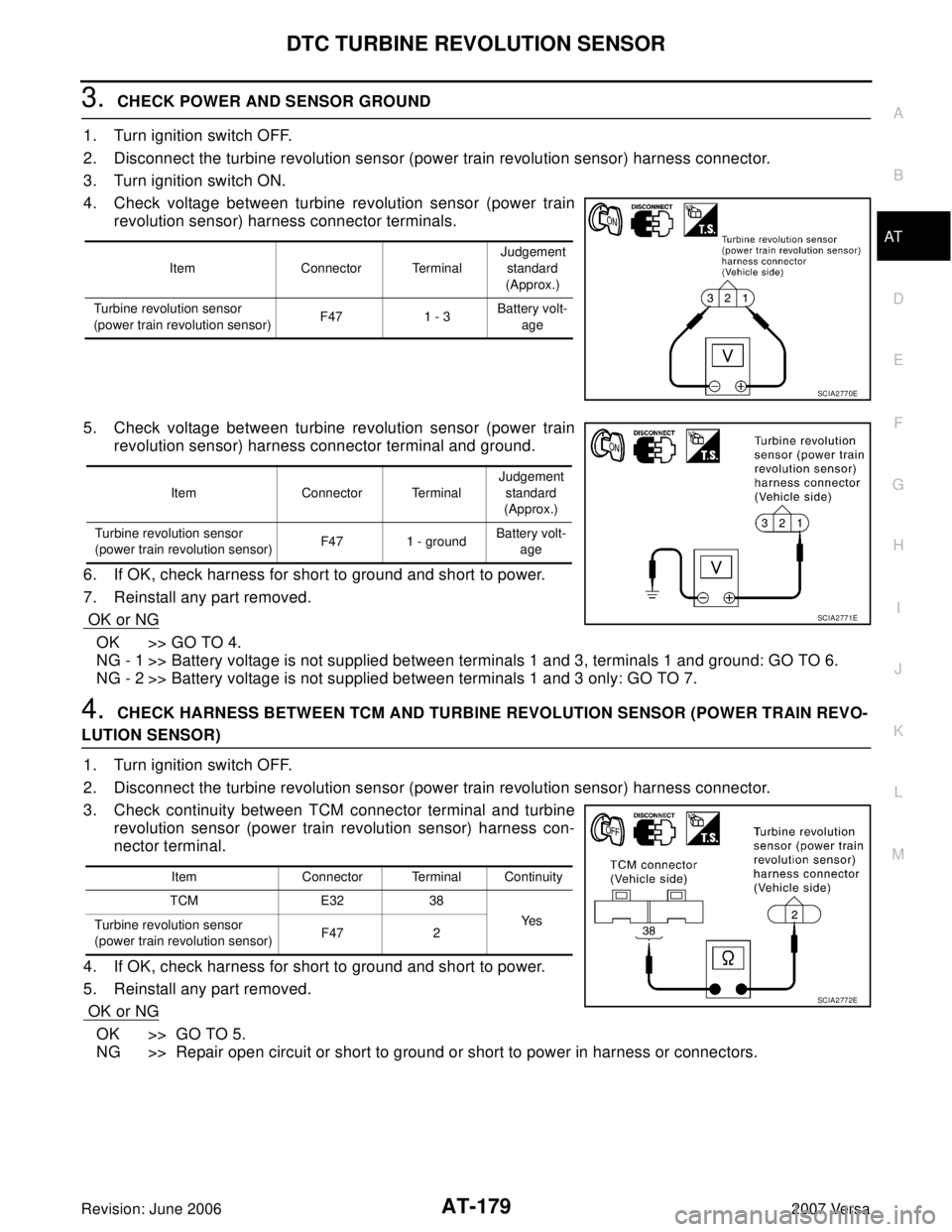

1. CHECK INPUT SIGNA

Page 192 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual DTC TURBINE REVOLUTION SENSOR
AT-179
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
3. CHECK POWER AND SENSOR GROUND
1. Turn ignition switch OFF.
2. Disconnect the turbine revolution sensor
