Page 2073 of 2896

GW-48
REAR DOOR GLASS AND REGULATOR
Revision: June 20062007 Versa
5. Pull out the partition glass in the direction as shown.
6. If equipped, operate the power window switch to raise/lower the
door window until the glass bolts can be seen.
NOTE:
Connect the harness connector to the power window switch.
7. Remove the rear door glass bolts.
8. Pull out the rear door glass toward the outside of the door to
remove.
9. Remove the door glass run from the door panel.
Installation
Installation is in the reverse order of removal.
REGULATOR ASSEMBLY
Removal
1. Remove and position aside the rear door finisher. Refer to EI-29, "REAR DOOR" .
2. Disconnect the harness connector of rear speaker.
3. Position aside the sealing screen.
NOTE:
If the sealing screen is reused, cut the butyl-tape so that a part of butyl-tape remains on the sealing screen.
4. If equipped, operate the power window switch to raise/lower the
door window until the glass bolts can be seen.
NOTE:
Connect the harness connector to the power window switch.
5. Remove the rear door glass bolts.
6. Raise up the door glass and hold with a suction lifter A.
PIIB2636J
PIIB2637J
PIIB2637J
PIIB3511J
Page 2074 of 2896

REAR DOOR GLASS AND REGULATOR
GW-49
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: June 20062007 Versa
7. Remove the regulator bolts, and then remove the regulator
assembly from the door panel.
Installation
Installation is in the reverse order of removal.
Inspection after Removal
Check the regulator assembly for the following. [If a problem is
detected, grease or replace it as shown].
Gear wear
Regulator deformation
Grease condition for each sliding part
Disassembly and AssemblyEIS00953
POWER WINDOW REGULATOR ASSEMBLY
Disassembly
Remove the power window motor from the regulator assembly.
Assembly
Assembly is in the reverse order of disassembly.
Inspection after InstallationEIS00954
FITTING INSPECTION
Make sure the glass is securely fit into the glass run groove.
Lower the glass slightly [approx. 10 to 20 mm (0.39 to 0.79 in)], and make sure the clearance to the sash
is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator bolts, guide rail
bolts, and glass and carrier plate bolts to correct the glass position.
PIIB6315E
SIIA1787J
Page 2075 of 2896

GW-50
REAR WINDOW DEFOGGER
Revision: June 20062007 Versa
REAR WINDOW DEFOGGERPFP:25350
Component Parts and Harness Connector LocationEIS009CK
System DescriptionEIS0 09 CL
The rear window defogger system is controlled by BCM (body control module) and IPDM E/R (intelligent
power distribution module engine room).
The rear window defogger only operates for approximately 15 minutes.
Power is supplied at all times
through 15A fuses (No. 46 and 47, located in the IPDM E/R)
to rear window defogger relay
through 10A fuse [No. 5 (with heated mirrors), located in the fuse block (J/B)]
to heated mirror relay terminal 3
through 40A fusible link (letter g , located in the fuse and fusible link box)
to BCM terminal 70.
With the ignition switch turned to ON or START position, power is supplied
through ignition relay
to rear window defogger relay (located in the IPDM E/R)
through 10A fuse [No. 6, located in the fuse block (J/B)]
to BCM terminal 38.
Ground is supplied
to BCM terminal 67 and
1. BCM M18, M20 (view with glove box
removed)2. Front air control M33 3. A. Rear window defogger ground
connector D413
B. Rear window defogger connector
D412
C. Condenser D409, D411
4. IPDM E/R E46, E48 5. Door mirror LH D4, RH D107 (with
heated mirrors)6. Heated mirror relay M48 (with
heated mirrors)
LIIA2642E
Page 2076 of 2896

REAR WINDOW DEFOGGER
GW-51
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: June 20062007 Versa
to front air control terminal 8
through body grounds M57 and M61
to IPDM E/R terminals 39 and 59
through body grounds E15 and E24.
When front air control (rear window defogger switch) is turned to ON, ground is supplied
to BCM terminal 9
through front air control terminal 3
through front air control terminal 8
through body grounds M57 and M61.
Then rear window defogger switch is illuminated.
Then BCM recognizes that rear window defogger switch is turned to ON.
Then it sends rear window defogger switch signals to IPDM E/R via CAN communication (CAN-H, CAN-L).
When IPDM E/R receives rear window defogger switch signals, ground is supplied
to rear window defogger relay (located in the IPDM E/R)
through IPDM E/R terminals 39 and 59
through body grounds E15 and E24
Then rear window defogger relay is energized.
With power and ground supplied, rear window defogger filaments heat and defog the rear window.
When rear window defogger relay is turned to ON (with heated mirrors), power is supplied
through heated mirror relay terminal 5
to door mirror (LH and RH) terminal 1.
Door mirror (LH and RH) is grounded through body grounds M57 and M61.
With power and ground supplied, rear window defogger filaments heat and defog the rear window and door
mirror filaments heat and defog the mirrors.
CAN Communication System DescriptionEIS009CM
Refer to LAN-4, "SYSTEM DESCRIPTION" .
Page 2077 of 2896
GW-52
REAR WINDOW DEFOGGER
Revision: June 20062007 Versa

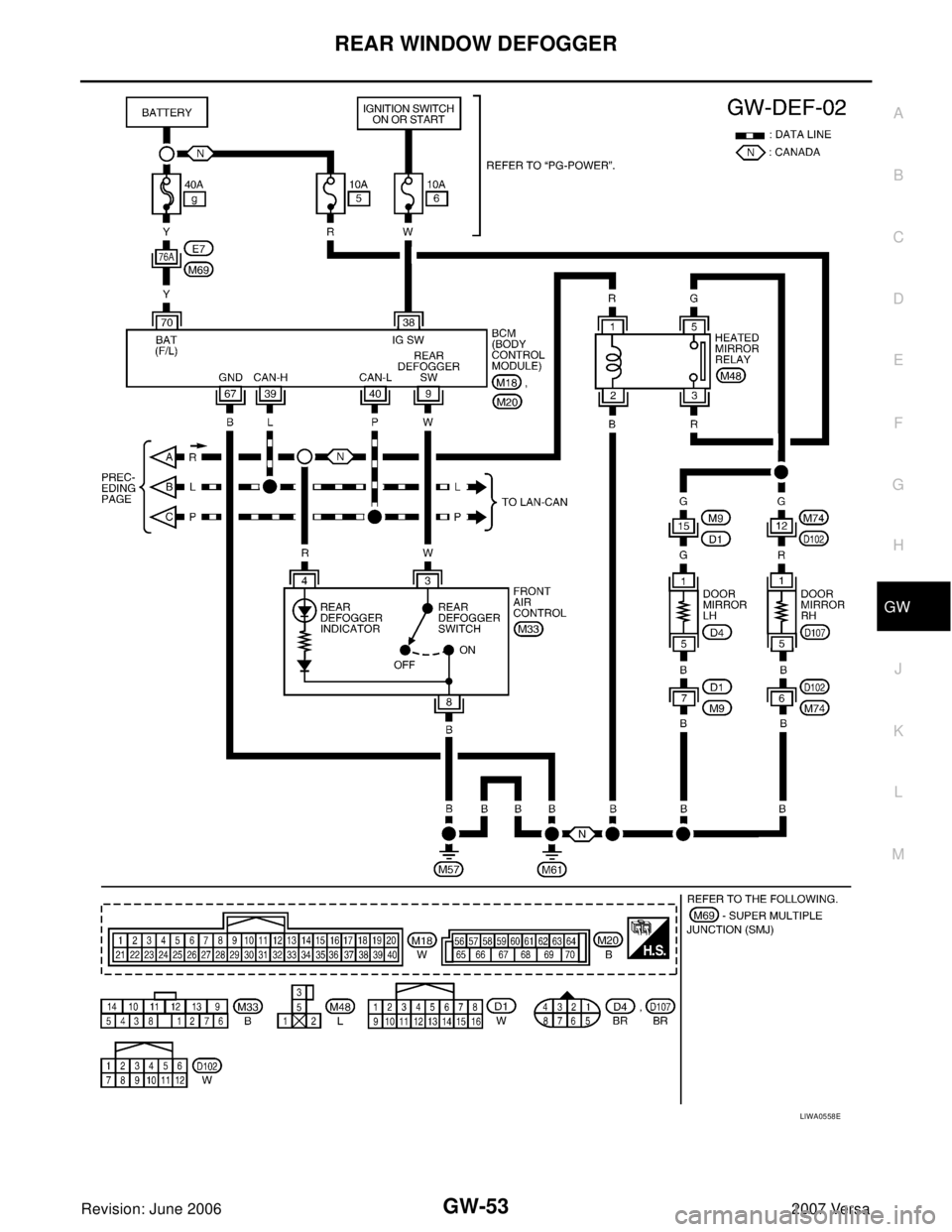

Wiring Diagram — DEF —EIS009CO
LIWA0557E
Page 2078 of 2896
REAR WINDOW DEFOGGER
GW-53
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: June 20062007 Versa
LIWA0558E
Page 2079 of 2896
GW-54
REAR WINDOW DEFOGGER
Revision: June 20062007 Versa
Terminals and Reference Value for BCMEIS009CP
Refer to BCS-12, "Terminals and Reference Values for BCM" .
Terminals and Reference Value for IPDM E/REIS009CQ
Refer to PG-25, "Terminals and Reference Values for IPDM E/R" .
Work FlowEIS009CR
1. Check the symptom and customer's requests.
2. Understand the outline of system. Refer to GW-50, "
System Description" .
3. According to the trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to GW-55,
"Trouble Diagnoses Symptom Chart" .
4. Does rear window defogger operate normally? YES: GO TO 5, NO: GO TO 3.
5. Inspection End.
Page 2080 of 2896

REAR WINDOW DEFOGGER
GW-55
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: June 20062007 Versa
CONSULT-II Function (BCM)EIS009CS
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II START PROCEDURE
Refer to GI-38, "CONSULT-II Start Procedure" .
DATA MONITOR
Display Item List
ACTIVE TEST
Display Item List
Trouble Diagnoses Symptom ChartEIS0 09 CT
Make sure other systems using the signal of the following systems operate normally.
BCM diagnostic
test itemDiagnostic mode Content
Inspection by partWORK SUPPORTSupports inspections and adjustments. Commands are transmitted to the BCM
for setting the status suitable for required operation, input/output signals are
received from the BCM and received data is displayed.
DATA MONITOR Displays BCM input/output data in real time.
ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT
MNTRThe results of transmit/receive diagnosis of CAN communication can be read.
ECU PART NUMBER BCM part number can be read.
CONFIGURATION Performs BCM configuration read/write functions.
Monitor item “Operation” Content
REAR DEF SW “ON/OFF” Indicates (ON/OFF) condition of the rear window defogger switch.
IGN ON SW “ON/OFF” Indicates (ON/OFF) condition of the ignition switch signal.
Test item Content
REAR WINDOW DEFOGGER Gives a drive signal to the rear window defogger to activate it.
Symptom Diagnoses / Service procedure Refer to page
Rear window defogger and door mirror defoggers do not
operate. (With heated mirrors)1. BCM power supply and ground circuit checkBCS-16
2. IPDM E/R auto active test checkPG-21
3. Rear window defogger switch circuit checkGW-56
4. Replace IPDM E/RPG-29
Rear window defogger does not operate.
(Without heated mirrors)1. BCM power supply and ground circuit checkBCS-16
2. IPDM E/R auto active test checkPG-21
3. Rear window defogger switch circuit checkGW-56
4. Rear window defogger circuit checkGW-57
5. Filament checkGW-61
7. Replace IPDM E/RPG-29
Rear window defogger does not operate but both door mir-
ror defoggers operate. (With heated mirrors)1. Rear window defogger circuit checkGW-57
2. Filament checkGW-61
Door mirror defoggers do not operate but rear window
defogger operates. (With heated mirrors)1. Door mirror defogger circuit checkGW-60
Rear window defogger switch does not light, but rear win-
dow defogger operates.1. Replace front air controlMTC-61
