Page 1761 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual EC-592Revision: June 2006
MIL AND DATA LINK CONNECTOR
2007 Versa
MIL AND DATA LINK CONNECTORPFP:24814

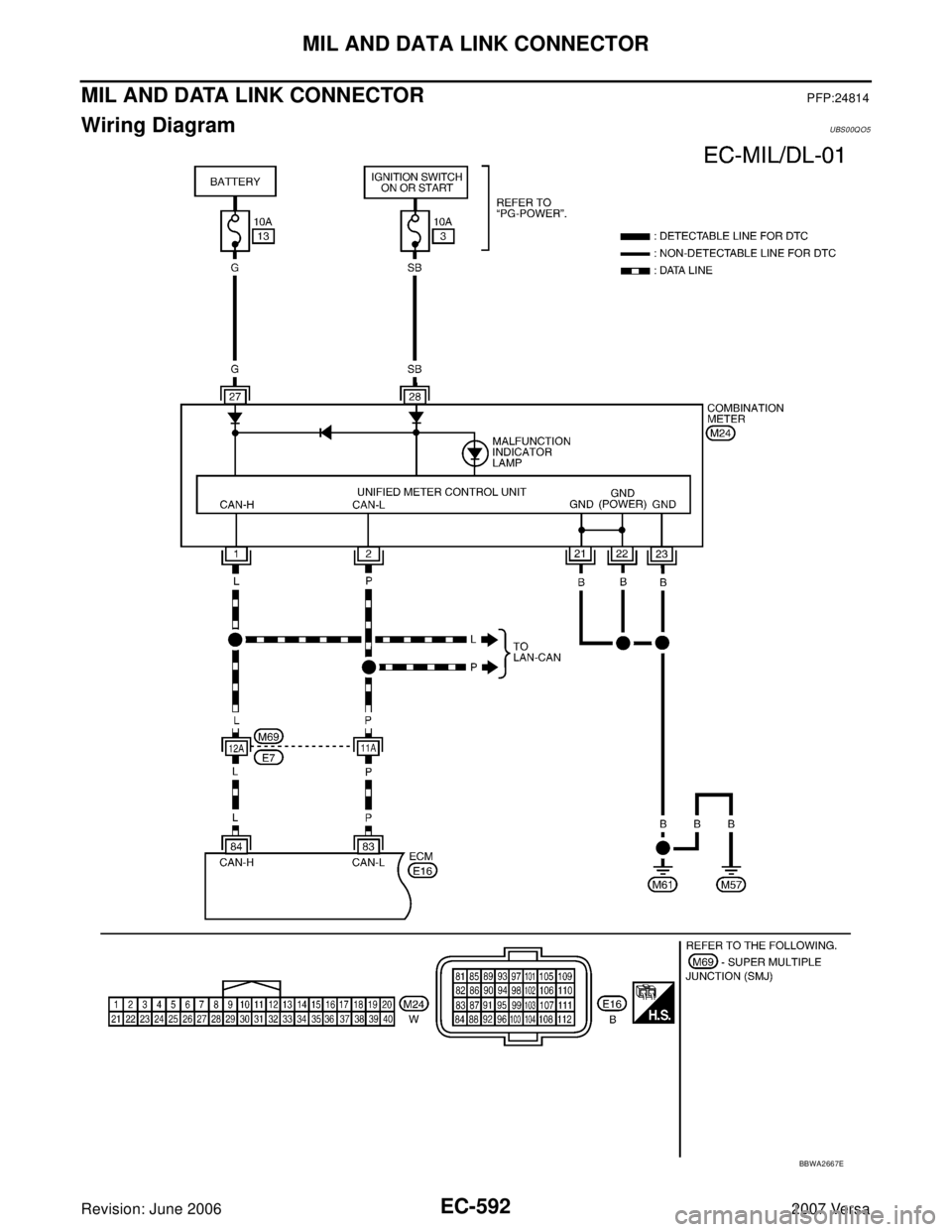

Wiring DiagramUBS00QO5
BBWA2667E

Page 1762 of 2896

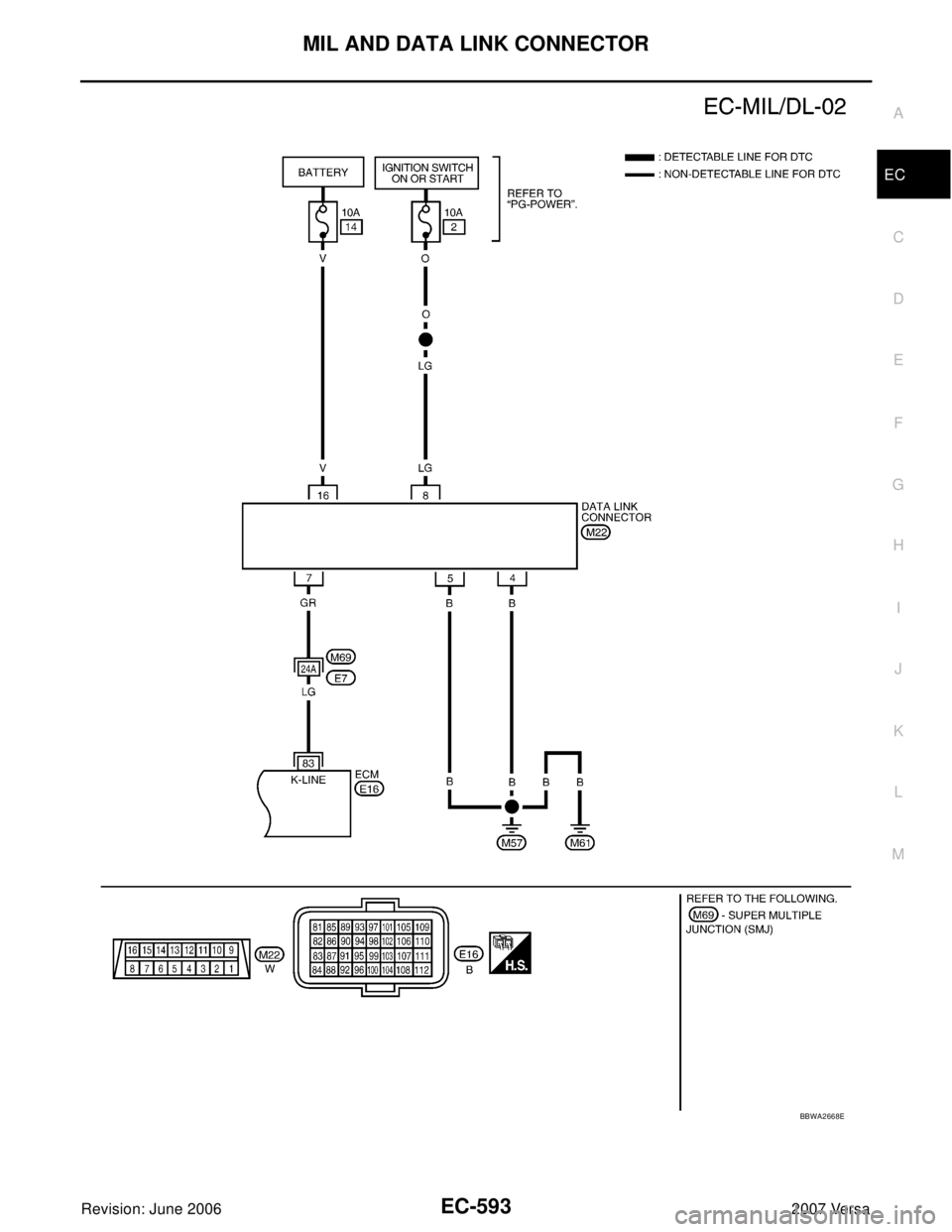

NISSAN VERSA 2006 Workshop Service Repair Manual MIL AND DATA LINK CONNECTOR
EC-593
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
BBWA2668E

Page 1763 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual EC-594Revision: June 2006
SERVICE DATA AND SPECIFICATIONS (SDS)
2007 Versa
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Fuel PressureUBS00PUA
Idle Speed and Ignition TimingUBS00PUB
*: Under the foll

Page 1764 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
EC-595
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
Camshaft Position Sensor (PHASE)UBS00PUJ
Refer to EC-333, "Component Inspection" .
Throttle Control

Page 1765 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual EC-596Revision: June 2006
SERVICE DATA AND SPECIFICATIONS (SDS)
2007 Versa

Page 1766 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual EI-1
EXTERIOR & INTERIOR
I BODY
CONTENTS
C
D
E
F
G
H
J
K
L
M
SECTION EI
A
B
EI
Revision: June 20062007 Versa PRECAUTIONS .......................................................... 3
Precautions for S

EI-1
EXTERIOR & INTERIOR
I BODY
CONTENTS
C
D
E
F
G
H
J
K
L
M
SECTION EI
A
B
EI
Revision: June 20062007 Versa PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Precautions .............................................................. 3
PREPARATION ........................................................... 4
Special Service Tools ............................................... 4
Commercial Service Tools ........................................ 4
SQUEAK AND RATTLE TROUBLE DIAGNOSIS ...... 5
Work Flow ................................................................ 5
CUSTOMER INTERVIEW ..................................... 5
DUPLICATE THE NOISE AND TEST DRIVE ....... 6
CHECK RELATED SERVICE BULLETINS ........... 6
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE ...................................................... 6
REPAIR THE CAUSE ........................................... 6
CONFIRM THE REPAIR ....................................... 7
Generic Squeak and Rattle Troubleshooting ........... 7
INSTRUMENT PANEL .......................................... 7
CENTER CONSOLE ............................................. 7
DOORS ................................................................. 7
TRUNK .................................................................. 8
SUNROOF/HEADLINING ..................................... 8
OVERHEAD CONSOLE (FRONT AND REAR) ..... 8
SEATS ................................................................... 8
UNDERHOOD ....................................................... 8
Diagnostic Worksheet .............................................. 9
CLIP AND FASTENER ..............................................11
Description ..............................................................11
FRONT BUMPER ..................................................... 14
Removal and Installation ........................................ 14
REMOVAL ........................................................... 15
INSTALLATION ................................................... 16
REAR BUMPER ....................................................... 17
Removal and Installation ........................................ 17
REMOVAL ........................................................... 18
INSTALLATION ................................................... 18FRONT GRILLE ........................................................ 19
Removal and Installation ........................................ 19
REMOVAL ........................................................... 19
INSTALLATION ................................................... 19
COWL TOP ............................................................... 20
Removal and Installation ........................................ 20
REMOVAL ........................................................... 20
INSTALLATION ................................................... 21
FENDER PROTECTOR ............................................ 22
Components ........................................................... 22
Removal and Installation ........................................ 22
FRONT FENDER PROTECTOR ......................... 22
REAR FENDER PROTECTOR ........................... 22
ROOF SIDE MOLDING ............................................. 23
Removal and Installation ........................................ 23
REMOVAL ........................................................... 23
INSTALLATION ................................................... 23
DOOR OUTSIDE MOLDING ..................................... 24
Components ........................................................... 24
Removal and Installation ........................................ 24
FRONT DOOR OUTSIDE MOLDING .................. 24
REAR DOOR OUTSIDE MOLDING .................... 25
REAR DOOR CORNER COVER ........................ 25
CENTER MUD GUARD ............................................ 26
Removal and Installation ........................................ 26
REMOVAL ........................................................... 26
INSTALLATION ................................................... 26
DOOR FINISHER ...................................................... 27
Removal and Installation ........................................ 27
FRONT DOOR .................................................... 27
REAR DOOR ....................................................... 29
BACK DOOR TRIM ................................................... 31
Removal and Installation ........................................ 31
REMOVAL ........................................................... 31
INSTALLATION ................................................... 31

Page 1767 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual EI-2Revision: June 20062007 Versa BODY SIDE TRIM ..................................................... 32
Removal and Installation ........................................ 32
FRONT PILLAR GARNISH .

Page 1768 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual PRECAUTIONS
EI-3
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: June 20062007 Versa
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EIS00

PRECAUTIONS
EI-3
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: June 20062007 Versa
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EIS009A6
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WA RN ING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
PrecautionsEIS009A7
When removing or disassembling any part, be careful not to damage or deform it. Protect parts which may
get in the way with cloth.
When removing parts with a screwdriver or other tool, protect parts by wrapping them with vinyl or tape.
Keep removed parts protected with cloth.
If a clip is deformed or damaged, replace it.
If an unreusable part is removed, replace it with a new one.
Tighten bolts and nuts firmly to the specified torque.
After re-assembly has been completed, make sure each part functions correctly.
Remove stains in the following way.
–Water-soluble stains:
Dip a cloth in warm water, and squeeze tightly. After wiping the stain, wipe with a soft dry cloth.
–Oil stain:
Dissolve a synthetic detergent in warm water (density of 2 to 3% or less), dip the cloth, then clean off the
stain with the cloth. Next, dip the soft cloth in fresh water, and then squeeze it tightly. Then clean off the
detergent completely. Then wipe the area with a soft dry cloth.
Do not use any organic solvent, such as thinner or benzine.
When performing procedures that require removal of the cowl
top, cover the lower end of the windshield with a suitable protec-
tion material.
PIIB3706J
