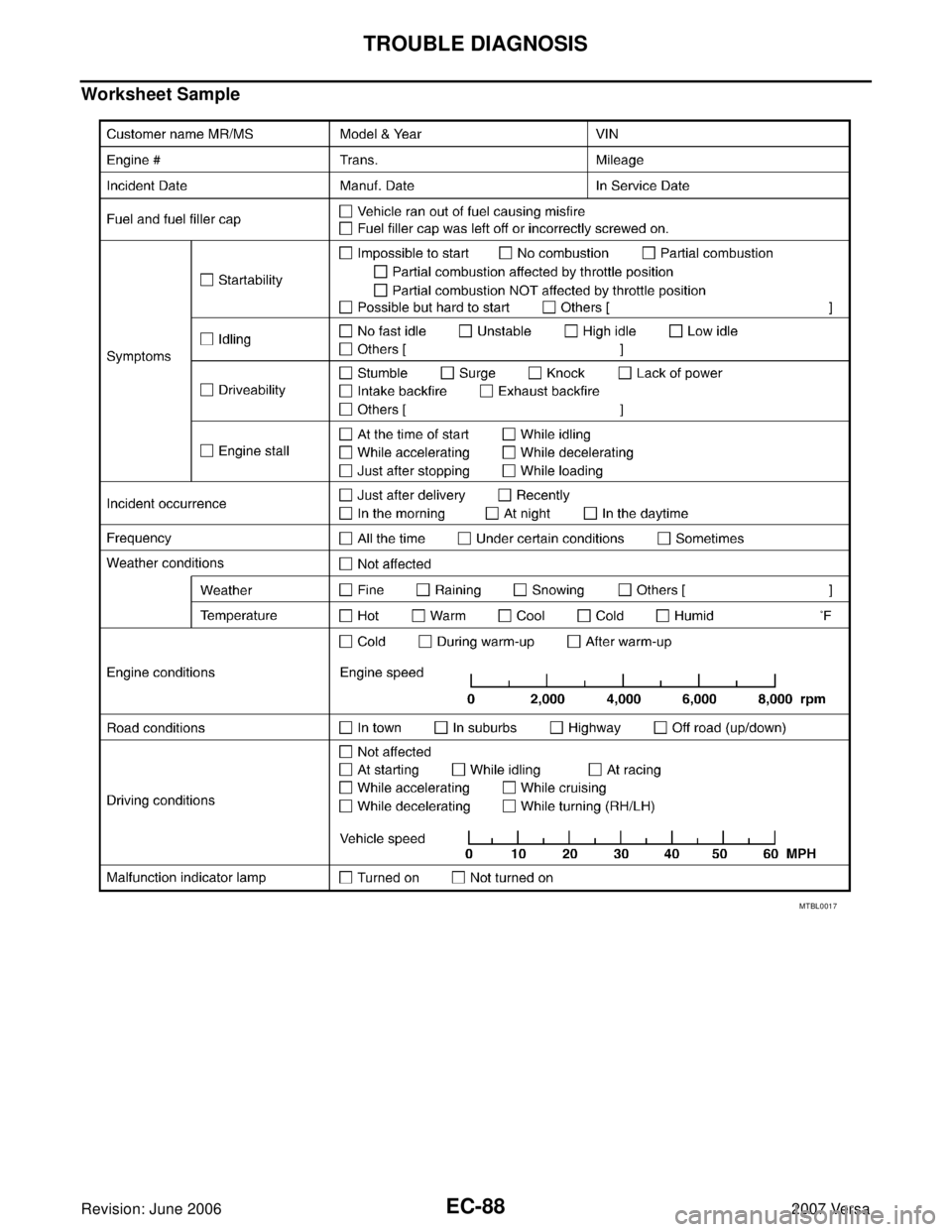

Worksheet Sample
MTBL0017
Page 1258 of 2896

TROUBLE DIAGNOSIS
EC-89
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
DTC Inspection Priority ChartUBS00PKF
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.
NOTE:
If DTC U1000 or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-151, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
If DTC U1010 is displayed with other DTC, first perform the trouble diagnosis for DTC U1010.
Refer to EC-154, "
DTC U1010 CAN COMMUNICATION" .
Priority Detected items (DTC)
1
U1000 U1001 CAN communication line
U1010 CAN communication
P0101 P0102 P0103 Mass air flow sensor
P0112 P0113 P0127 Intake air temperature sensor
P0117 P0118 P0125 Engine coolant temperature sensor
P0122 P0123 P0222 P0223 P1225 P1226 P2135 Throttle position sensor
P0128 Thermostat function
P0181 P0182 P0183 Fuel tank temperature sensor
P0327 P0328 Knock sensor
P0335 Crankshaft position sensor (POS)
P0340 Camshaft position sensor (PHASE)
P0460 P0461 P0462 P0463 Fuel level sensor
P0500 Vehicle speed sensor
P0605 ECM
P0643 Sensor power supply
P0705 P0850 Park/neutral position (PNP) switch
P1610 - P1615 NATS
P2122 P2123 P2127 P2128 P2138 Accelerator pedal position sensor
Page 1259 of 2896

EC-90Revision: June 2006
TROUBLE DIAGNOSIS
2007 Versa
2P0031 P0032 Air fuel ratio (A/F) sensor 1 heater
P0037 P0038 Heated oxygen sensor 2 heater
P0075 Intake valve timing control solenoid valve
P0130 P0131 P0132 P0133 P2A00 Air fuel ratio (A/F) sensor 1
P0137 P0138 P0139 Heated oxygen sensor 2
P0441 EVAP control system purge flow monitoring
P0443 P0444 P0445 EVAP canister purge volume control solenoid valve
P0447 P0448 EVAP canister vent control valve
P0451 P0452 P0453 EVAP control system pressure sensor
P1217 Engine over temperature (OVERHEAT)
P1805 Brake switch
P2100 P2103 Throttle control motor relay
P2101 Electric throttle control function
P2118 Throttle control motor
3
P0011 Intake valve timing control
P0171 P0172 Fuel injection system function
P0300 - P0304 Misfire
P0420 Three way catalyst function
P0442 P0456 EVAP control system (SMALL LEAK, VERY SMALL LEAK)
P0455 EVAP control system (GROSS LEAK)
P0506 P0507 Idle speed control system
P0710 P0715 P0720 P0725 P0731 P0732 P0733 P0734 P0740 P0744 P0745 P0746 P0750 P0755 P0776 P0778
P0840 P0845 P1705 P1740 P1760 P1777 P1778 A/T or CVT related sensors, solenoid valves and switches
P1148 Closed loop control
P1421 Cold start control
P1564 ASCD steering switch
P1572 ASCD brake switch
P1574 ASCD vehicle speed sensor
P1715 Turbine revolution sensor (A/T), Primary speed sensor (CVT)
P2119 Electric throttle control actuator Priority Detected items (DTC)
Page 1260 of 2896

TROUBLE DIAGNOSIS
EC-91
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
Fail-Safe ChartUBS00PKG
When the DTC listed below is detected, the ECM enters fail-safe mode and the MIL lights up.
When there is an open circuit on MIL circuit, the ECM cannot warn the driver by lighting up MIL when
there is malfunction on engine control system.
Therefore, when electrical controlled throttle and part of ECM related diagnoses are continuously detected
as NG for 5 trips, ECM warns the driver that engine control system malfunctions and MIL circuit is open by
means of operating fail-safe function.
The fail-safe function also operates when above diagnoses except MIL circuit are detected and demands
the driver to repair the malfunction.
DTC No. Detected items Engine operating condition in fail-safe mode
P0102
P0103Mass air flow sensor circuit Engine speed will not rise more than 2,400 rpm due to the fuel cut.
P0117
P0118Engine coolant tempera-
ture sensor circuitEngine coolant temperature will be determined by ECM based on the time after turning
ignition switch ON or START.
CONSULT-II displays the engine coolant temperature decided by ECM.
ConditionEngine coolant temperature decided
(CONSULT-II display)
Just as ignition switch is turned
ON or START40°C (104°F)
More than approx. 4 minutes after
ignition ON or START80°C (176°F)
Except as shown above40 - 80°C (104 - 176°F)
(Depends on the time)
When the fail-safe system for engine coolant temperature sensor is activated, the cool-
ing fan operates while engine is running.
P0122
P0123
P0222
P0223
P2135Throttle position sensor The ECM controls the electric throttle control actuator in regulating the throttle opening
in order for the idle position to be within +10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the nor-
mal condition.
So, the acceleration will be poor.
P0643 Sensor power supply ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P2100
P2103Throttle control relay ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P2101 Electric throttle control func-
tionECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P2118 Throttle control motor ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P2119 Electric throttle control actu-
ator(When electric throttle control actuator does not function properly due to the return
spring malfunction:)
ECM controls the electric throttle actuator by regulating the throttle opening around the
idle position. The engine speed will not rise more than 2,000 rpm.
(When throttle valve opening angle in fail-safe mode is not in specified range:)
ECM controls the electric throttle control actuator by regulating the throttle opening to
20 degrees or less.
(When ECM detects the throttle valve is stuck open:)
While the vehicle is driving, it slows down gradually by fuel cut. After the vehicle stops,
the engine stalls.
The engine can restart in N or P (A/T, CVT), Neutral (M/T) position, and engine speed
will not exceed 1,000 rpm or more.
P2122
P2123
P2127
P2128
P2138Accelerator pedal position
sensorThe ECM controls the electric throttle control actuator in regulating the throttle opening
in order for the idle position to be within +10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the nor-
mal condition.
So, the acceleration will be poor.
Engine operating condition in fail-safe mode Engine speed will not rise more than 2,500 rpm due to the fuel cut
Page 1261 of 2896

EC-92Revision: June 2006
TROUBLE DIAGNOSIS
2007 Versa
Symptom Matrix ChartUBS00PKH
SYSTEM — BASIC ENGINE CONTROL SYSTEM
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel pump circuit 1 1 2 3 2 2 2 3 2EC-570
Fuel pressure regulator system 3 3 4 4 4 4 4 4 4 4EC-81
Fuel injector circuit 1 1 2 3 2 2 2 2EC-564
Evaporative emission system 3 3 4 4 4 4 4 4 4 4EC-31
Air Positive crankcase ventilation sys-
tem
334444444 41EC-44
Incorrect idle speed adjustment 1 1 1 1 1EC-70
Electric throttle control actuator 1 1 2 3 3 2 2 2 2 2 2EC-499,
EC-511
Ignition Incorrect ignition timing adjustment 3 3 1 1 1 1 1 1EC-70
Ignition circuit 1 1 2 2 2 2 2 2EC-576
Main power supply and ground circuit 2 2 3 3 3 3 3 2 3EC-144
Mass air flow sensor circuit
1
122
222 2EC-178,
EC-187
Engine coolant temperature sensor circuit
333EC-200,
EC-212
Air fuel ratio (A/F) sensor 1 circuitEC-220
,
EC-227
,
EC-233
,
EC-239
,
EC-540
Throttle position sensor circuit
22EC-206
,
EC-302
,
EC-460
,
EC-462
,
EC-526
Accelerator pedal position sensor circuit 3 2 1EC-430
,
EC-513
,
EC-519
,
EC-532
Knock sensor circuit 2 3EC-315
Crankshaft position sensor (POS) circuit 2 2EC-319
Camshaft position sensor (PHASE) circuit 3 2EC-327
Vehicle speed signal circuit 2 3 3 3EC-421
ECM 22333333333EC-427
Page 1262 of 2896

TROUBLE DIAGNOSIS
EC-93
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
*: Models with A/C.
1 - 6: The numbers refer to the order of inspection.
(continued on next page)
SYSTEM — ENGINE MECHANICAL & OTHER
Intake valve timing control solenoid valve cir-
cuit32 13223 3EC-173
Park/neutral position (PNP) switch circuit 3 3 3 3 3EC-436
Refrigerant pressure sensor circuit* 2 3 3 4EC-586
Electrical load signal circuit 3EC-562
Air conditioner circuit* 2 2 3 3 3 3 3 3 3 3 2MTC-24
ABS actuator and electric unit (control unit) 4BRC-8
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel tank
5
5FL-9
Fuel piping 5 5 5 5 5 5EM-33
Vapor lock—
Valve deposit
555555 5—
Poor fuel (Heavy weight gaso-
line, Low octane)—
Page 1263 of 2896

EC-94Revision: June 2006
TROUBLE DIAGNOSIS
2007 Versa
Air Air duct
55555 5EM-16
Air cleanerEM-16
Air leakage from air duct
(Mass air flow sensor — electric
throttle control actuator)
5555EM-16
Electric throttle control actuatorEM-18
Air leakage from intake manifold/
Collector/GasketEM-18
Cranking Battery
111111
11SC-4
Generator circuitSC-24
Starter circuit 3SC-10
Signal plate 6EM-77
Park/neutral position (PNP)
switch4MT-11, AT-
97 or
CVT-78
Engine Cylinder head
55555 55 5EM-62
Cylinder head gasket 4 3
Cylinder block
66666 66 64
EM-77
Piston
Piston ring
Connecting rod
Bearing
Crankshaft
Va lv e
mecha-
nismTiming chain
55555 55 5EM-37
CamshaftEM-47
Intake valve timing controlEM-37
Intake valve
3EM-62
Exhaust valve
Exhaust Exhaust manifold/Tube/Muffler/
Gasket
55555 55 5EM-21
, EX-
3Three way catalyst
Lubrica-
tionOil pan/Oil strainer/Oil pump/Oil
filter/Oil gallery
55555 55 5EM-24
, LU-
8
Oil level (Low)/Filthy oilLU-5
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Page 1264 of 2896
TROUBLE DIAGNOSIS
EC-95
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
1 - 6: The numbers refer to the order of inspection.Cooling Radiator/Hose/Radiator filler cap
55555 55 45CO-11
Thermostat 5CO-18
Water pum pCO-17
Water galleryCO-7
Cooling fan
5CO-15
Coolant level (Low)/Contami-
nated coolantCO-8
NVIS (NISSAN Vehicle Immobilizer System-
NATS)11BL-212
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
