NISSAN VERSA 2006 Workshop Service Repair Manual PARKING BRAKE CONTROL
PB-5
C
D
E
G
H
I
J
K
L
MA
B
PB
Revision: June 20062007 Versa
ComponentsEFS006K4

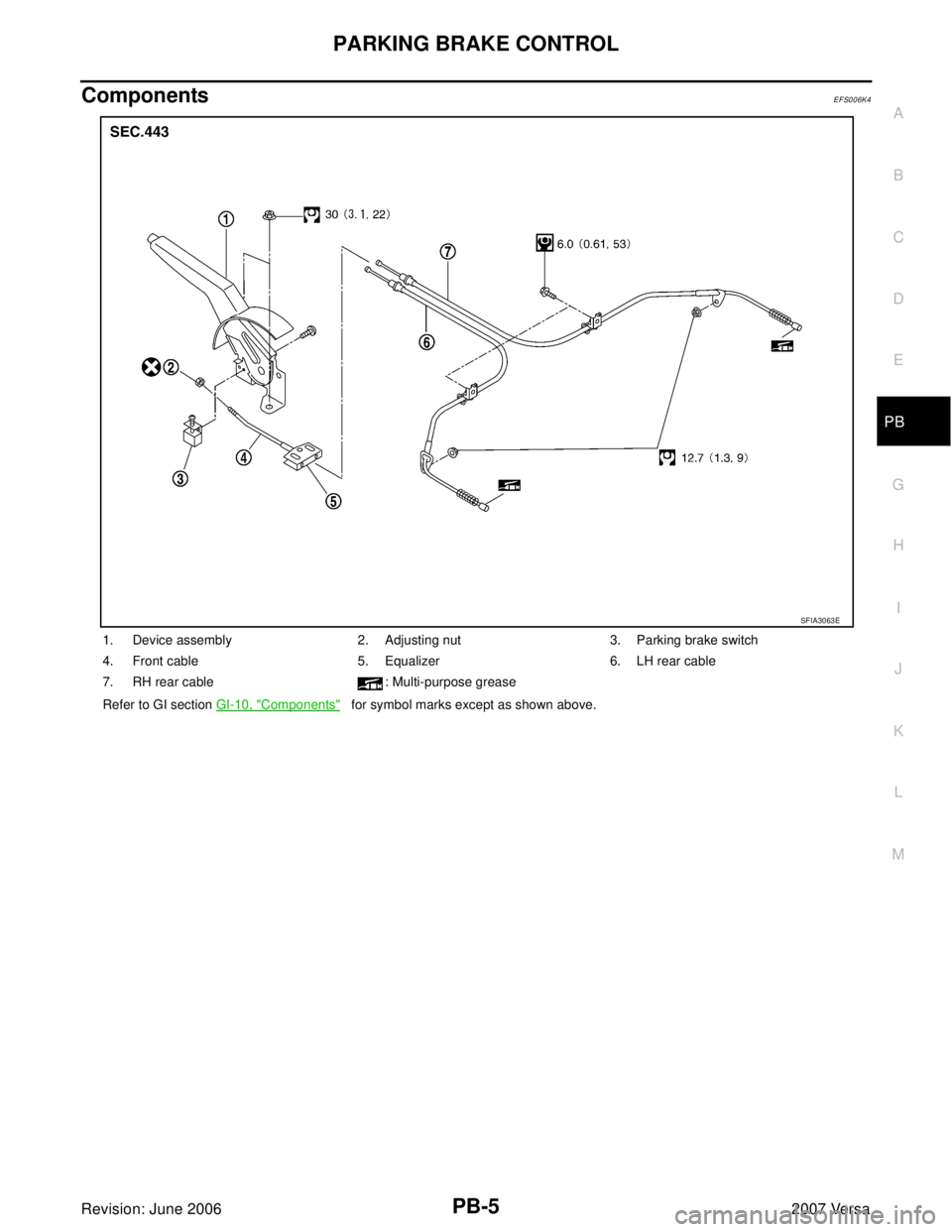

1. Device assembly 2. Adjusting nut 3. Parking brake switch
4. Front cable 5. Equalizer 6. LH rea

Page 2514 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual PB-6
PARKING BRAKE CONTROL
Revision: June 20062007 Versa
Removal and InstallationEFS006K5
REMOVAL
1. Remove center console assembly. Refer to IP-22, "CENTER CONSOLE ASSEMBLY" .
2. Disconnect parking b

Page 2515 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
PB-7
C
D
E
G
H
I
J
K
L
MA
B
PB
Revision: June 20062007 Versa
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Parking Brake ControlEFS006K6
Control typeHand lever
N

Page 2516 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual PB-8
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: June 20062007 Versa

Page 2517 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual PG-1
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION PG
A
B
PG
Revision: June 20062007 Versa PRECAUTIONS ....................................................

PG-1
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION PG
A
B
PG
Revision: June 20062007 Versa PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
POWER SUPPLY ROUTING CIRCUIT ...................... 4
Schematic ................................................................ 4
Wiring Diagram — POWER — ................................. 6
BATTERY POWER SUPPLY — IGNITION
SWITCH IN ANY POSITION ................................. 6
ACCESSORY POWER SUPPLY — IGNITION
SWITCH IN ACC AND/OR ON ............................11
IGNITION POWER SUPPLY — IGNITION
SWITCH IN ON ................................................... 12
IGNITION POWER SUPPLY — IGNITION
SWITCH IN ON AND/OR START. ....................... 13
IGNITION POWER SUPPLY — IGNITION
SWITCH IN START ............................................. 15
Fuse ....................................................................... 16
Fusible Link ............................................................ 16
Circuit Breaker (Built Into BCM) ............................. 16
Circuit Breaker ....................................................... 16
IPDM E/R (INTELLIGENT POWER DISTRIBUTION
MODULE ENGINE ROOM) ...................................... 17
System Description ................................................ 17
SYSTEMS CONTROLLED BY IPDM E/R ........... 17
CAN COMMUNICATION LINE CONTROL ......... 17
IPDM E/R STATUS CONTROL ........................... 18
CAN Communication System Description .............. 18
Function of Detecting Ignition Relay Malfunction ... 18
CONSULT-II Function (IPDM E/R) ......................... 19
CONSULT-II START PROCEDURE .................... 19
SELF-DIAGNOSTIC RESULTS .......................... 19
DATA MONITOR ................................................. 20
CAN DIAG SUPPORT MNTR ............................. 20
ACTIVE TEST ..................................................... 20
Auto Active Test ..................................................... 21
DESCRIPTION .................................................... 21
OPERATION PROCEDURE ............................... 21
INSPECTION IN AUTO ACTIVE TEST MODE ... 22
IPDM E/R Terminal Arrangement ........................... 24Terminals and Reference Values for IPDM E/R ...... 25
IPDM E/R Power/Ground Circuit Inspection ........... 28
Inspection with CONSULT-II (Self-Diagnosis) ........ 29
Removal and Installation of IPDM E/R ................... 29
REMOVAL ........................................................... 29
INSTALLATION ................................................... 29
GROUND CIRCUIT ................................................... 30
Ground Distribution ................................................. 30
MAIN HARNESS ................................................. 30
ENGINE ROOM HARNESS ................................ 33
ENGINE CONTROL HARNESS .......................... 35
BODY HARNESS ................................................ 36
BODY NO. 2 HARNESS ..................................... 37
BACK DOOR HARNESS .................................... 38
HARNESS ................................................................. 39
Harness Layout ...................................................... 39
HOW TO READ HARNESS LAYOUT ................. 39
OUTLINE ............................................................. 40
MAIN HARNESS ................................................. 41
ENGINE ROOM HARNESS (LH VIEW) .............. 43
ENGINE ROOM HARNESS (RH VIEW) ............. 45
ENGINE CONTROL HARNESS .......................... 47
BODY HARNESS ................................................ 49
BODY NO. 2 HARNESS ..................................... 51
ROOM LAMP HARNESS .................................... 53
FRONT DOOR LH HARNESS ............................ 55
FRONT DOOR RH HARNESS ............................ 56
REAR DOOR LH HARNESS ............................... 57
REAR DOOR RH HARNESS .............................. 58
BACK DOOR HARNESS .................................... 59
Wiring Diagram Codes (Cell Codes) ...................... 61
ELECTRICAL UNITS LOCATION ............................ 64
Electrical Units Location ......................................... 64
ENGINE COMPARTMENT .................................. 64
PASSENGER COMPARTMENT ......................... 65
LUGGAGE COMPARTMENT .............................. 67
HARNESS CONNECTOR ......................................... 68
Description .............................................................. 68
HARNESS CONNECTOR (TAB-LOCKING

Page 2518 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual PG-2Revision: June 20062007 Versa TYPE) .................................................................. 68
HARNESS CONNECTOR (SLIDE-LOCKING
TYPE) ..................................................

Page 2519 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual PRECAUTIONS
PG-3
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: June 20062007 Versa
PRECAUTIONS PFP:00011
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EKS0

Page 2520 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual PG-4
POWER SUPPLY ROUTING CIRCUIT
Revision: June 20062007 Versa
POWER SUPPLY ROUTING CIRCUITPFP:24110
SchematicEKS00I5G

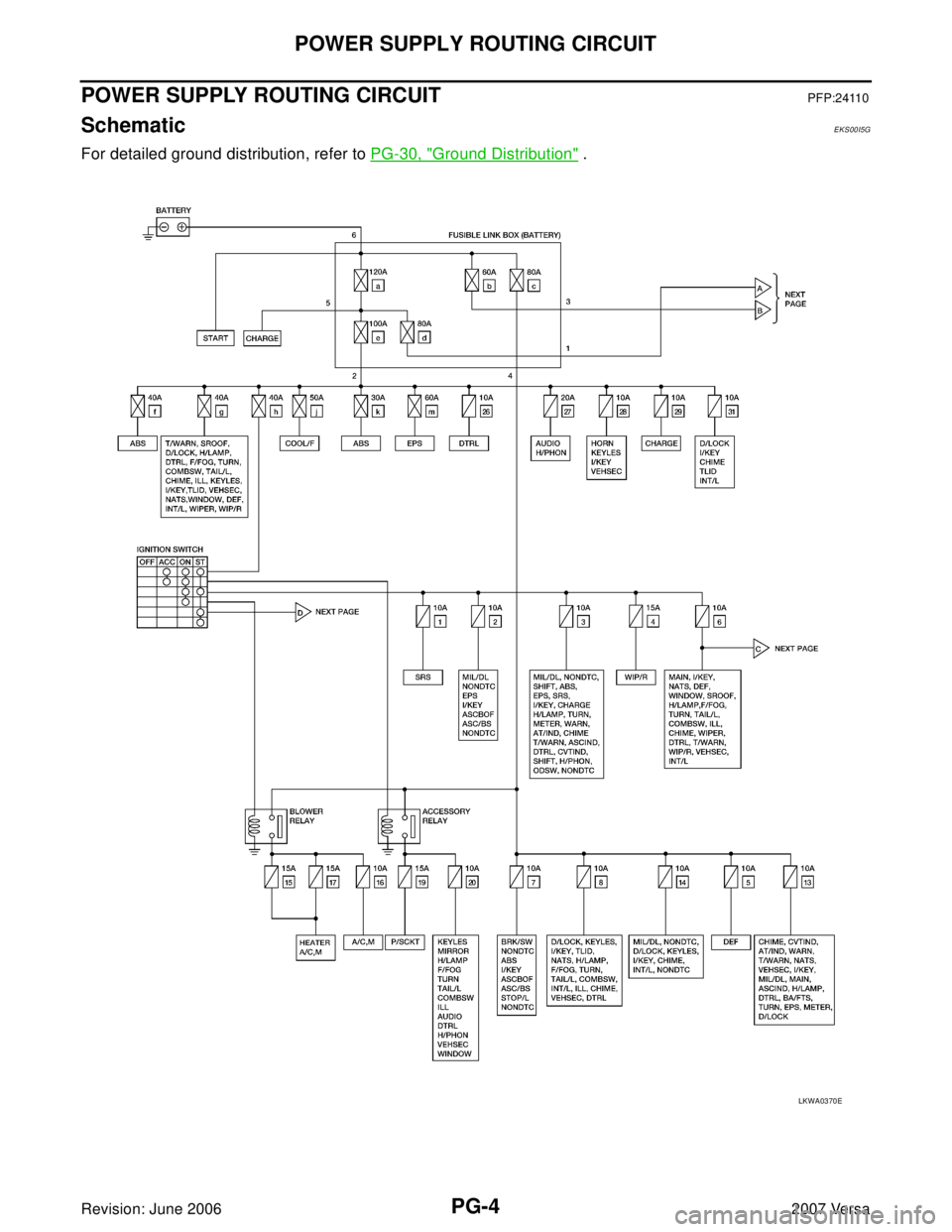

For detailed ground distribution, refer to PG-30, "Ground Distribution" .
LKWA03
