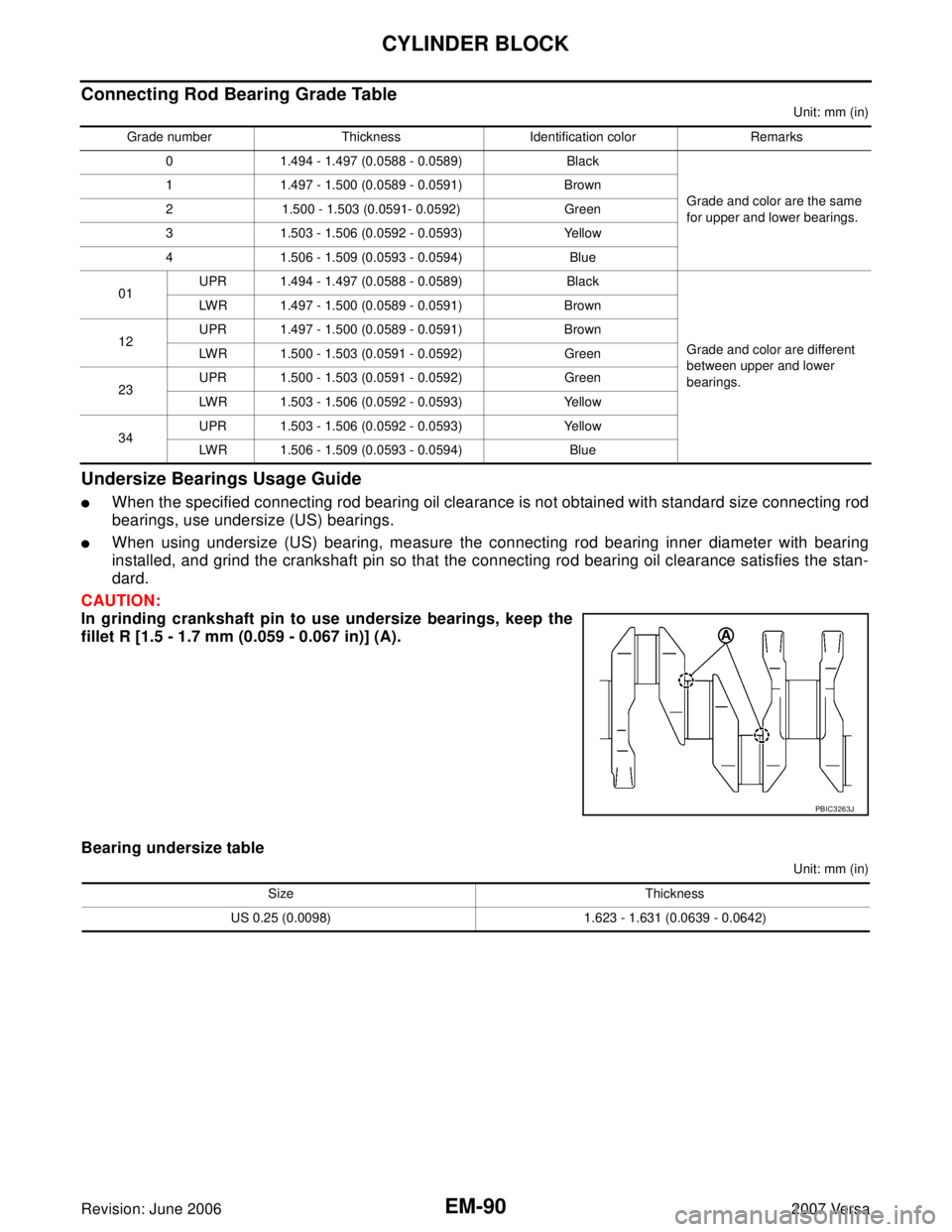

NISSAN VERSA 2006 Workshop Service Repair Manual EM-88Revision: June 2006
CYLINDER BLOCK
2007 Versa

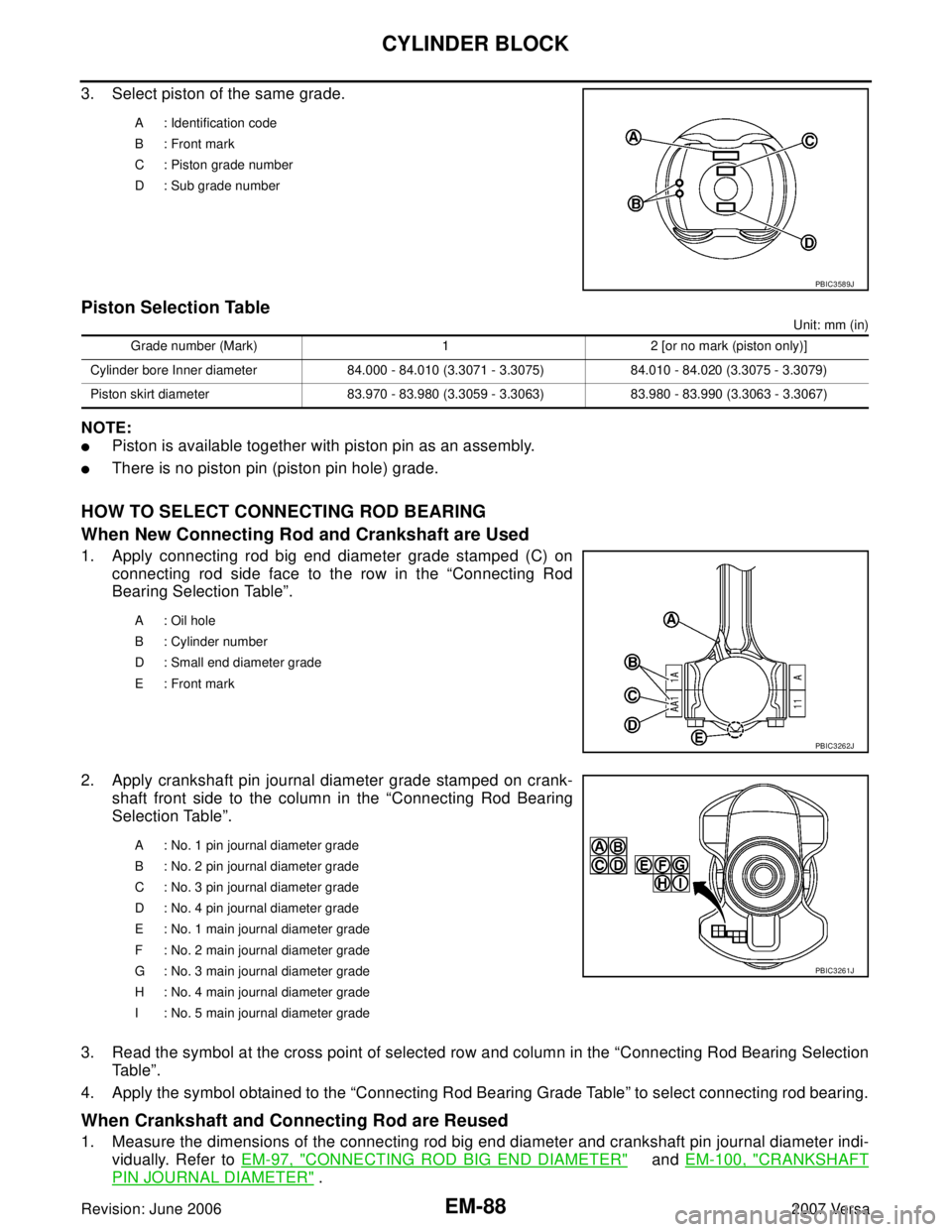

3. Select piston of the same grade.
Piston Selection Table
Unit: mm (in)
NOTE:
Piston is available together with piston pin as an assembly.
There

Page 1898 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual CYLINDER BLOCK
EM-89
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: June 20062007 Versa

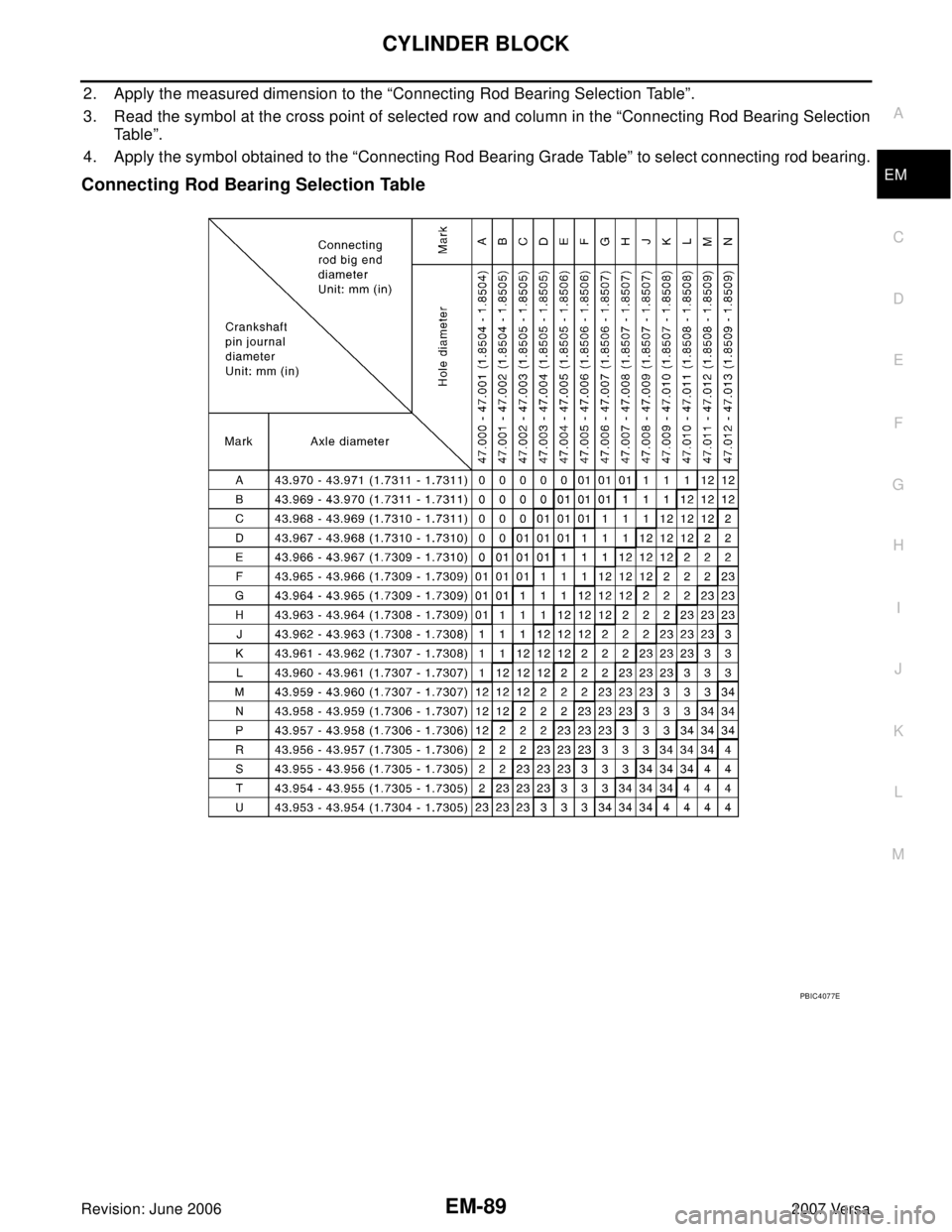

2. Apply the measured dimension to the “Connecting Rod Bearing Selection Table”.
3. Read the symbol at the cross point

Page 1899 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual EM-90Revision: June 2006
CYLINDER BLOCK
2007 Versa
Connecting Rod Bearing Grade Table
Unit: mm (in)
Undersize Bearings Usage Guide
When the specified connecting rod bearing oil clearance is not obtai

Page 1900 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual CYLINDER BLOCK
EM-91
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: June 20062007 Versa
HOW TO SELECT MAIN BEARING
When New Cylinder Block and Crankshaft are Used
1. “Main Bearing Selection Table” rows corre

CYLINDER BLOCK
EM-91
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: June 20062007 Versa
HOW TO SELECT MAIN BEARING
When New Cylinder Block and Crankshaft are Used
1. “Main Bearing Selection Table” rows correspond to main bearing
housing grade on rear left side of cylinder block (L).
If there is a correction stamp mark on cylinder block, use it as
a correct reference.
2. Apply main journal diameter grade stamped on crankshaft front
side to column in the “Main Bearing Selection Table”.
3. Read the symbol at the cross point of selected row and column in the “Main Bearing Selection Table”.
CAUTION:
There are two main bearing selection tables. One is for No. 1, 4 and 5 journals and the other is for
No. 2 and 3 journals. Make certain to use the appropriate table. This is due to differences in the
specified clearances.
4. Apply the symbol obtained to the “Main Bearing Grade Table” to select main bearing.
NOTE:
Service part is available as a set of both upper and lower.
When Cylinder Block and Crankshaft are Reused
1. Measure the dimensions of the cylinder block main bearing housing inner diameter and crankshaft main
journal diameter individually. Refer to EM-98, "
MAIN BEARING HOUSING INNER DIAMETER" and EM-
100, "CRANKSHAFT MAIN JOURNAL DIAMETER" .
2. Apply the measured dimension to the “Main Bearing Selection Table”.
3. Read the symbol at the cross point of selected row and column in the “Main Bearing Selection Table”.

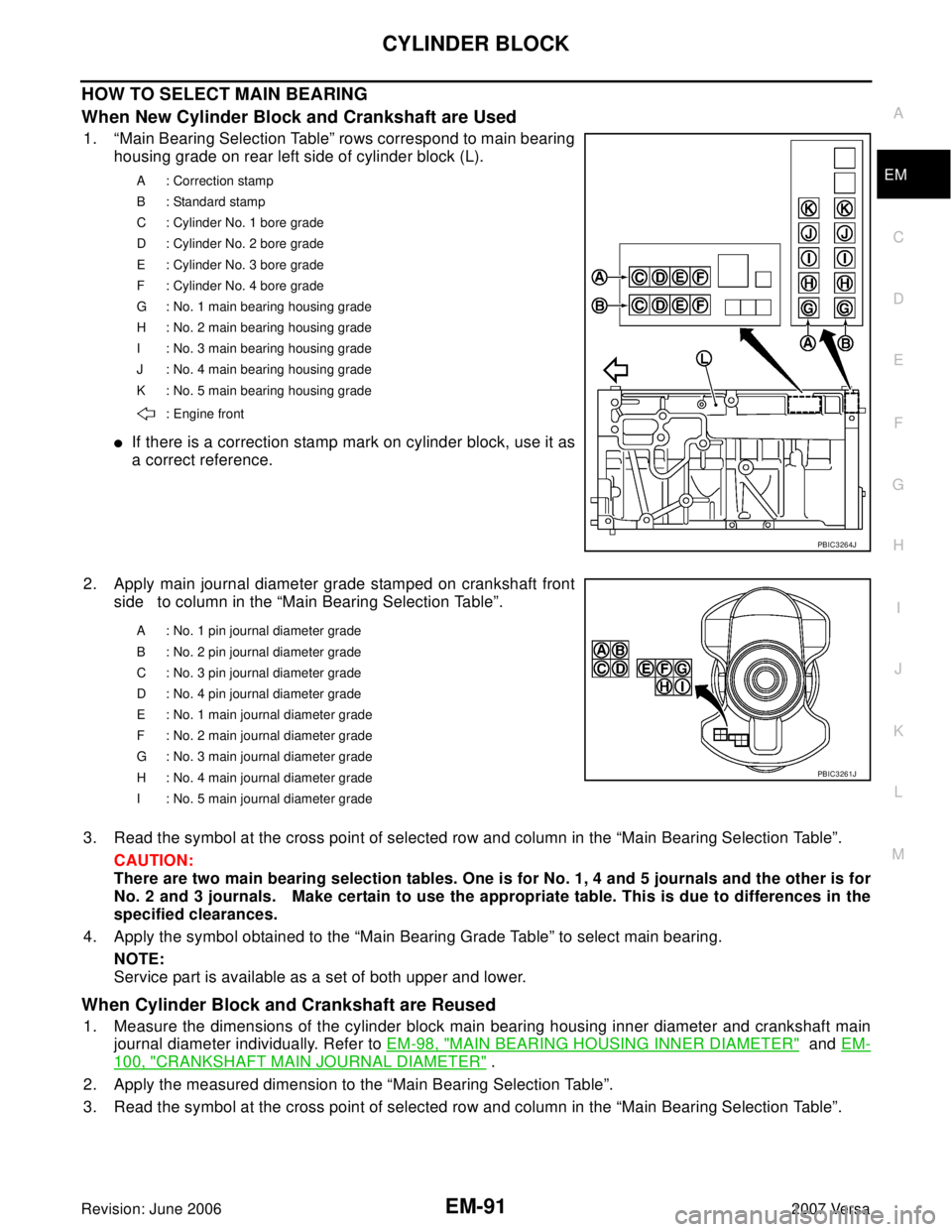

A : Correction stamp
B : Standard stamp
C : Cylinder No. 1 bore grade
D : Cylinder No. 2 bore grade
E : Cylinder No. 3 bore grade
F : Cylinder No. 4 bore grade
G : No. 1 main bearing housing grade
H : No. 2 main bearing housing grade
I : No. 3 main bearing housing grade
J : No. 4 main bearing housing grade
K : No. 5 main bearing housing grade
: Engine front
PBIC3264J
A : No. 1 pin journal diameter grade
B : No. 2 pin journal diameter grade
C : No. 3 pin journal diameter grade
D : No. 4 pin journal diameter grade
E : No. 1 main journal diameter grade
F : No. 2 main journal diameter grade
G : No. 3 main journal diameter grade
H : No. 4 main journal diameter grade
I : No. 5 main journal diameter grade
PBIC3261J

Page 1901 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual EM-92Revision: June 2006
CYLINDER BLOCK
2007 Versa
CAUTION:

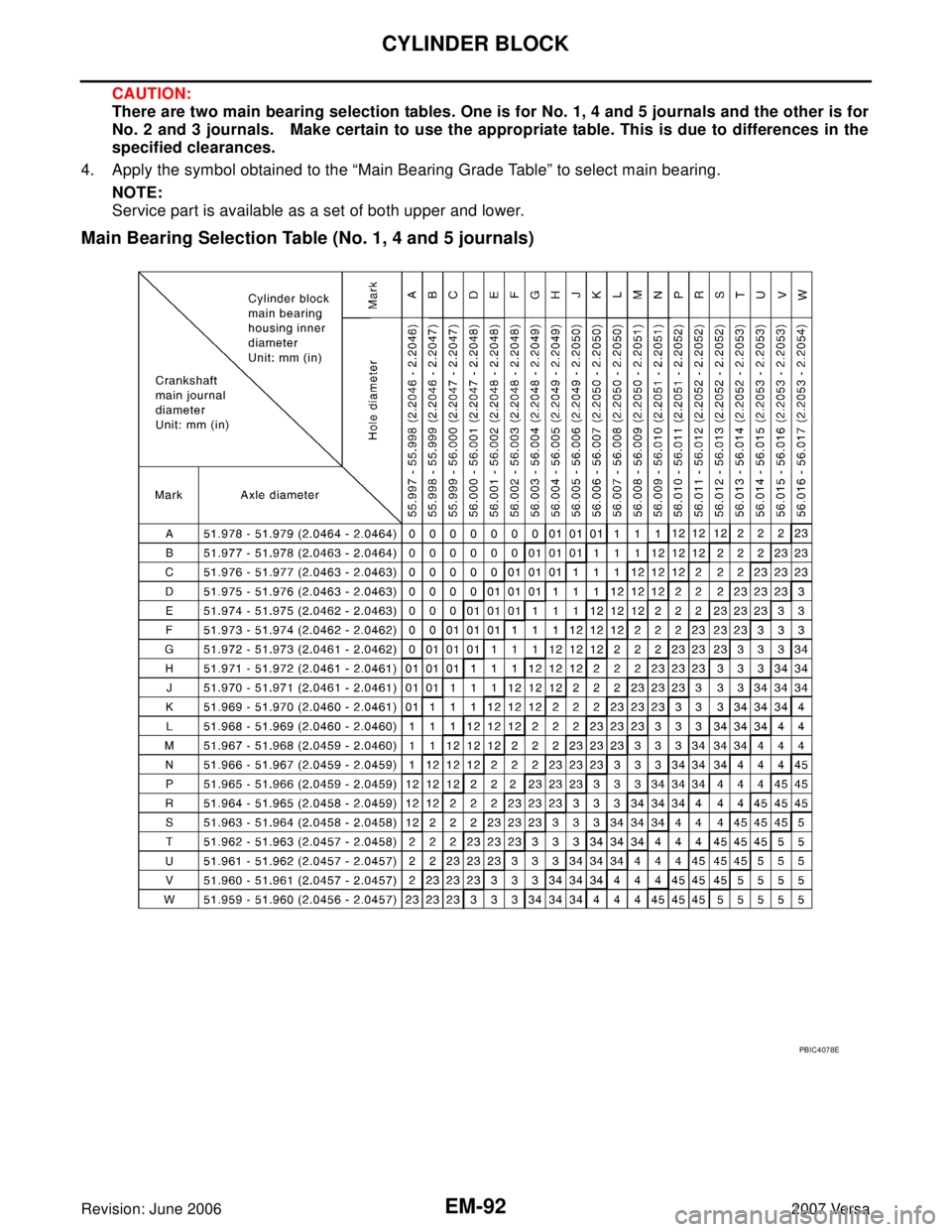

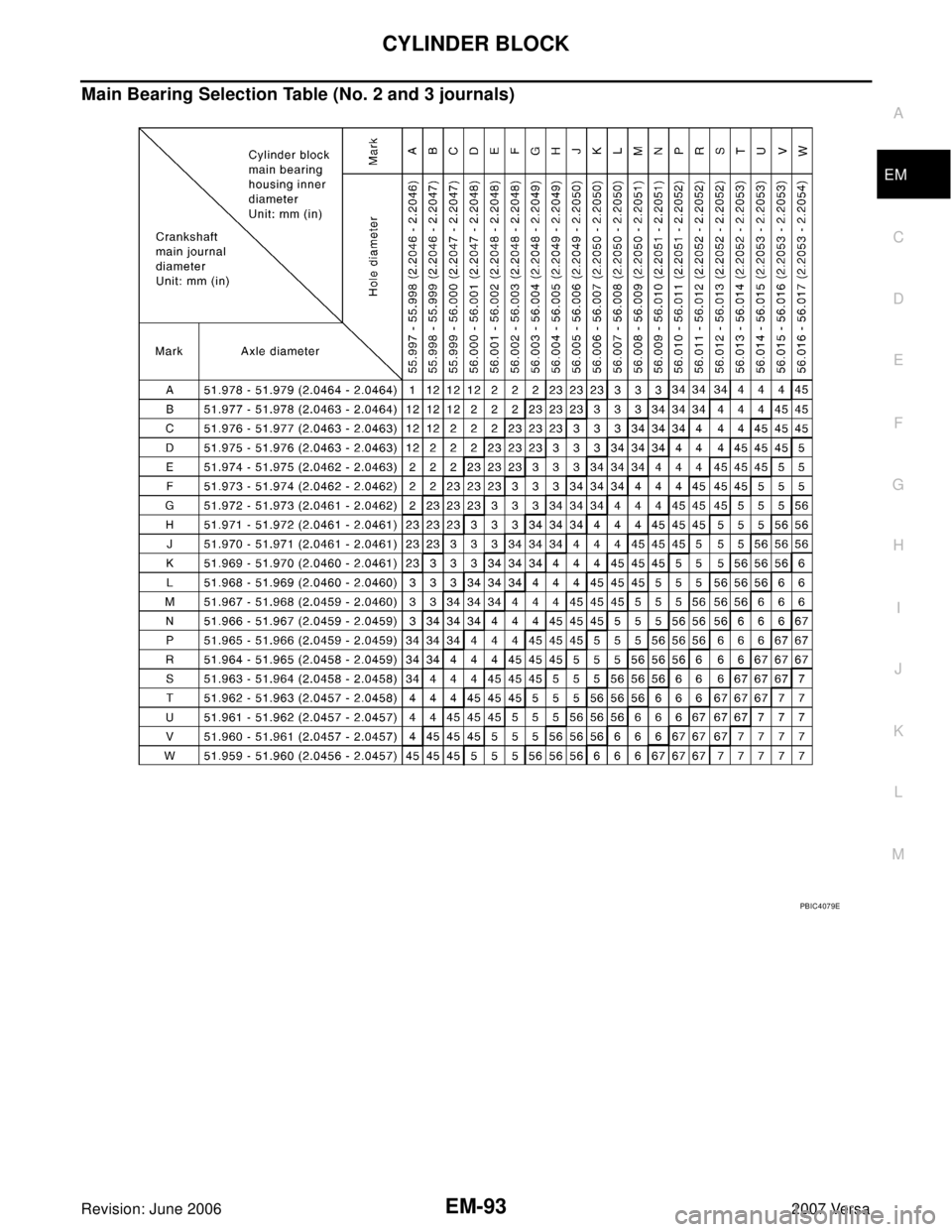

There are two main bearing selection tables. One is for No. 1, 4 and 5 journals and the other is for
No. 2 and 3 journals. Make certain to

Page 1902 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual CYLINDER BLOCK
EM-93
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: June 20062007 Versa
Main Bearing Selection Table (No. 2 and 3 journals)
PBIC4079E

Page 1903 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual EM-94Revision: June 2006
CYLINDER BLOCK
2007 Versa
Main Bearing Grade Table (All Journals)
Unit: mm (in)
Use Undersize Bearing Usage Guide
When the specified main bearing oil clearance is not obtaine

Page 1904 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual CYLINDER BLOCK
EM-95
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: June 20062007 Versa

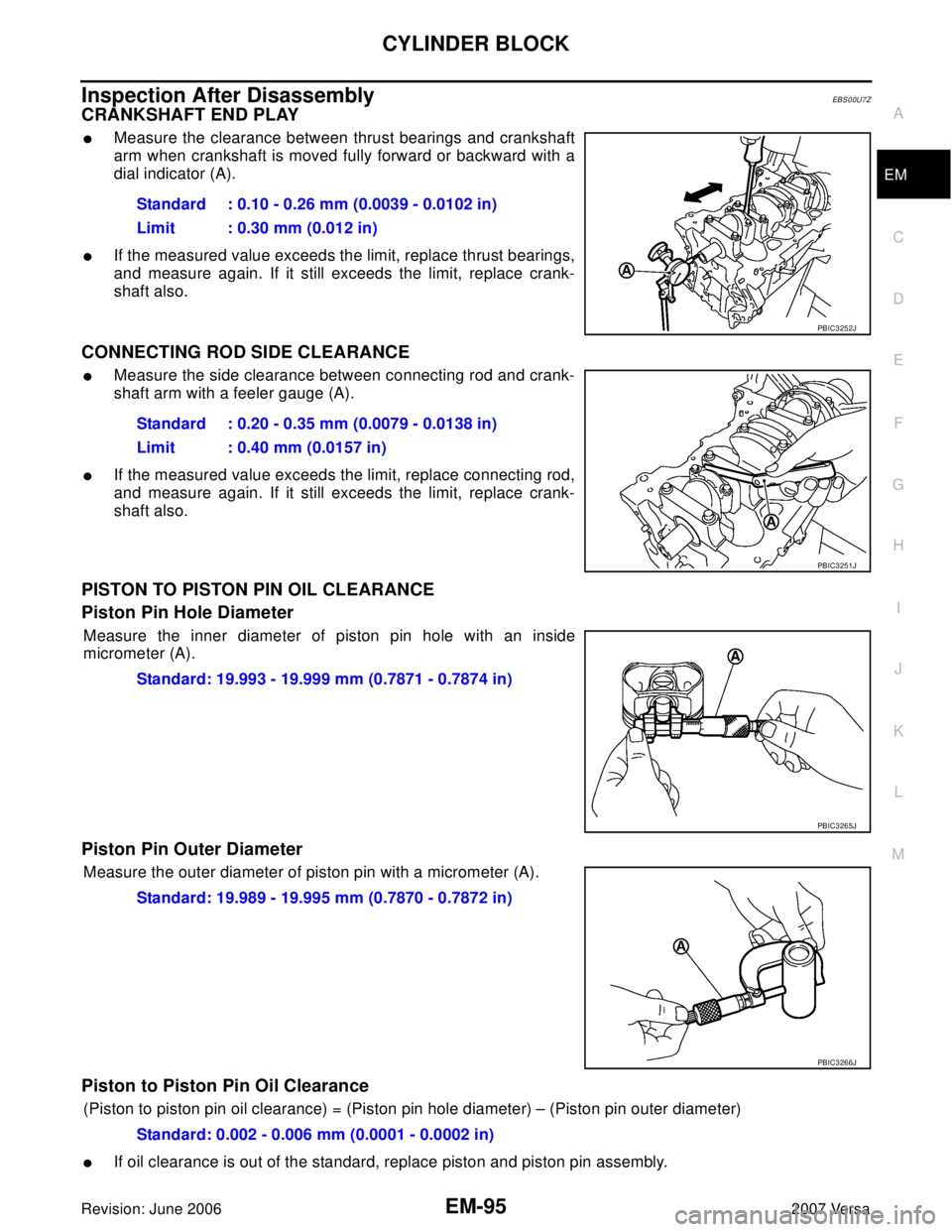

Inspection After DisassemblyEBS00U7Z
CRANKSHAFT END PLAY
Measure the clearance between thrust bearings and crankshaft
arm
