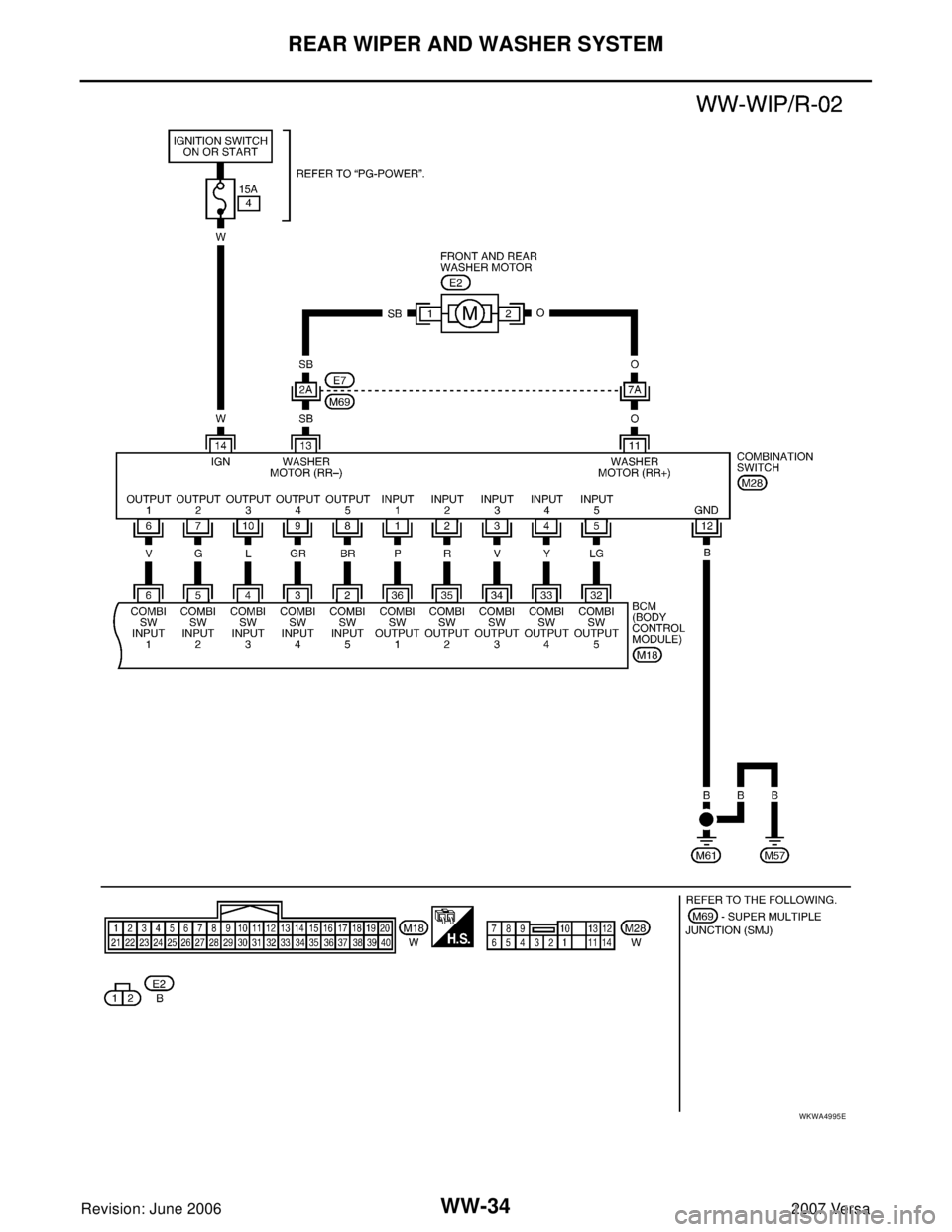

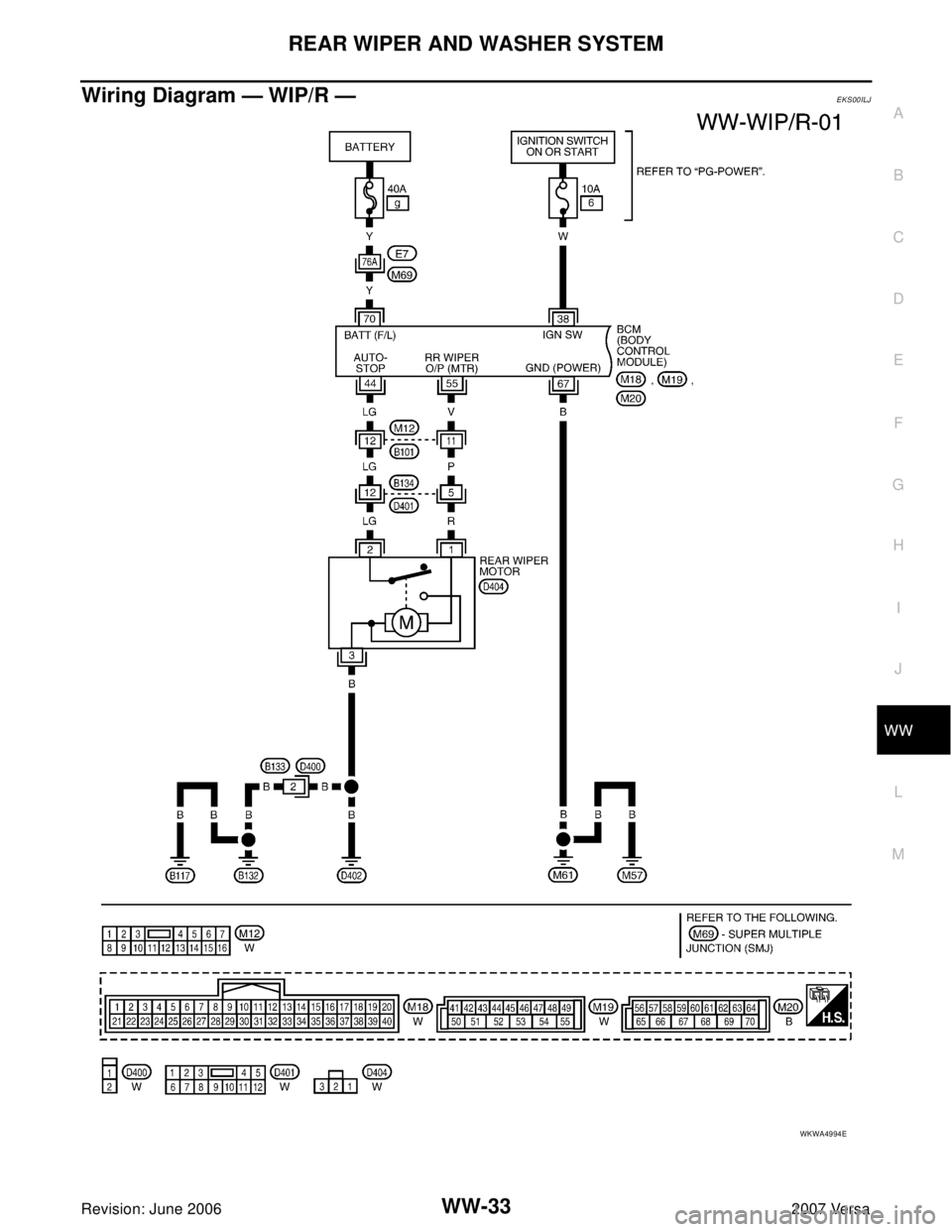

NISSAN VERSA 2006 Workshop Service Repair Manual REAR WIPER AND WASHER SYSTEM WW-33 C D E F G H I J L MA B WW Revision: June 20062007 Versa Wiring Diagram — WIP/R —EKS00ILJ WKWA4994E

Page 2882 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual WW-34 REAR WIPER AND WASHER SYSTEM Revision: June 20062007 Versa WKWA4995E

Page 2883 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual REAR WIPER AND WASHER SYSTEM WW-35 C D E F G H I J L MA B WW Revision: June 20062007 Versa Terminals and Reference Values for BCMEKS00ILK Refer to BCS-12, "Terminals and Reference Values for BCM" . Ho

Page 2884 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual WW-36 REAR WIPER AND WASHER SYSTEM Revision: June 20062007 Versa 3. CHECK REAR WIPER MOTOR SHORT CIRCUIT Check continuity between rear wiper motor harness D404 terminal 1 and ground. OK or NG OK >> GO

Page 2885 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual REAR WIPER AND WASHER SYSTEM WW-37 C D E F G H I J L MA B WW Revision: June 20062007 Versa 6. CHECK COMBINATION SWITCH INPUT SIGNAL Select "BCM" on CONSULT-II. With "WIPER" data monitor, make sure "RR

Page 2886 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual WW-38 REAR WIPER AND WASHER SYSTEM Revision: June 20062007 Versa 4. CHECK GROUND CIRCUIT Check continuity between rear wiper motor connector D404 terminal 3 and ground. OK or NG OK >> GO TO 5. NG >>

Page 2887 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual REAR WIPER AND WASHER SYSTEM WW-39 C D E F G H I J L MA B WW Revision: June 20062007 Versa Wiper Does Not Wipe When Rear Washer OperatesEKS00ILS 1. CHECK COMBINATION SWITCH INPUT SIGNAL Select "BCM" o

Page 2888 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual WW-40 REAR WIPER AND WASHER SYSTEM Revision: June 20062007 Versa Removal and Installation EKS00ILT REAR WIPER ARM Removal 1. Raise wiper arm cover (1), and remove the rear wiper arm nut (A). 2. Remov
