Page 2889 of 2896
REAR WIPER AND WASHER SYSTEM
WW-41
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: June 20062007 Versa

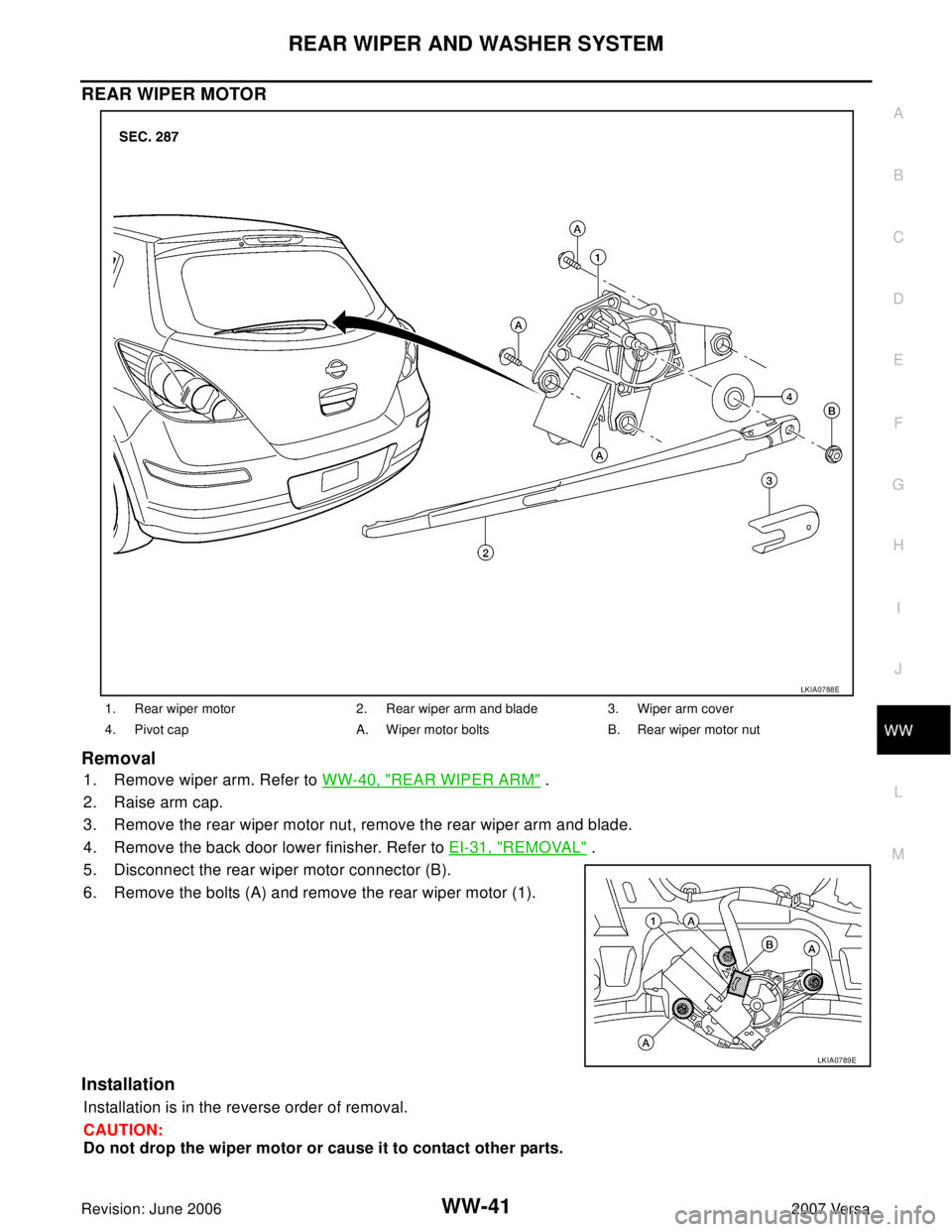

REAR WIPER MOTOR
Removal
1. Remove wiper arm. Refer to WW-40, "REAR WIPER ARM" .
2. Raise arm cap.
3. Remove the rear wiper motor nut, remove the rear wiper arm and blade.
4. Remove the back door lower finisher. Refer to EI-31, "
REMOVAL" .
5. Disconnect the rear wiper motor connector (B).
6. Remove the bolts (A) and remove the rear wiper motor (1).
Installation
Installation is in the reverse order of removal.
CAUTION:
Do not drop the wiper motor or cause it to contact other parts.
1. Rear wiper motor 2. Rear wiper arm and blade 3. Wiper arm cover
4. Pivot cap A. Wiper motor bolts B. Rear wiper motor nut
LKIA0788E
LKIA0789E
Page 2890 of 2896
WW-42
REAR WIPER AND WASHER SYSTEM
Revision: June 20062007 Versa
REAR WASHER TUBE LAYOUT
NOTE:
Connect the check valve (2) to the washer fluid tube (1) so that the
directional arrow on the check valve (2) points towards the washer
nozzle tube (3).
REAR WASHER NOZZLE
Removal
1. Remove the back door window garnish. Refer to EI-31, "REMOVAL" .
2. Disconnect rear washer tube from rear washer nozzle.
3. Release retaining clips and remove washer nozzle.
1 Washer fluid reservoir 2 Washer fluid tube to rear door 3 Rear washer nozzle
4 Check valve
LKIA0790E
WKIA4242E
LKIA0545E
Page 2891 of 2896
REAR WIPER AND WASHER SYSTEM
WW-43
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: June 20062007 Versa
Installation
Installation is in the reverse order of removal.
NOTE:
Inspect rear washer nozzle for proper spray pattern, adjust as necessary. Refer to WW-43, "
Washer Nozzle
Adjustment" .
WASHER FLUID RESERVOIR
Refer to WW-28, "Removal and Installation of Washer Tank" .
WIPER AND WASHER SWITCH
Refer to WW-28, "Removal and Installation of Front Wiper and Washer Switch" .
WASHER MOTOR
Refer to WW-29, "Removal and Installation of Front Washer Motor" .
Washer Nozzle AdjustmentEKS00ILU
Adjust the washer nozzle to specification using suitable tool as
shown.
Adjustable range : ±15° (In any direction)
LKIA0349E
WEL912A
Page 2892 of 2896
WW-44
POWER SOCKET
Revision: June 20062007 Versa
POWER SOCKETPFP:253A2

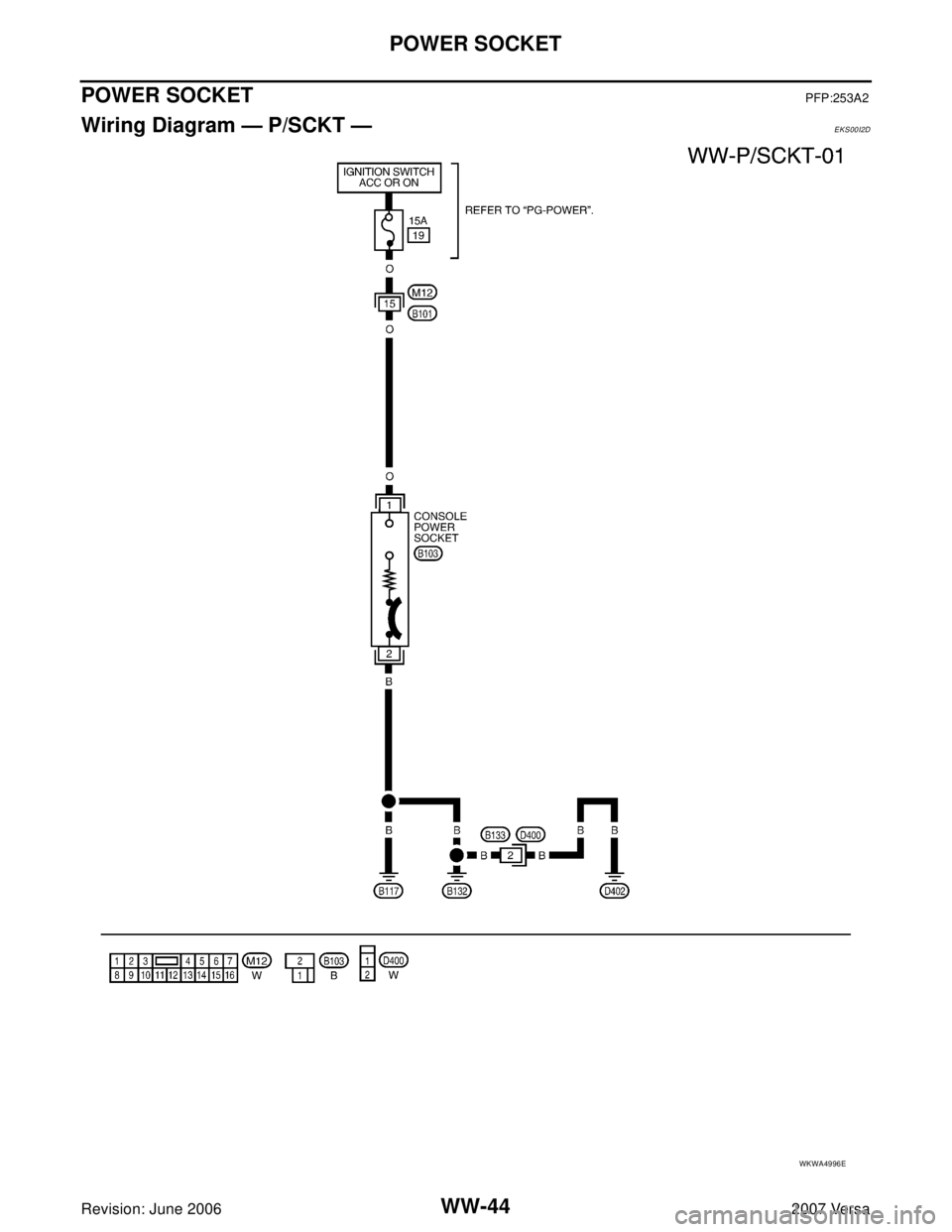

Wiring Diagram — P/SCKT —EKS00I2D
WKWA4996E
Page 2893 of 2896
POWER SOCKET
WW-45
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: June 20062007 Versa
Removal and InstallationEKS00I2E
REMOVAL
1. Remove the console mask. Refer to IP-10, "Component Parts" .
2. Remove the power socket (2) from the power socket ring (3),
while pressing the hook (A) on the ring out from square hole (B).
Console mask (1)
Power socket assembly (C)
INSTALLATION
Installation is in the reverse order of removal.
NOTE:
Install the power socket with its cutout aligned with the power ring.
SKIB5671E
Page 2894 of 2896
WW-46
HORN
Revision: June 20062007 Versa
HORNPFP:25610

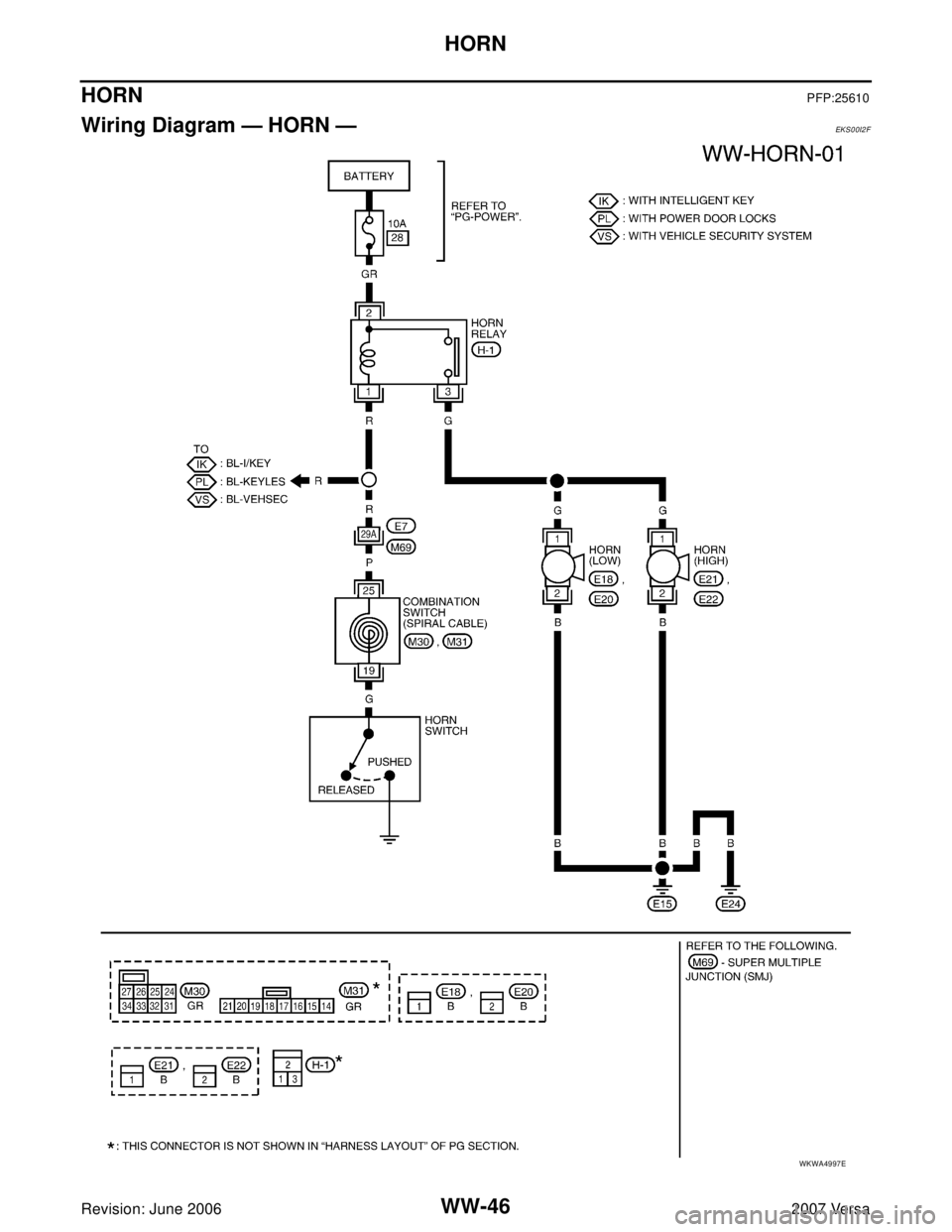

Wiring Diagram — HORN —EKS00I2F
WKWA4997E
Page 2895 of 2896
HORN
WW-47
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: June 20062007 Versa
Removal and InstallationEKS00I2G
REMOVAL
1. Remove the front grille. Refer to EI-19, "Removal and Installation" .
2. Disconnect the horn connectors.
3. Remove the horn nuts (A) and remove the horns (1).
INSTALLATION
Installation is in the reverse order of removal.
SKIB5670E
Page 2896 of 2896
WW-48
HORN
Revision: June 20062007 Versa
