NISSAN VERSA 2006 Workshop Service Repair Manual CVT-8
PRECAUTIONS
Revision: June 20062007 Versa
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
UCS005XD
The Supplemental Rest

CVT-8
PRECAUTIONS
Revision: June 20062007 Versa
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
UCS005XD
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WAR NIN G:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions Necessary for Steering Wheel Rotation After Battery DisconnectUCS006Y0
NOTE:
This Procedure is applied only to models with Intelligent Key system and NVIS/IVIS (NISSAN/INFINITI
VEHICLE IMMOBILIZER SYSTEM - NATS).
Remove and install all control units after disconnecting both battery cables with the ignition knob in the
″LOCK″ position.
Always use CONSULT-II to perform self-diagnosis as a part of each function inspection after finishing
work. If DTC is detected, perform trouble diagnosis according to self-diagnostic results.
For models equipped with the Intelligent Key system and NVIS/IVIS, an electrically controlled steering lock
mechanism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.
2. Use the Intelligent Key or mechanical key to turn the ignition switch to the ″ACC″ position. At this time, the
steering lock will be released.
3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.
4. Perform the necessary repair operation.
5. When the repair work is completed, return the ignition switch to the ″LOCK″ position before connecting
the battery cables. (At this time, the steering lock mechanism will engage.)
6. Perform a self-diagnosis check of all control units using CONSULT-II.

Page 906 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual PRECAUTIONS
CVT-9
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
Precautions for On Board Diagnostic (OBD) System of CVT and EngineUCS005XG
The ECM has an on board diagnostic system. It will

PRECAUTIONS
CVT-9
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
Precautions for On Board Diagnostic (OBD) System of CVT and EngineUCS005XG
The ECM has an on board diagnostic system. It will light up the malfunction indicator lamp (MIL) to warn the
driver of a malfunction causing emission deterioration.
CAUTION:
Be sure to turn the ignition switch OFF and disconnect the battery cable from the negative termi-
nal before any repair or inspection work. The open/short circuit of related switches, sensors, sole-
noid valves, etc. will cause the MIL to light up.
Be sure to connect and lock the connectors securely after work. A loose (unlocked) connector will
cause the MIL to light up due to an open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)
Be sure to route and secure the harnesses properly after work. Interference of the harness with a
bracket, etc. may cause the MIL to light up due to a short circuit.
Be sure to connect rubber tubes properly after work. A misconnected or disconnected rubber tube
may cause the MIL to light up due to a malfunction of the EVAP system or fuel injection system,
etc.
Be sure to erase the unnecessary malfunction information (repairs completed) from the TCM and
ECM before returning the vehicle to the customer.
Service After Replacing TCM and Transaxle Assembly UCS006L3
SERVICE AFTER REPLACING TCM AND TRANSAXLE ASSEMBLY
Perform the applicable service in the following sheet when replacing TCM or transaxle assembly
CAUTION:
Do not start the engine until the service is completed.
“A/T C/U POWER SUPPLY [P1701]” may be indicated soon after replacing TCM or transaxle
assembly (after erasing the memory at the pattern B). Restart the self-diagnosis after erasing the
self-diagnosis result. Check that no error is detected.
NOTE:
Old unit means that the unit has been already used for another vehicle.
PATTERN A
1. Shift the selector lever to “P” position after replacing TCM. Turn the ignition switch ON.
2. Check that the shift position indicator in the combination meter turns ON (It indicates approximately 1 or 2
seconds after turning the ignition switch ON.)
Check the following items if the shift position indicator does not turn ON. Repair or replace the shift
position indicator if necessary.
–The harness between TCM and ROM ASSY in the transaxle assembly is open or short.
–Cable disconnected, loosen, or bent from the connector housing.
PATTERN B
1. Turn the ignition switch ON after replacing each part.
2. Connect CONSULT-II connector to data link connector. Refer to GI-38, "
CONSULT-II Start Procedure" .
3. Start engine.
CAUTION:
Do not start the driving.
4. Touch CONSULT-II screen in the order of “START (NISSAN BASED VHCL)”, “TRANSMISSION”, “DATA
MONITOR”, and “MAIN SIGNALS”.
5. Warm up the transaxle assembly until “ATF TEMP” indicates 48 (approximately 20°C) or more. Turn the
ignition switch OFF.
TCM CVT assembly Service pattern
Replace the new unit. Do not replace the unit.CVT-9, "
PAT T E R N A"
Do not replace the unit. Replace the new or old unit.
CVT-9, "
PAT T E R N B"Replace the old unit.Do not replace the unit.
Replace the new or old unit.
Replace the new unit. Replace the new or old unit.CVT-11, "
PAT T E R N C"

Page 907 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual CVT-10
PRECAUTIONS
Revision: June 20062007 Versa
6. Turn the ignition switch ON.
CAUTION:
Do not start engine.
7. Select “SELF-DIAG RESULTS”.
8. Shift the selector lever to “R” position.
9. De

Page 908 of 2896

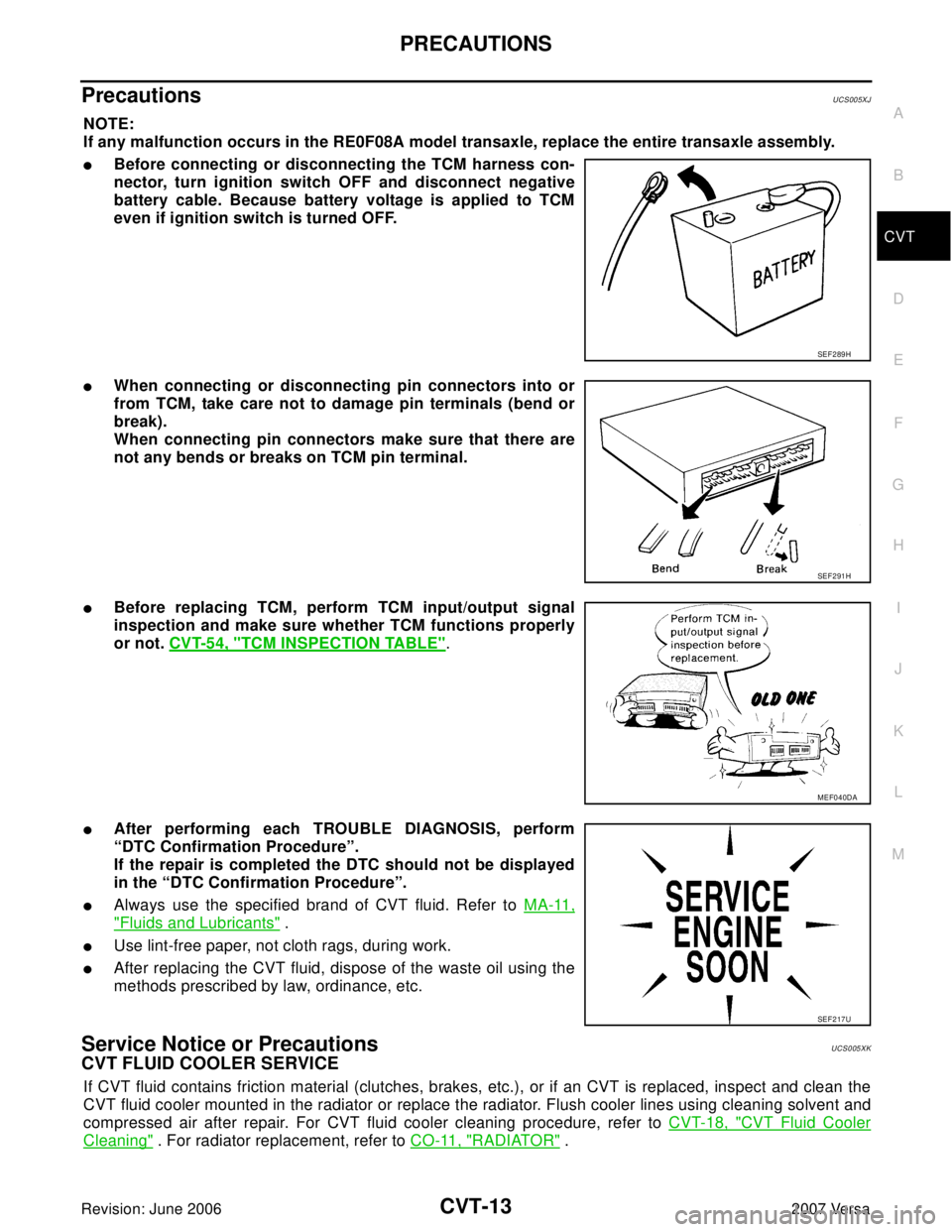

NISSAN VERSA 2006 Workshop Service Repair Manual PRECAUTIONS
CVT-11
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa

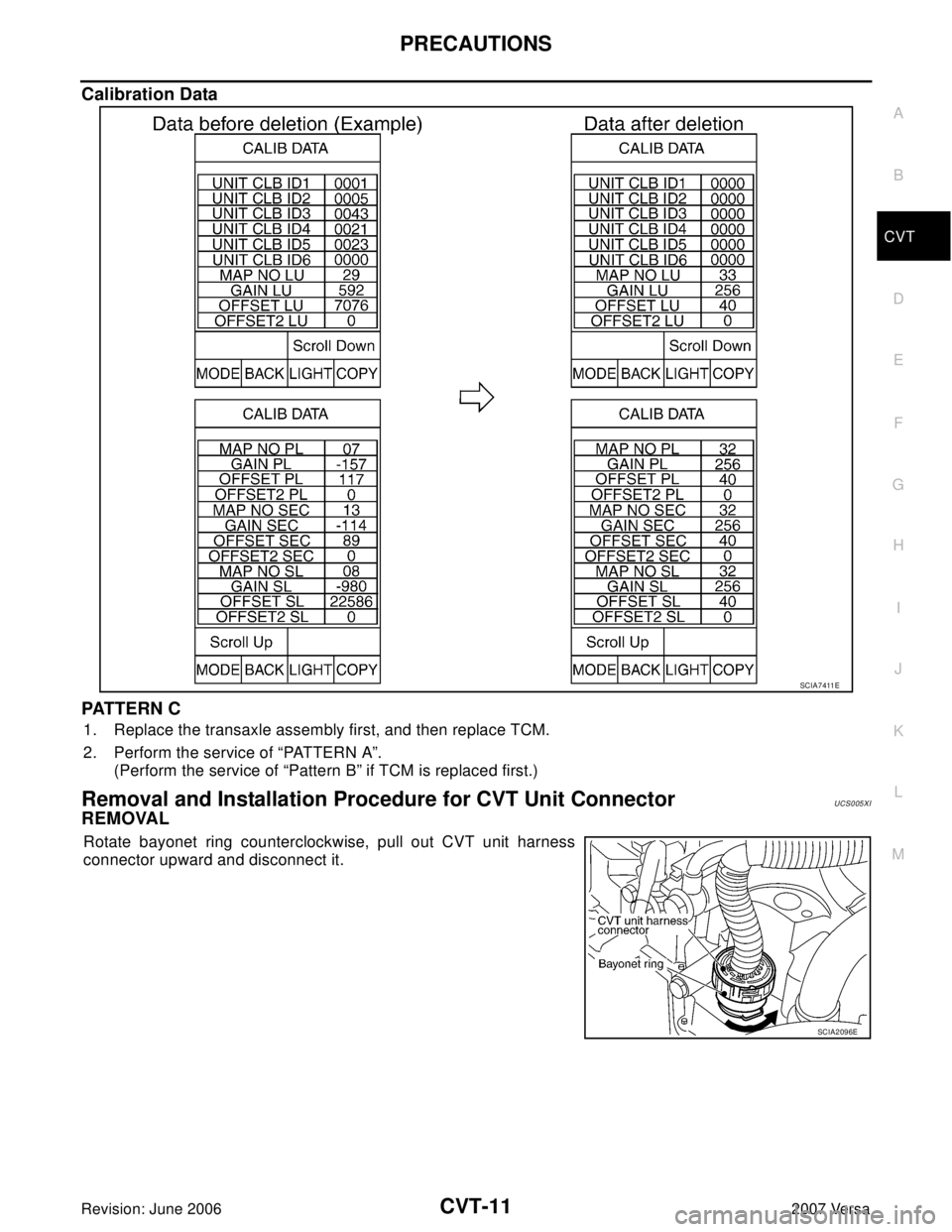

Calibration Data
PATTERN C
1. Replace the transaxle assembly first, and then replace TCM.
2. Perform the service of “PATTE

Page 909 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual CVT-12
PRECAUTIONS
Revision: June 20062007 Versa
INSTALLATION
1. Align CVT unit harness connector terminal body marking with
bayonet ring marking, insert CVT unit harness connector, and
then rotate ba

Page 910 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual PRECAUTIONS
CVT-13
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
Precautions UCS005XJ
NOTE:
If any malfunction occurs in the RE0F08A model transaxle, replace the entire transaxle assembly.

Page 911 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual CVT-14
PRECAUTIONS
Revision: June 20062007 Versa
OBD-II SELF-DIAGNOSIS
CVT self-diagnosis is performed by the TCM in combination with the ECM. The results can be read
through the blinking pattern of

Page 912 of 2896

NISSAN VERSA 2006 Workshop Service Repair Manual PREPARATION
CVT-15
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
PREPARATIONPFP:00002
Special Service ToolsUCS005XL
The actual shapes of Kent-Moore tools may differ from those of special se
