NISSAN ALMERA N16 2001  Electronic Repair Manual SFA476

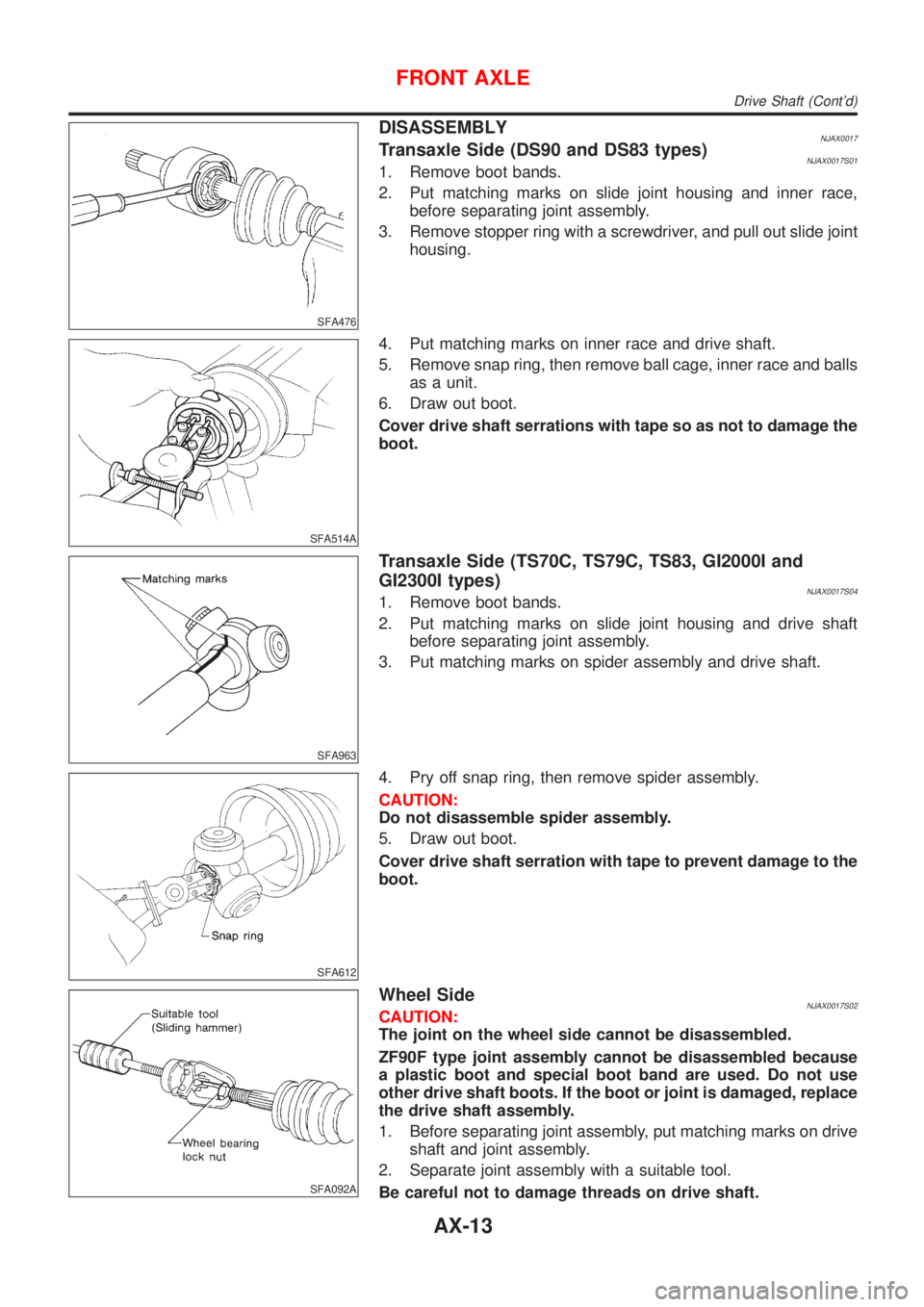

DISASSEMBLYNJAX0017Transaxle Side (DS90 and DS83 types)NJAX0017S011. Remove boot bands.
2. Put matching marks on slide joint housing and inner race,
before separating joint assembly.
3. Remove

Page 1658 of 2493

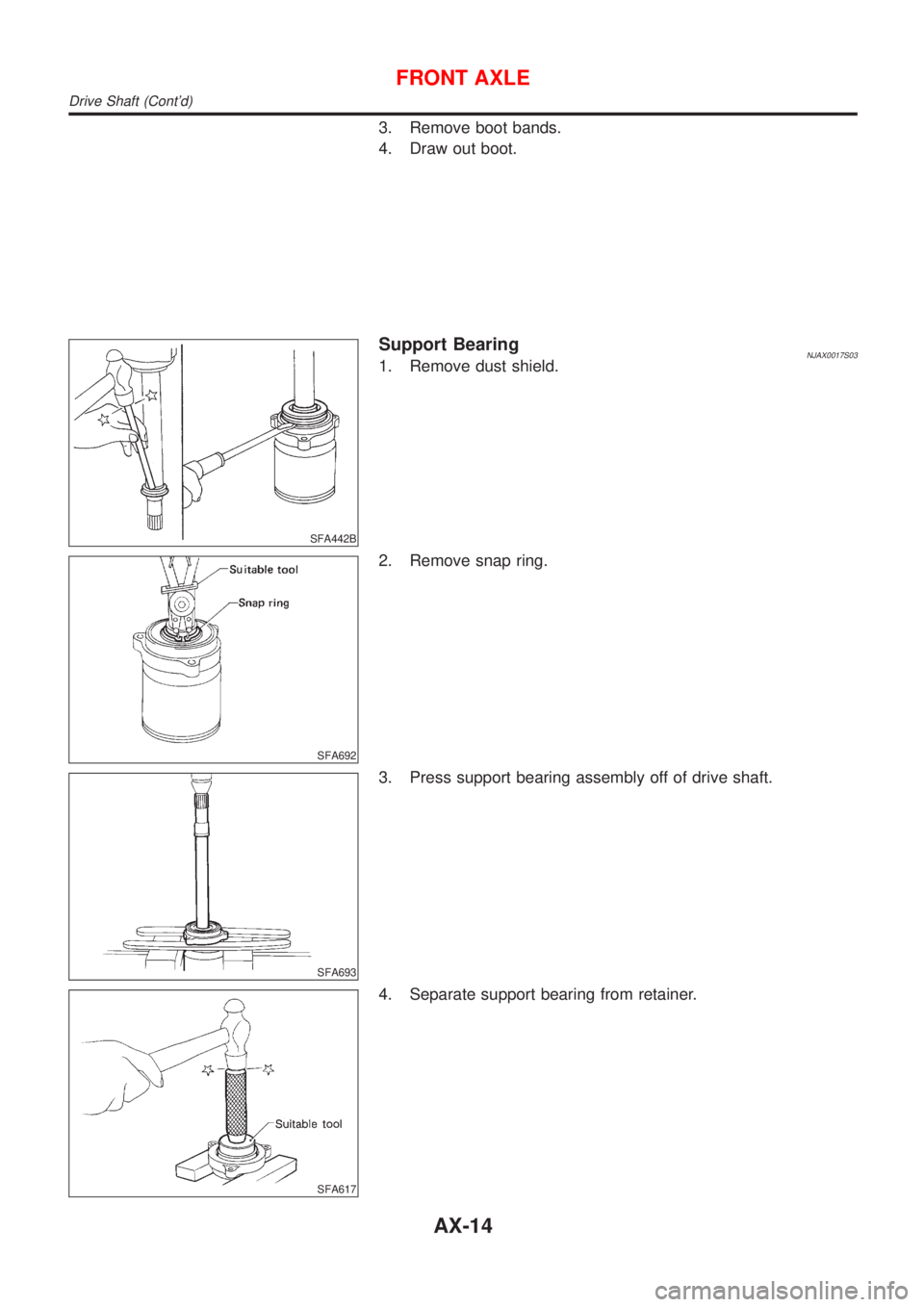

NISSAN ALMERA N16 2001  Electronic Repair Manual 3. Remove boot bands.
4. Draw out boot.
SFA442B
Support BearingNJAX0017S031. Remove dust shield.
SFA692
2. Remove snap ring.
SFA693
3. Press support bearing assembly off of drive shaft.
SFA617
4. Sepa

Page 1659 of 2493

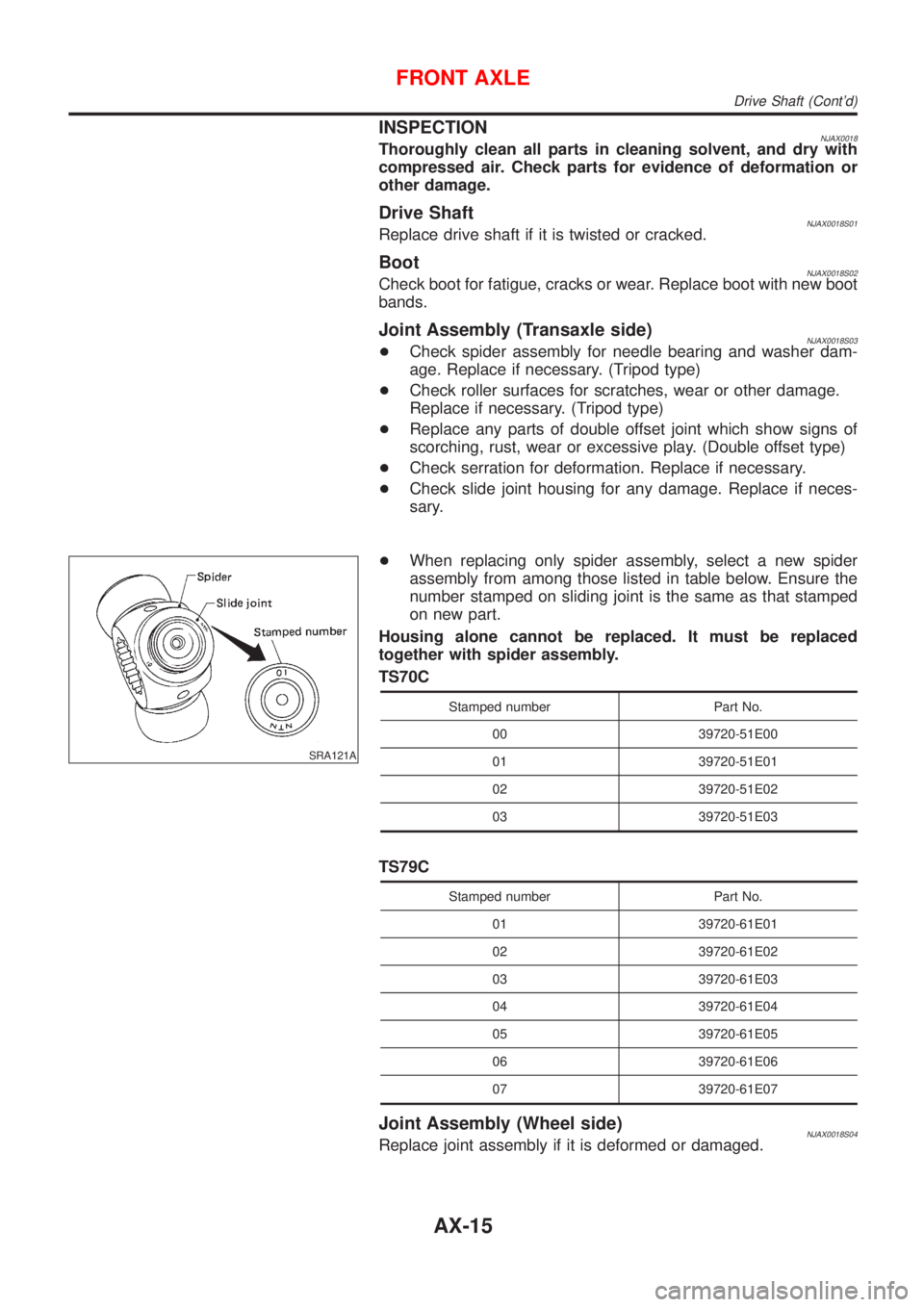

NISSAN ALMERA N16 2001  Electronic Repair Manual INSPECTIONNJAX0018Thoroughly clean all parts in cleaning solvent, and dry with
compressed air. Check parts for evidence of deformation or
other damage.
Drive ShaftNJAX0018S01Replace drive shaft if it

Page 1660 of 2493

NISSAN ALMERA N16 2001  Electronic Repair Manual Support BearingNJAX0018S05Make sure wheel bearing rolls freely and is free from noise, cracks,
pitting or wear.
Support Bearing BracketNJAX0018S06Check support bearing bracket for cracks with a magnet

Page 1661 of 2493

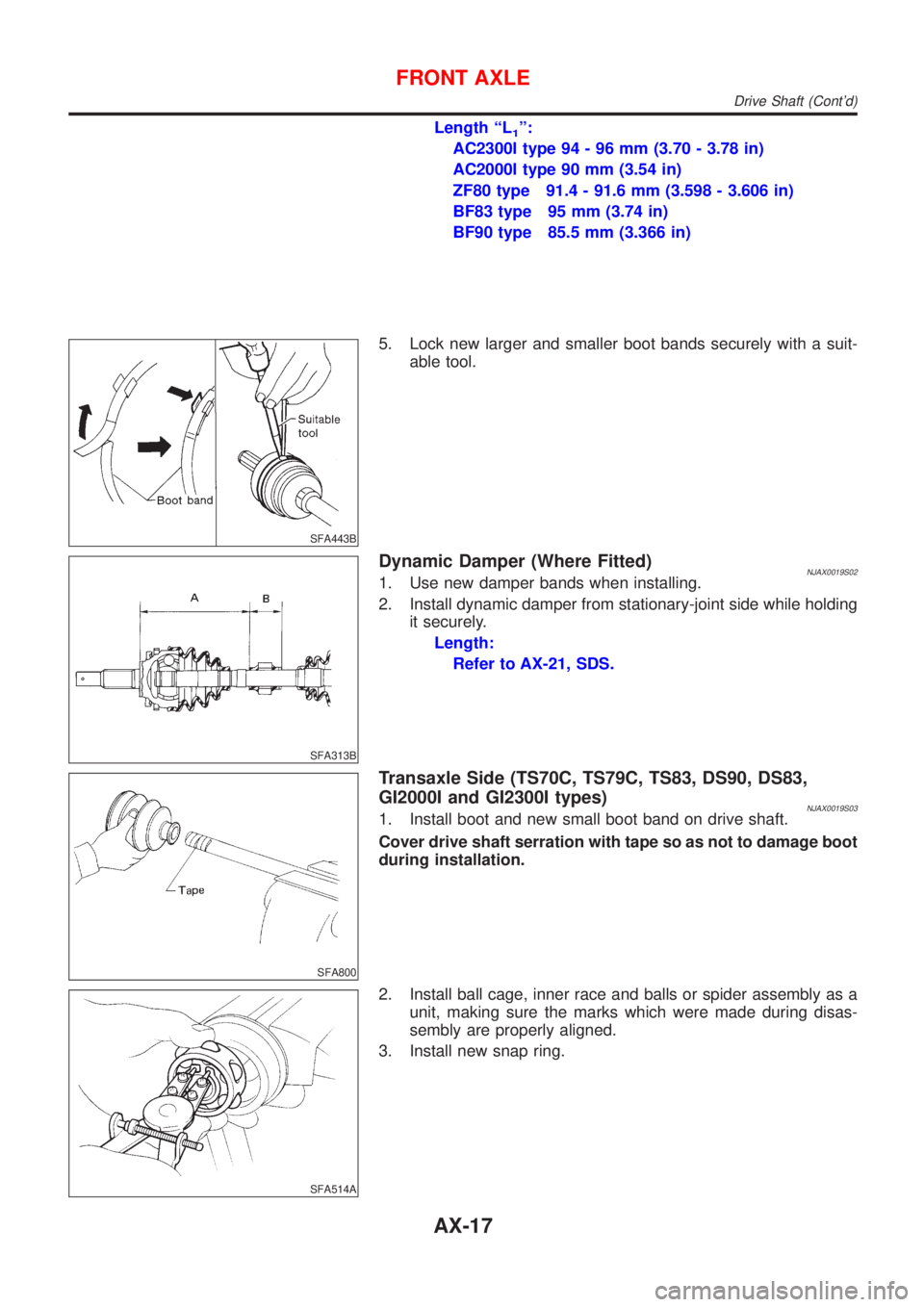

NISSAN ALMERA N16 2001  Electronic Repair Manual Length ªL1º:
AC2300I type 94 - 96 mm (3.70 - 3.78 in)
AC2000I type 90 mm (3.54 in)
ZF80 type 91.4 - 91.6 mm (3.598 - 3.606 in)
BF83 type 95 mm (3.74 in)
BF90 type 85.5 mm (3.366 in)
SFA443B
5. Lock

Page 1662 of 2493

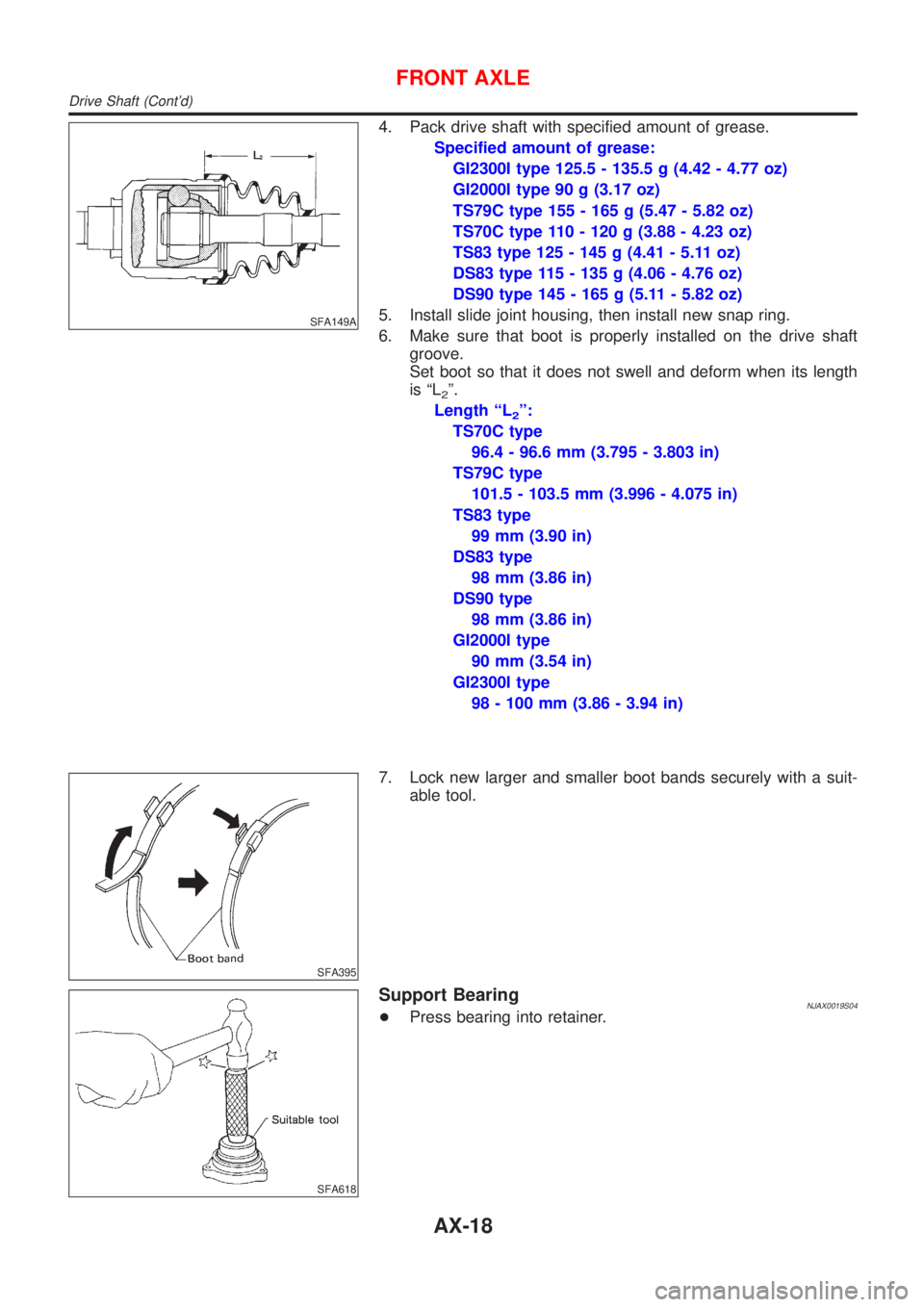

NISSAN ALMERA N16 2001  Electronic Repair Manual SFA149A
4. Pack drive shaft with specified amount of grease.
Specified amount of grease:
GI2300I type 125.5 - 135.5 g (4.42 - 4.77 oz)
GI2000I type 90 g (3.17 oz)
TS79C type 155 - 165 g (5.47 - 5.82 o

Page 1663 of 2493

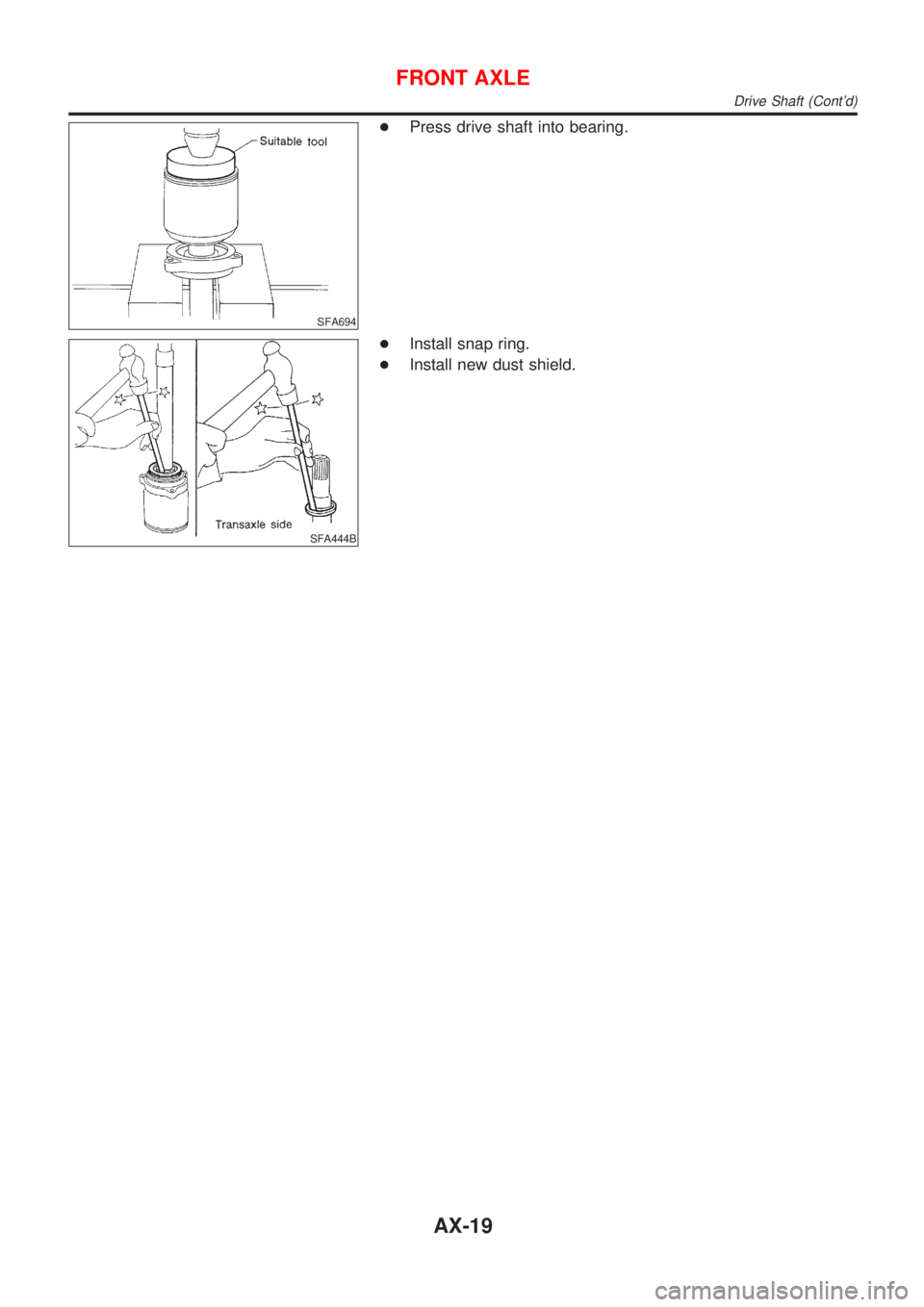

NISSAN ALMERA N16 2001  Electronic Repair Manual SFA694
+Press drive shaft into bearing.
SFA444B
+Install snap ring.
+Install new dust shield.
FRONT AXLE
Drive Shaft (Contd)
AX-19

Page 1664 of 2493

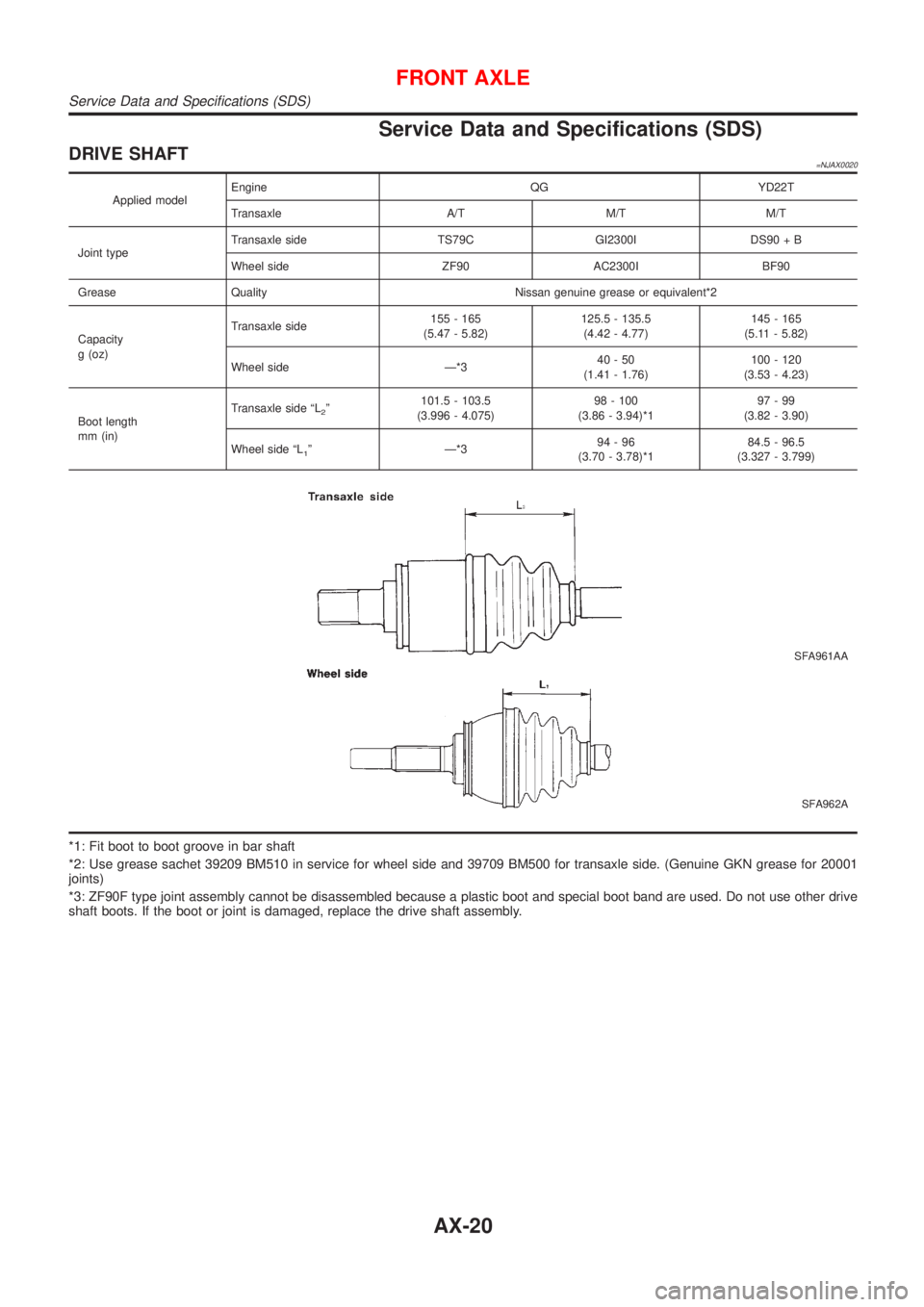

NISSAN ALMERA N16 2001  Electronic Repair Manual Service Data and Specifications (SDS)
DRIVE SHAFT=NJAX0020
Applied modelEngine QG YD22T
Transaxle A/T M/T M/T
Joint typeTransaxle side TS79C GI2300I DS90 + B
Wheel side ZF90 AC2300I BF90
Grease Qualit
