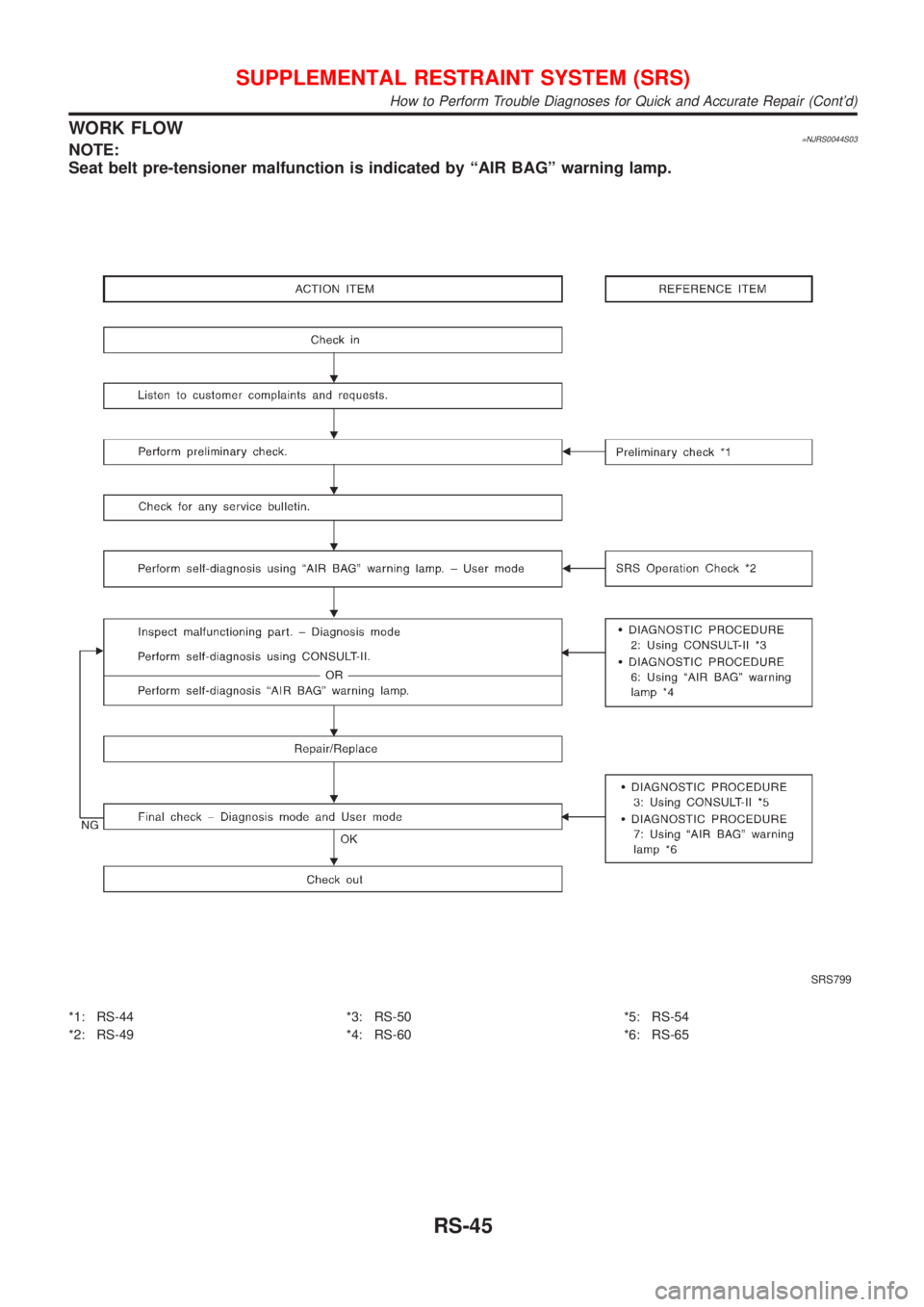

Page 1865 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual WORK FLOW=NJRS0044S03NOTE:
Seat belt pre-tensioner malfunction is indicated by ªAIR BAGº warning lamp.
SRS799
*1: RS-44
*2: RS-49*3: RS-50
*4: RS-60*5: RS-54
*6: RS-65
SUPPLEMENTAL RESTRAINT SYSTEM

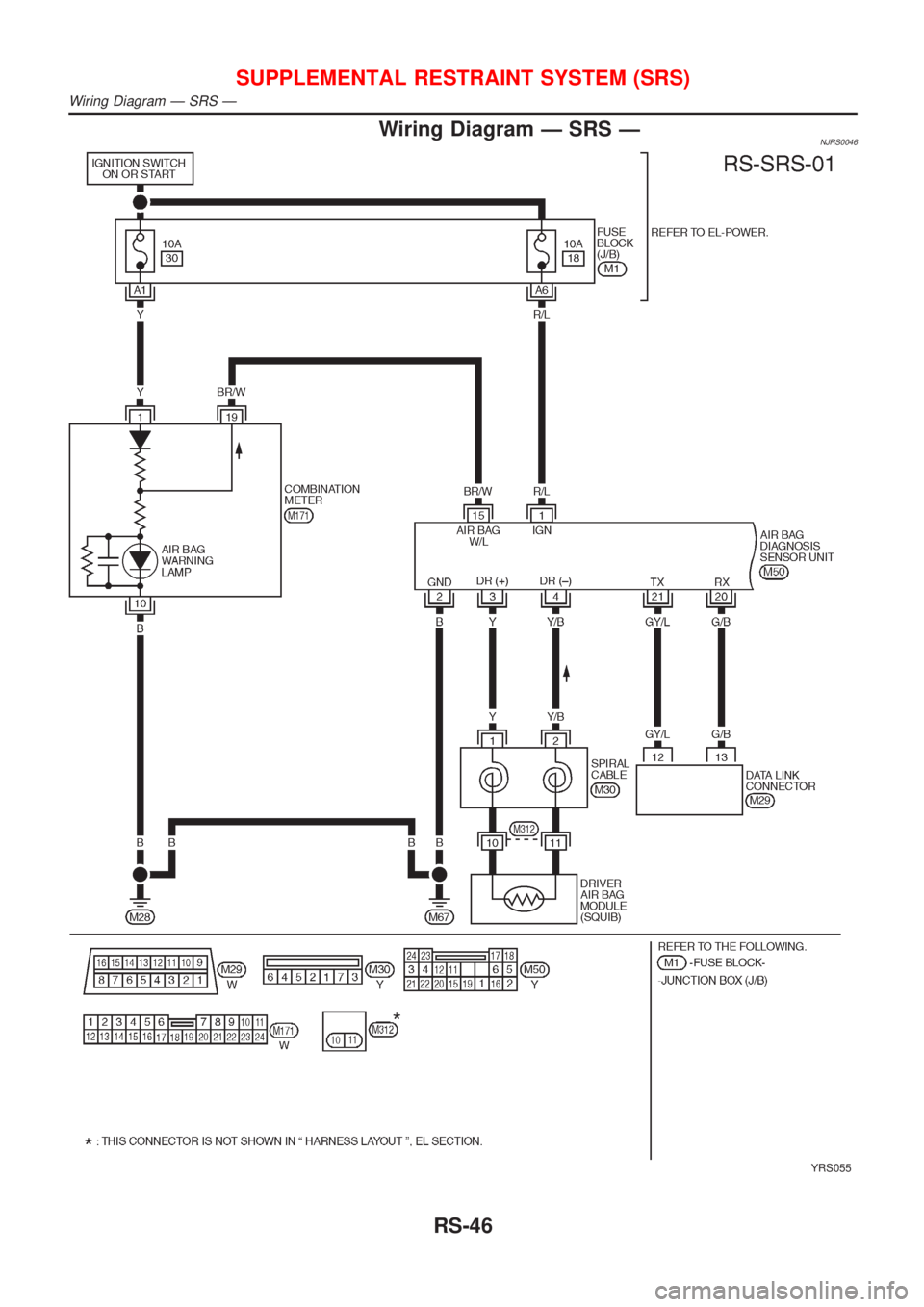

Page 1866 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Wiring Diagram Ð SRS ÐNJRS0046
YRS055
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Wiring Diagram Ð SRS Ð
RS-46

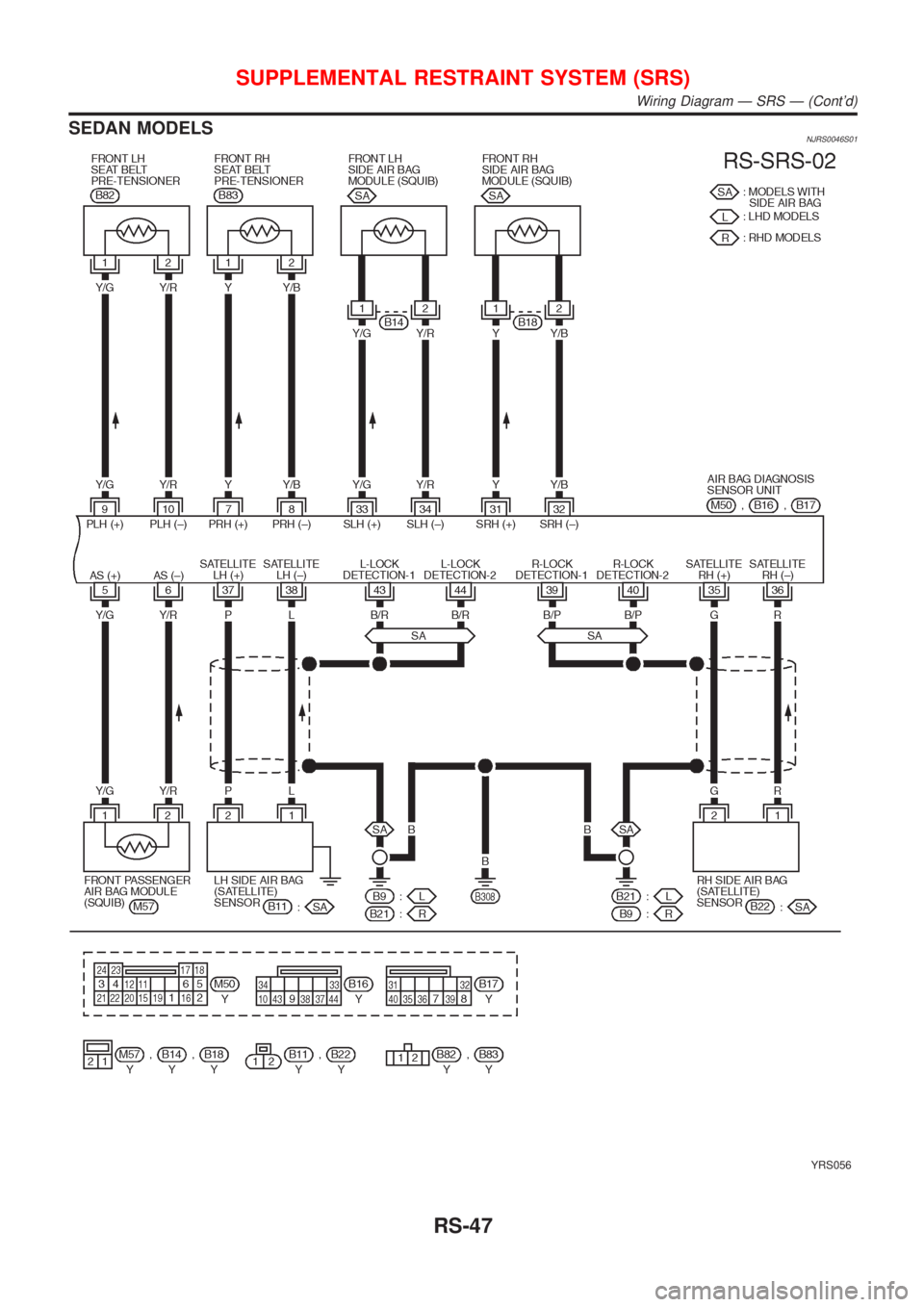

Page 1867 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SEDAN MODELSNJRS0046S01
YRS056
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Wiring Diagram Ð SRS Ð (Contd)
RS-47

Page 1868 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual HATCHBACK MODELSNJRS0046S02
YRS057
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Wiring Diagram Ð SRS Ð (Contd)
RS-48

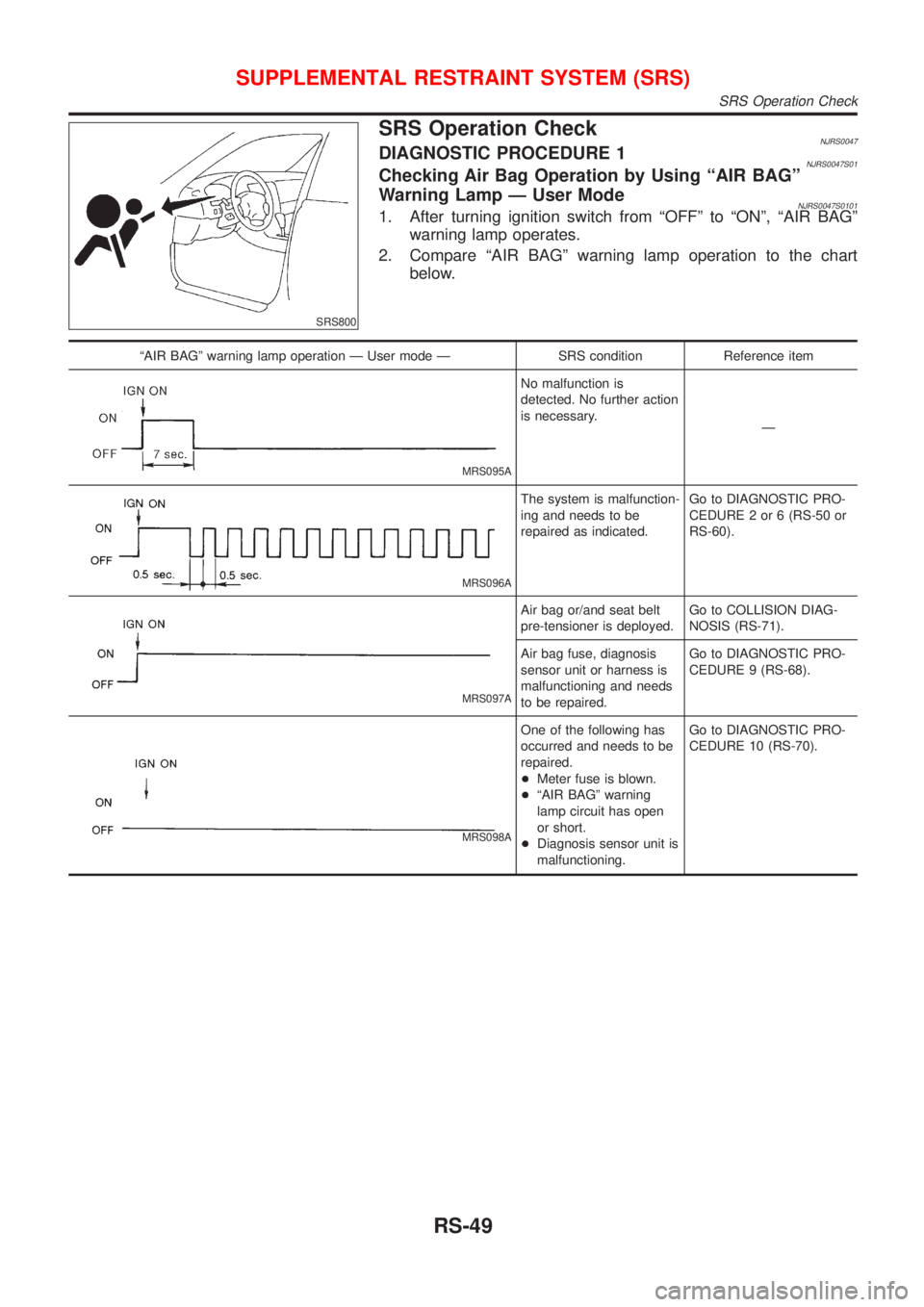

Page 1869 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SRS800
SRS Operation CheckNJRS0047DIAGNOSTIC PROCEDURE 1NJRS0047S01Checking Air Bag Operation by Using ªAIR BAGº
Warning Lamp Ð User Mode
NJRS0047S01011. After turning ignition switch from ªOFFº

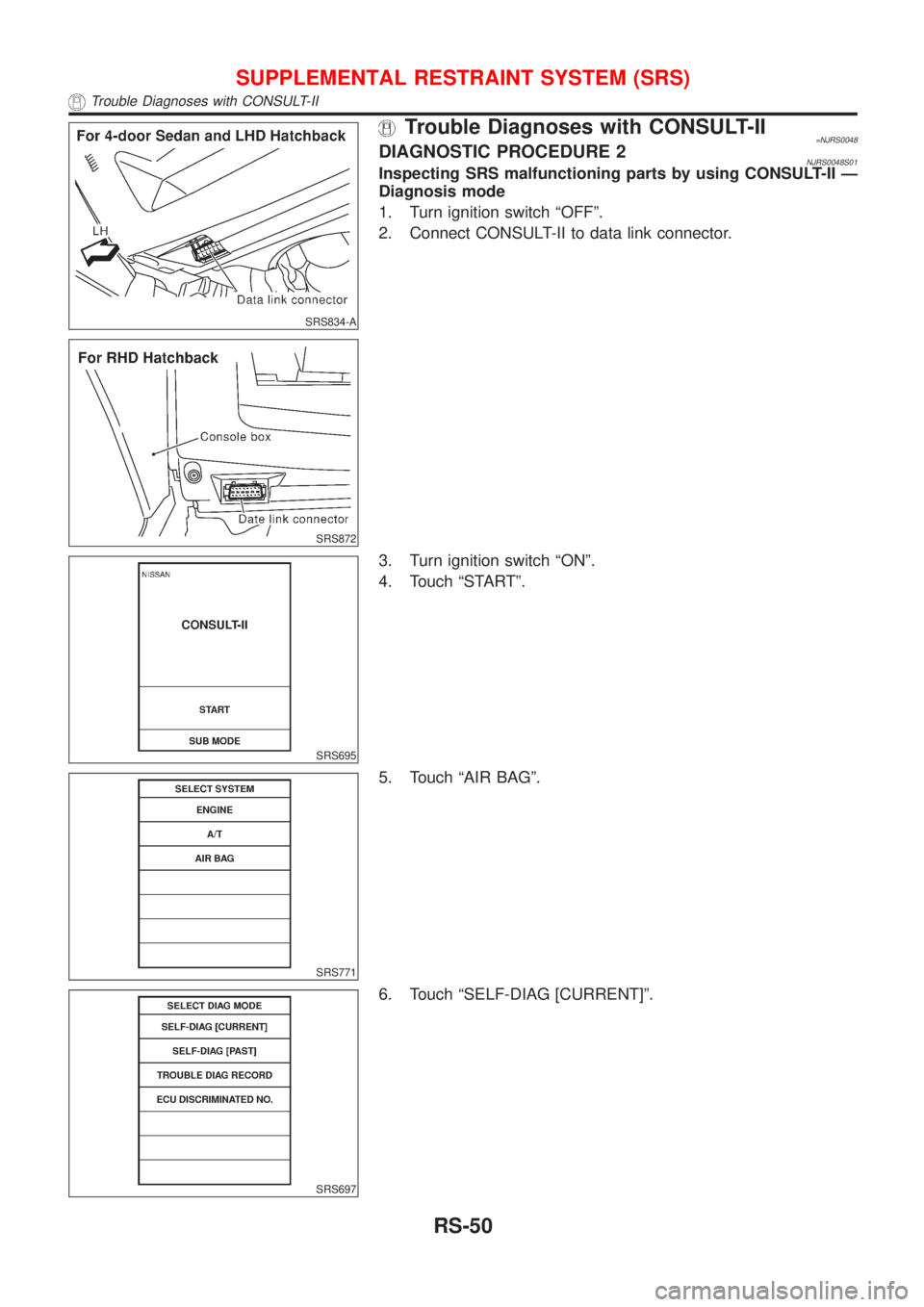

Page 1870 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SRS834-A
SRS872
Trouble Diagnoses with CONSULT-II=NJRS0048DIAGNOSTIC PROCEDURE 2NJRS0048S01Inspecting SRS malfunctioning parts by using CONSULT-II Ð
Diagnosis mode
1. Turn ignition switch ªOFFº.
2.

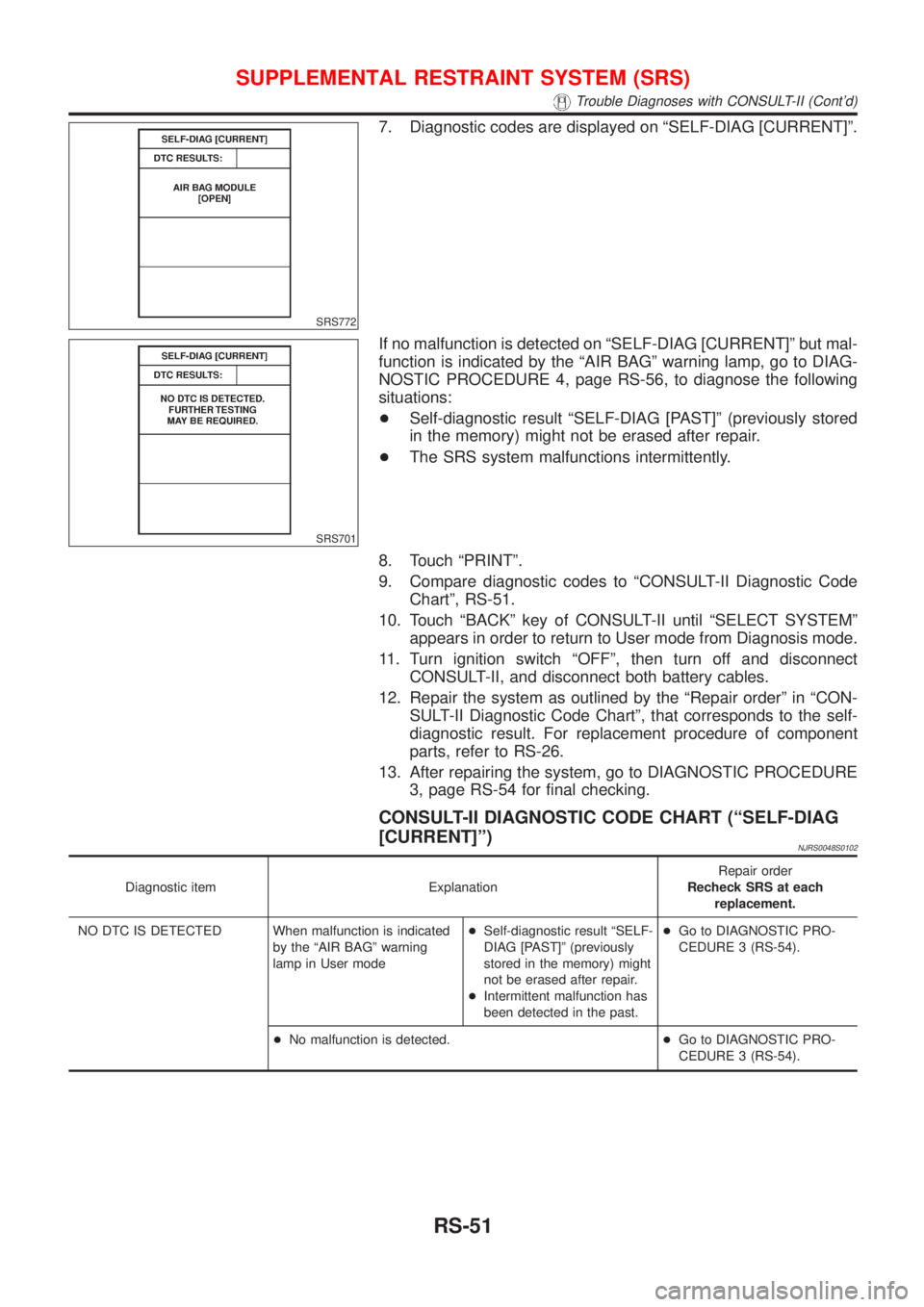

Page 1871 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SRS772
7. Diagnostic codes are displayed on ªSELF-DIAG [CURRENT]º.
SRS701
If no malfunction is detected on ªSELF-DIAG [CURRENT]º but mal-
function is indicated by the ªAIR BAGº warning lamp, go

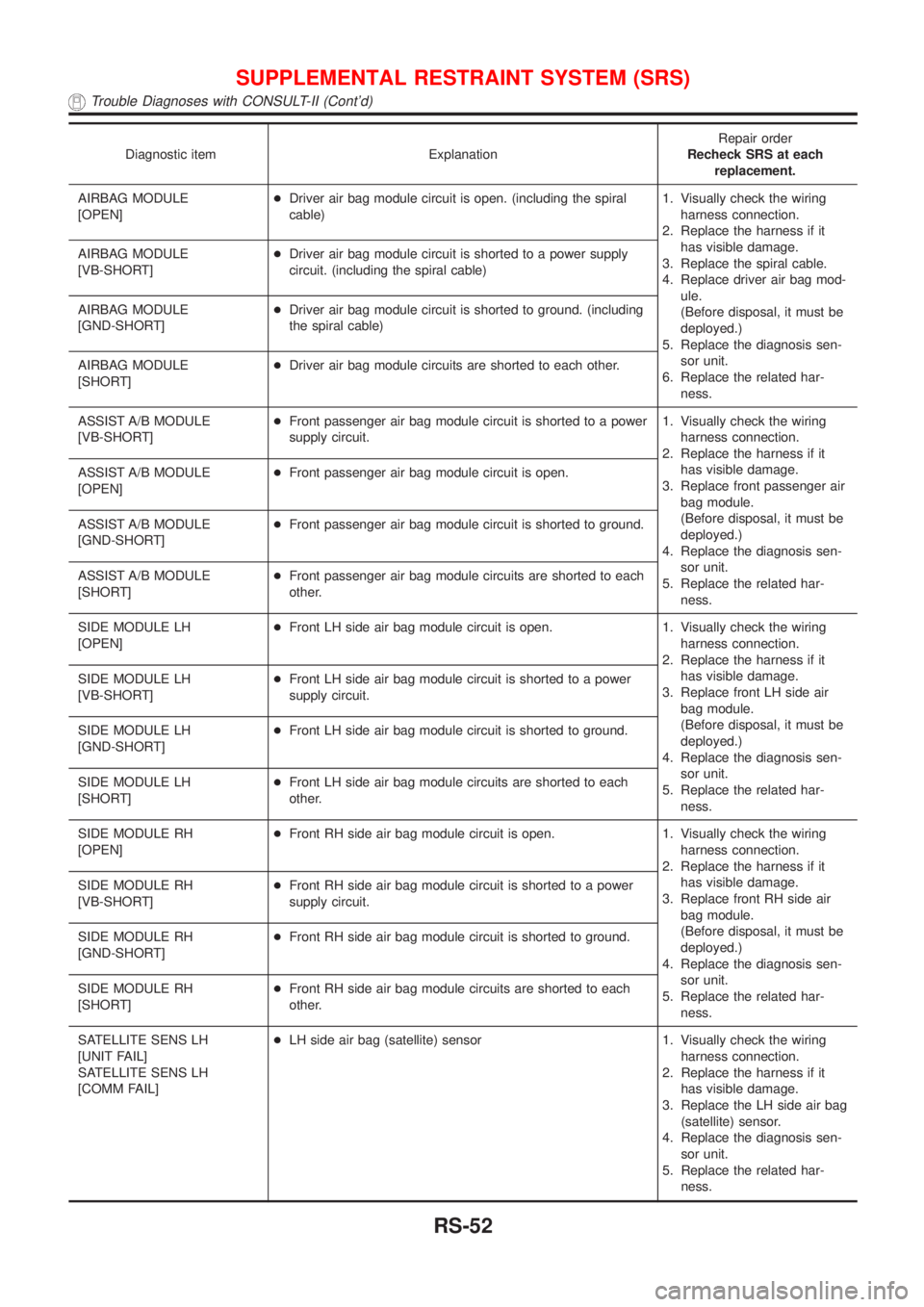

Page 1872 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Diagnostic item ExplanationRepair order
Recheck SRS at each
replacement.
AIRBAG MODULE
[OPEN]+Driver air bag module circuit is open. (including the spiral
cable)1. Visually check the wiring
harness co

Diagnostic item ExplanationRepair order
Recheck SRS at each
replacement.
AIRBAG MODULE
[OPEN]+Driver air bag module circuit is open. (including the spiral
cable)1. Visually check the wiring
harness connection.
2. Replace the harness if it
has visible damage.
3. Replace the spiral cable.
4. Replace driver air bag mod-
ule.
(Before disposal, it must be
deployed.)
5. Replace the diagnosis sen-
sor unit.
6. Replace the related har-
ness. AIRBAG MODULE
[VB-SHORT]+Driver air bag module circuit is shorted to a power supply
circuit. (including the spiral cable)
AIRBAG MODULE
[GND-SHORT]+Driver air bag module circuit is shorted to ground. (including
the spiral cable)
AIRBAG MODULE
[SHORT]+Driver air bag module circuits are shorted to each other.
ASSIST A/B MODULE
[VB-SHORT]+Front passenger air bag module circuit is shorted to a power
supply circuit.1. Visually check the wiring
harness connection.
2. Replace the harness if it
has visible damage.
3. Replace front passenger air
bag module.
(Before disposal, it must be
deployed.)
4. Replace the diagnosis sen-
sor unit.
5. Replace the related har-
ness. ASSIST A/B MODULE
[OPEN]+Front passenger air bag module circuit is open.
ASSIST A/B MODULE
[GND-SHORT]+Front passenger air bag module circuit is shorted to ground.
ASSIST A/B MODULE
[SHORT]+Front passenger air bag module circuits are shorted to each
other.
SIDE MODULE LH
[OPEN]+Front LH side air bag module circuit is open. 1. Visually check the wiring
harness connection.
2. Replace the harness if it
has visible damage.
3. Replace front LH side air
bag module.
(Before disposal, it must be
deployed.)
4. Replace the diagnosis sen-
sor unit.
5. Replace the related har-
ness. SIDE MODULE LH
[VB-SHORT]+Front LH side air bag module circuit is shorted to a power
supply circuit.
SIDE MODULE LH
[GND-SHORT]+Front LH side air bag module circuit is shorted to ground.
SIDE MODULE LH
[SHORT]+Front LH side air bag module circuits are shorted to each
other.
SIDE MODULE RH
[OPEN]+Front RH side air bag module circuit is open. 1. Visually check the wiring
harness connection.
2. Replace the harness if it
has visible damage.
3. Replace front RH side air
bag module.
(Before disposal, it must be
deployed.)
4. Replace the diagnosis sen-
sor unit.
5. Replace the related har-
ness. SIDE MODULE RH
[VB-SHORT]+Front RH side air bag module circuit is shorted to a power
supply circuit.
SIDE MODULE RH
[GND-SHORT]+Front RH side air bag module circuit is shorted to ground.
SIDE MODULE RH
[SHORT]+Front RH side air bag module circuits are shorted to each
other.
SATELLITE SENS LH
[UNIT FAIL]
SATELLITE SENS LH
[COMM FAIL]+LH side air bag (satellite) sensor 1. Visually check the wiring
harness connection.
2. Replace the harness if it
has visible damage.
3. Replace the LH side air bag
(satellite) sensor.
4. Replace the diagnosis sen-
sor unit.
5. Replace the related har-
ness.
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Trouble Diagnoses with CONSULT-II (Cont'd)
RS-52
