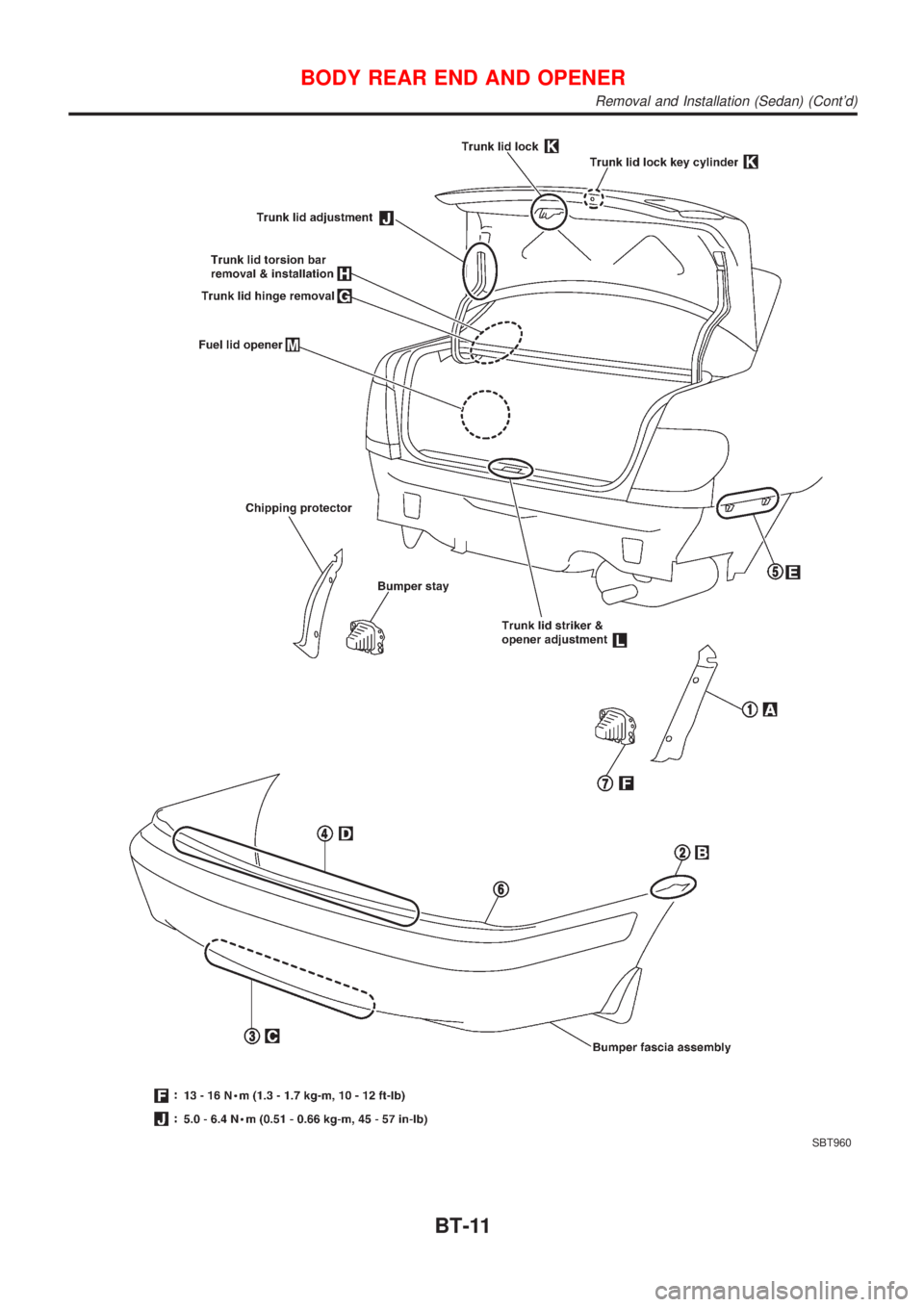

Page 1905 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SBT960 BODY REAR END AND OPENER Removal and Installation (Sedan) (Contd) BT-11

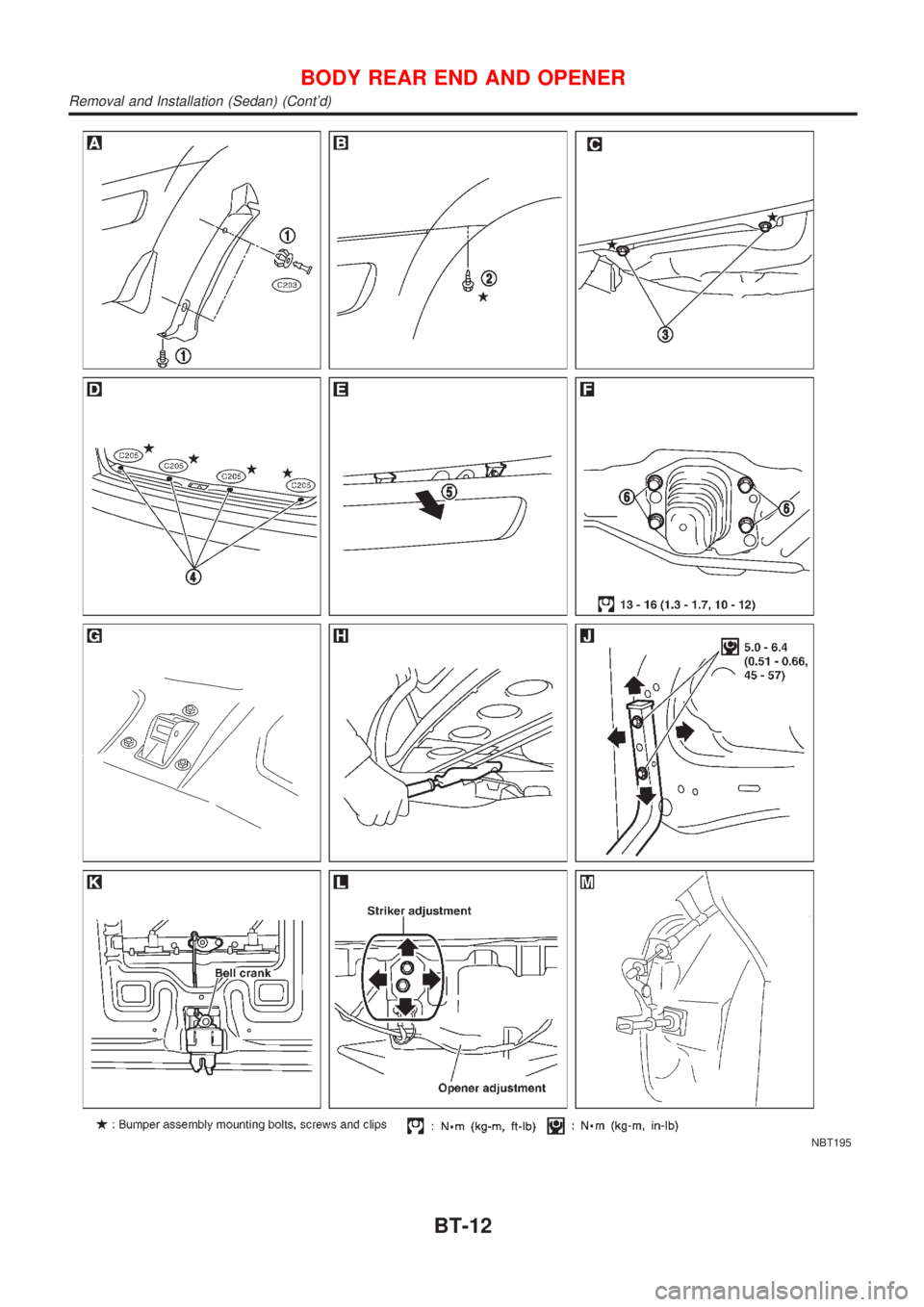

Page 1906 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual NBT195 BODY REAR END AND OPENER Removal and Installation (Sedan) (Contd) BT-12

Page 1907 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Removal and Installation (Hatchback)NJBT0034+When removing or installing back door, place a cloth or other padding on back door. This prevents vehicle body from being scratched. +Bumper fascia is made

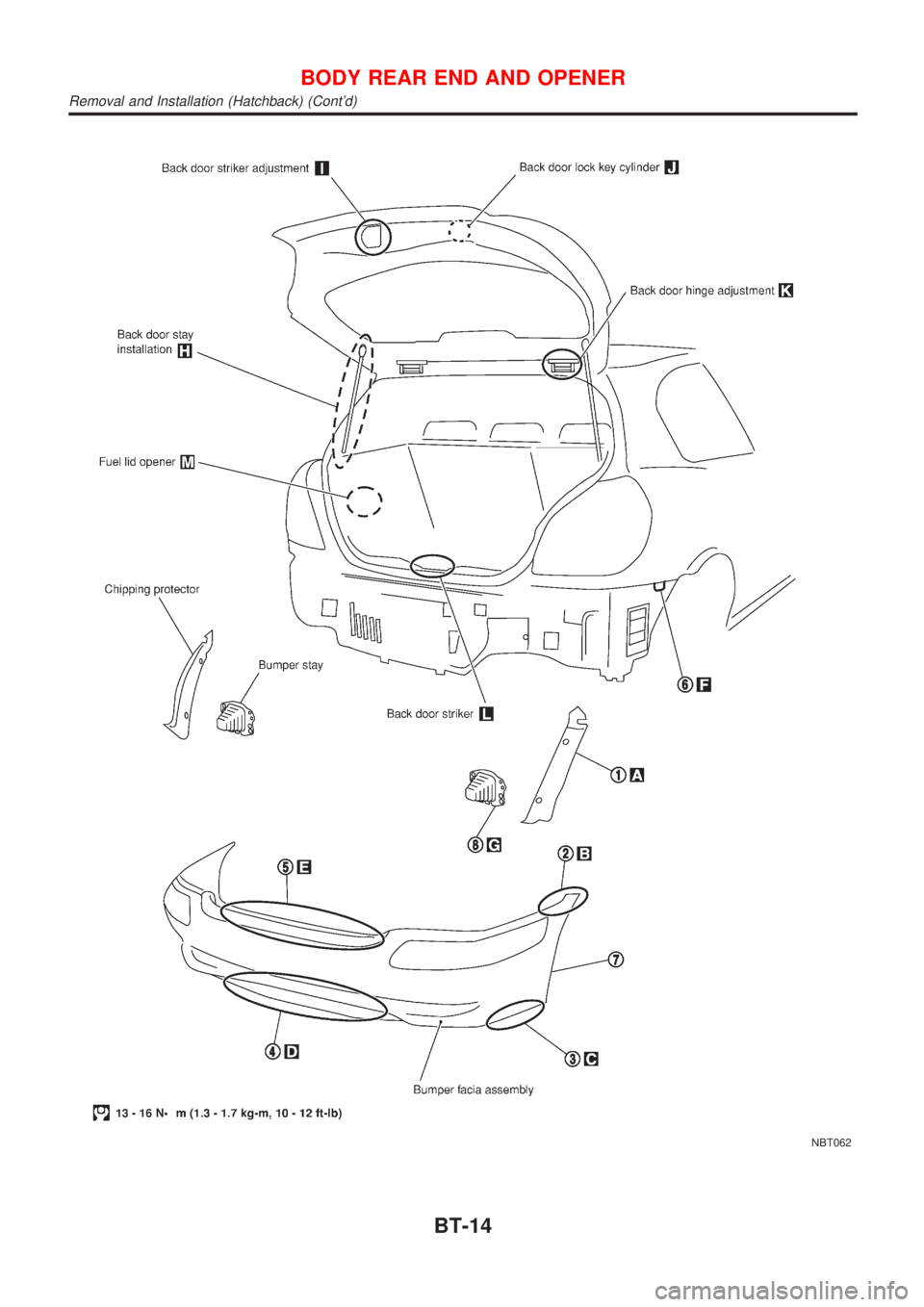

Page 1908 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual NBT062 BODY REAR END AND OPENER Removal and Installation (Hatchback) (Contd) BT-14

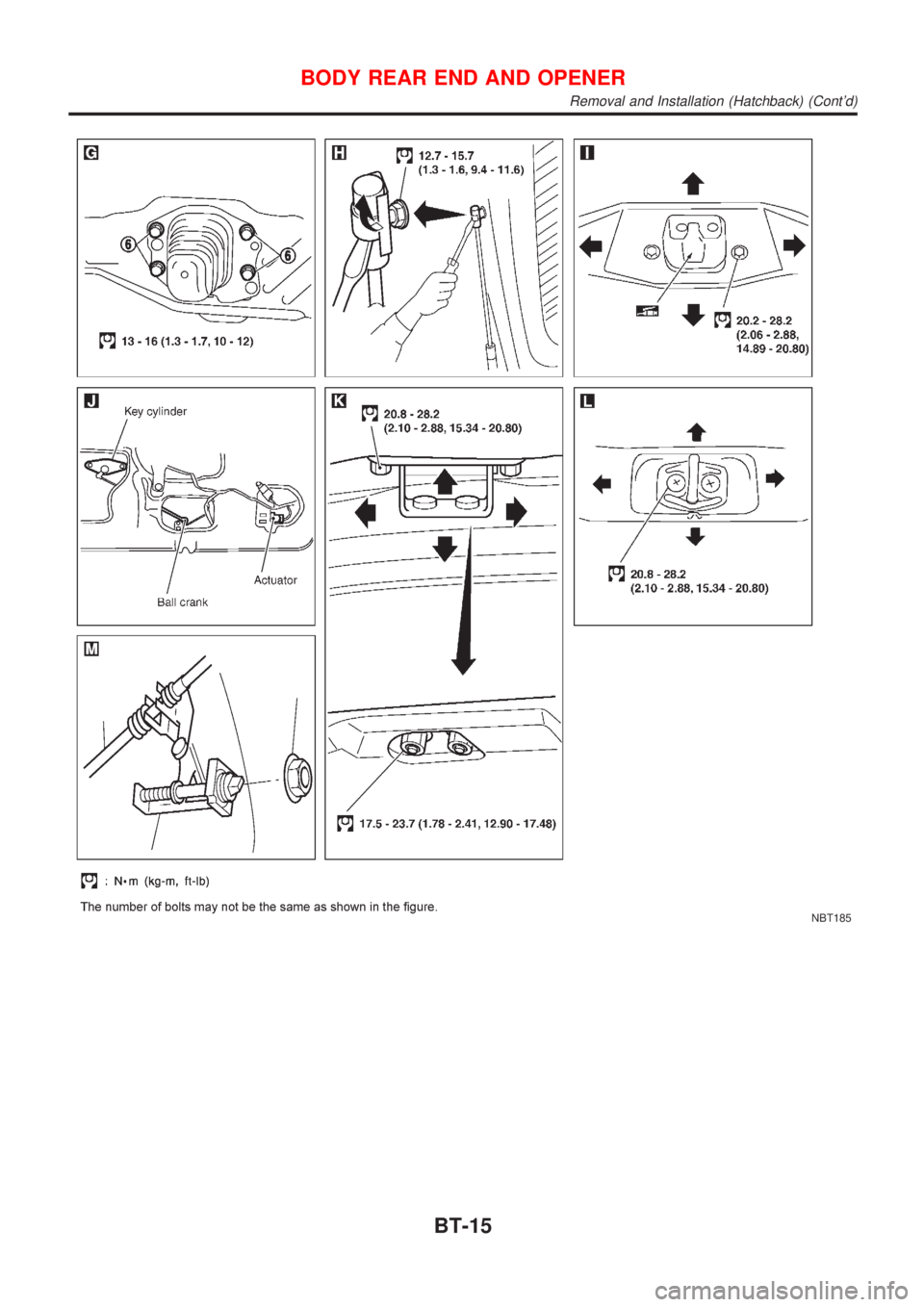

Page 1909 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual NBT185 BODY REAR END AND OPENER Removal and Installation (Hatchback) (Contd) BT-15

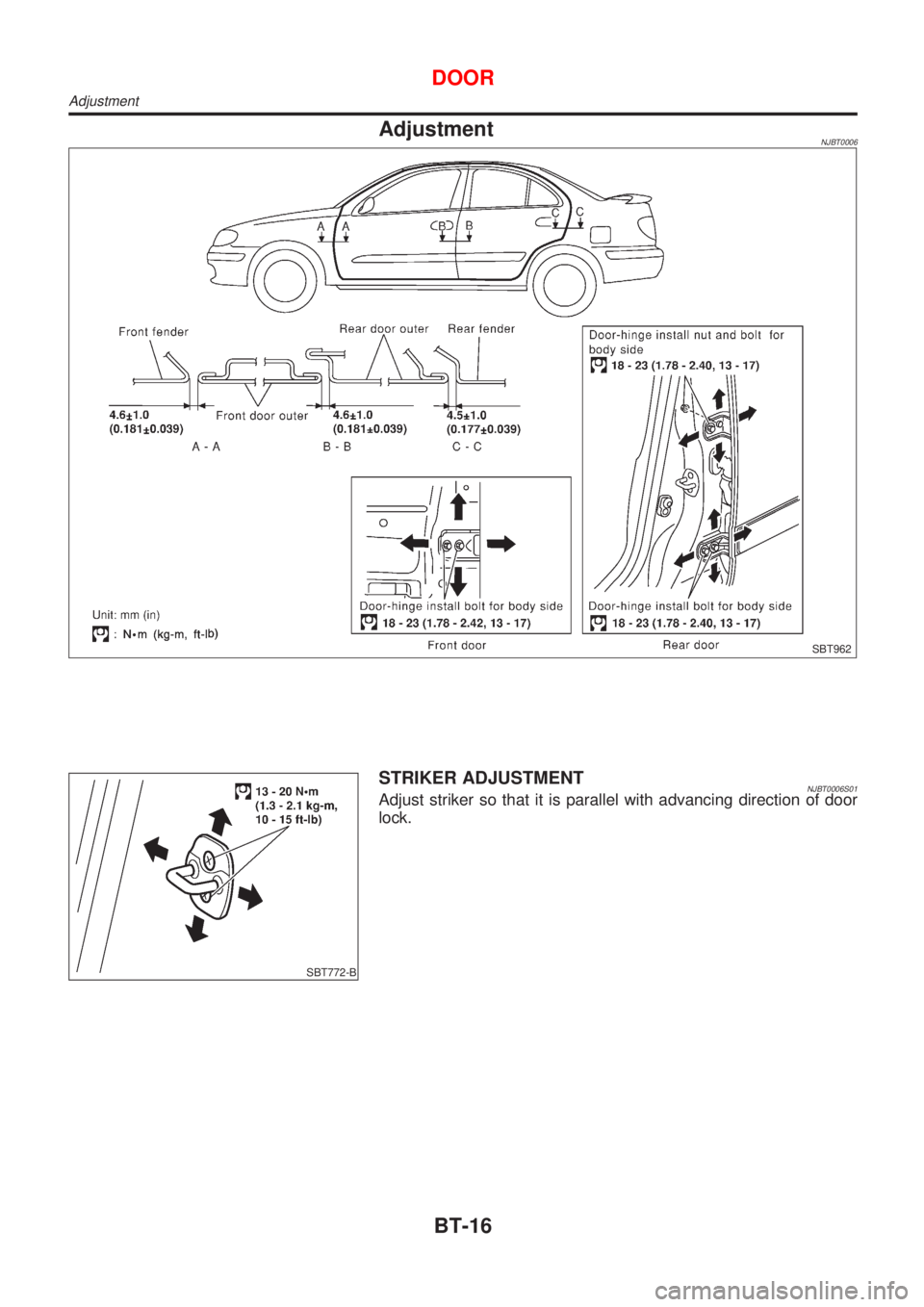

Page 1910 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual AdjustmentNJBT0006 SBT962 SBT772-B STRIKER ADJUSTMENTNJBT0006S01Adjust striker so that it is parallel with advancing direction of door lock. DOOR Adjustment BT-16

Page 1911 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Front Door Glass=NJBT0007+Make sure that door glass is positioned in glass run groove. +Make sure that there is no abnormality when door glass is raised or lowered. FRONT DOOR GLASS AND REGULATORNJBT0

Page 1912 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SBT965 3. Hold door glass with both hands. While raising rear end of door glass, remove door glass from sash and away from outside the door. SBT966 4. Disconnect regulator assembly connector. 5. Remov
