NISSAN ALMERA N16 2001 Electronic Repair Manual ECM Terminals and Reference Value=NJEC0081Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground terminals when measuring input/outpu

Page 466 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual the shop or by driving the vehicle. If a road test is expected to be easier, it is unnecessary to lift the vehicle. SEF175Y With CONSULT-II 1) Turn ignition switch ªONº and select ªDATA MONITORº m

Page 467 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Wiring DiagramNJEC0084 YEC966 DTC P0120 THROTTLE POSITION SENSORQG Wiring Diagram EC-171

Page 468 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual Diagnostic ProcedureNJEC0085 1 RETIGHTEN GROUND SCREWS 1. Turn ignition switch ªOFFº. 2. Loosen and retighten engine ground screws. JEF104Y ©GO TO 2. 2 CHECK POWER SUPPLY 1. Disconnect throttle pos

Page 469 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual 4 CHECK GROUND CIRCUIT 1. Turn ignition switch ªOFFº. 2. Check harness continuity between throttle position sensor harness connector terminal 1 and engine ground. Refer to wiring diagram. Continuity

Page 470 of 2493

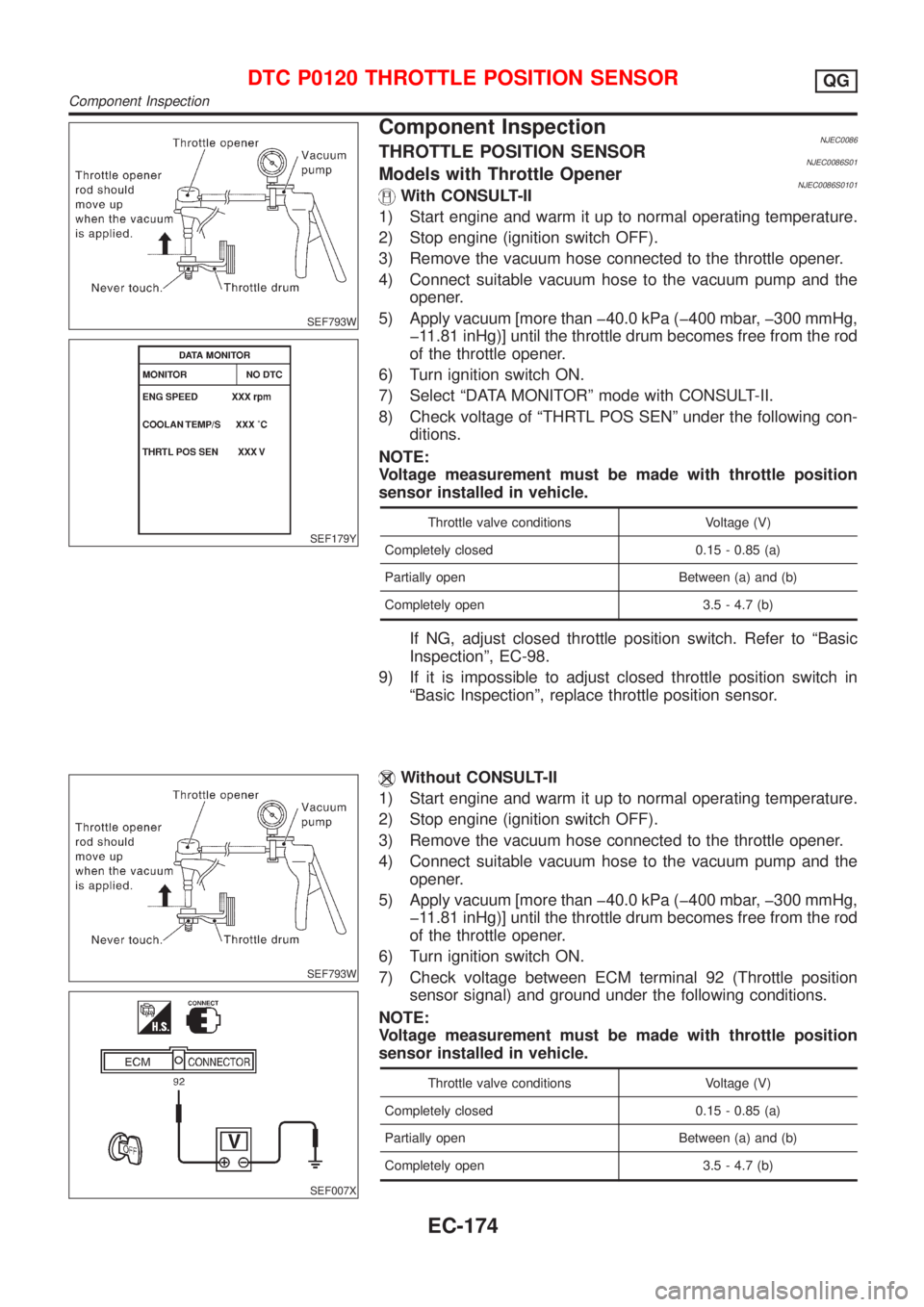

NISSAN ALMERA N16 2001 Electronic Repair Manual SEF793W SEF179Y Component InspectionNJEC0086THROTTLE POSITION SENSORNJEC0086S01Models with Throttle OpenerNJEC0086S0101With CONSULT-II 1) Start engine and warm it up to normal operating temperature. 2

Page 471 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual If NG, adjust closed throttle position switch. Refer to ªBasic Inspectionº, EC-98. 8) If it is impossible to adjust closed throttle position switch in ªBasic Inspectionº, replace throttle position

Page 472 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SEF463R SEF288D Component DescriptionNJEC0094The heated oxygen sensor 1 (front) is placed into the exhaust manifold. It detects the amount of oxygen in the exhaust gas com- pared to the outside air. T
