Page 1065 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SMA067C Changing M/T OilNJMT00881. Drain oil from drain plug and refill with new gear oil. 2. Check oil level. Oil grade: API GL-4 Viscosity: Refer to MA-20, ªRECOMMENDED FLUIDS AND LUBRICANTSº. Cap

Page 1066 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual NJMT0034 Cross-sectional View Ð RS5F30ANJMT0034S01ymt002 YMT002 DESCRIPTION Cross-sectional View Ð RS5F30A MT-16

Page 1067 of 2493

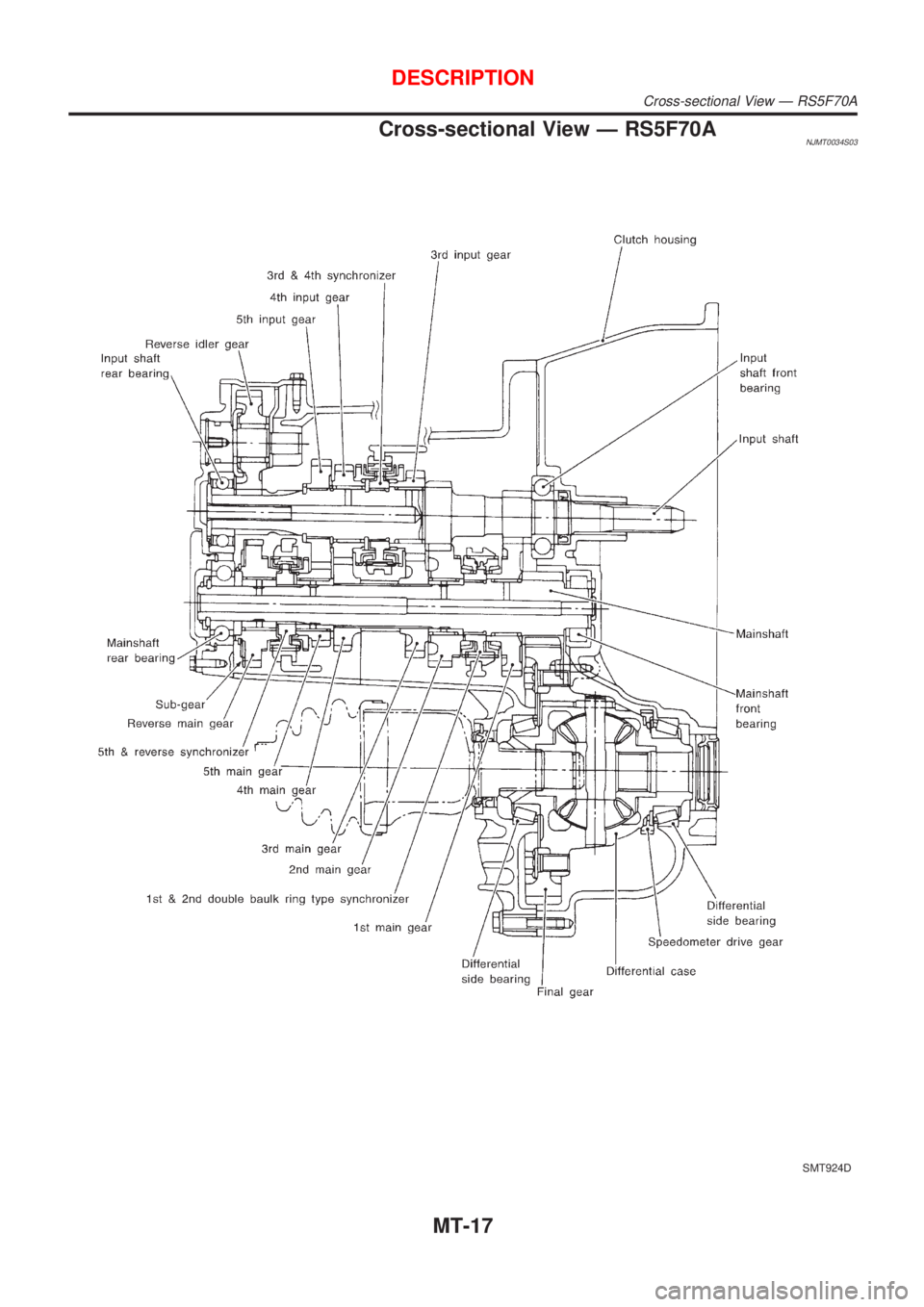

NISSAN ALMERA N16 2001 Electronic Repair Manual Cross-sectional View Ð RS5F70ANJMT0034S03 SMT924D DESCRIPTION Cross-sectional View Ð RS5F70A MT-17

Page 1068 of 2493

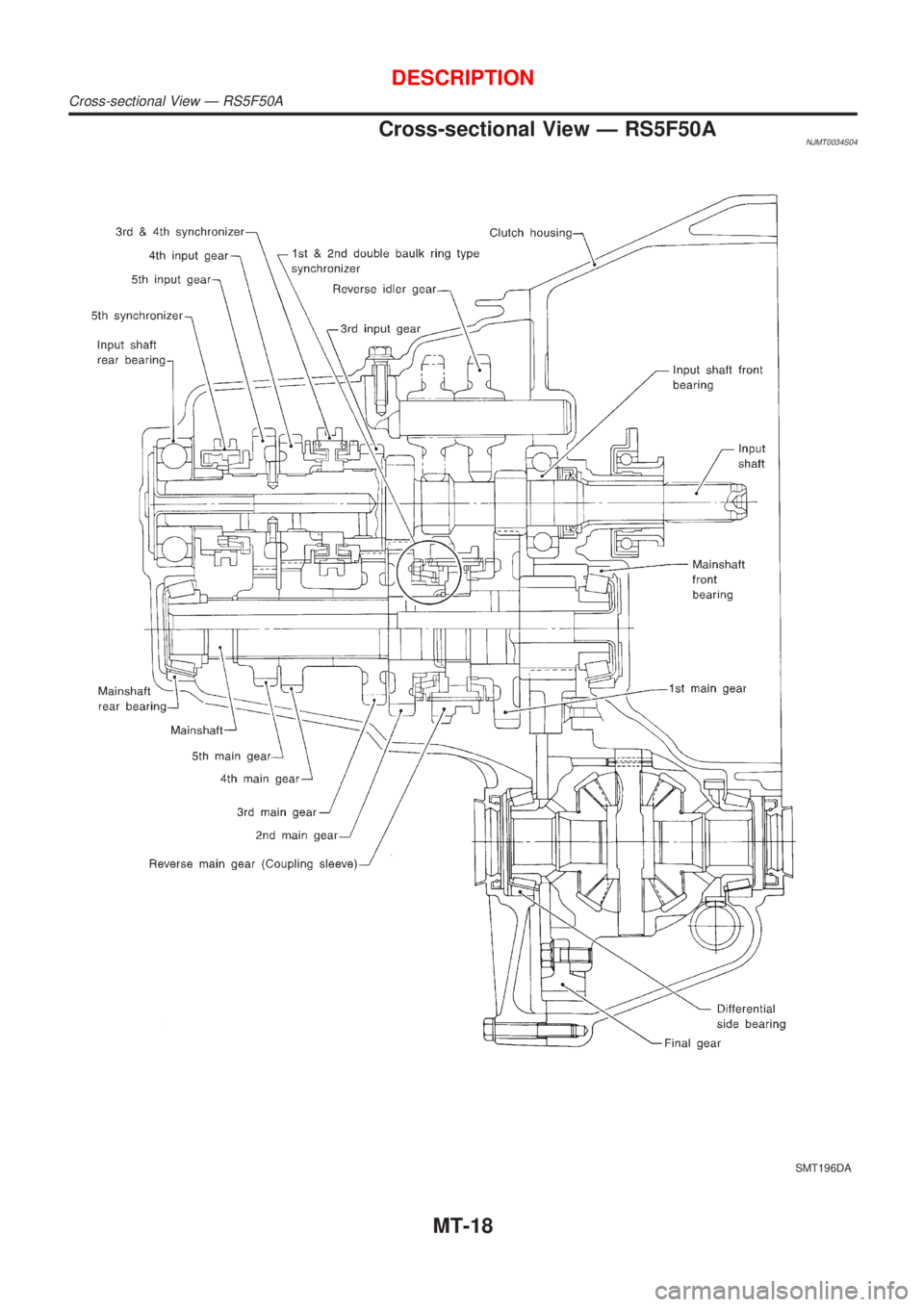

NISSAN ALMERA N16 2001 Electronic Repair Manual Cross-sectional View Ð RS5F50ANJMT0034S04 SMT196DA DESCRIPTION Cross-sectional View Ð RS5F50A MT-18

Page 1069 of 2493

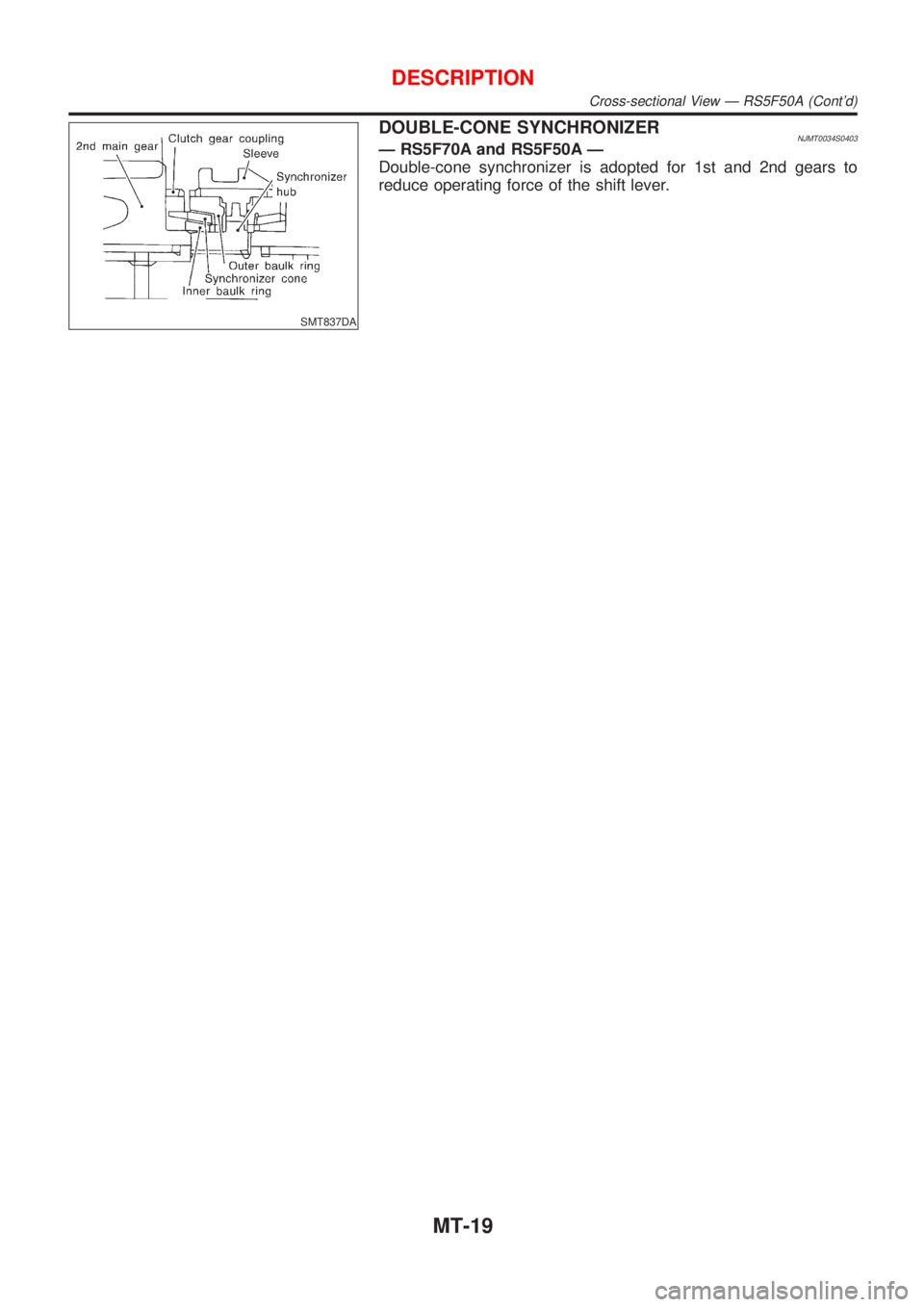

NISSAN ALMERA N16 2001 Electronic Repair Manual SMT837DA DOUBLE-CONE SYNCHRONIZERNJMT0034S0403Ð RS5F70A and RS5F50A Ð Double-cone synchronizer is adopted for 1st and 2nd gears to reduce operating force of the shift lever. DESCRIPTION Cross-sectio

Page 1070 of 2493

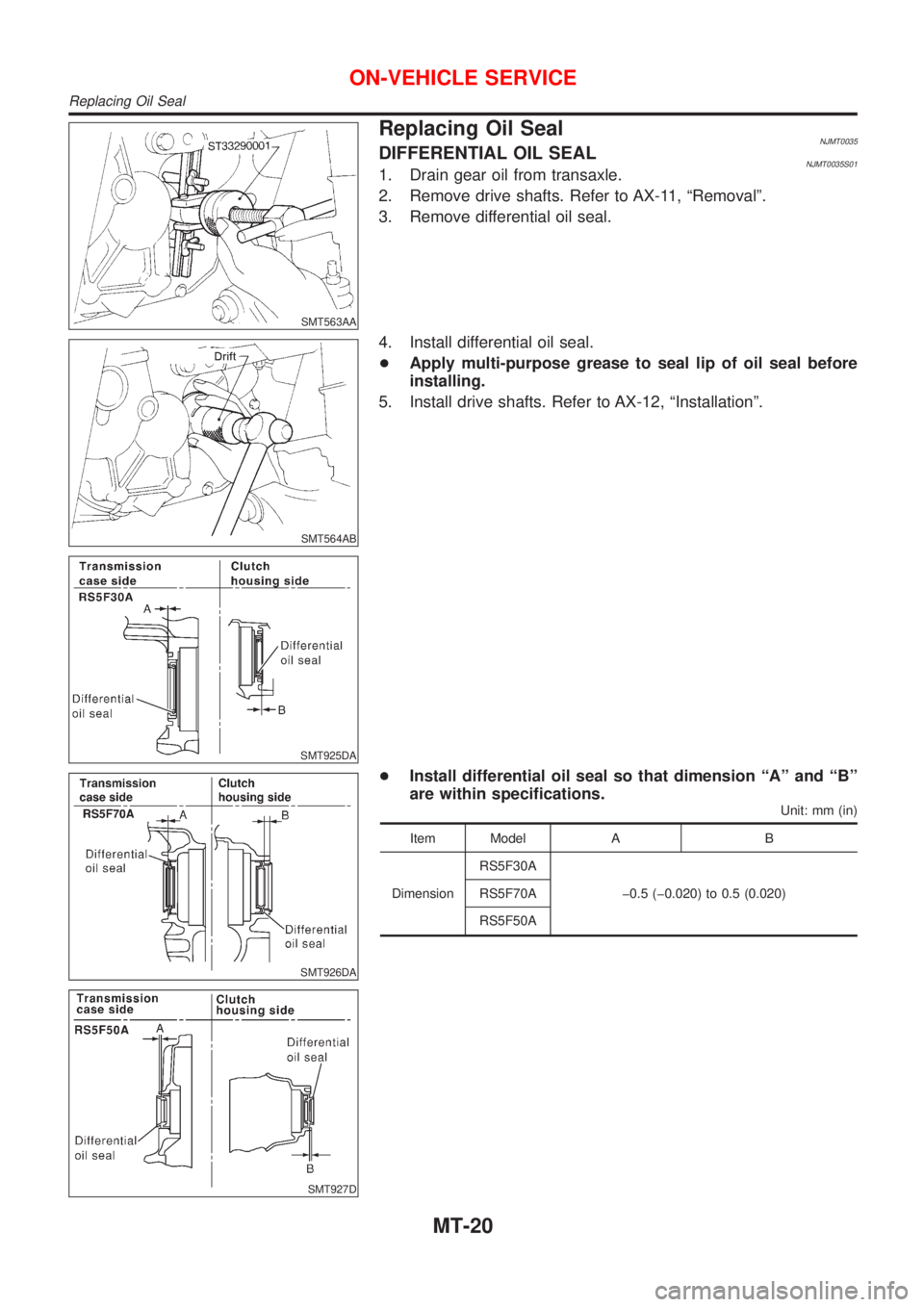

NISSAN ALMERA N16 2001 Electronic Repair Manual SMT563AA Replacing Oil SealNJMT0035DIFFERENTIAL OIL SEALNJMT0035S011. Drain gear oil from transaxle. 2. Remove drive shafts. Refer to AX-11, ªRemovalº. 3. Remove differential oil seal. SMT564AB SMT9

Page 1071 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual SMT143DC STRIKING ROD OIL SEALNJMT0035S021. Remove transaxle control rod from yoke. 2. Remove retaining pin of yoke. +Be careful not to damage boot. SMT566A 3. Remove striking rod oil seal. SMT570A 4.

Page 1072 of 2493

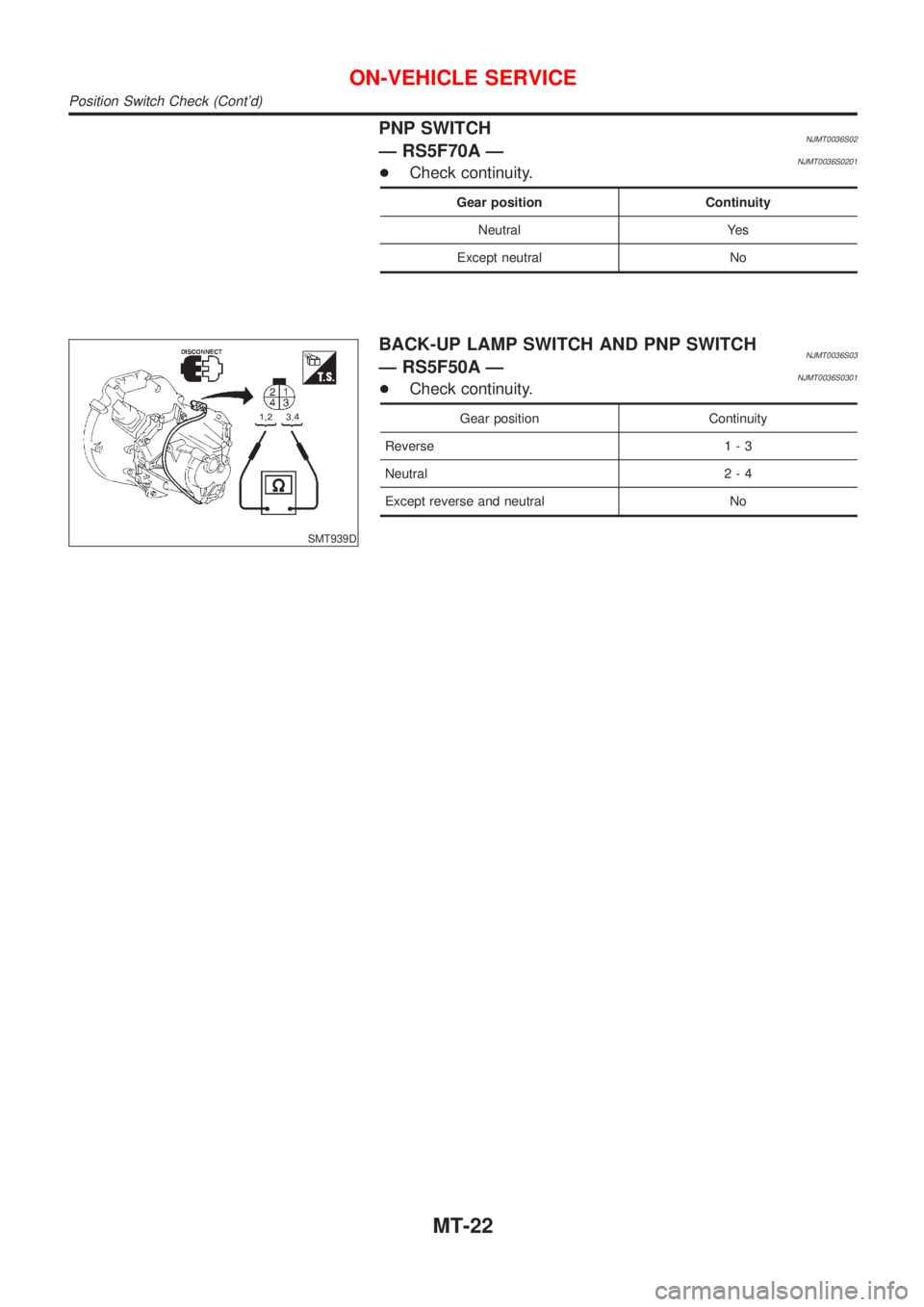

NISSAN ALMERA N16 2001 Electronic Repair Manual PNP SWITCHNJMT0036S02Ð RS5F70A ÐNJMT0036S0201+Check continuity. Gear position Continuity Neutral Yes Except neutral No SMT939D BACK-UP LAMP SWITCH AND PNP SWITCHNJMT0036S03Ð RS5F50A ÐNJMT0036S0301
