Page 2361 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual DIAGNOSTIC PROCEDURE 3=NJEL0411S07Self-diagnostic results: ªDIFFERENCE OF KEYº displayed on CONSULT-II screen 1 CONFIRM SELF-DIAGNOSTIC RESULTS Confirm SELF-DIAGNOSTIC RESULTS ªDIFFERENCE OF KEYº

Page 2362 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual DIAGNOSTIC PROCEDURE 4=NJEL0411S08Self-diagnostic results: ªCHAIN OF IMMU-KEYº displayed on CONSULT-II screen 1 CONFIRM SELF-DIAGNOSTIC RESULTS Confirm SELF-DIAGNOSTIC RESULTS ªCHAIN OF IMMU-KEYº

Page 2363 of 2493

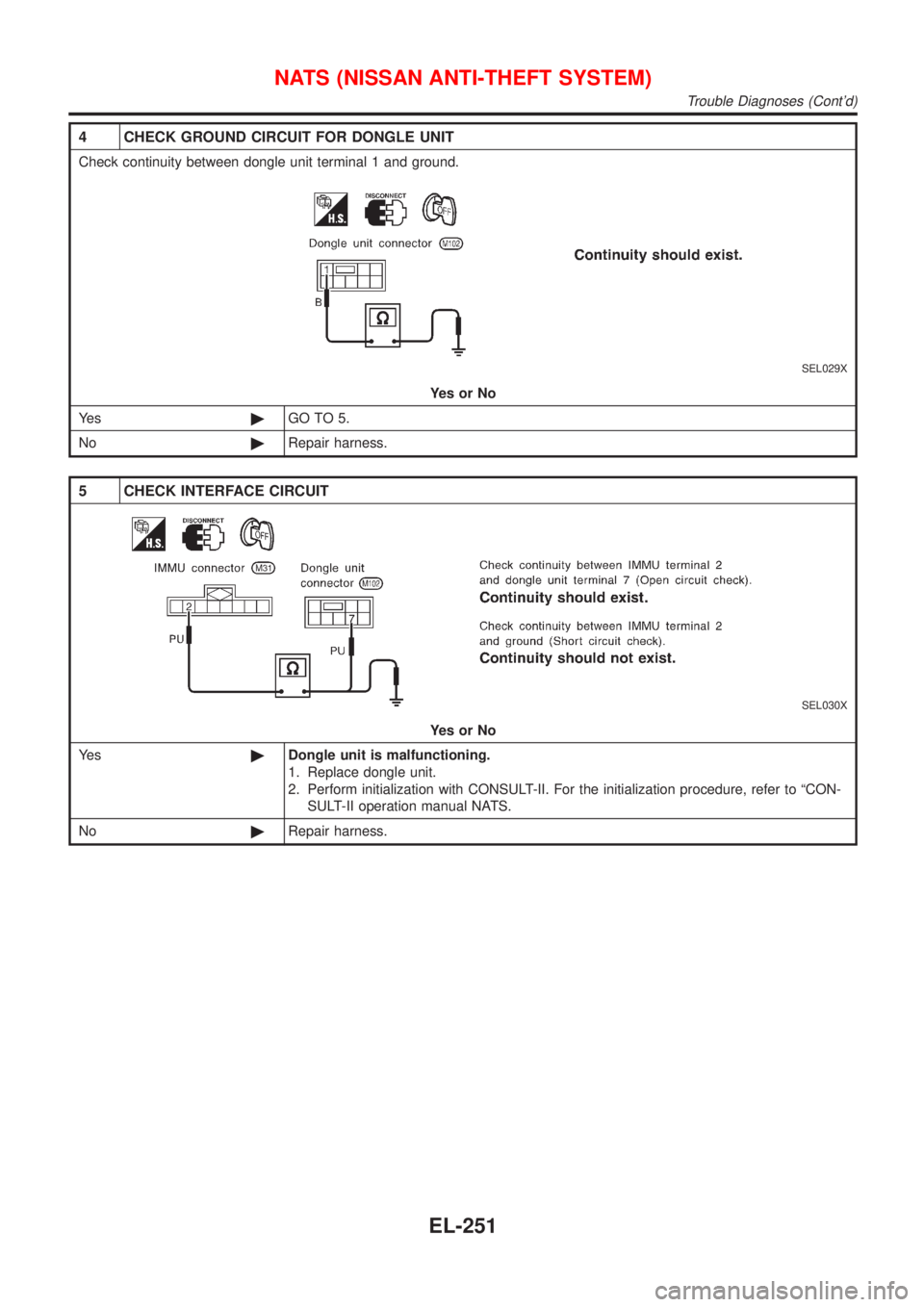

NISSAN ALMERA N16 2001 Electronic Repair Manual 4 CHECK GROUND CIRCUIT FOR DONGLE UNIT Check continuity between dongle unit terminal 1 and ground. SEL029X YesorNo Ye s©GO TO 5. No©Repair harness. 5 CHECK INTERFACE CIRCUIT SEL030X YesorNo Ye s©Do

Page 2364 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual DIAGNOSTIC PROCEDURE 5=NJEL0411S09Self-diagnostic results: ªID DISCORD, IMM-ECMº displayed on CONSULT-II screen 1 CONFIRM SELF-DIAGNOSTIC RESULTS Confirm SELF-DIAGNOSTIC RESULTS ªID DISCORD, IMM-EC

Page 2365 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual DIAGNOSTIC PROCEDURE 6=NJEL0411S10ªSECURITY INDICATOR LAMP DOES NOT LIGHT UPº 1 CHECK FUSE Check 10A fuse [No. 12, located in the fuse block (J/B)]. Is 10A fuse OK? Ye s©GO TO 2. No©Replace fuse.

Page 2366 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual 5 CHECK IMMU FUNCTION 1. Connect IMMU connector. 2. Disconnect combination meter connector. 3. Check continuity between IMMU terminal 6 and ground. YEL810C OK or NG OK©Check harness for open or short

Page 2367 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual DIAGNOSTIC PROCEDURE 7=NJEL0411S11Self-diagnostic results: ªLOCK MODEº displayed on CONSULT-II screen 1 CONFIRM SELF-DIAGNOSTIC RESULTS Confirm SELF-DIAGNOSTIC RESULTS ªLOCK MODEº is displayed on

Page 2368 of 2493

NISSAN ALMERA N16 2001 Electronic Repair Manual 4 PERFORM INITIALIZATION WITH CONSULT-II Perform initialization with CONSULT-II. For initialization, refer to ªCONSULT-II operation manual NATSº. SEL297W NOTE: If the initialization is not completed
